  • VTSYIQI GM-268 Paint Gloss Meter Glossmeter 20º 60º 85º

VTSYIQI

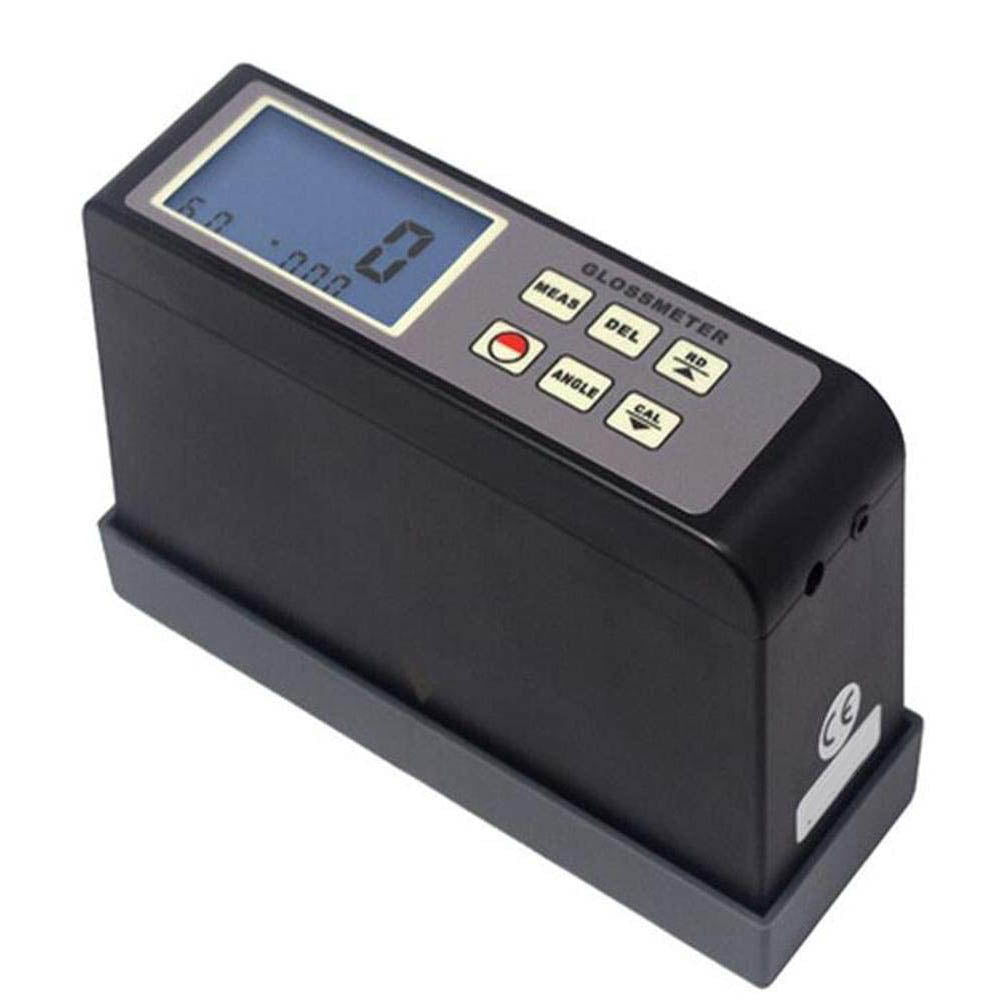

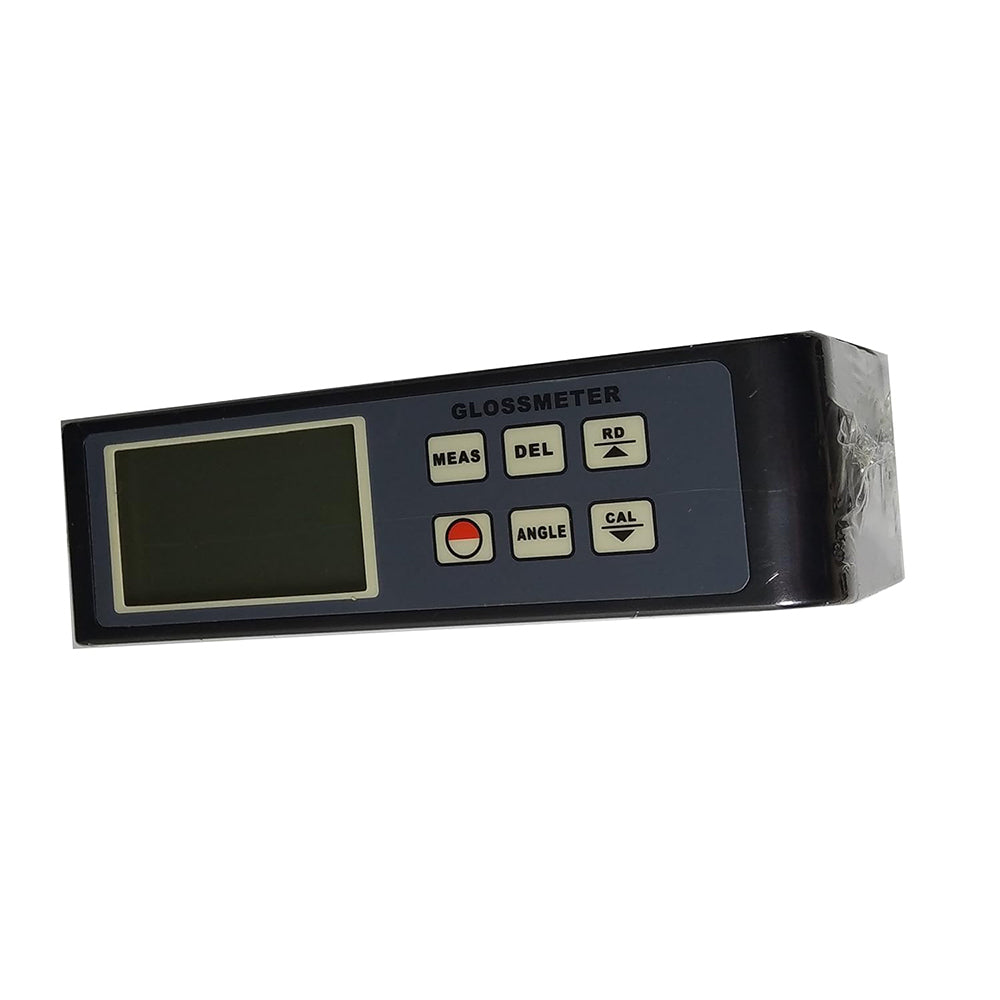

VTSYIQI GM-268 Paint Gloss Meter Glossmeter 20º 60º 85º

$39900
In stock
$39900

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

  • * In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
  • * Accurate measurement, good repetitveness. * Small in size, easy to carry.
  • * Auto calibration. * Intelligent design, rapid measurement.
  • * Able to store 254 groups of measurements. * Built-in lithium ion rechargeable battery.
  • * Backlight display, suitable for low light environment. * Use USB data output and RS-232 data output to connect with PC. * Provide Bluetooth data output choice.

VTSYIQI 20 60 85 Degree Gloss Meter Glossmeter GM-268 with USB Data Cable and Software

Introduction:

Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspectionof plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.

Parameters:

Display :4 Digits Backlit LCD

Measuring Geometry: 20 / 60 / 85 Degrees (GM-6: 60 Degrees, GM-26: 20 Degrees and 60 Degrees)

Range :0.1 ~ 200 Gloss Units

Gloss Units: GU

Accuracy: 1.0 GU

Resolution: 0.1 GU

Repeatability: 0.5 GU

Measuring Area: 7 x 14 mm(Ellipse)

Data Memorized :254 Groups

Working Condition: Temperature: 0 - 40 C Humidity: <85 %

Power Supply :3.7 V Built-in Lithium Ion Rechargeable Battery

Dimensions :140 x 45 x 75 mm

Weight :305 g (Including Fitted Batteries)

Standard accessories:

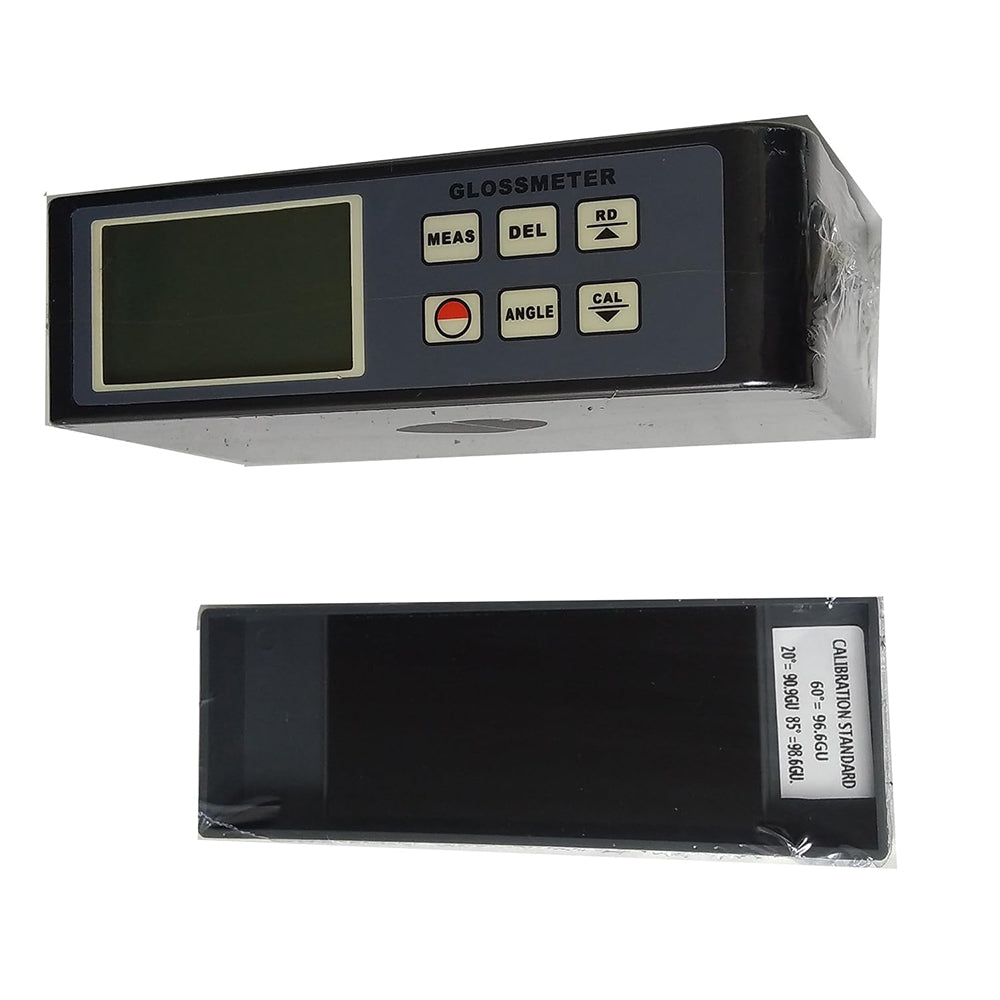

1. Main Unit

2. Holder With Calibration Standard

3. AC Adapter

4. Optical Cleaning Cloth

5. Carrying Case(B07)

6. Operation Manual
