  • VTSYIQI Micro Aperture Glossmeter Small Aperture Gloss Meter for Metal Pliastic Surface Gloss Test with Measuring Aperture 2 * 3mm Test Range 0 to 600GU JJG 696 Standard

VTSYIQI

VTSYIQI Micro Aperture Glossmeter Small Aperture Gloss Meter for Metal Pliastic Surface Gloss Test with Measuring Aperture 2 * 3mm Test Range 0 to 600GU JJG 696 Standard

$51600
In stock
$51600

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI Micro Aperture Glossmeter Small Aperture Gloss Meter for Metal Pliastic Surface Gloss Test with Measuring Aperture 2 * 3mm Test Range 0 to 600GU JJG 696 Standard

About this item

◆ Digital Gloss meter Test Angle: 60 degree; Different test modes to meet the need of different requirement from customers.(Test modes: Simple and Statistic Mode)

◆ Digital Gloss meter Glossmeter Measurement Aperture (mm): 2x3mm; Small aperture gloss meter, optimizes light source and adopts dual optical paths which highly improves measurement accuracy and repeatability

◆ Digital Gloss meter Handheld Gloss Measuring Stability: 0-100GU: 0.1GU; 100-600 GU:1GU; Optimal design of the light source ensures the test result stability from the beginning of the measurement

◆ Digital Gloss meter Data storage: 100 standard samples; 10000 test samples; Accuracy: Conform to JJG 696 standard for first class gloss meter

◆ Digital Gloss meter Powerful PC Software: Instrument can connect with PC by USB cable, test result can be transfer into software for future analysis and generate test report.

Introduction:

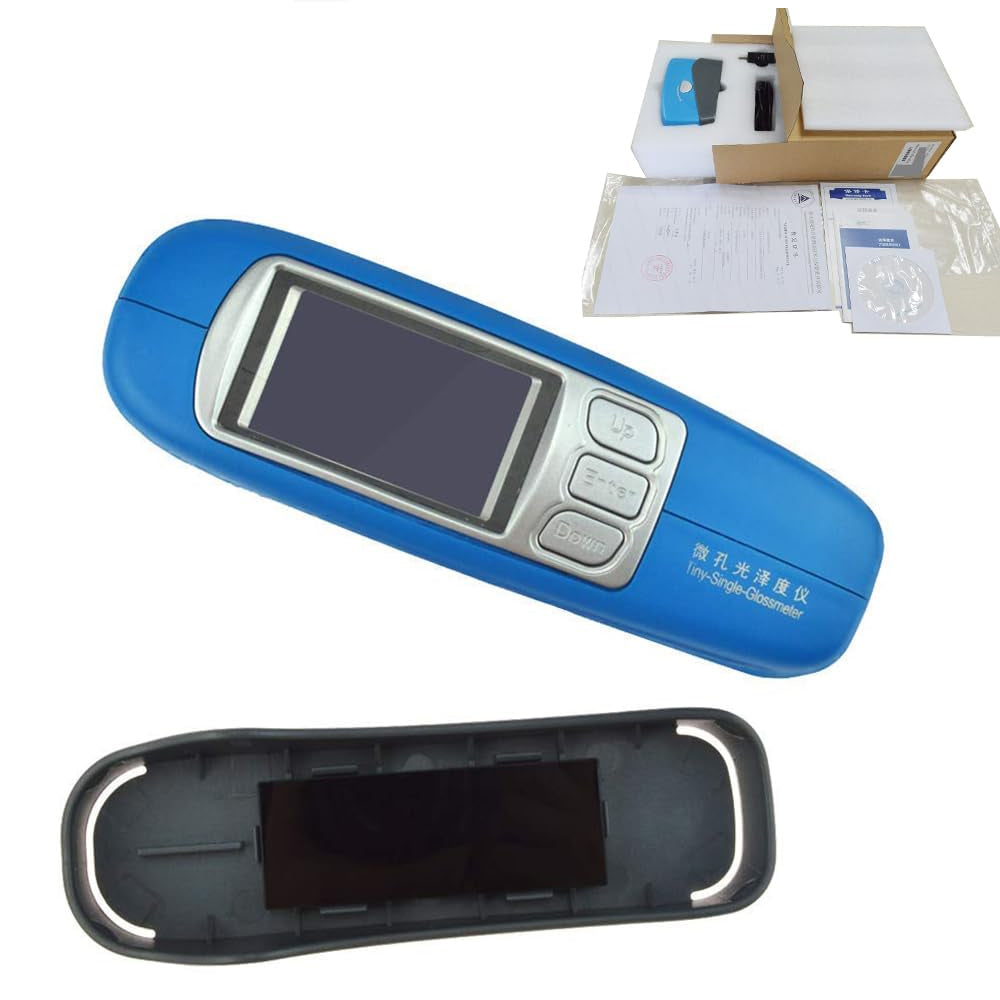

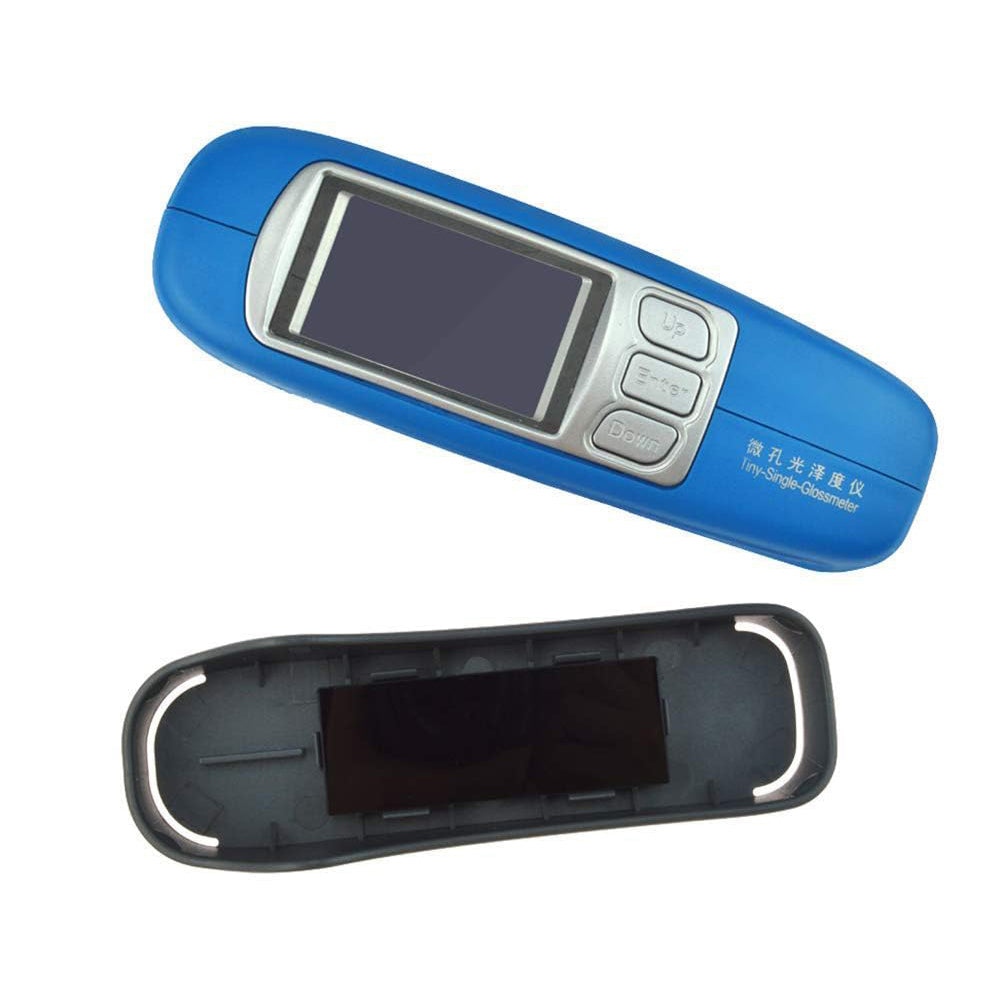

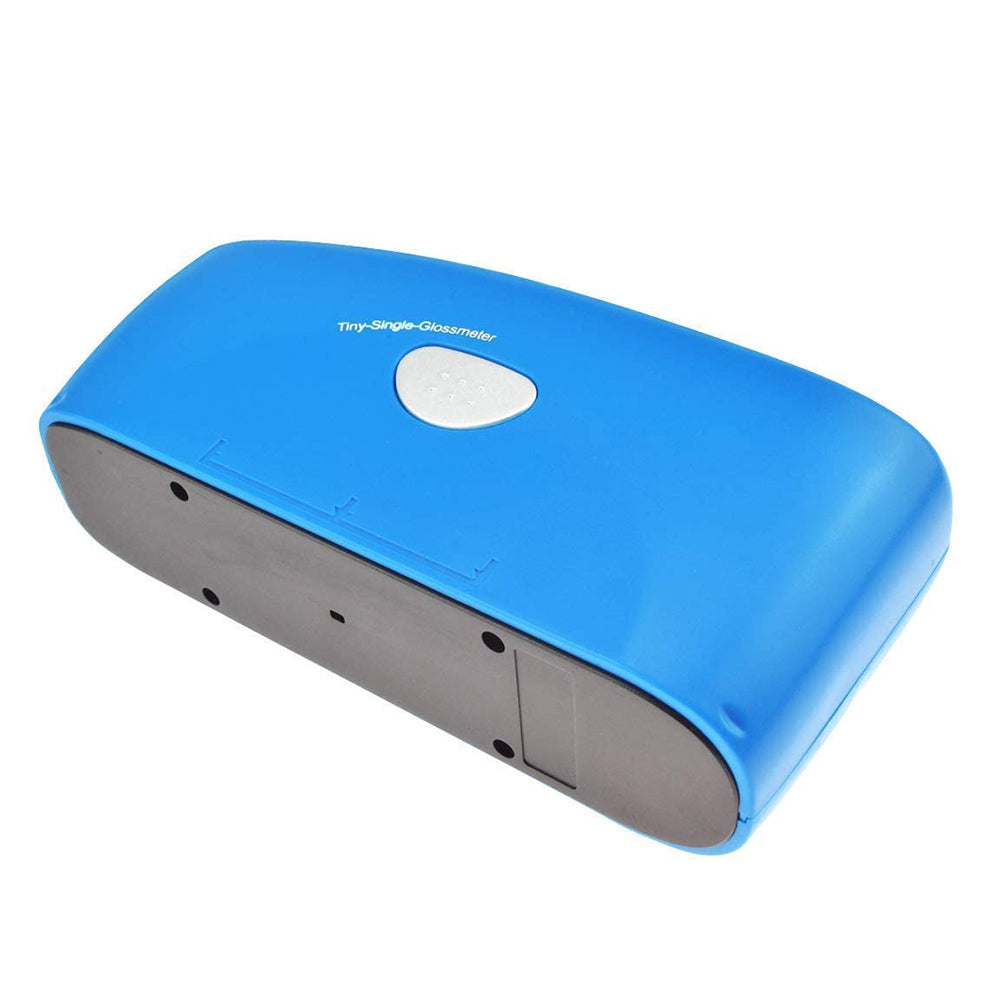

Small aperture gloss meter, optimizes light source and adopts dual optical paths which highly improves measurement accuracy and repeatability.

Technical Specifications

Test Angle: 60 degree

Measurement Aperture (mm): 2x3mm

Test range: 60°:0-600GU

Stability: 0-100GU: 0.1GU; 100-600 GU:1GU

Test modes: Simple and Statistic Mode

Repeatability: 0-100GU:0.2 GU; 100-2000GU:0.2% GU

Accuracy: Conform to JJG 696 standard for first class gloss meter

Test time: Less than 1s

Data storage: 100 standard samples; 10000 test samples

Size(mm): 165*51*77 (L*W*H)

Weight: About 400g

Language: Chinese and English

Battery capacity: 3000mAh lithium battery

Port:USB

PC Software: Include

Working Temperature: 0-40℃

Working Humidity: <85%, no condensation

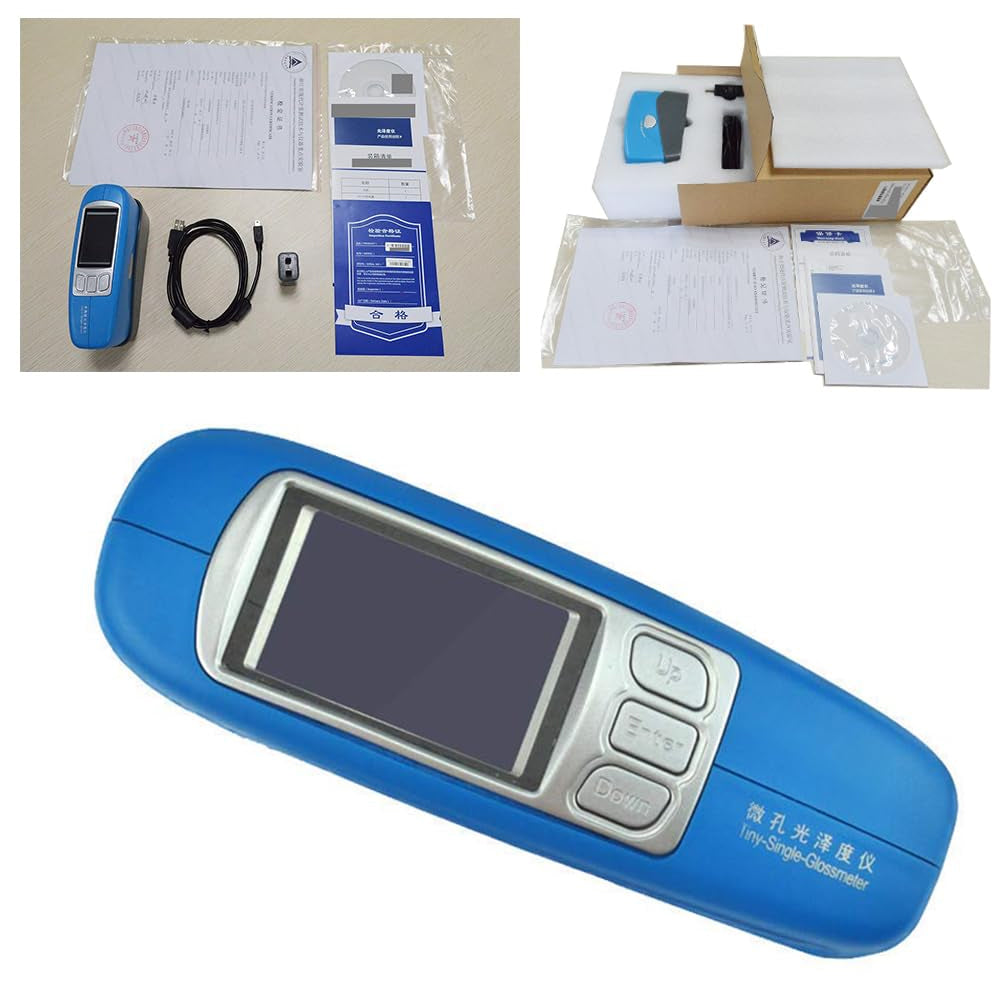

Accessories: main unit,, 5V/1A charger, USB cable, operating manual, software CD, calibration tile, verification certification

Features

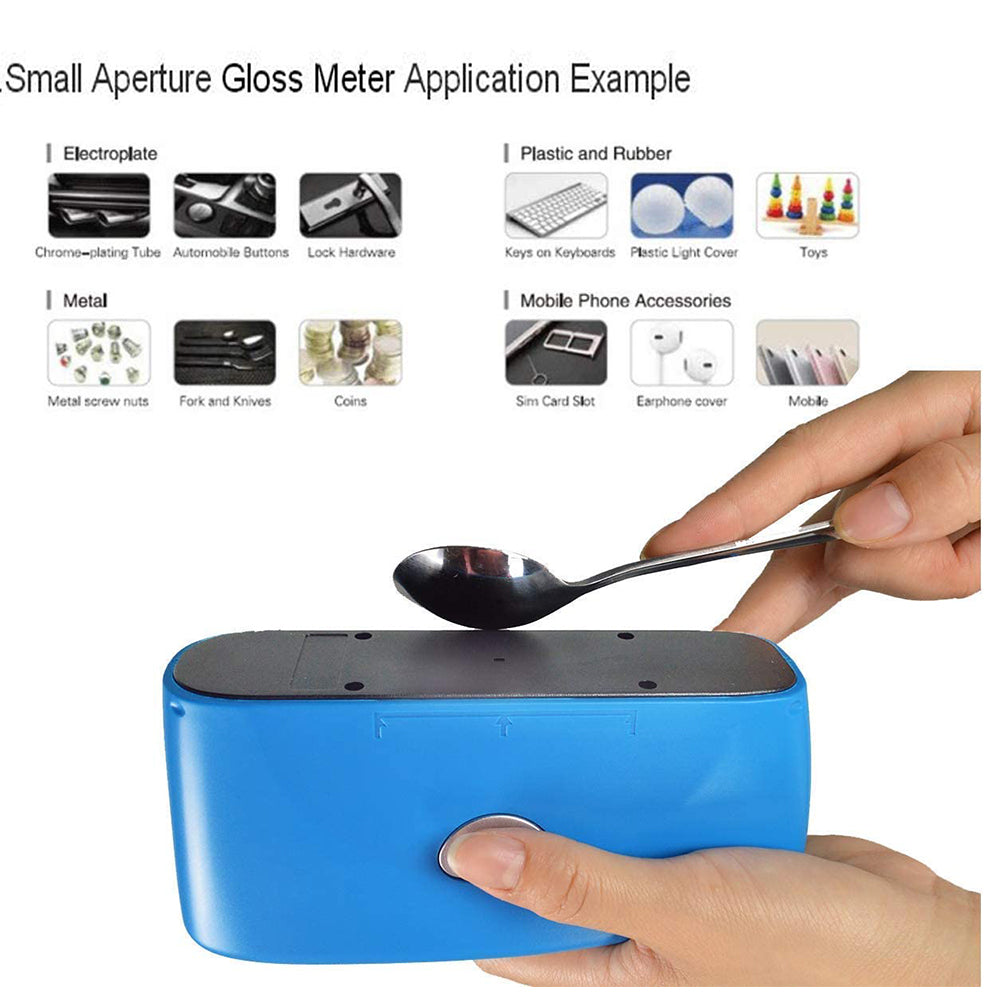

1). Extra Small Measurement Aperture, 2*3mm measurement aperture makes it suitable to measure gloss for curve and irregular objects.

2). International Leading Repeatability: Optimal design of the light source ensures the test result stability from the beginning of the measurement.; Dual-optical path technology, ensure accuracy for every gloss detection

3). Different test modes to meet the need of different requirement from customers. Instrument is with both simple and statistic test modes.

Simple Mode: display the gloss test result Statistic Mode: Compare gloss difference between target and standard samples.

4). Powerful PC Software: Instrument can connect with PC by USB cable, test result can be transfer into software for future analysis and generate test report.

5).Large Battery Capacity: We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH.
