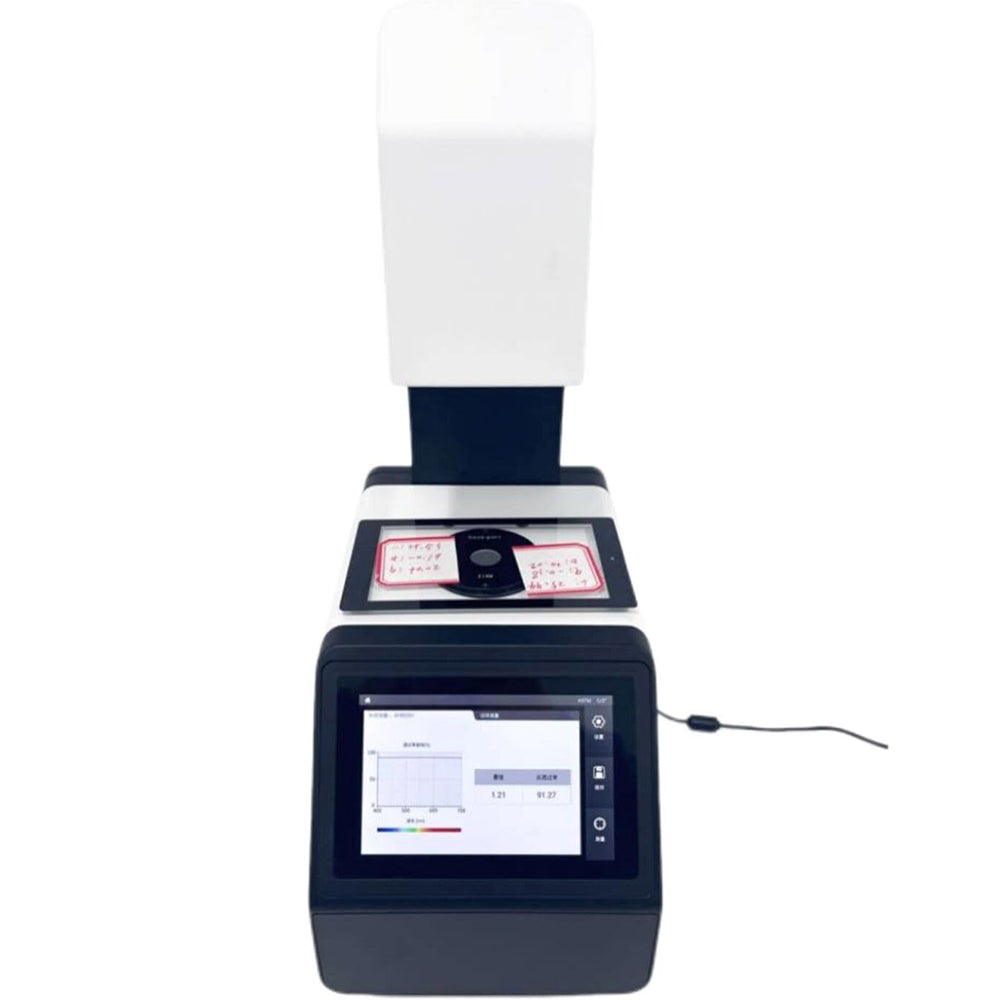

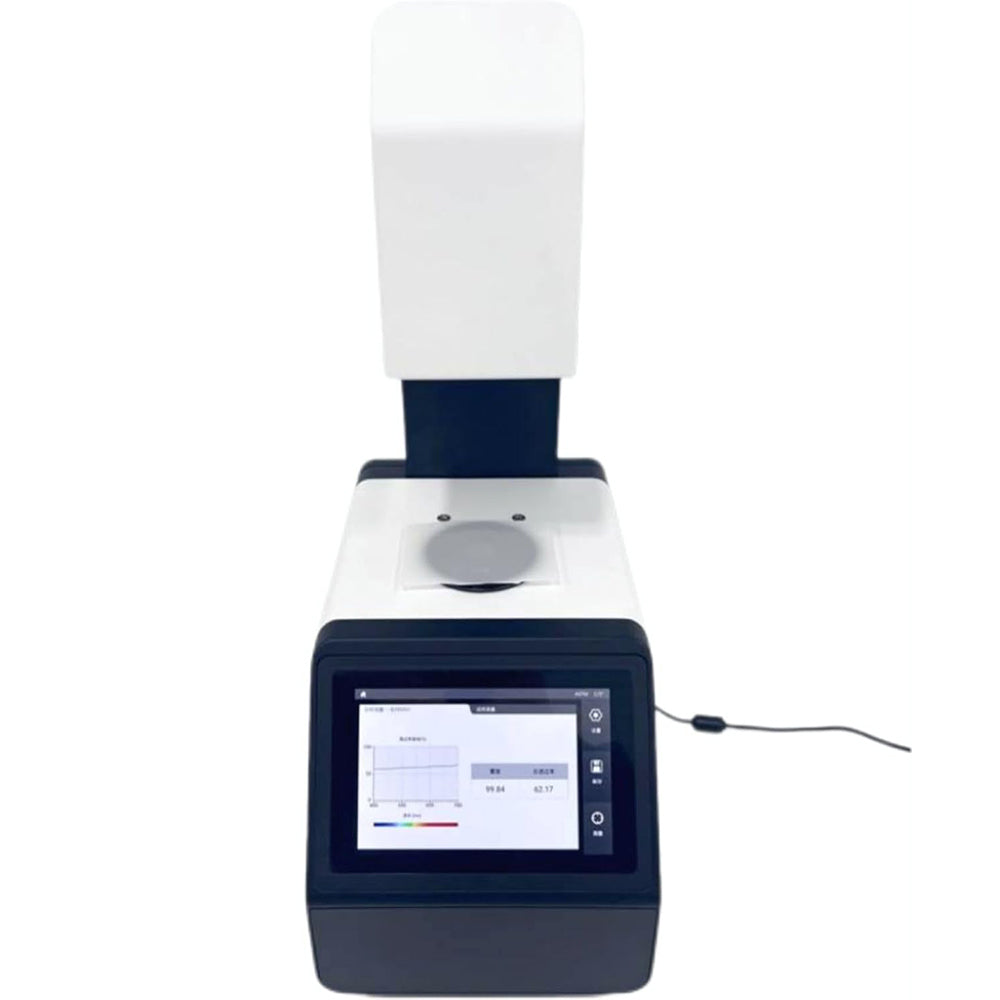

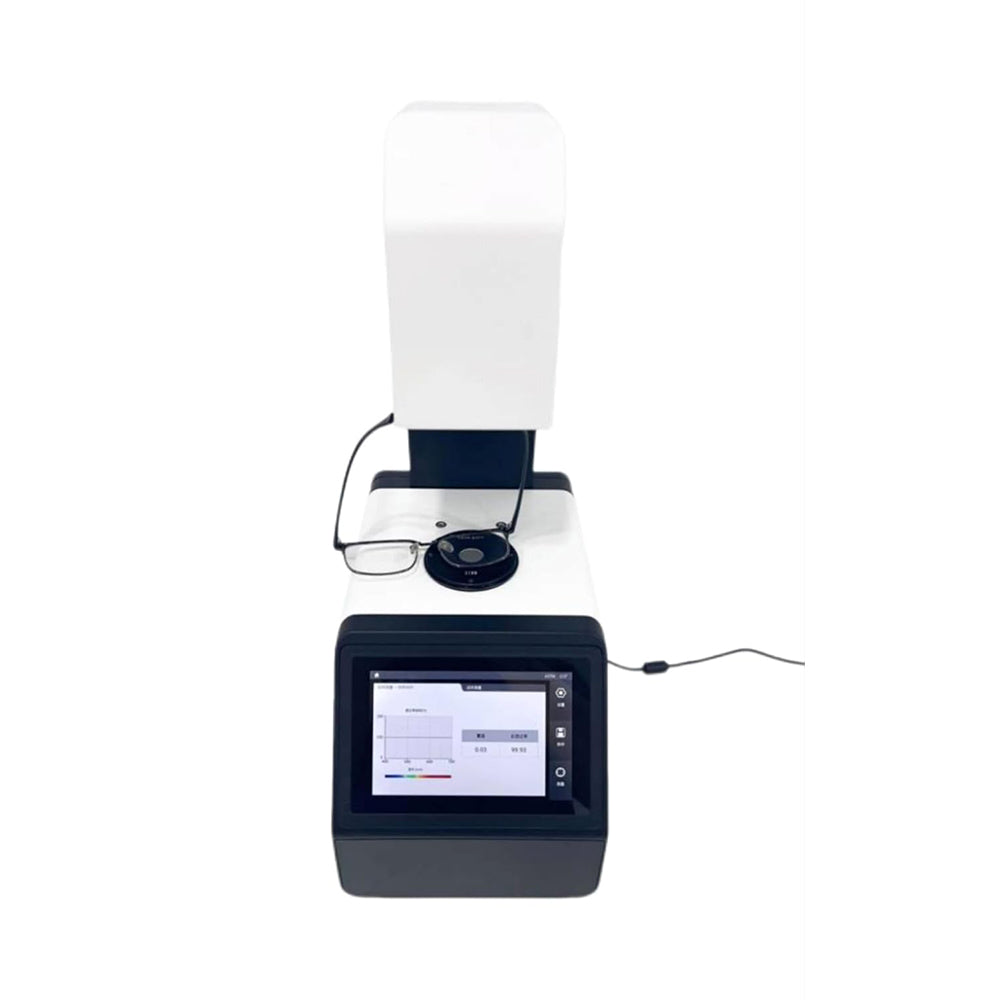

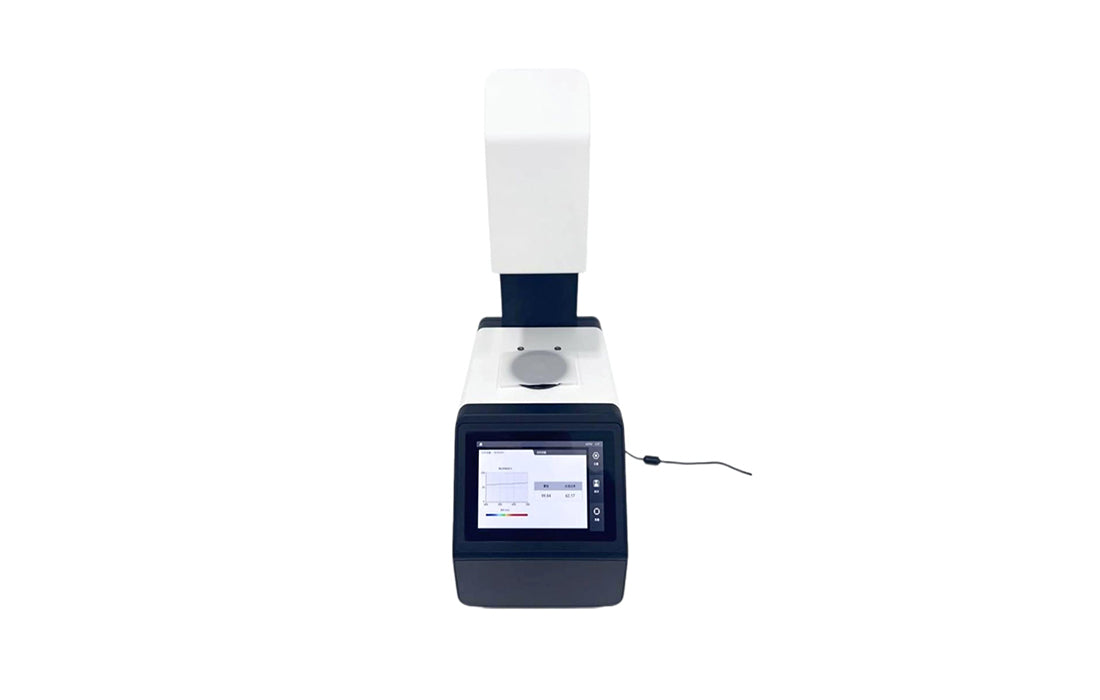

VTSYIQI Color Hazemeter Color Haze Meter Transparency and Haze Meter Film Plastic Glass Hazemeter with Φ21mm Φ7mm Apertures Repeatability ≤0.03 Resolution 0.01% USB Interface 7-inch Touch Screen

About this item

Supports both ASTM and ISO standards

Can measure color difference, haze, transmittance, transmittance spectrum curve, liquid chromaticity

7-inch large touch screen

Professional transmittance spectrum curve

The instrument has good repeatability, haze repeatability ≤ 0.03, transmittance repeatability ≤ 0.03, color difference repeatability ≤ 0.03, comparable to imported brands.

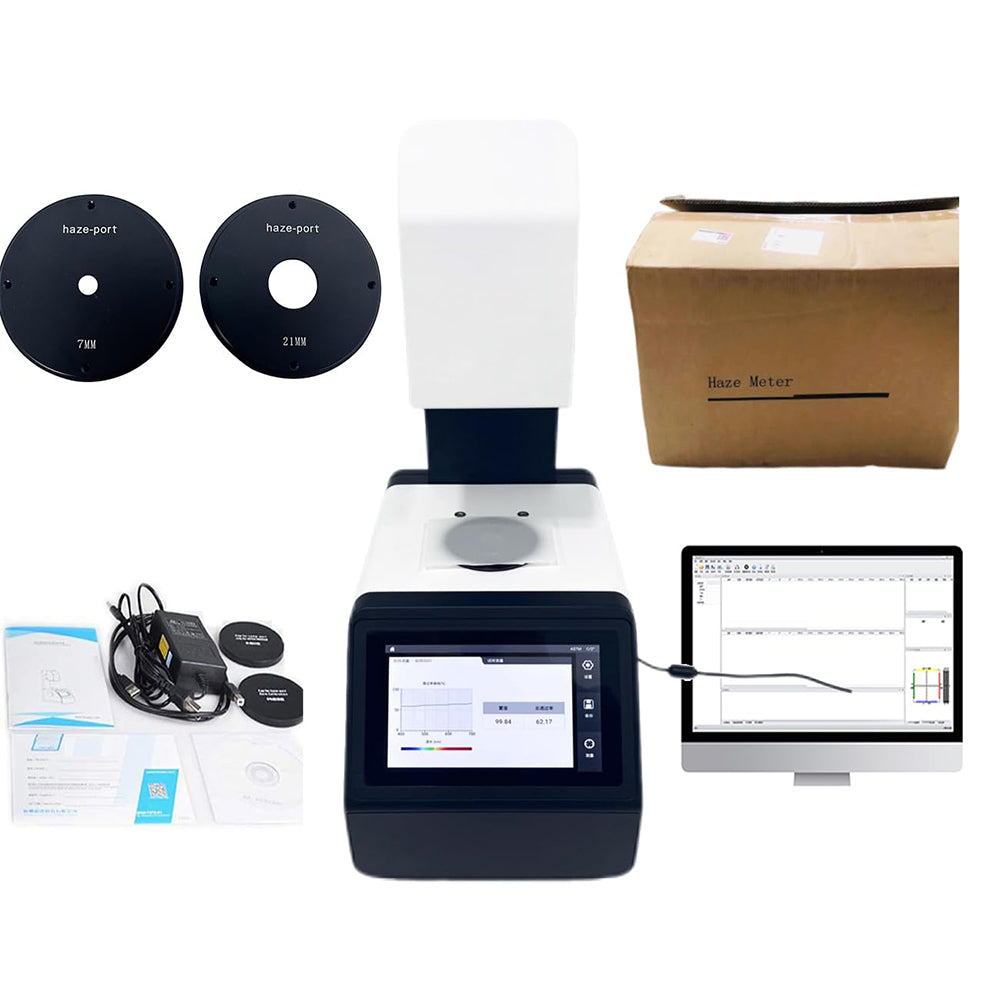

The instrument adopts a dual-aperture design of 21mm and 7mm, and the appropriate test aperture can be selected according to the size of the material being tested

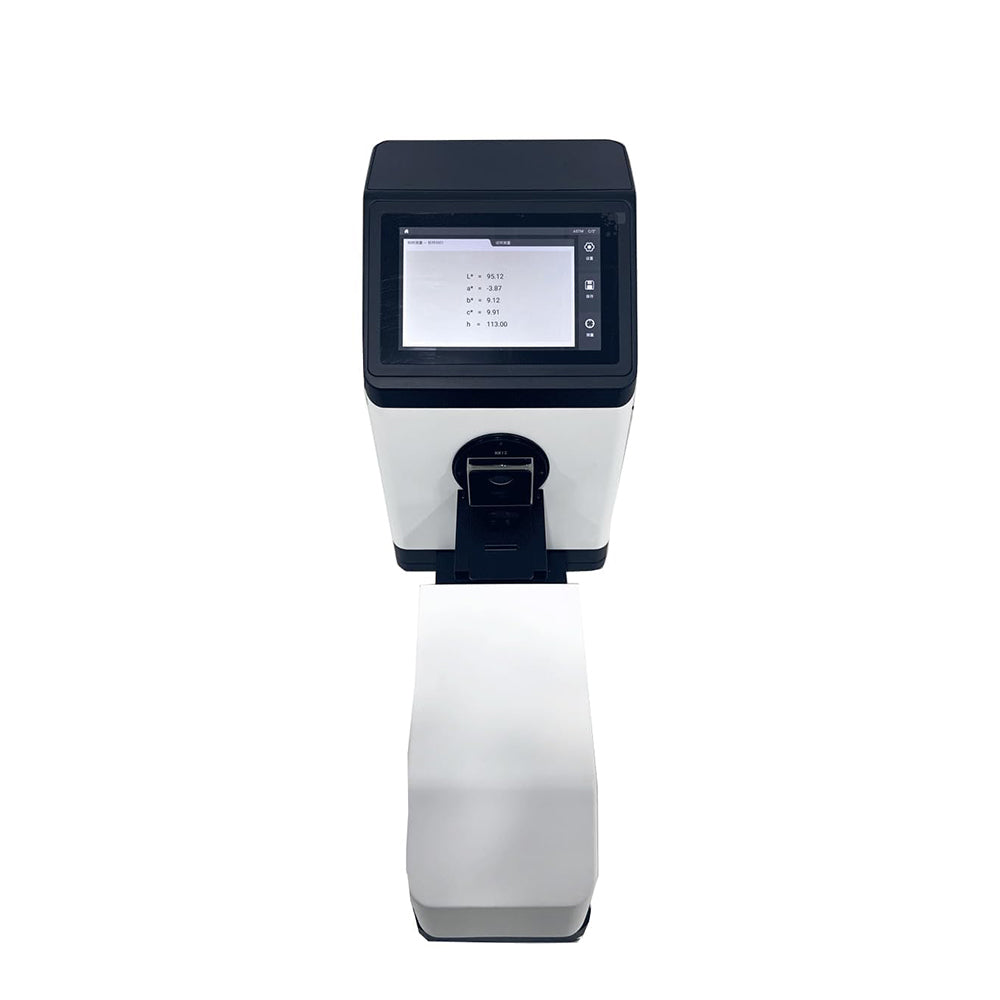

The instrument has an open measurement area and two measurement states: vertical and horizontal. When placed horizontally, it can be used with a positioning bracket.

Product Introduction

The color haze meter is designed with a full-spectrum LED light source and a spectral sensor.

It is used to measure the haze, transmittance, color difference, platinum-cobalt chromaticity, yellowness, whiteness and other parameters of various transparent and translucent materials such as plastics, glass, and films, and can display the transmittance spectrum curve.

The instrument uses a 7-inch touch screen design, which is simple and convenient to operate.

The color haze meter uses an open measurement area with two measurement states: horizontal and vertical.

It can detect liquids and large-sized materials.

The color haze meter also uses a dual-caliber design of 21mm and 7mm, so small-sized materials can also be measured.

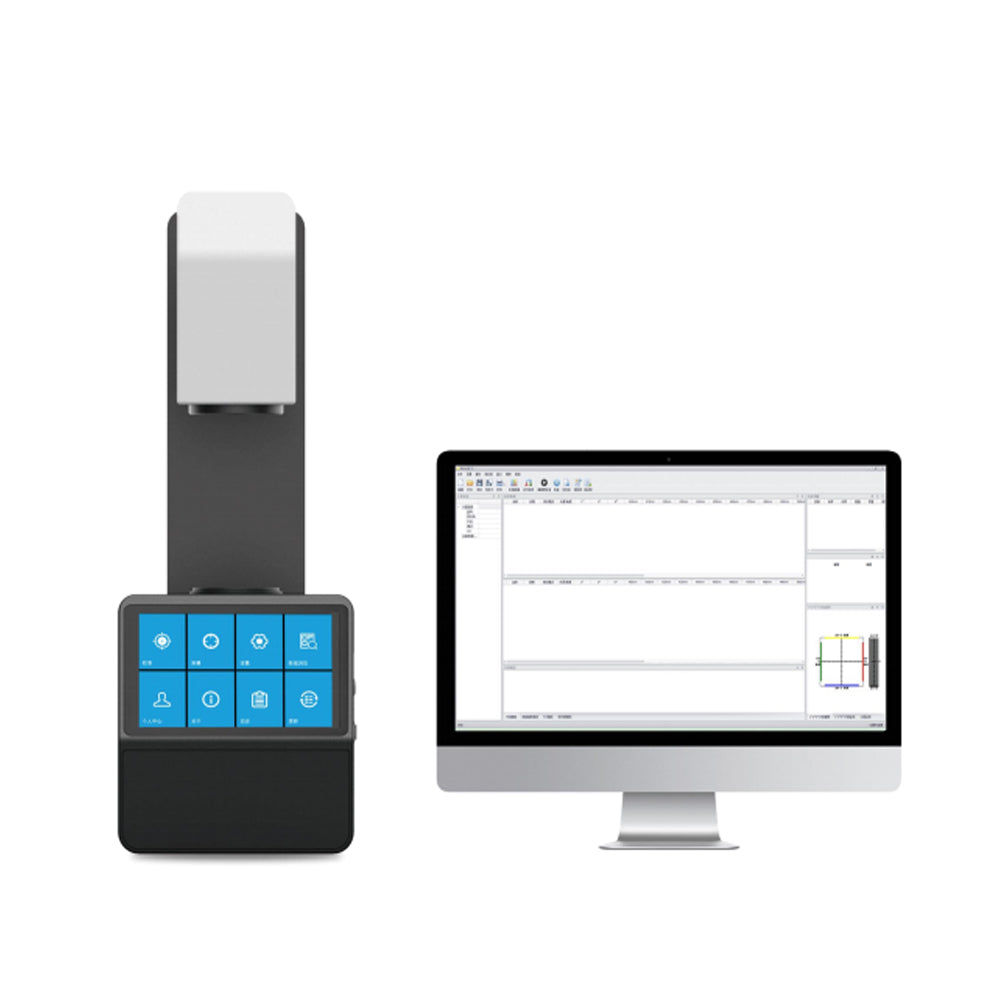

The instrument is equipped with PC software to support data export and report printing.

Products meet the standards:：

JJF 1303-2011 Haze meter calibration specification

GBT 2410-2008 Determination of light transmittance and haze of transparent plastics

GBT 36142-2018 Measurement method of color and color difference of architectural glass

JJG 595-2002 Verification procedure for colorimeter

GBT 3978-2008 Standard lighting body and geometric conditions

GBT 7921-2008 Uniform color space and color difference formula
