VTSYIQI Transparent Hazemeter Touch Screen Haze Meter Transmittance Haze Meter with ASTM Standards 21mm Apertures A C D65 Mass Storage for Haze Luminous Transmittance of Transparent Plastics

Introduction:

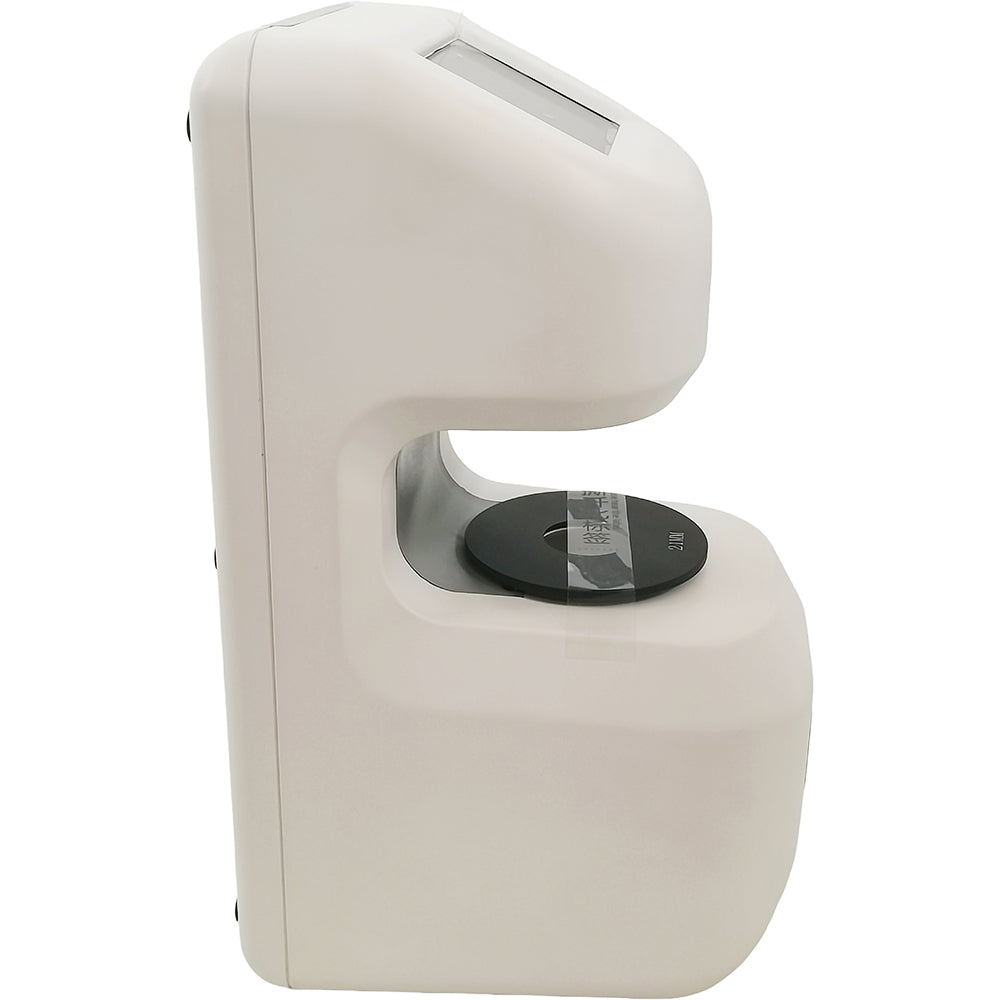

The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

High Accuracy: Display resolution 0.01; Good repeatability ≤0.02

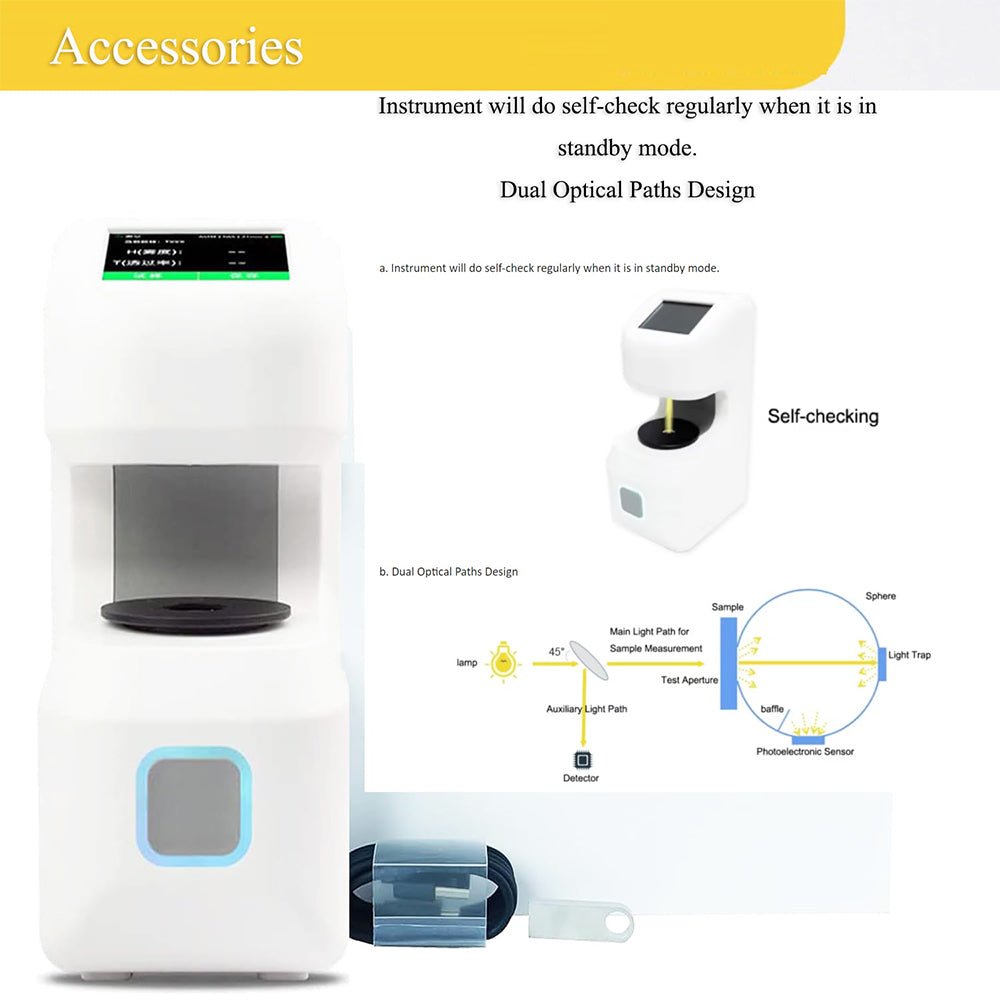

What have we done to guarantee the instrument repeatability? a. Instrument will do self-check regularly when it is in standby mode.b. Dual Optical Paths Design

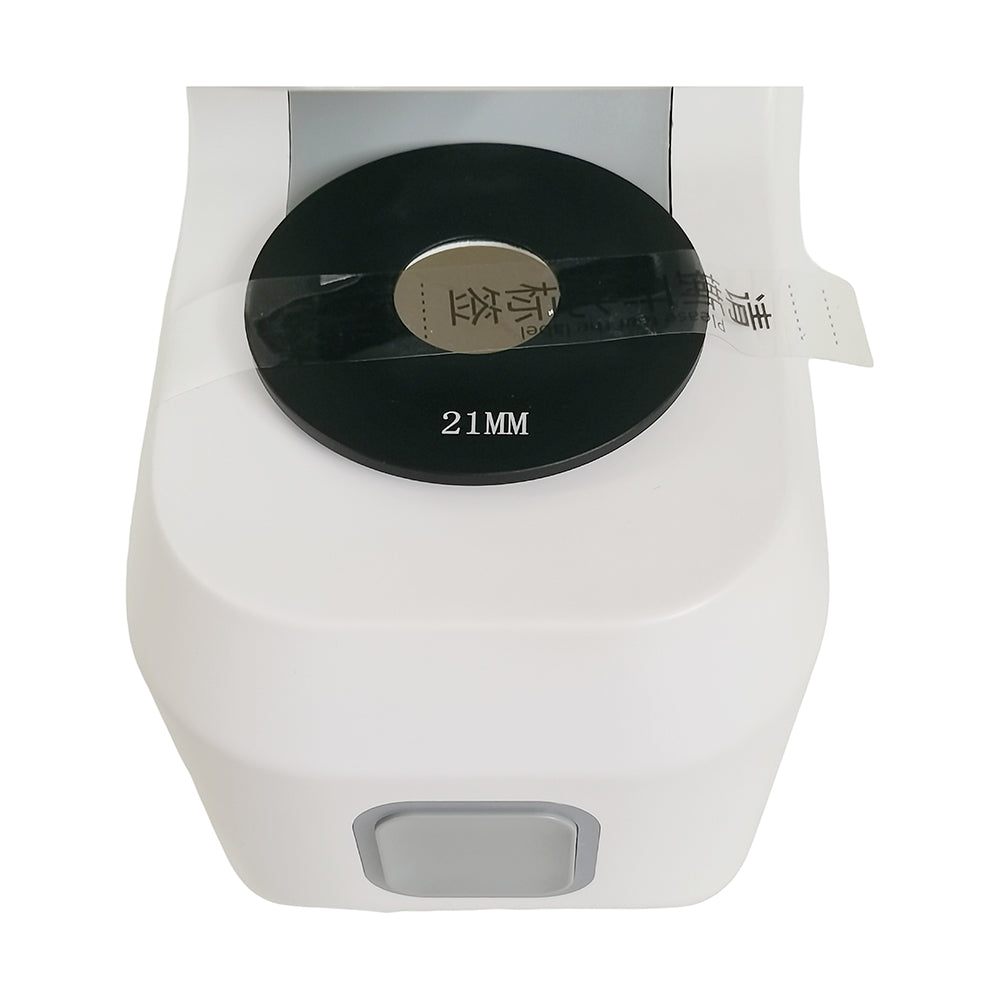

It supports 1 kinds of test apertures 21mm to measure the samples with different sizes.

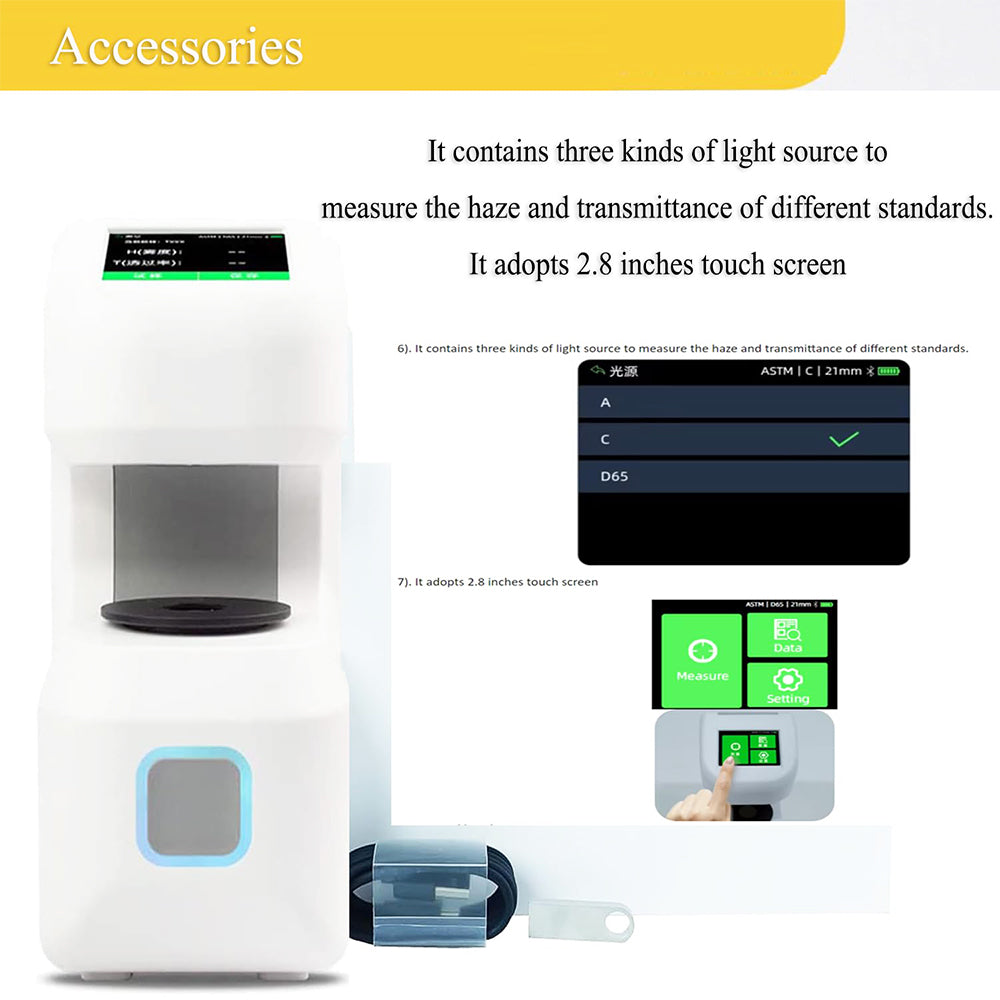

The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.It contains three kinds of light source to measure the haze and transmittance of different standards.It adopts 2.8 inches touch screen

Feature:

Measure aperture:21mm

resolving power:0.1%

Repeatability:0.1

Light Source:CIE-A,CIE-C,CIE-D65

Standards:ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameter:ASTM-haze/transmittance

Spectral Response:CIE The spectrum function Y/V(λ)

Geometry:0/d

Test Aperture :21mm

Test Range:0-100%

Resolution:0.10%

Repeatability:0.1

Sample Size:Thickness ≤40mm

Display:2.8 inches touch screen

Data Storage:Mass Storage

Interface :USB

Power:DC 5V/2A

Working Temperature:5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature:-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

Size :133mm x 99mm x 224mm (length X width X height)

Weight:1.13 kg

Optional :Test Aperture with custom made size
