• Specification:

  ● LCD display of 128×64 matrix is used. ● Hardness scales(HV ,HB,HRC,HRB,HRA,HS).
• ● RS232 interface and USB to PC ● Max 600 groups（impact times:32～1）of data can be stored at internal.
• ● Back light display has been used to make convenient or the user in poor light. ● Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
• ● Material of “cast steel” is added HB values can be read out directly when D/DC impact device is used to measure “cast steel” workpiece.
• ● Power is two of AA battery. Continuous working period: approx. 100 h (no back light on). ● Software of PC can be installed according to the requirements of user. The function will be more powerful to satisfy the more demands of quality control and management.

Specification:

Measuring direction

Support 360º (vertical downward, diagonal downward, horizontal, diagonal upward, vertical upward)

Scope of test

(170-960)HLD,(17.9-69.5)HRC,(19-683)

HB,(80-1042)HV,(30.6-102.6)HS,

(59.1-88)HRA, (13.5-101.7)HRB

Specification:

Hardness system

Richter (HL), Brinell (HB), Rockwell B (HRB), Rockwell

C (HRC), Rockwell A (HRA), Vickers (HV), Shore (HS)

Indication error

±0.5%(HLD=800)

Repeatability of indication:0.8%(HLD=800)

Display

High contrast 128x64 dot matrix LCD display, fine printing Fonts, numbers and symbols, high-brightness EL backlight

Storage:Data group 600 groups

USB storage

Break through the traditional storage model, report storage anytime, anywhere,

No communication software needed, get rid of cable constraints

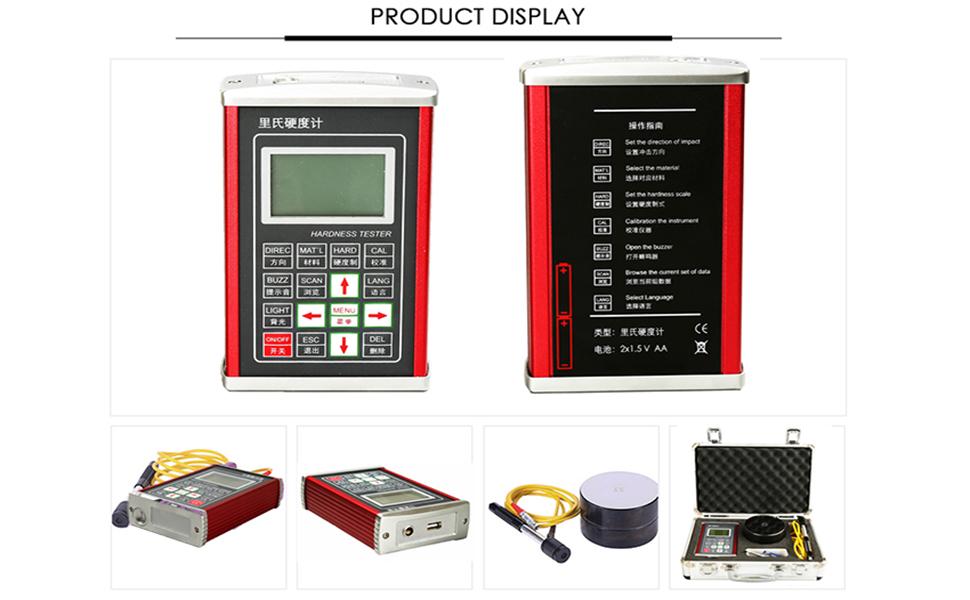

Standard configuration:Instrument host---1 set,D-type impact device-1 pc，D-type impact device-1 pc，Standard Leeb hardness block - 1 block，

Instrument case - 1 set
