  • VTSYIQI Portable Digital Leeb Hardness Tester Gauge Meter with Build in Thermal Printer LCD Display D Type Impact Device Multiple Hardness Scale Range 170-960HLD

VTSYIQI

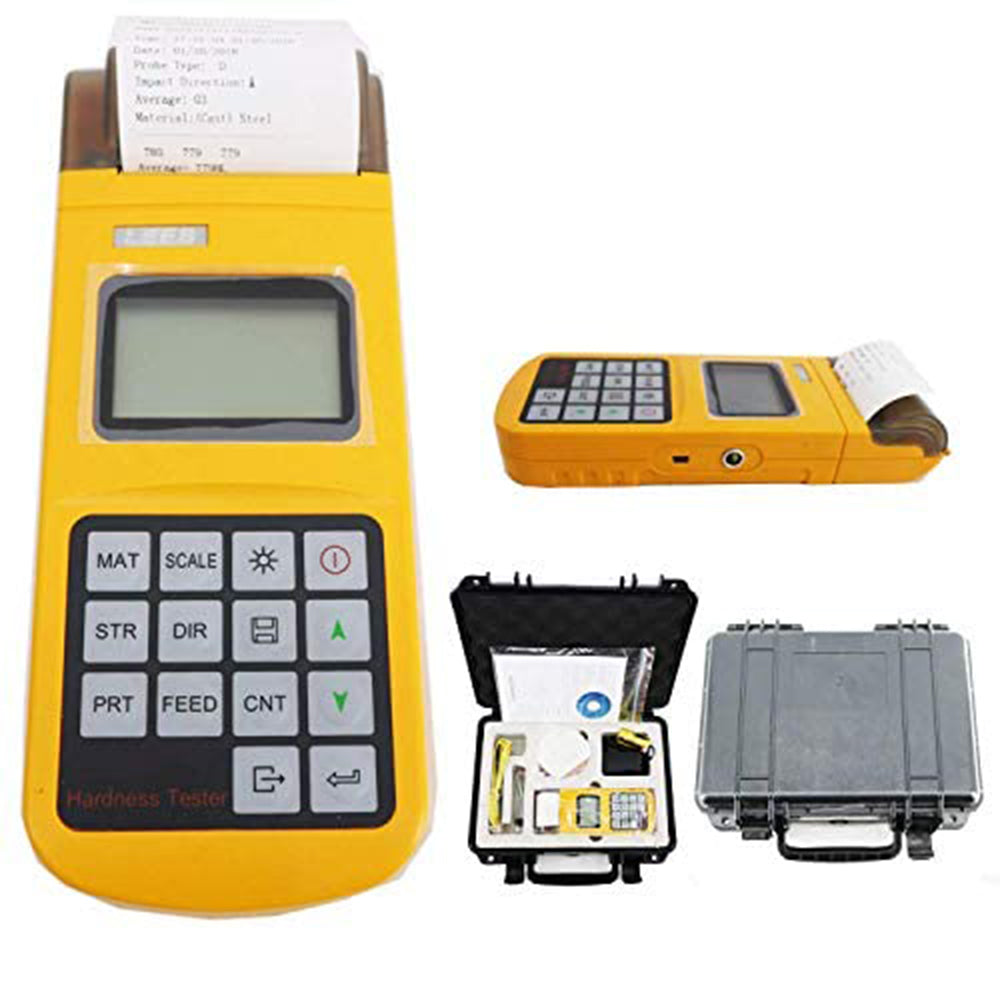

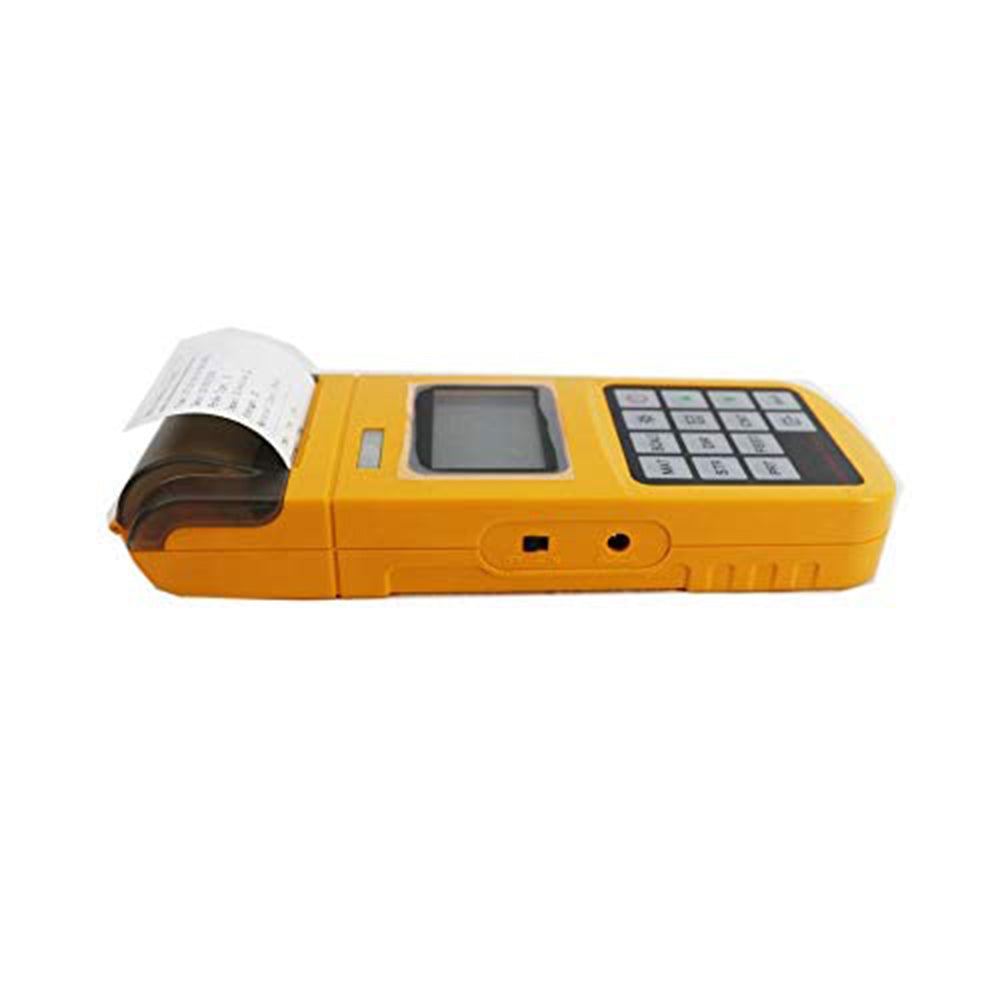

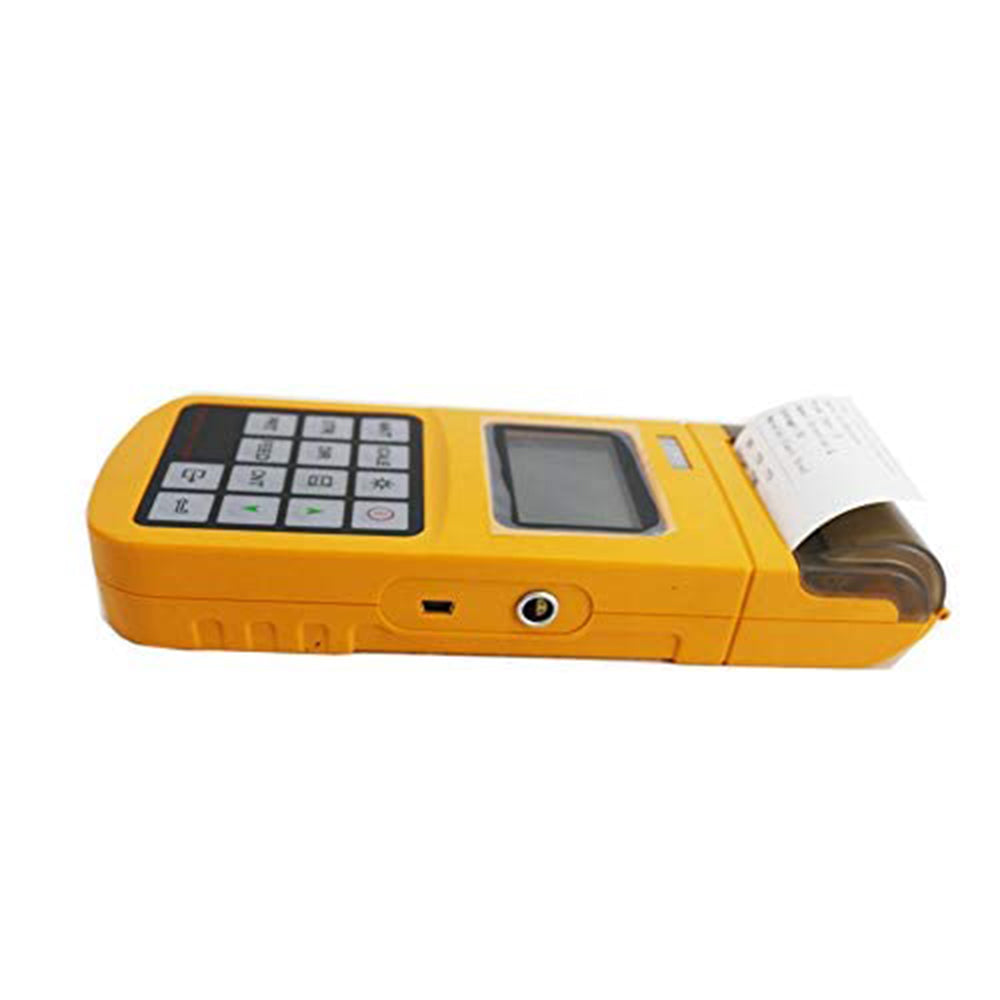

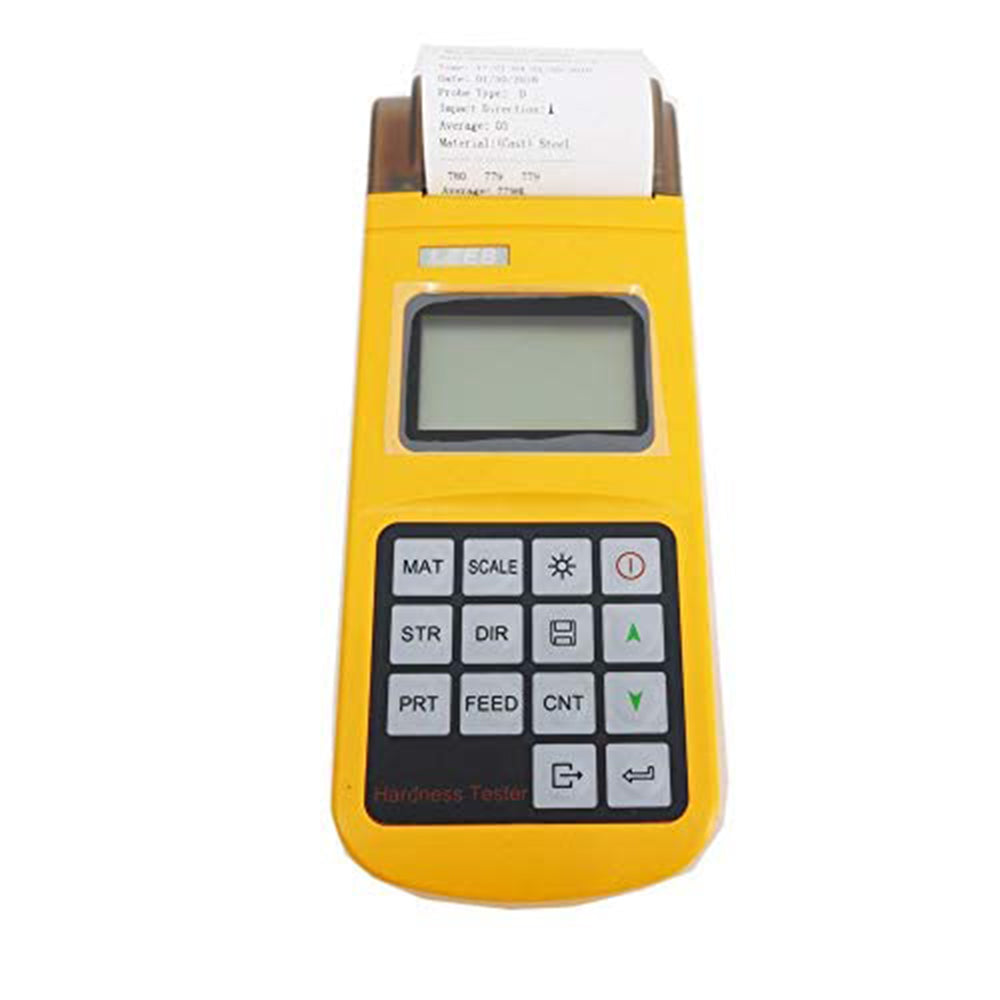

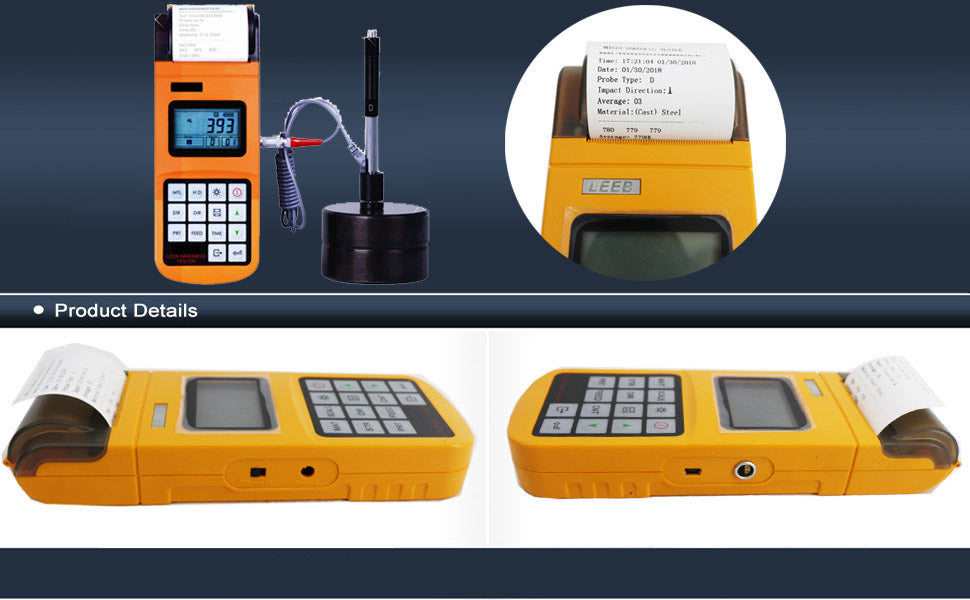

VTSYIQI Portable Digital Leeb Hardness Tester Gauge Meter with Build in Thermal Printer LCD Display D Type Impact Device Multiple Hardness Scale Range 170-960HLD

$61200
In stock
$61200

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

  • Main Application:
  • ★ High brightness EL back-light display for easy use in dimly environment.
  • ★ Automatic sleep and shutdown and other power-saving features
  • ★ Based on the principle of Leeb hardness testing theory. It can measure many metallic material
  • ★ Measuring range：（170～960）HLD, Resolution Accuracy：±6HLD，±1HRC，±5HB
  • ★ Real-time display the remaining battery power, charging progress is displayed while charging.

Main Application:

1.Die cavity of molds

2.Bearings and other parts

3.Failure analysis of pressure vessel, steam generator and other equipment

4.Heavy work piece

5.The installed machinery and permanently assembled parts

6.Testing surface of a small hollow space

7.Material identification in the warehouse of metallic materials

8.Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications:

1.Measuring range：HLD（170～960）HLD

2.Measuring direction：0-360°

3.Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

4.Display：segment LCD

5.Data memory： 100 groups max.（relative to impact times 32～1）6.Printing paper: width is （57.5±0.5）mm, diameter is 30mm

6.Battery pack: 6V NI-MH

7.Battery charger: 9V/500mA

8.Continuous working period：about 150 hours（With backlight off, no printing）

9.Communication interface：USB1.1

10.Outline dimensions: 212mm×80mm×32mm

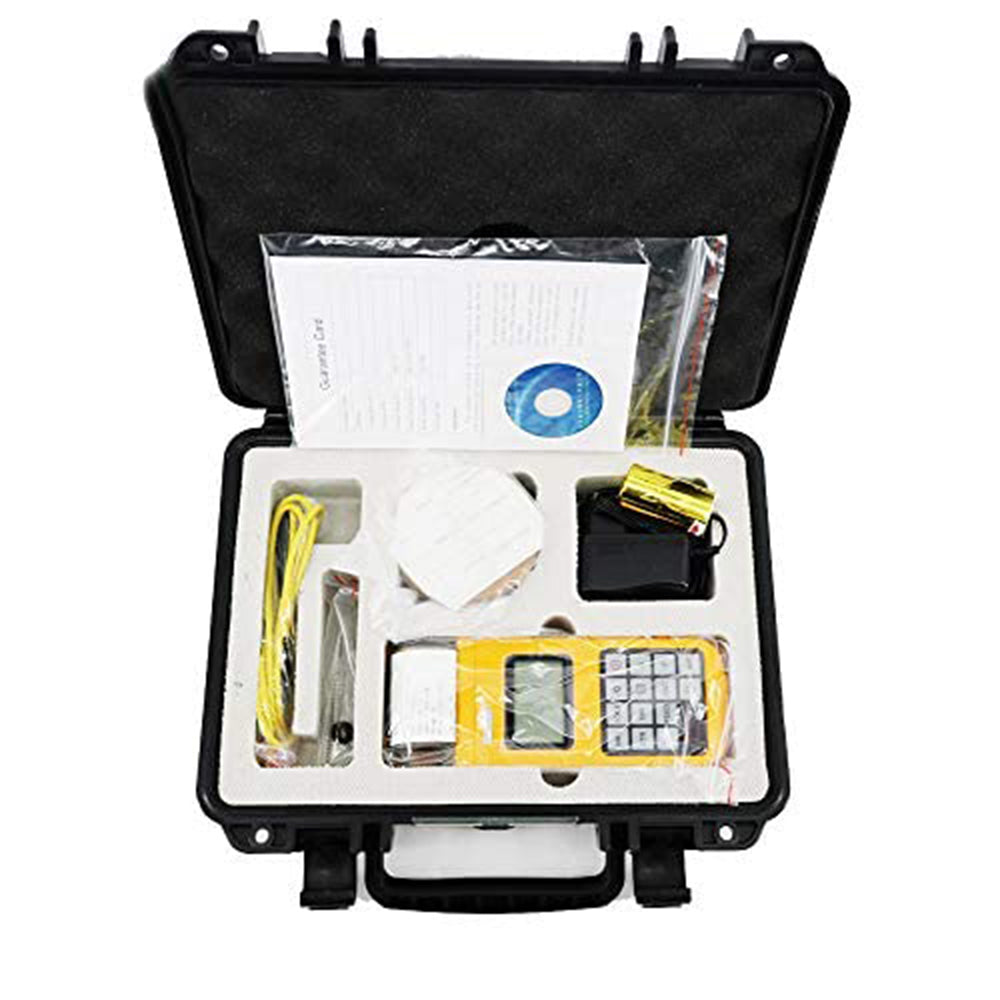

Standard Configuration:

Main Unit;

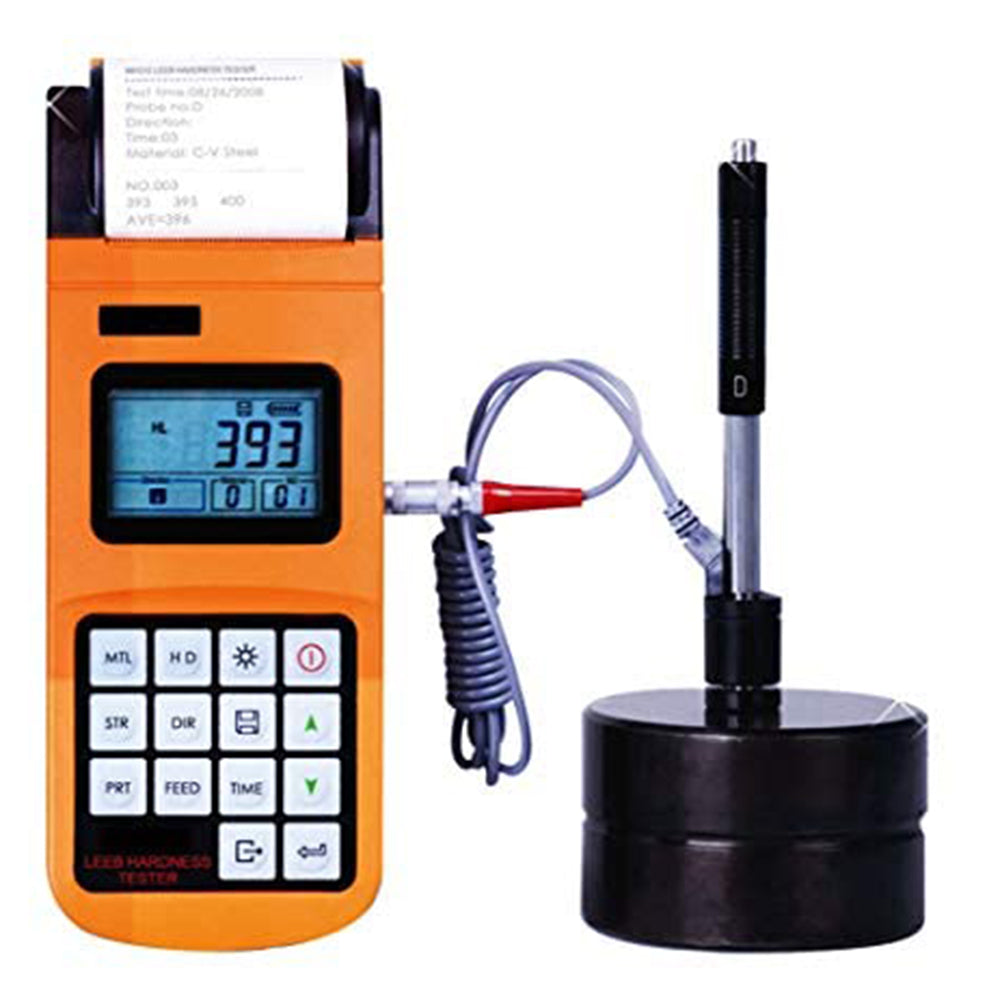

D type impact device With cable;

Standard test block;Cleaning brush (I);

Small support ring;

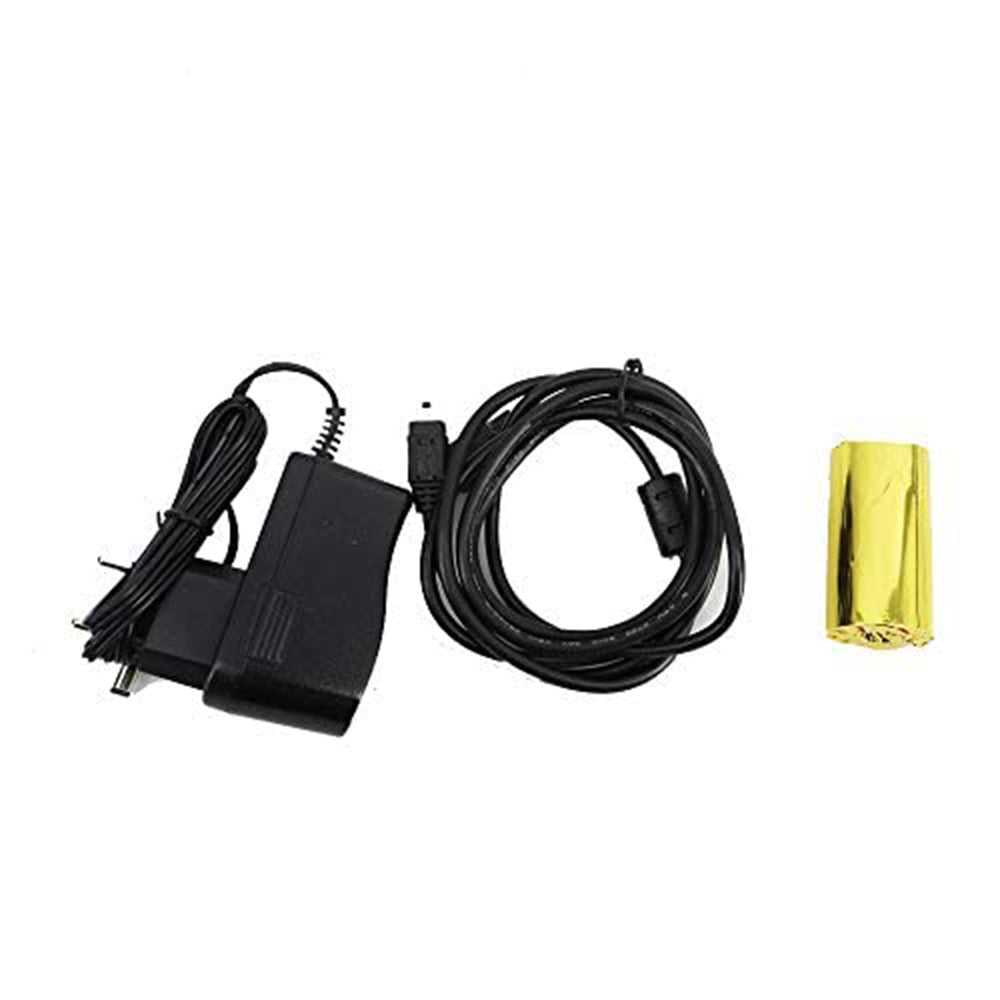

Battery Charger 9V 500mA;

Paper for printing;

Manual;

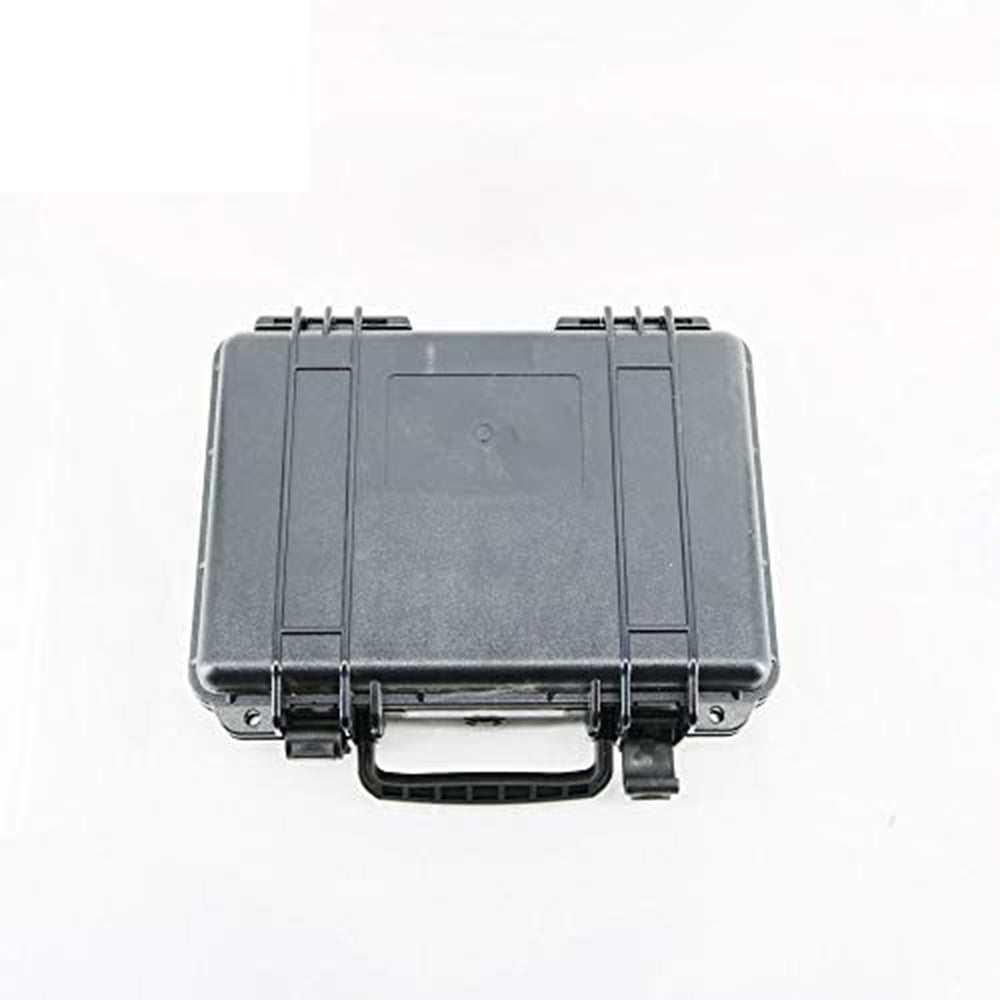

Instrument case
