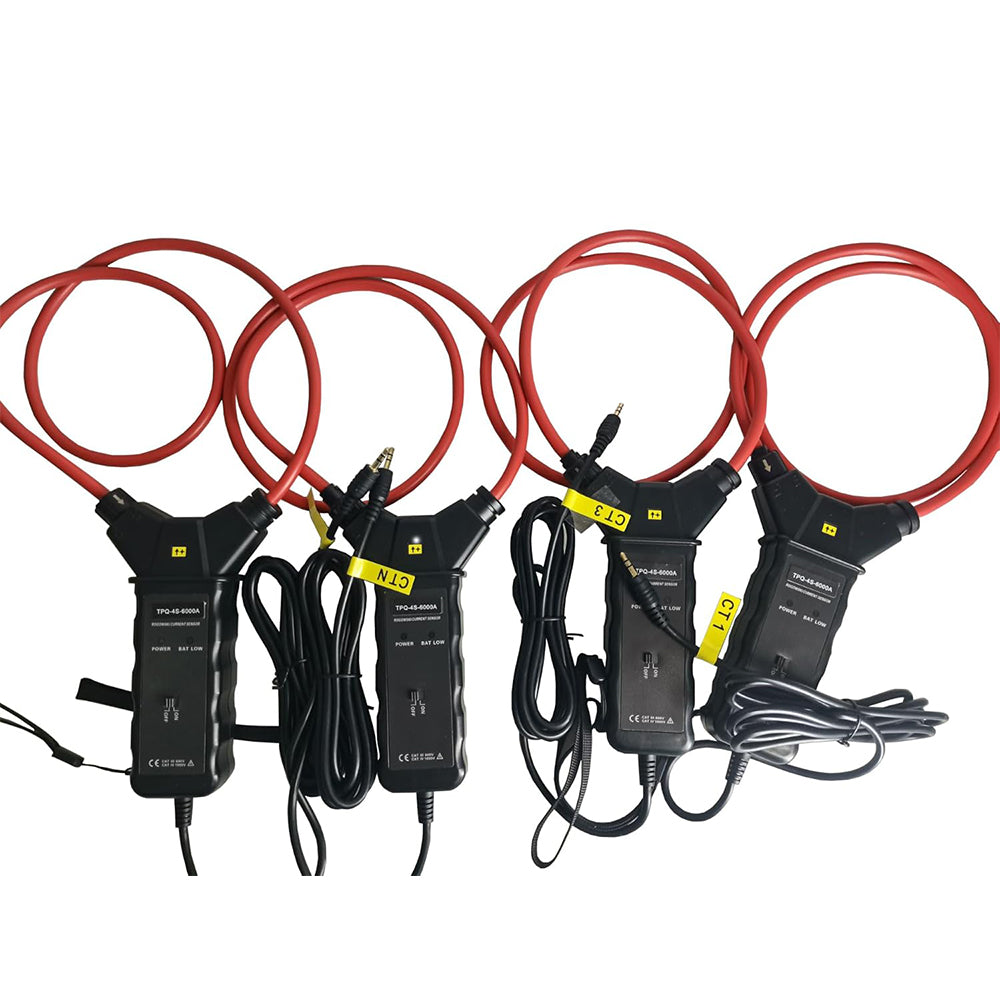

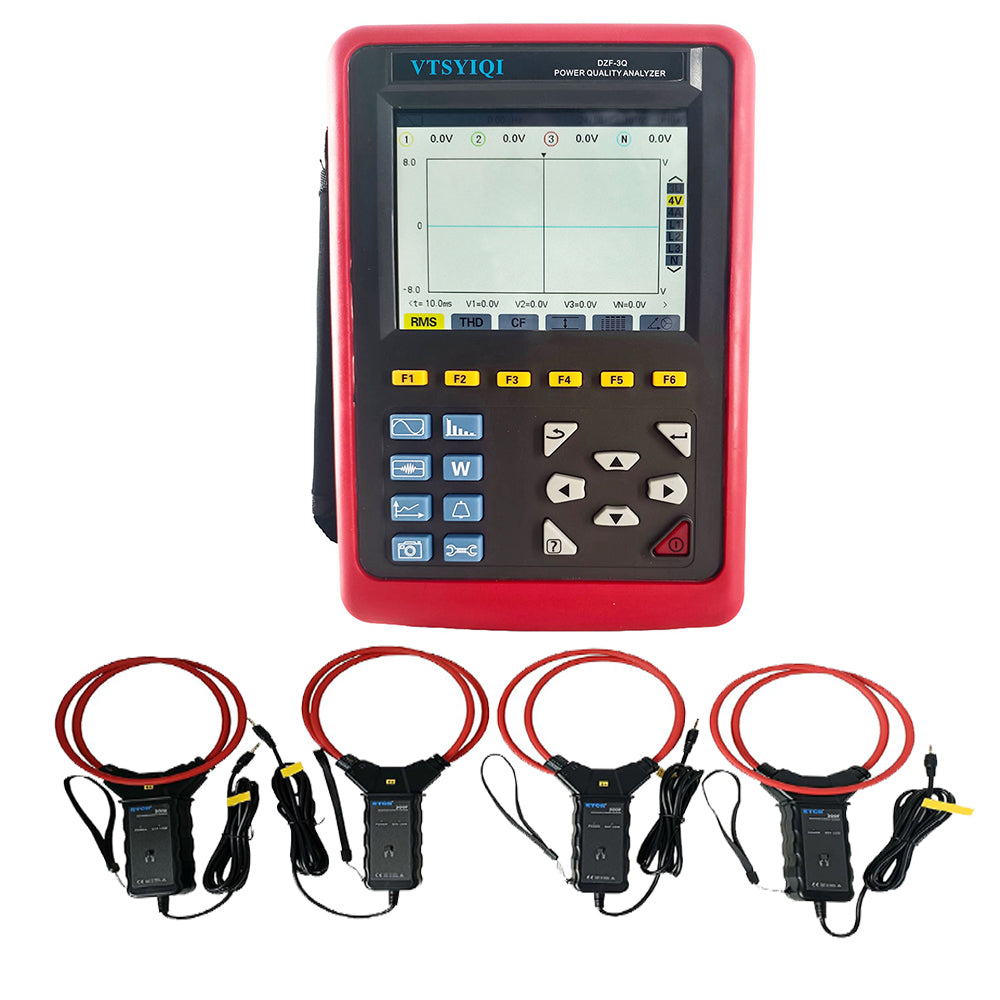

Please note that for the meter we just ship you the 4 PCS  Flexible Coil Current Sensor come with the meter .

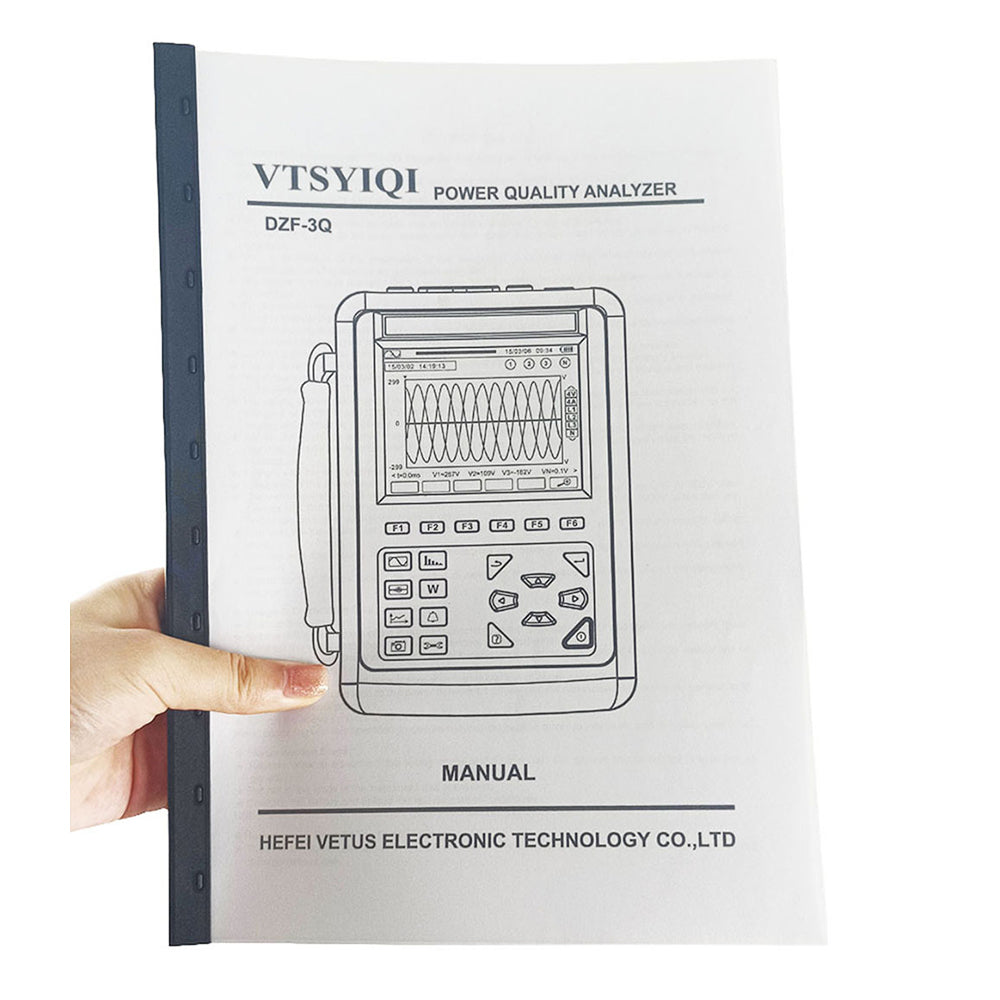

It's better to download the user manual under the picture to review and study the specifications first. Then you can decide to buy it or not.

Main Function:

1. is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters.4
2. channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working.L
3. ine voltage:Below 600V.

Technical Specifications

Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.

Working Current:about 590mA, continuous working 8hours.

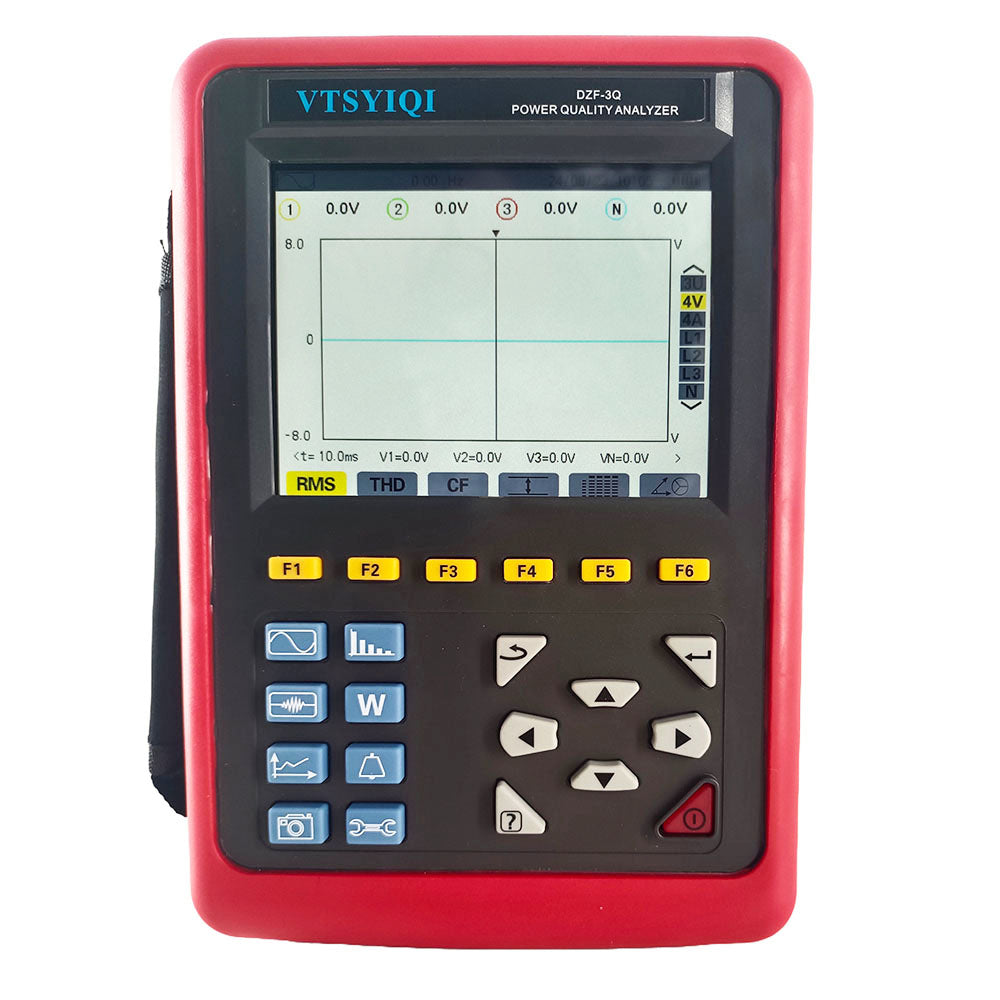

Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm

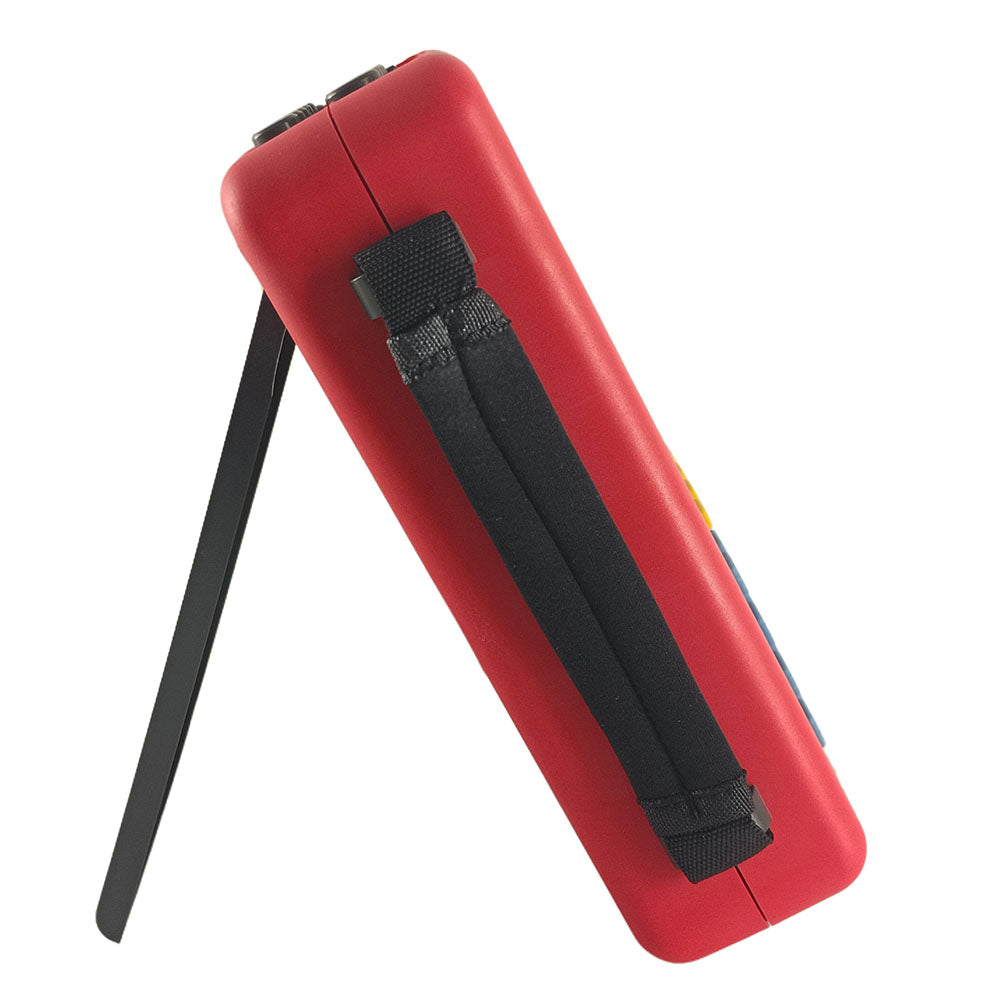

Instrument Size:240mm×170mm×68 mm.

CT Size:300F Flexible Coil Current Sensor (with Integrator) : Ф300mm.

Line Voltage:1.0V~2000V.

Phase Voltage:1.0V~1000V

Current:300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A;

Frequency:40Hz~70Hz.

Electricity Energy Parameter:W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters:Wh, Varh, Vah.

Harmonic Wave:Yes, 0 - 50 times

Total harmonic distortion:Yes, 0 - 50 times, each phase

Expert Mode:Yes.

Transient Record Groups:150 groups

Voltage Flicker:Yes

Start Current Mode:Yes, 100 seconds

Three-phases Unbalance:Yes

Record:300 days (record 20 parameters simultaneously, every 5 seconds record 1 point) Min/Max Recorded Value:Yes, the max min value can be measured for a certain time Alarm:40 different types of parameter selection, 12800 group alarm logs

Peak:Yes.

Phasor Diagram Display:Automatic

Screenshot Capacity:60PCS

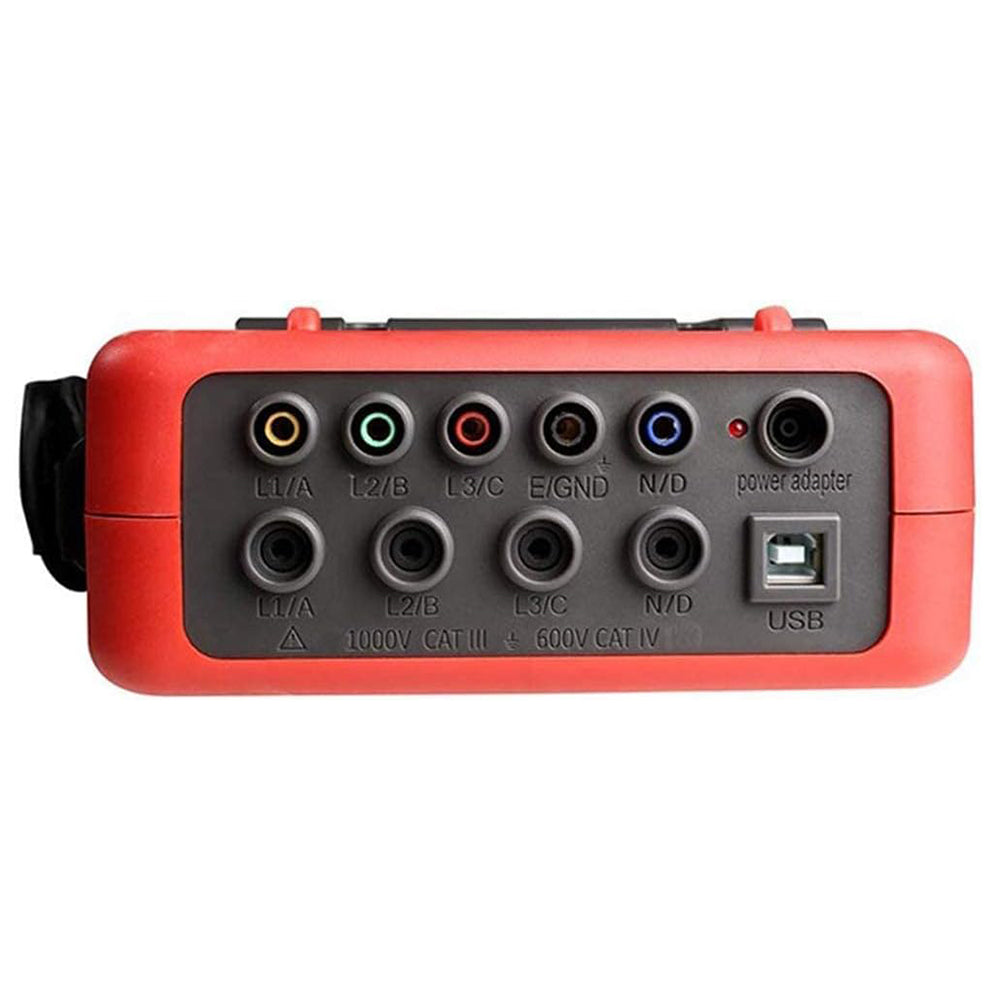

Communication Interface:USB.

Voltage Test Wire Length:3M

Current Clamp Wire Length:2M
