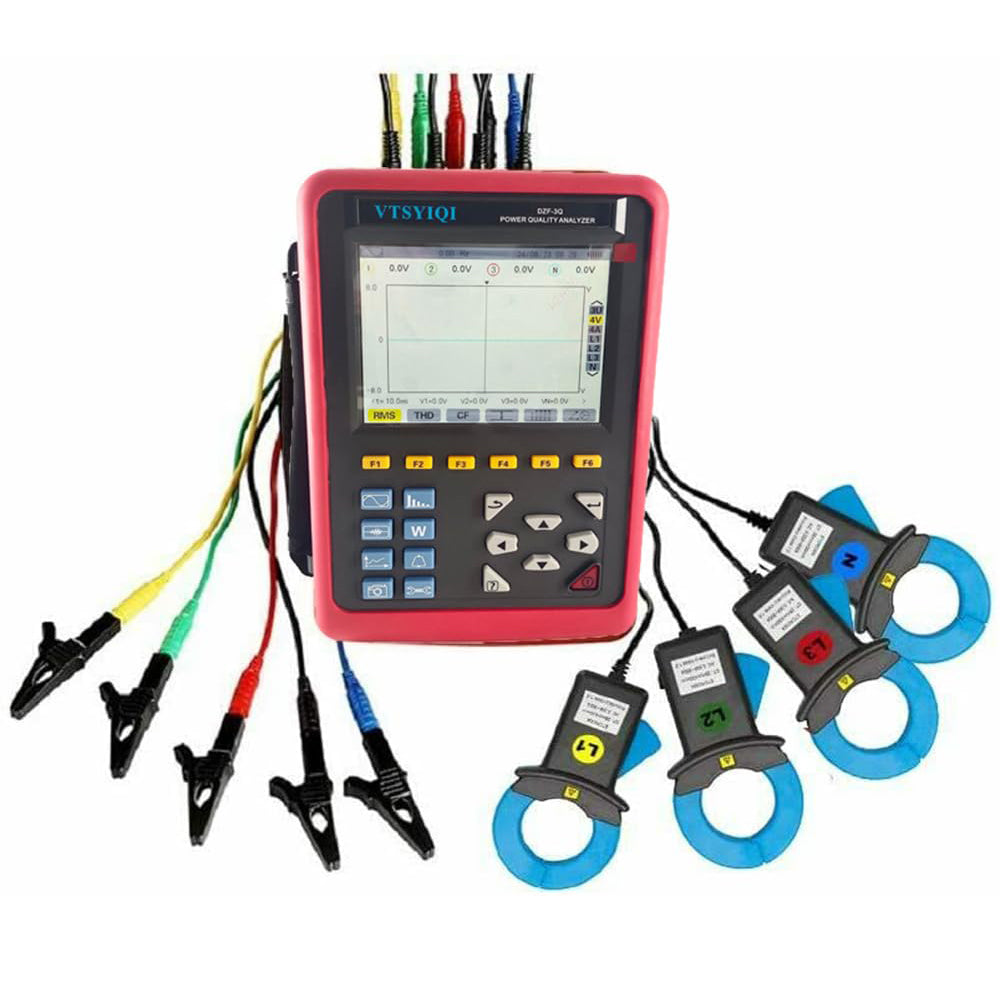

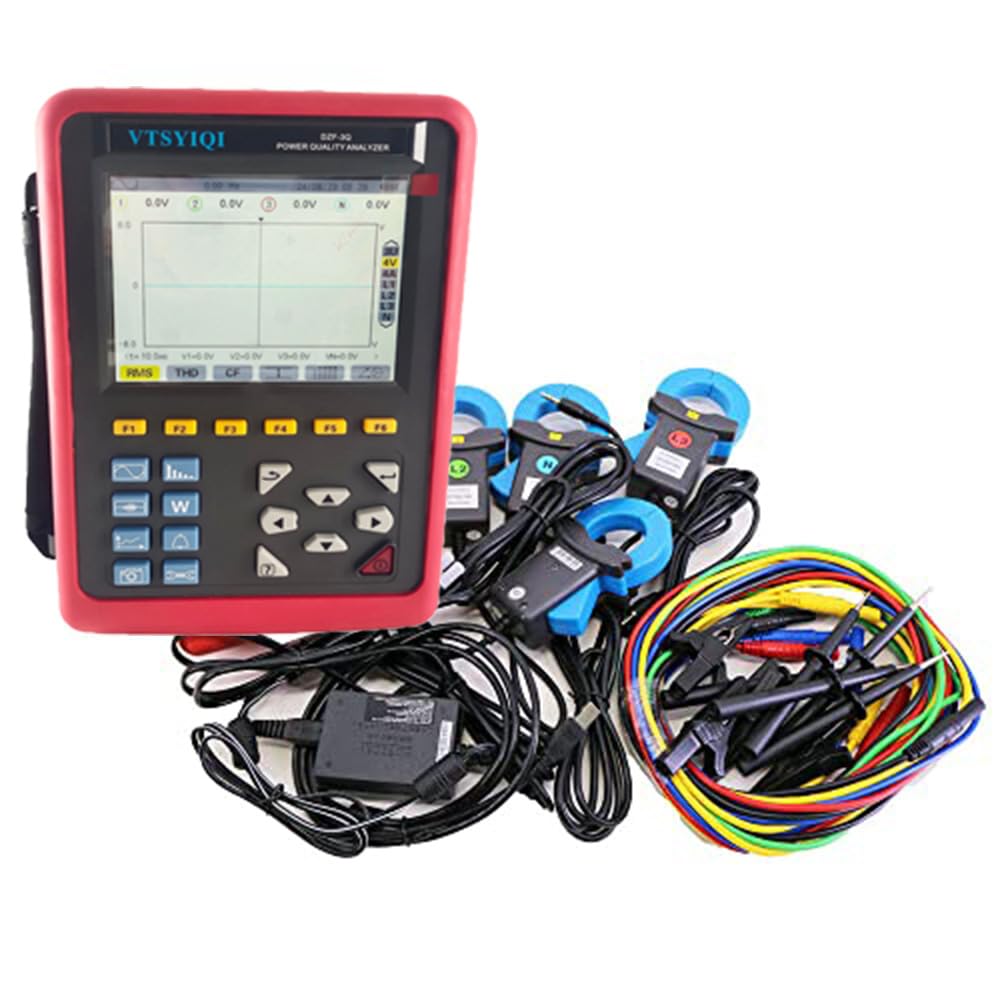

VTSYIQI Power Quality Analyzer Tester Meter Multifunctional Three Phase Power Quality Monitor with 4pcs Clamp On Current Sensor Range 1.0V to 1000V

Feature：

Carefully developed for a field test of three-phase, multi-functional, intelligent, simple man-machine operation of integrated test equipment

It is easy to use, large LCD screen display, high resolution, in English bilingual interface, features of anti vibration structure shell etc.

Backlight function, for the use of dark places and at night,Double insulation, with insulation vibration proof sheath

Operating temperature and humidity: -10℃～40℃;below 80%Rh; Storage temperature and humidity: -10℃～60℃;below 70%Rh

Functional diversity:test, capture and monitoring functions, record storage function, Alarm function, Screenshot function etc,Battery indicator: Battery symbol 5 grid display power, when the battery power is too low, prompt automatic shutdown after 1 minutes

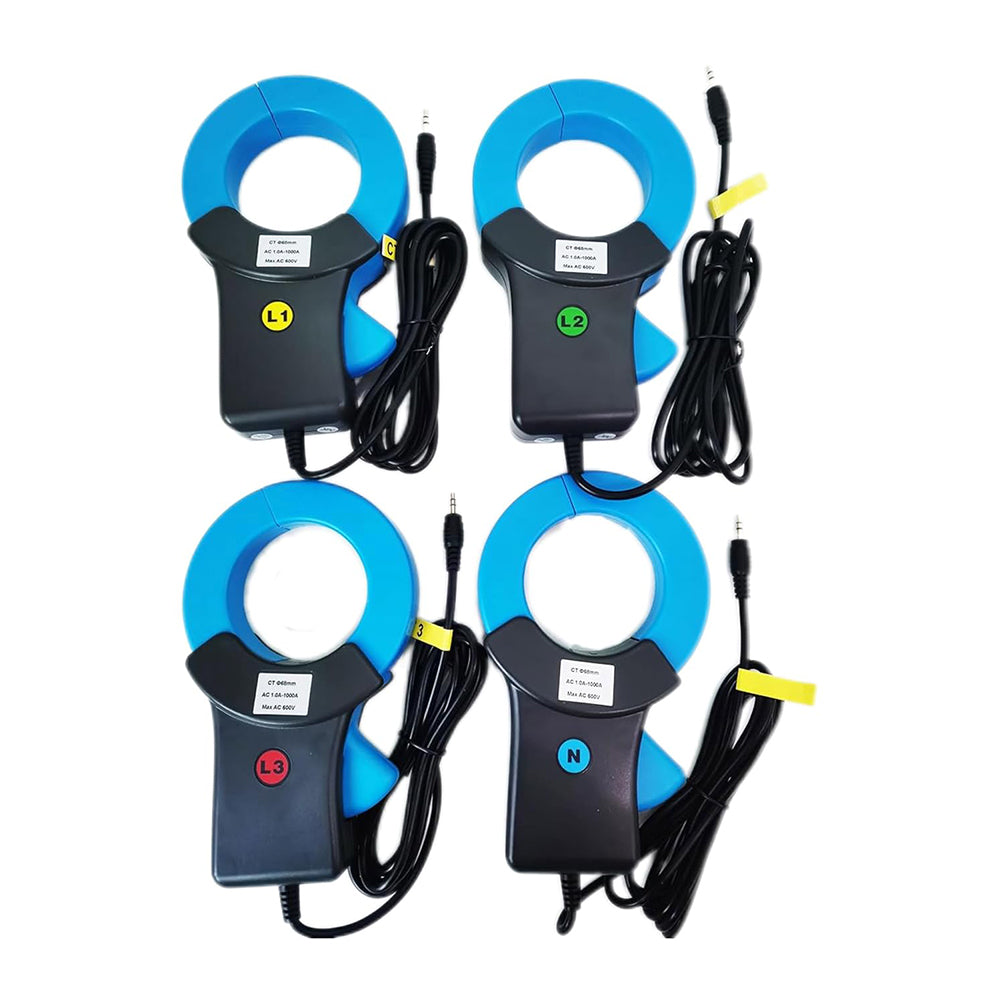

Please note that for the meter we just ship you the 4 PCS Round Jaw Current Sensor come with the meter .

It's better to download the user manual under the picture to review and study the specifications first. Then you can decide to buy it or not.

Main Function:

  1. It is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters.
  2. 4 channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working.
  3. Line voltage:Below 600V.

Technical Specifications

Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.

Working Current:about 590mA, continuous working 8hours.

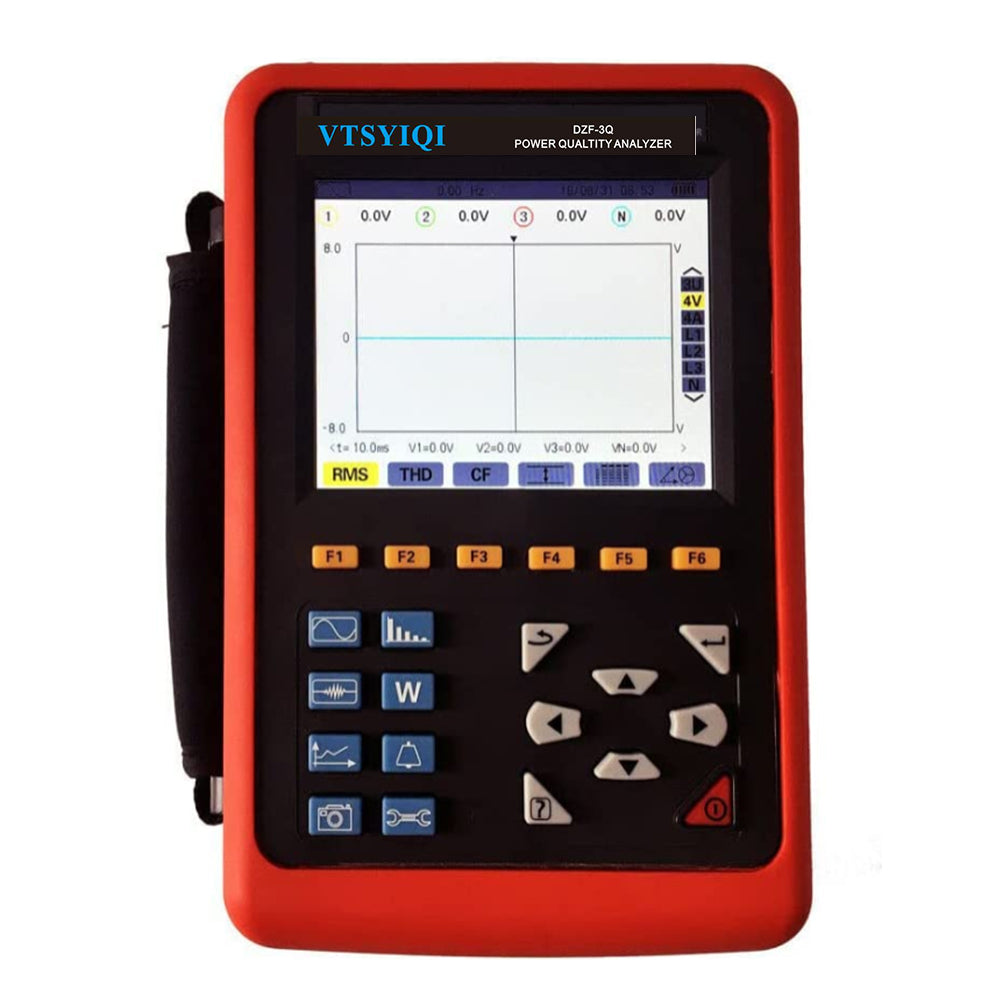

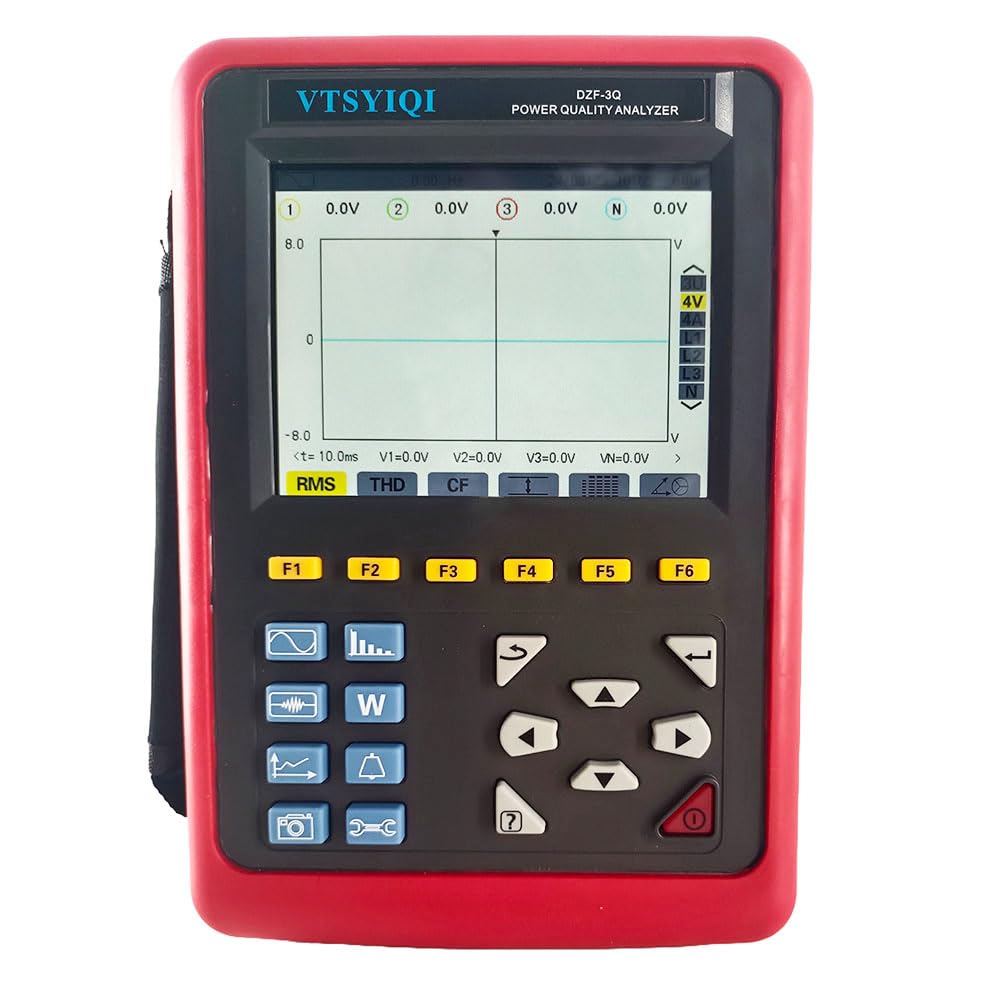

Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm

Instrument Size:240mm×170mm×68 mm.

CT Size:round jaw current clamp: 68mm×68mm.

Line Voltage:1.0V~2000V.

Phase Voltage:1.0V~1000V

Current:current clamp: 1.0A~1000A;

Frequency:40Hz~70Hz.

Electricity Energy Parameter:W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters:Wh, Varh, Vah.

Harmonic Wave:Yes, 0 - 50 times

Total harmonic distortion:Yes, 0 - 50 times, each phase

Expert Mode:Yes.

Transient Record Groups:150 groups

Voltage Flicker:Yes

Start Current Mode:Yes, 100 seconds

Three-phases Unbalance:Yes

Peak:Yes.

Phasor Diagram Display:Automatic

Screenshot Capacity:60PCS

Communication Interface:USB.

Voltage Test Wire Length:3M

Current Clamp Wire Length:2M
