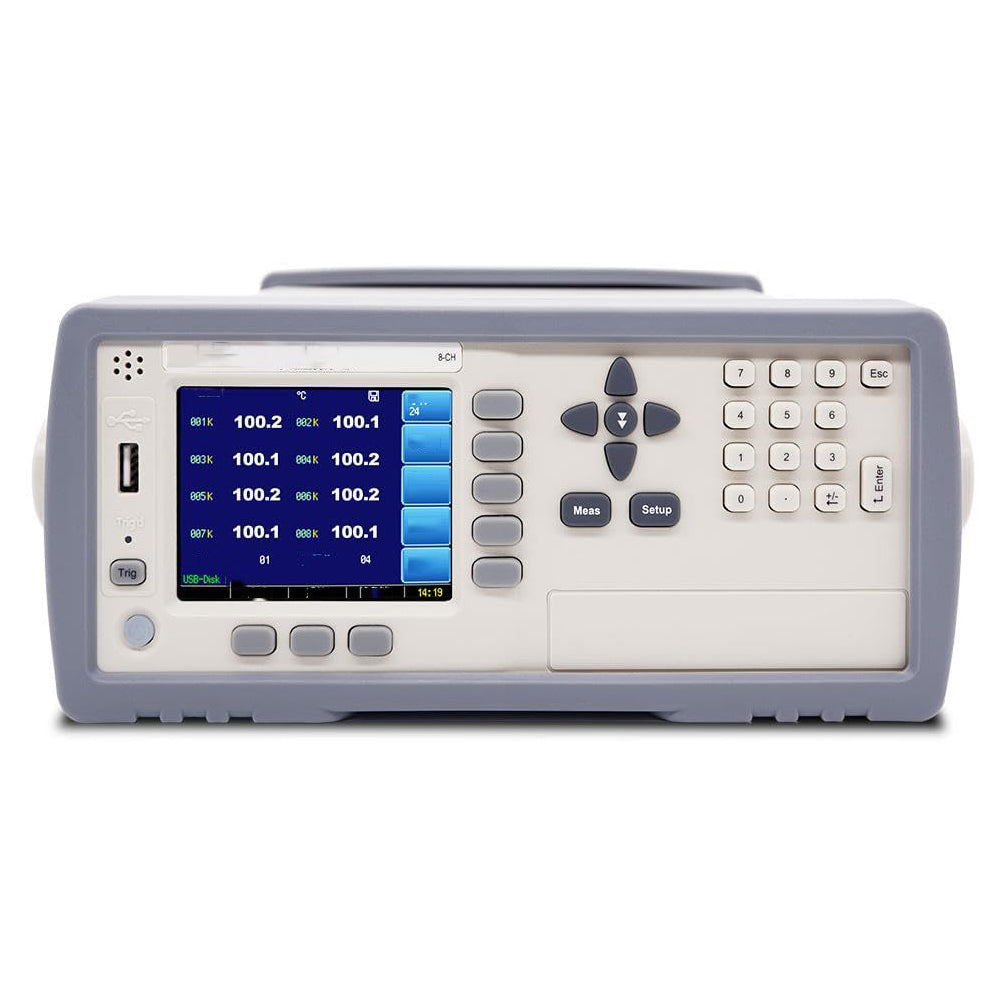

OVERVIEW

It adopts ARM microprocessor control, multi-channel scanning test, and collects, alarms and communicates with 8 channels of temperature at the same time. Compatible with a variety of temperature sensors, fast response, stable data, and break detection.

Using the most advanced test principle, the temperature test resolution is 0.1 degree.

Similarly, it has a wide range of adaptability and supports K/J/T type thermocouples. The test range is from -200 ° C to 1300 ° C.

It adopts the proprietary operating system ATOSTMv4, which makes the test instrument operation simpler and more convenient. At the same time, it relies on ATOSTMv4, and the instrument can be well compatible. Capacity storage and powerful PC communication capabilities.

The instrument comes standard with RS-232 interface and USB interface, and provides free communication software, which can easily collect, analyze and print data through PC software.

It features a rugged, vibration-resistant housing for operation in demanding environments. Fully isolated digital and analog signals are safe and reliable.

It comes standard with a USB flash drive and supports real-time data storage.

FEATURES

TFT true color LCD display, three display fonts.

Fast, medium and slow three-level scanning speed

Cold junction compensation

Standard USB disk interface, support for large-capacity storage devices.

Standard RS232C interface and USB interface

Automatic detection of broken couple

Specified channel scan

Standard data acquisition software

SPECIFICATIONS

Graduation:Thermocouple:J/K/T

Accuracy: 0.2%+1℃

Range: -200℃~1800℃ (variation depend on graduation)

Resolution: 0.1℃

Channels: 8 channels;

Speed: 1s

Correction: Error correction for each channel

Comparator: high & low beep function for each channel

Interface: RS232C, U-disc, USB

Software: data acquisition software

Cold Junction: Accuracy: 0.5℃

Other Functions: TFT-LCD True color display, broken thermocouple check function

Power Supply: V: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA

Dimension & Weight: 216x88x300mm weight：3kg

Accessories: K thermocouple 8 channels (2 meters/ channel)

APPLICATIONS

Suitable for home appliances, motors, electric appliances, thermostats, transformers

Multi-point temperature testing by manufacturers and quality inspection departments in ovens, thermal protectors, power supplies, lighting, power, LED, etc.
