  • VTSYIQI Ultrasonic Flow Meter Portable Ultrasonic Liquid Flow Meter with Accuracy 2% Repeatability over 0.2% S2 and M1 Transducers RS232 communication for Pipes from 0.59 to 27.56 inch DN25 to DN700 mm and from -30°C to 90°C

VTSYIQI

VTSYIQI Ultrasonic Flow Meter Portable Ultrasonic Liquid Flow Meter with Accuracy 2% Repeatability over 0.2% S2 and M1 Transducers RS232 communication for Pipes from 0.59 to 27.56 inch DN25 to DN700 mm and from -30°C to 90°C

$1,01900
In stock
$1,01900

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

Portable Digital Ultrasonic Flow Meter Flowmeter with S2 and M1 Transducers for Pipes from 0.59 to 27.56 inch DN25 to DN700 mm and from -30°C to 90°C

Feature:

This listing is for DN25-700mm pipe size, the water temperature is from -40-90 degree

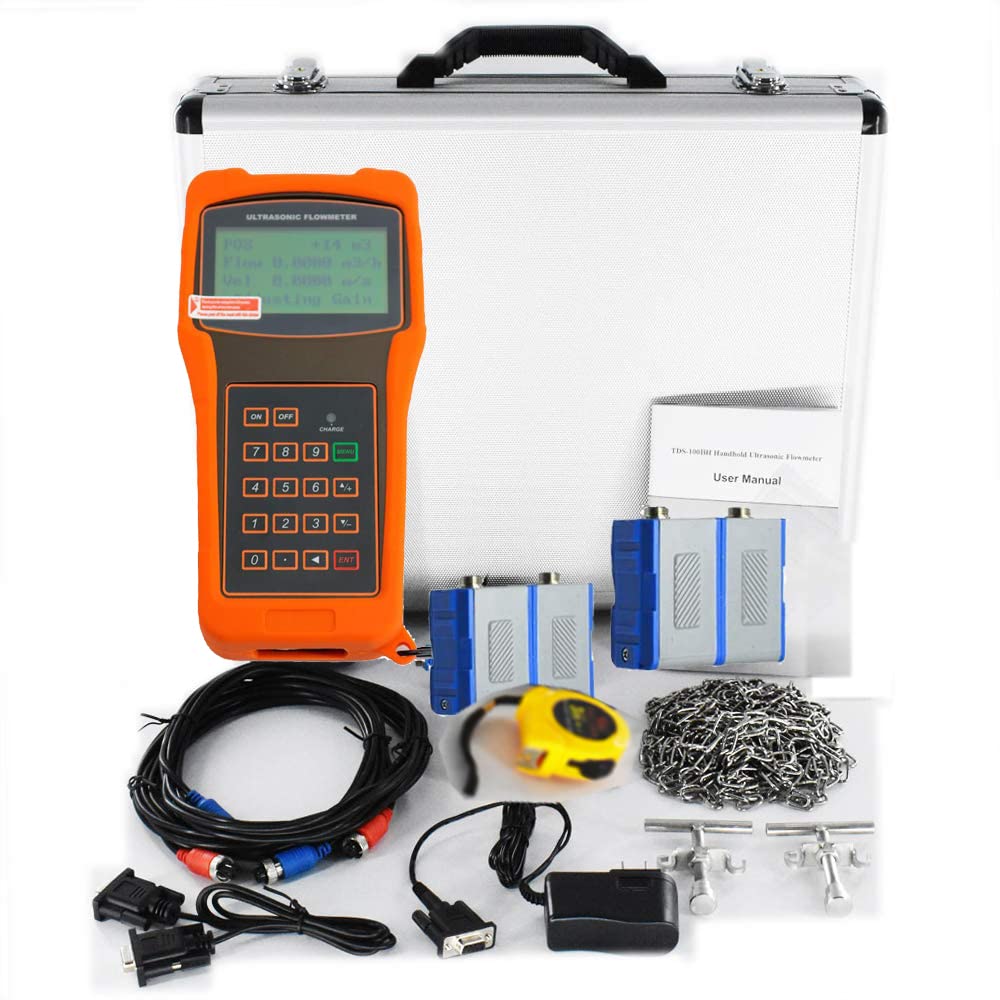

It comes with TS-2 TM-1 type Transducer ; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line

The couping agent can not be sent to you because of air shipping regulation. Because it is like crystal liquid. You must use silica gel to replace. You must use it when you measure the flow rate. If you do not use the silica gel, it will have no signal

If your pipe size is DN15-100MM, or DN50-700mm, you can find this kind of clamp on transducer or bracket transducer in our store

TS-2 type: DN15-100mm， -30-90℃2TM-1 type: DN50-700mm， -30-90℃3. TL-1 type: DN300-6000mm， -30-90℃



Main Feature：

Items： Performance and Parameter

Main Unit：

Principle： transit-time ultrasonic flowmeter

Accuracy： Accuracy :over 1%-2%; Repeatability: over 0.2%

Display ：4 line x 16 character LCD with backlight

Dimension： 200*93*33cm: 390g

Operation： Support 16 key light touch keyboard and the Simulation keyboard software

Data interface：

Insulate RS232 serial interface, upgrade the flew meter software by computer,

support the MODBUS, etc.

Signal Output： 1 way OCT output

Special Cable ：

Twisted-pair cable, ;Select the RS232 communication.;

Generally, the standard is 5m*2, optional 10m*2

Pipe Condition ：

Pipe Material ：

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass

steel product, liner is allowed.

Pipe Diameter ：DN50-6000mm

Straight length pipe：

Transducer installation should be satisfied: upstream10D, downstream 5D,

30D from the pump.

Measuring Medium：

Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids

Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -30--160℃

Turbidity： under 10000ppm and less bubble

Flow rate ：0--±10m/s

Flow Direction ：Measuring two (plus-minis) direction of flow rate

Working Environment：

Temperature：

Main Unit: -20--60℃

Flow transducer: -40--160℃;

Temperature transducer: according to the customer’s demands.

Humidity： Main Unit: 85% RH

Power Supply： AC 110V-240V
