❤❤This type TUF-2000H comes with HS-HT High Temperature Small Bracket size: 318*59*110mm , Pipe Diameter DN25~100mm, High Temperature : -30~160C; ❤❤
❤❤HM-HT High Temperature Medium Bracket size: 568*59*110mm , Pipe Diameter DN50 to 300mm, High Temperature : -30~160C; ❤❤
Feature:
❤❤High Accuracy measuring: Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
❤❤Non-intrusive measuring: Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
❤❤Built-in data logger: Built-in 24K data logger, store over 2000 lines measuring data
Technical Specifications:

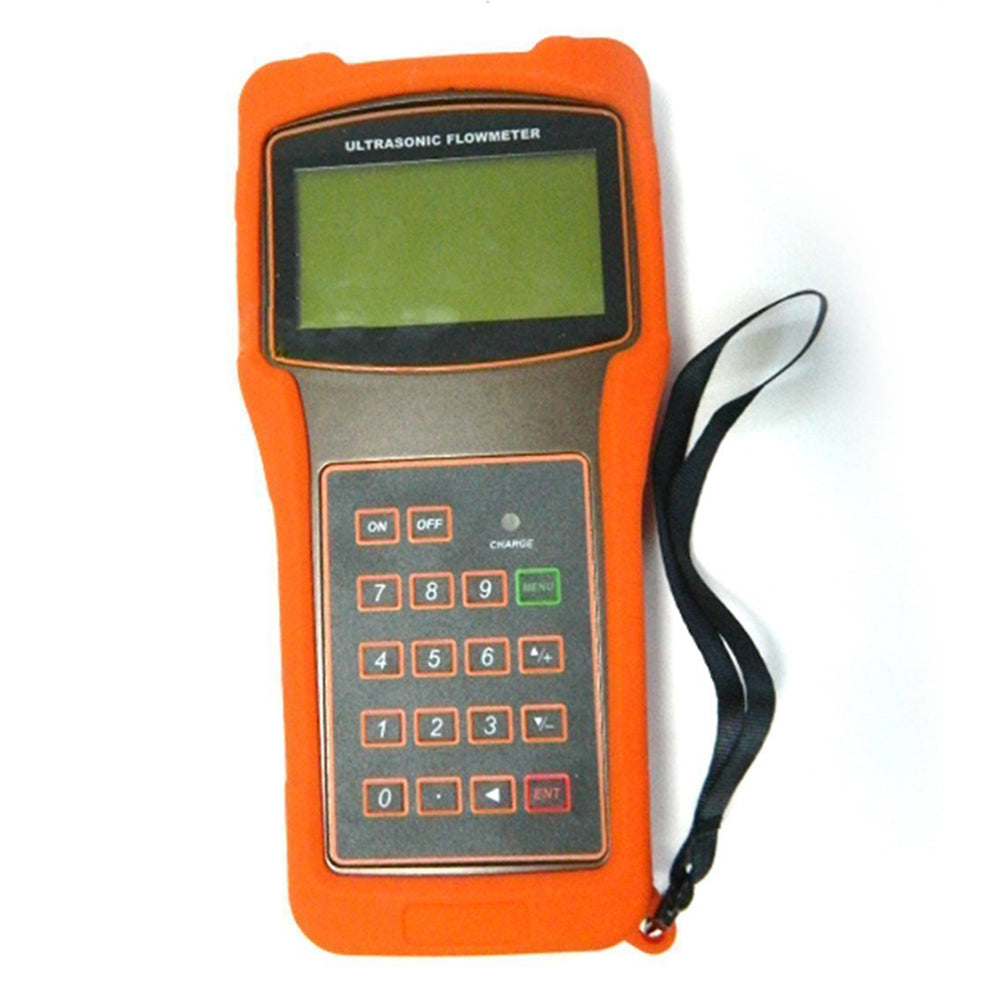

❤❤Main unit❤❤
Principle: transit-time ultrasonic flowmeter
Accuracy: Accuracy :over 1%-2%; Repeatability: over 0.2%
Display: 4 line x 16 character LCD with backlight
Dimension: 200*93*33cm: 390g
Operation: Support 16 key light touch keyboard and the Simulation keyboard software
Data interface: Insulate RS232 serial interface, upgrade the flew meter software by computer, support the MODBUS, etc.
Signal Output:1 way OCT output
❤❤Special Cable: ❤❤
Twisted-pair cable, ;Select the RS232 communication.; Generally, the standard is 5m*2, optional 10m*2
❤❤Pipe Condition:❤❤
Pipe Material: Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter: DN25~300mm
Straight length pipe: Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
❤❤Measuring Medium:❤❤
Type of Liquid: Water ; Ultra-pure liquids; Solvents and other liquids
Temperature: Standard Transducer: -30--160C;
Turbidity: under 10000ppm and less bubble
Flow rate: 0--±10m/s
Flow Direction: Measuring two (plus-minis) direction of flow rate
