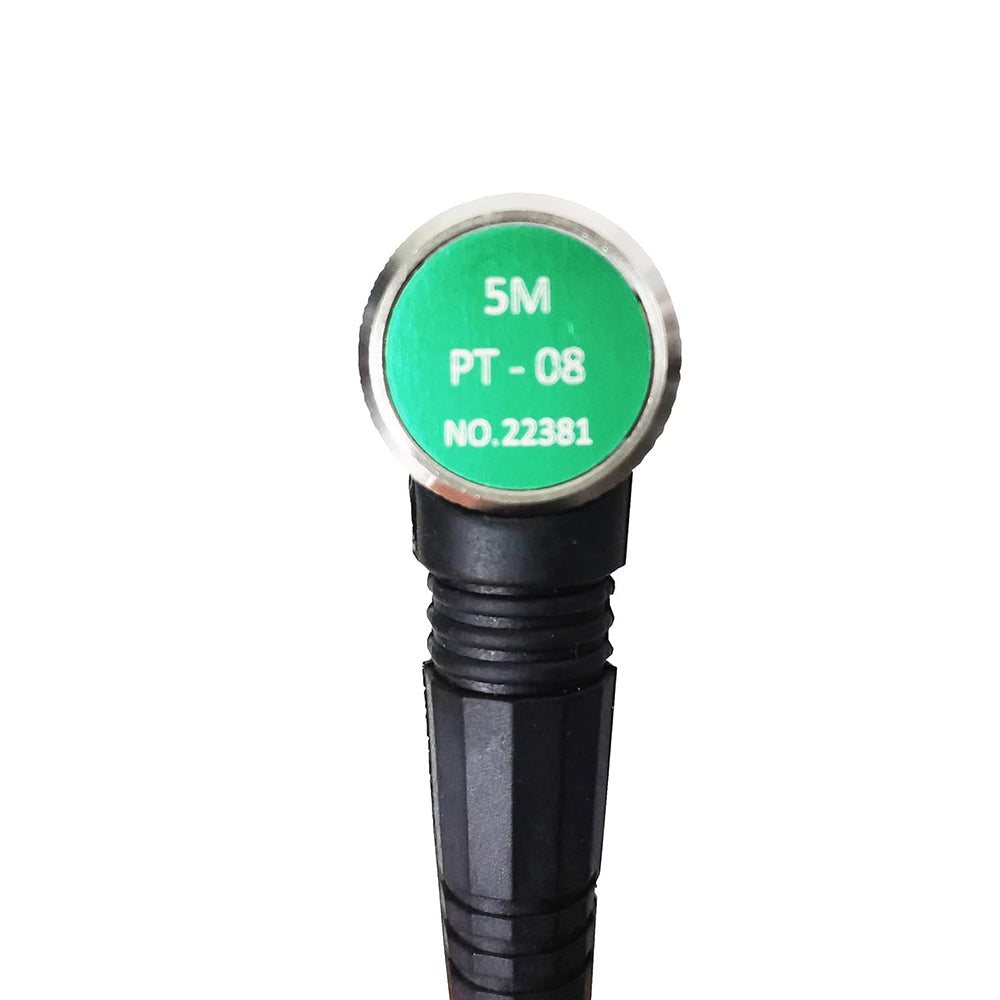

  • VTSYIQI Digital Through Coating Ultrasonic Thickness Gauge 0.03'' to 12'' with PT-08 Probe Transducer w/P-E and E-E Mode Echo-Echo

VTSYIQI

VTSYIQI Digital Through Coating Ultrasonic Thickness Gauge 0.03'' to 12'' with PT-08 Probe Transducer w/P-E and E-E Mode Echo-Echo

$56700
In stock
$56700

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

  • Feature
  • ★Measuring Range : Standard measuring range: 0.8mm～300mm-Operating Principle: Standard mode: P-E (pulse-echo) method with dual-crystal probes
  • ★Measuring range: 3mm～18mm (using standard probe)-Coating mode: E-E(echo-echo) method with dual-crystal probes
  • ★Resolution: 0.1 mm or 0.001 in-0.1mm resolution, 128×64 dot-matrix LCD screen with EL backlight
  • ★Material Velocity Range: 1000～9999m/s or 0.0394～0.3937in/us-Automatic V -Path Correction
  • ★Operating Times: Up to 200 hours(without backlight)-Auto shut-off:  after 5 minutes of non-use

Operating principle:

Standard mode:P-E (pulse-echo) method with dual-element probes

Coating mode:E-E (echo-echo) method with dual-element probes

Probe zero adjustment: Selectable: 1-point calibration: normal measurement

2-point calibration: curve surface measurement or other special application with a high precision

V-path correction:Automatic

Measuring range:

0.8mm to 300mm; 0.031in to 11.81in in standard mode

3.0mm to 18.0mm; 0.118in to 0.709in in through coating mode Depending on probe, material and surface condition

Digital resolution:0.001in or 0.1mm

Units: inch or mm

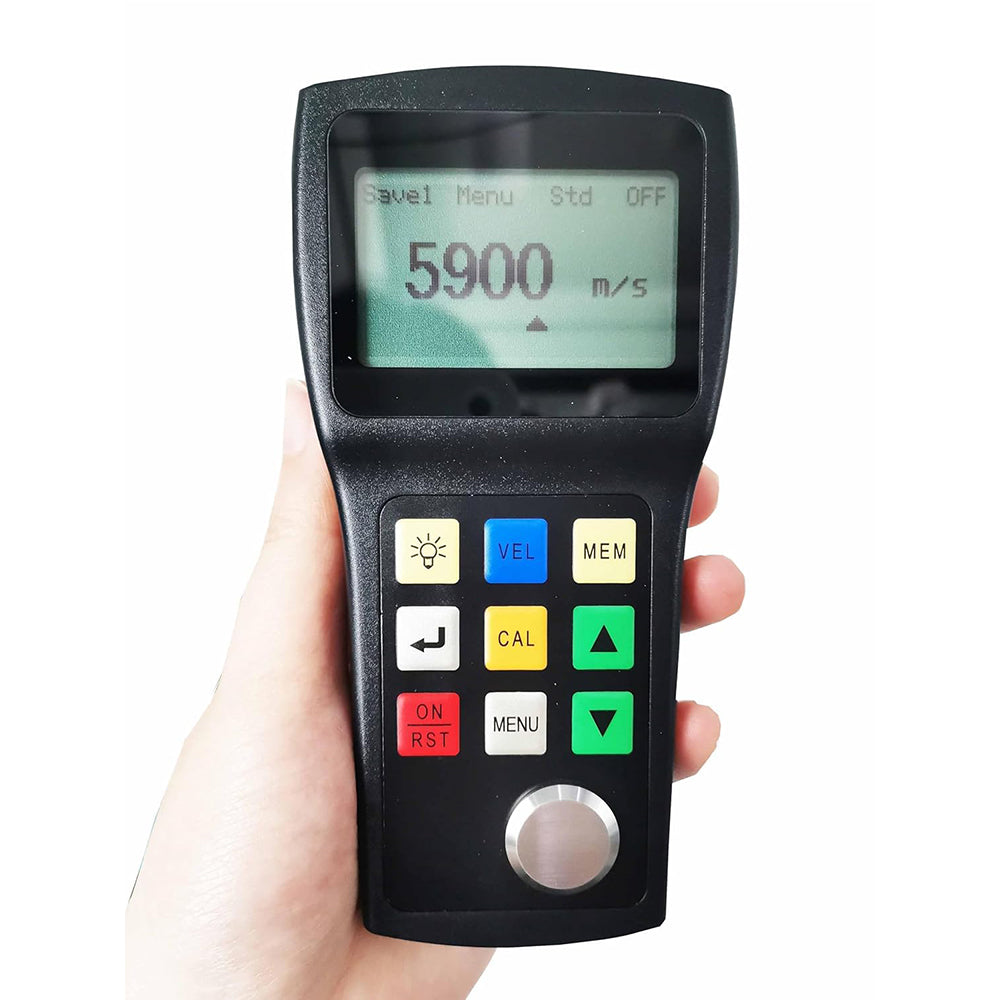

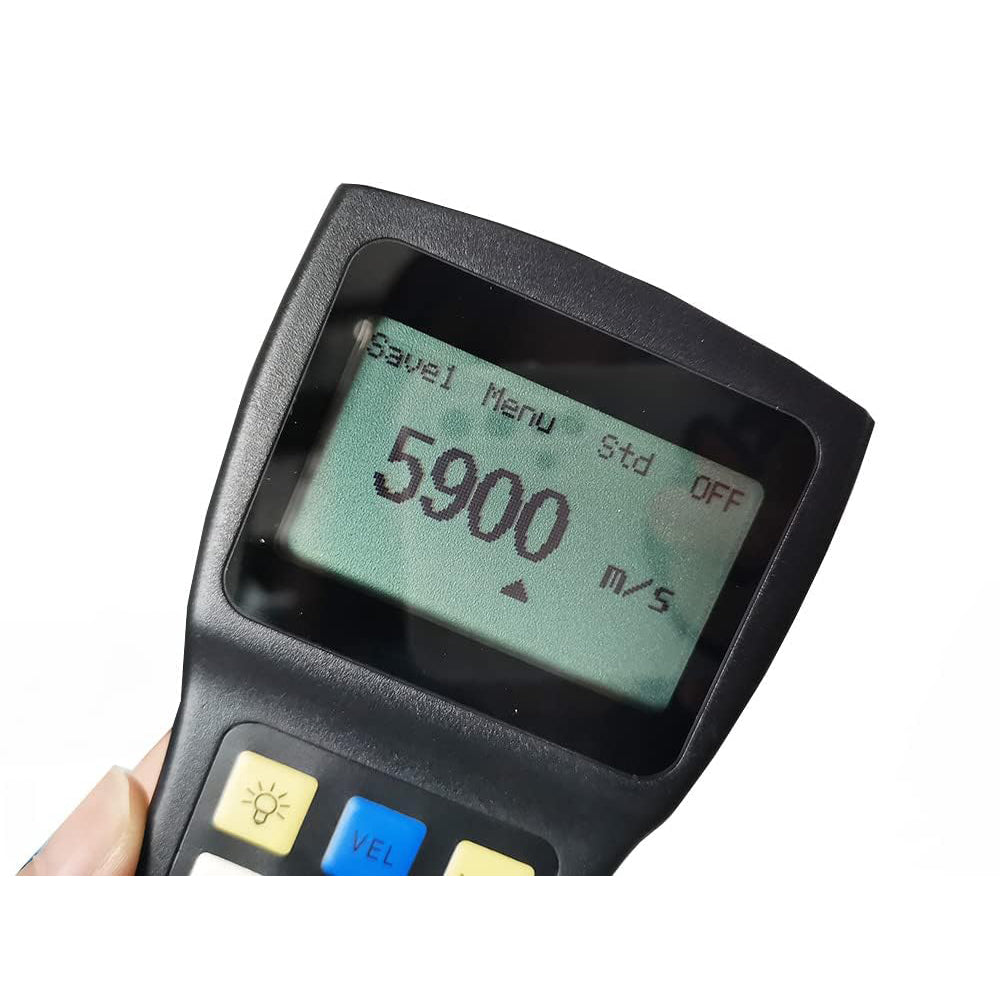

Display:128×64 dot-matrix LCD screen (1.65in×2.24in; 42mm×57mm) EL backlight and switchable contract ratio

Digit height: 0.54in or 13.75mm

Measurement update rate: 4 Hz in standard measurement mode 25 Hz in MIN capture mode

Material velocity range: 1000 to 9999 m/s; 0.039 to 0.394 inch/µs

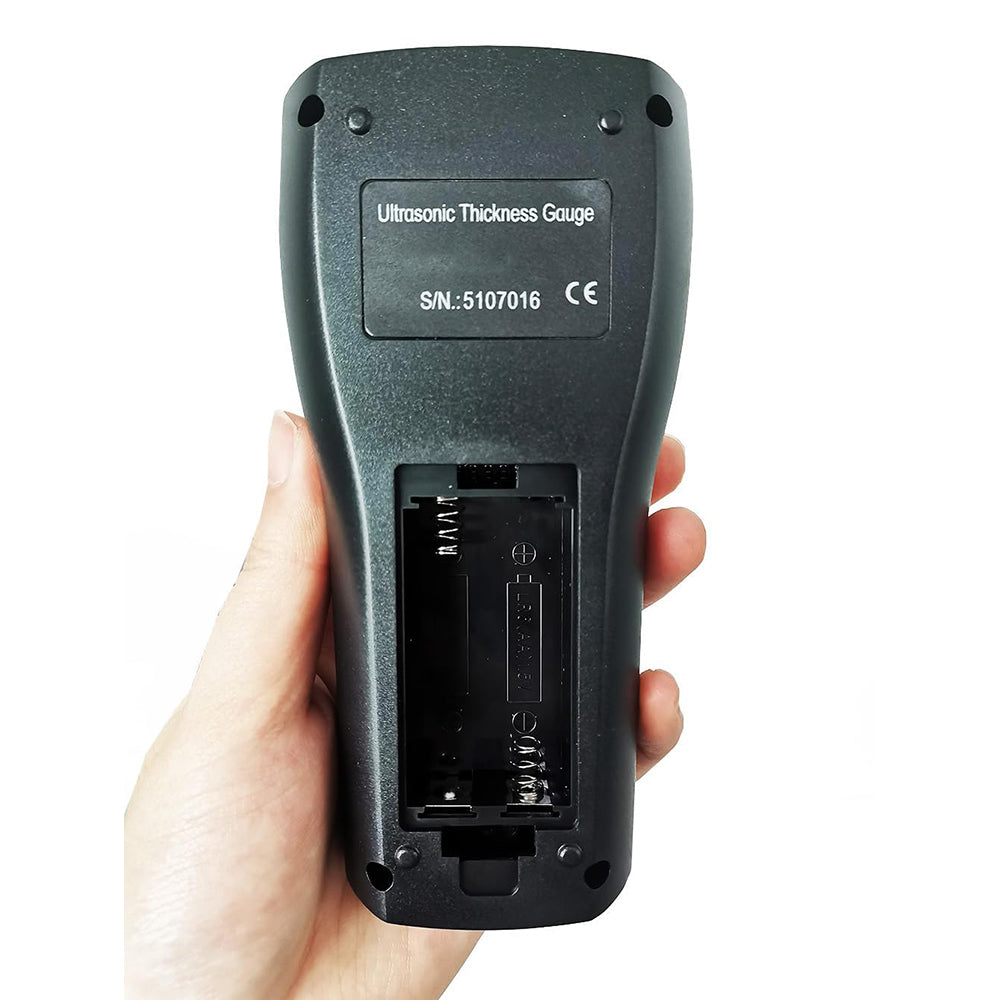

Power:Two 1.5V AA alkaline batteries Warning with low battery voltage

Auto shut-off:After 5 minutes of non-use

Operating temperature: -10℃ to +50℃; +14℉ to +122℉ Specification to -20℃/-4℉ on request

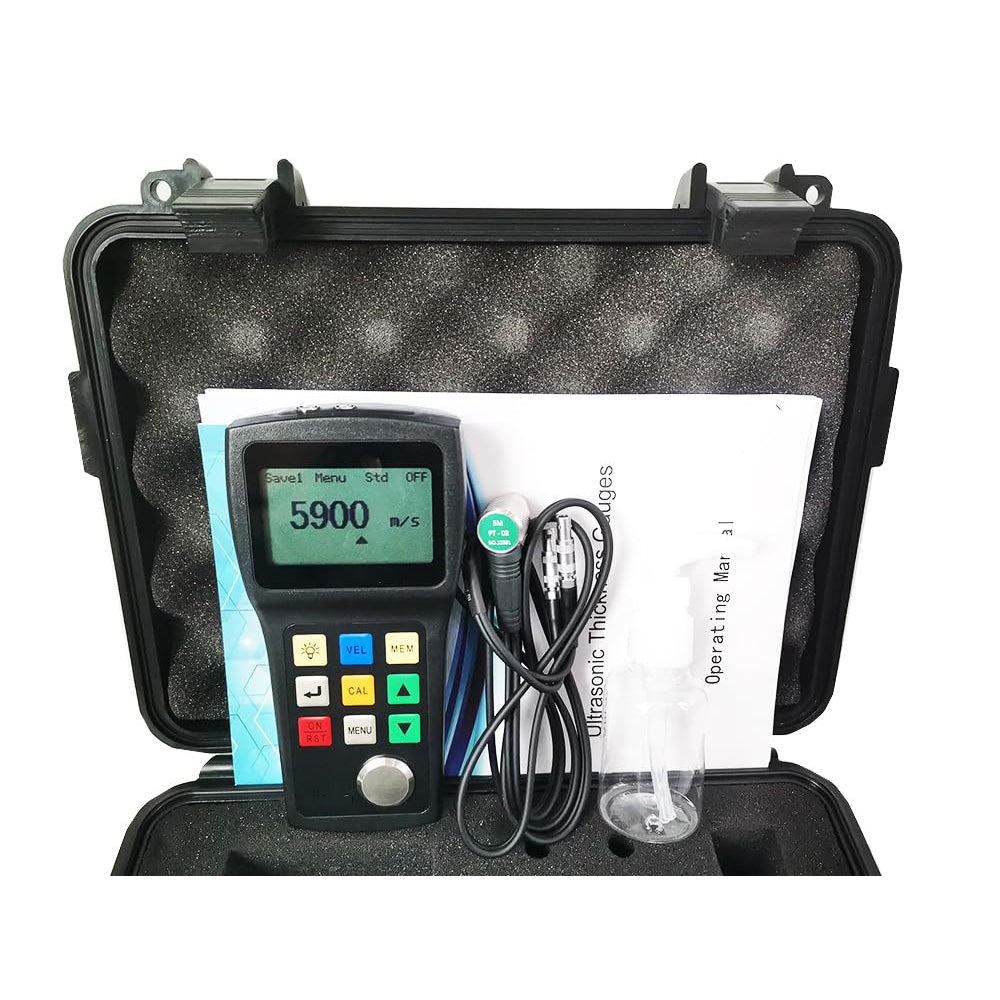

Data logger capacity: Up to 500 readings can be divided into a maximum of 5 files (user-selectable) Standard configuration:

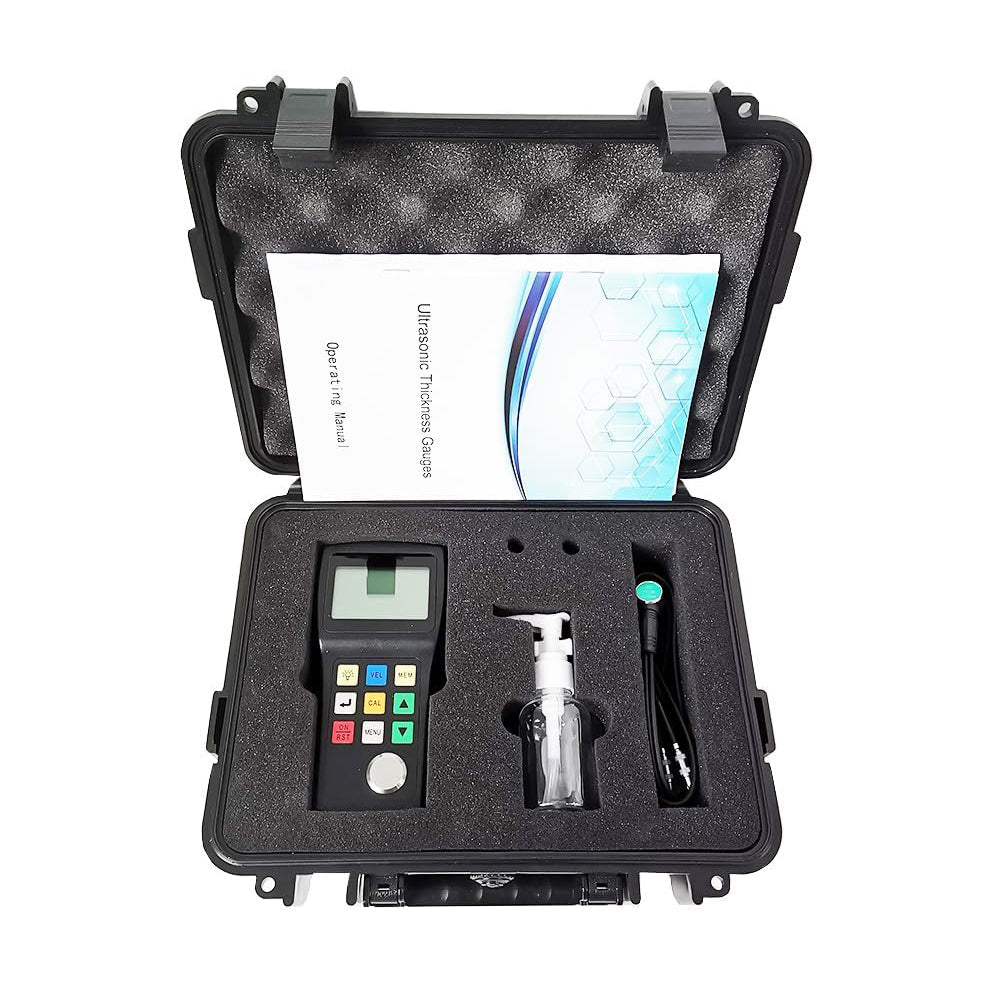

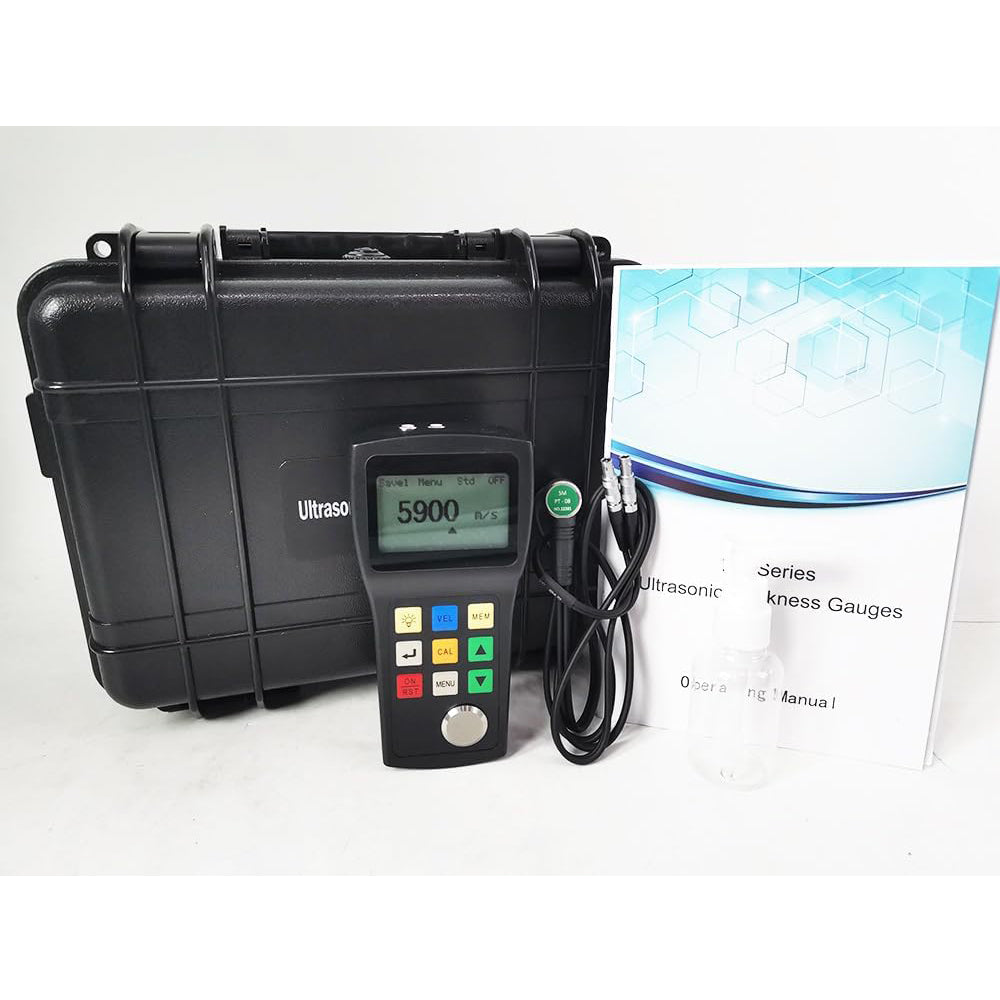

1xMain Unit

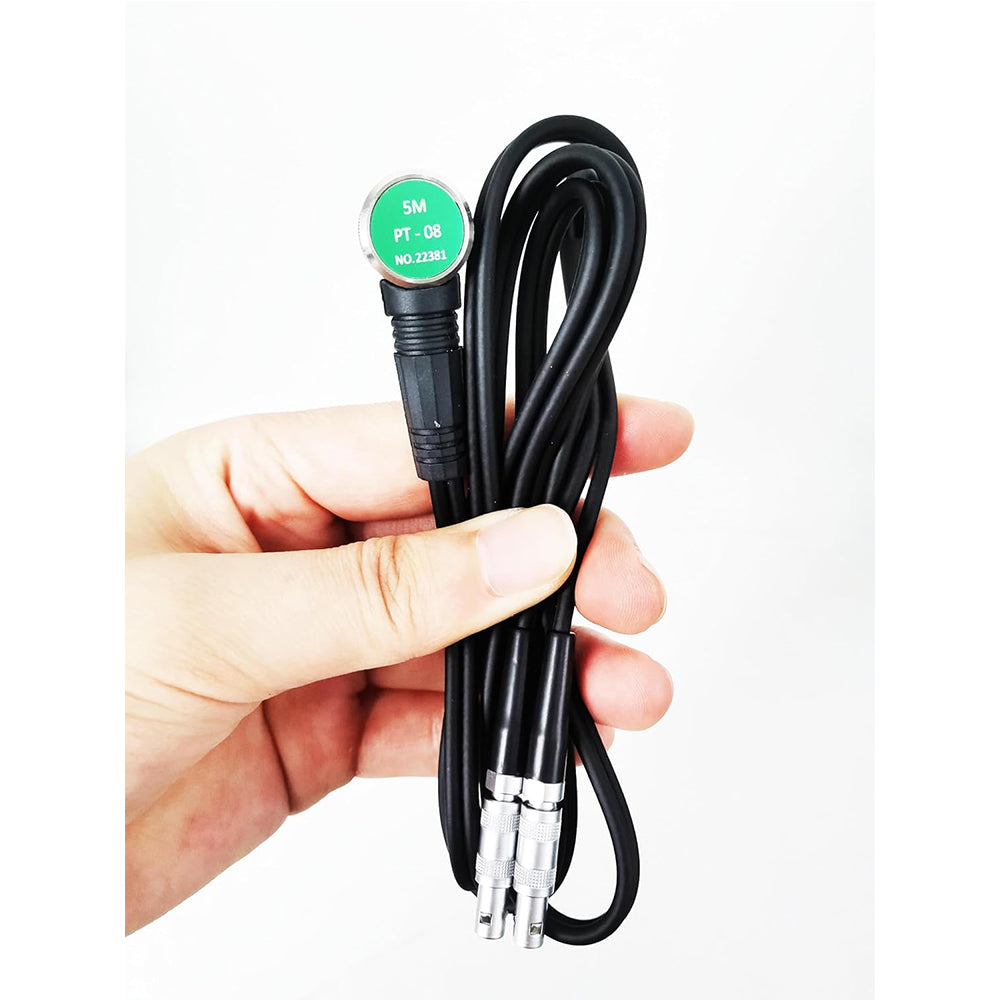

1xProbe

1xCarrying Case

1xUser Manual Optional accessories:

1.Attachable rubber case

2.Numerous special probes on request

3.4-step/6-step block for calibration

4.Data transmission cable

5.Application software
