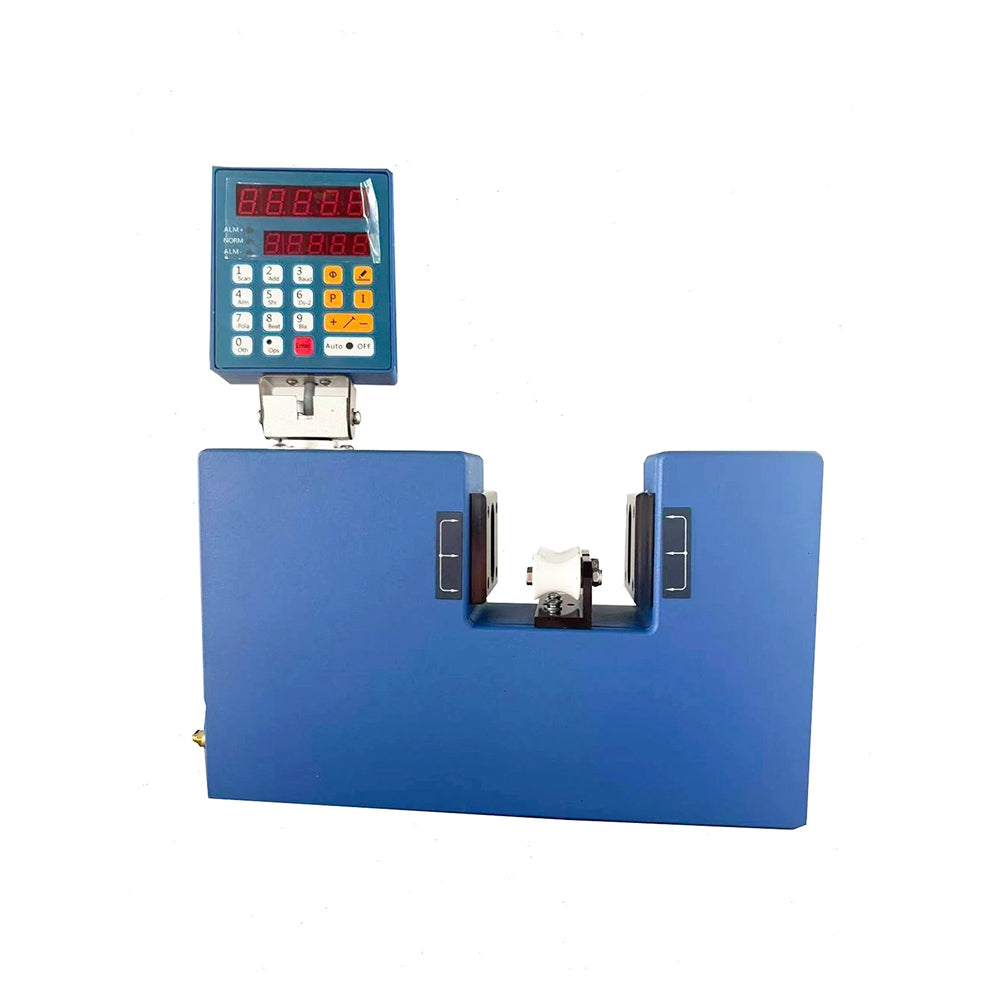

Laser Diameter Gauge One-axis Laser Diameter Gauge Meter Tester with Measuring Range 0.10-25.00mm Resolution 0.001mm Accuracy ±0.002mm Scanning Speed 600N/S

Laser Diameter Gauge One-axis Laser Diameter Gauge Meter Tester with Measuring Range 0.10-25.00mm Resolution 0.001mm Accuracy ±0.002mm Scanning Speed 600N/S

$2,600.00 USD
$2,600.00 USD
Sale Sold out
Shipping calculated at checkout.

Laser Diameter Measurement One-axis Laser Diameter Gauge Meter Tester with Measuring Range 0.10-25.00mm Resolution 0.001mm Accuracy ±0.002mm Scanning Speed 600N/S

Featurte:

Measuring range: 0.10--25.00mm

Resolution: 0.001mm

Accuracy: ±0.002mm

Scanning speed: 600N/S

Packaging specification host: 60X40X20.5CM

Product Description:

One-axis Laser Measurement Laser Diameter Gauge Laser Diameter Measurement

Specifications:

Measuring range ： 0.10--25.00mm

Resolution ： 0.001mm

Accuracy ： ±0.002mm

Scanning speed ： 600N/S

Weight ： 10.5KG

Packaging specification host ： 60X40X20.5CM

Features:

High-speed brushless motor scanning

Multifaceted high precision standard prism

High speed dual DSP processing chip

Excellent signal quality, high precision, high resolution

Has the ability to measure diameter, position,beating and multiple roots

Conventional body, micro body, transparent body, allotrope measurement

RS485, TCP/IP, PROFINET communication options

Applications:

Equipment: All kinds of plastic extrusion unit,wire and cable extrusion unit, wrappingunit, plastic tube and medical tube extrusion unit, etc.

Product categories: wire and cable,optical fiber and cable,plastic pipe,medical pipe,glass pipe,3D consumables,metal wire,wire and other--circular product measurement.
