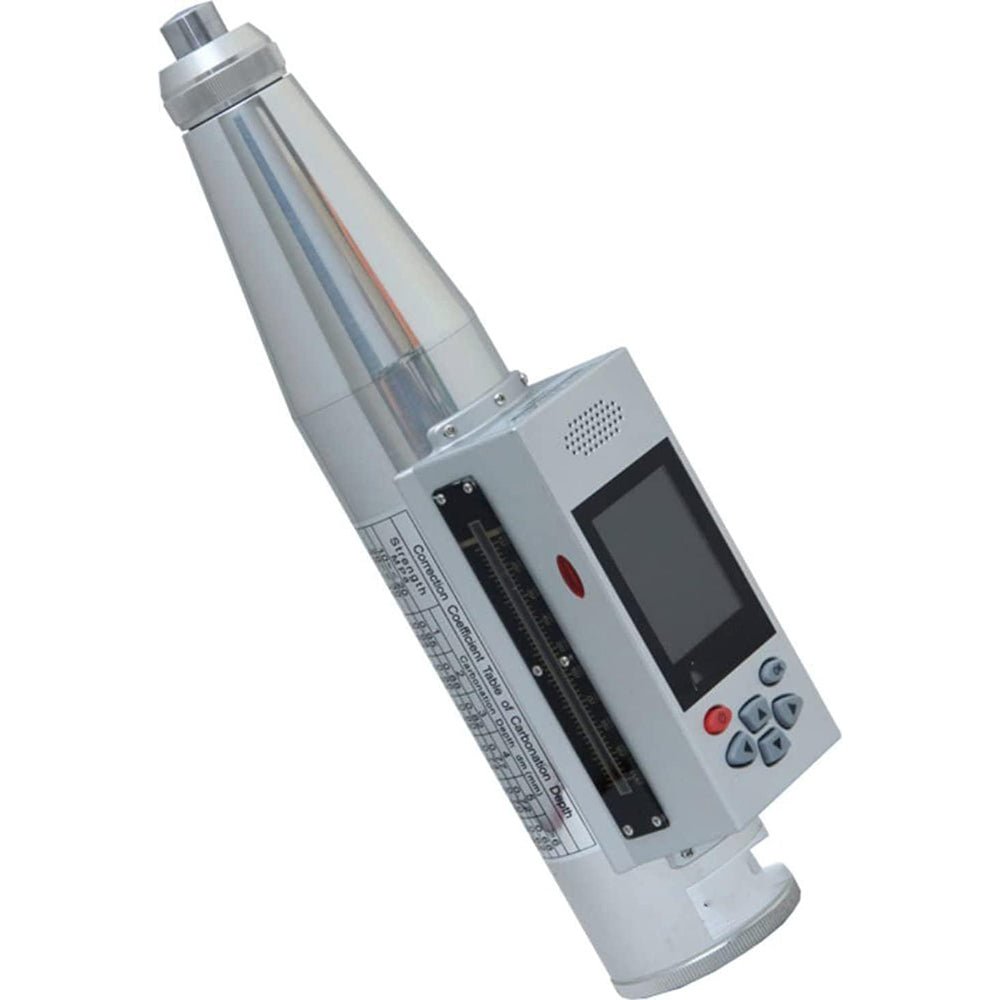

VTSQIYI Integrated Voice Digital Test Hammer with USB Communication Measuring Ranges 10 to 60MPa Rebound Hammer Impact Energy 2.207J High-Resolution LCD Screen

VTSQIYI Integrated Voice Digital Test Hammer with USB Communication Measuring Ranges 10 to 60MPa Rebound Hammer Impact Energy 2.207J High-Resolution LCD Screen

About this item

Spring constant: 785N/m; USB communication port, and a virtual U disk, without the need to install any driver, you can export data or replace the special strength curve.

 Impact energy: 2.207J; Integrated structural design of the domestic initiative, the rebound device and the resilience of the sensor device for the integration of organic integration, without any connection line, easy to carry, low failure rate.

Spring extension: 75±0.3mm; Display: 16-bit true color, 176 * 220 resolution, 5 grades backlight adjustment; Unique rebound value voice prompt function, no need to watch the screen to know the rebound value, improve the detection efficiency of the detector.

The average rebound values on steel anvil: 80±2; Advanced low power management function, can set the screen backlight, voice volume, automatic sleep, and automatic shutdown function, improve the use of the instrument.

The instrument is popularly used for quality Inspection Company making supervisory monitoring, random monitoring ,on-the-spot testing, and also used for sampling and laboratory center. No need to manual calculation. Machine automatically compute and show result. The test hammer set Internal uniform curve. Customer can add up to 20 test curves.

Brief introduction:

Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2011 technical regulations.The instrument is popularly used for quality Inspection Company making supervisory monitoring, random monitoring ,on-the-spot testing, and also used for sampling and laboratory center. No need to manual calculation. Machine automatically compute and show result.

Features:

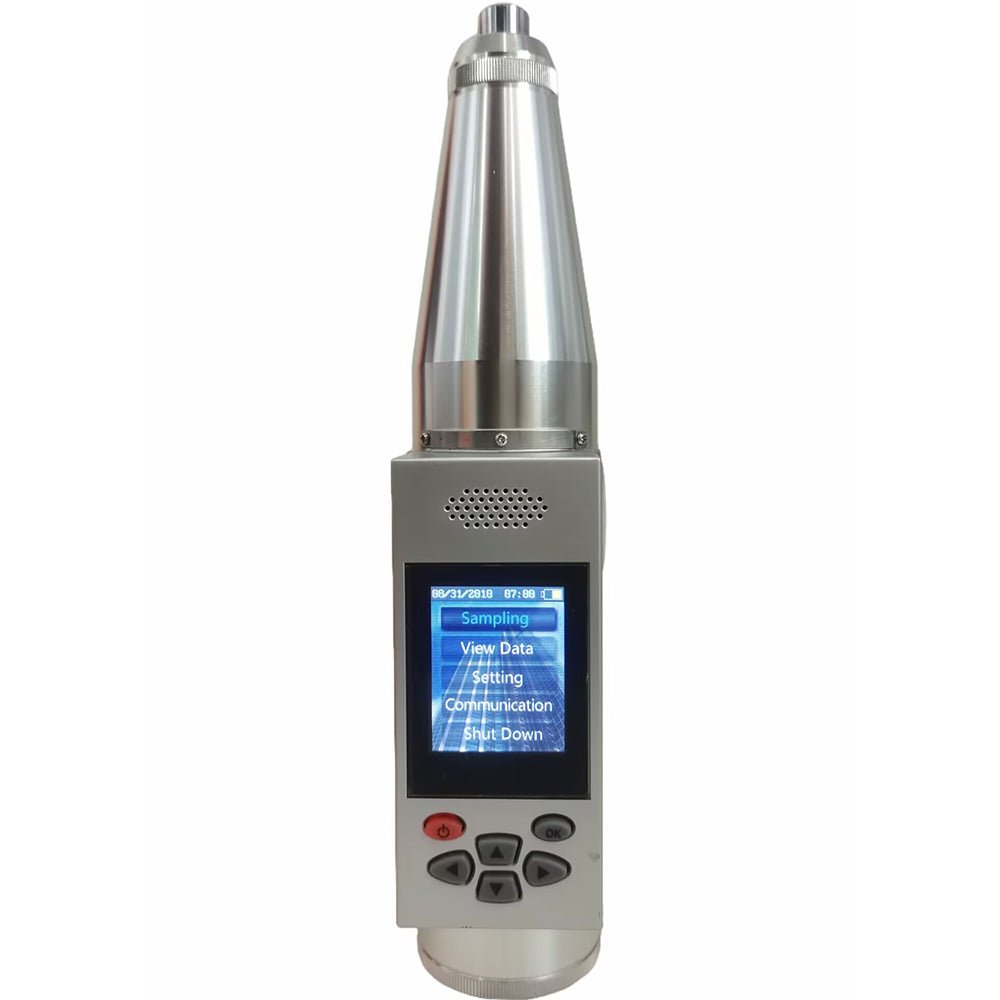

* The test hammer adopt to true color LCD display screen. (resolution ratio176*220). Easy to operate and make your work efficient.

* The voice function let testing personnel not see the value and improve test efficiency.

* Great capacity data storage. It can store the most 200 standard elements. One element can test 99 test areas completely meeting the need of the actual detection work.

* Calendar and clock function can automatic record each component testing date and time.

Test hammer adopt to Non-contact metal reflection grating sensor avoiding physical deterioration and poor contact defect. It improves accuracy and use time. Meanwhile, maintain the mechanical pointer scale.

Technical Specifications:

* Measuring ranges: 10-60MPa

* Impact energy: 2.207J

* Spring constant: 785N/m

* Spring extension: 75±0.3mm

* The average rebound values on steel anvil: 80±2

* The consistency of the sample showing values:≤±0.5 (Digital output sampling value difference with the cursor readings)

* Display: 16-bit true color, 176 * 220 resolution, 5 grades backlight adjustment

* Data storage: 500 standard components (each component of the 99 measuring area), 20 special strength curve

* Power: 3.7V/1500mAH rechargeable Li battery.

* Power consumption: largest back light≈100mA(voice shut down)

* connect interface: USB2.0

* Weight: 1.1Kg

* Optional Accessories: IR Printer Selectable
