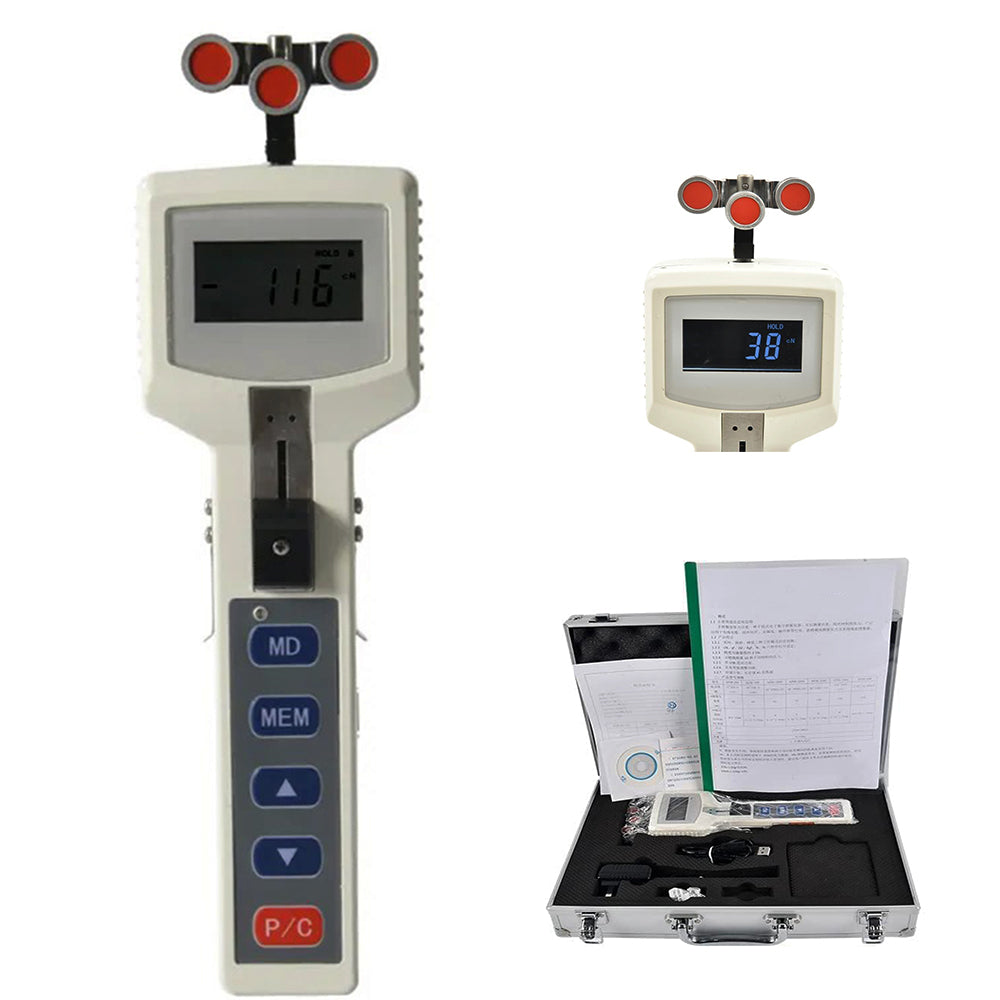

VTSYIQI Cable Tension Meter Digital Rope Tension Meter Tester with Tension Range 50 to 2500cN Measuring Head Width 116mm Three Working Modes Real-time Hold and Peak for Measuring the Tension of Filamentous and Linear Materials and Other Industries

VTSYIQI Cable Tension Meter Digital Rope Tension Meter Tester with Tension Range 50 to 2500cN Measuring Head Width 116mm Three Working Modes Real-time Hold and Peak for Measuring the Tension of Filamentous and Linear Materials and Other Industries

Regular price $994.00 USD
Regular price Sale price $994.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Cable Tension Meter Digital Rope Tension Meter Tester with Tension Range 50 to 2500cN Measuring Head Width 116mm Three Working Modes Real-time Hold and Peak for Measuring the Tension of Filamentous and Linear Materials and Other Industries

Main purpose and scope of application

Hand-held digital tension meter is a portable electronic digital measuring instrument that can measure the tension of filamentous and linear materials. It is widely used in wire and cable, textile and chemical fiber, metal wire, carbon fiber and other industries. Can accurately measure tension and process data systematically.

Features

Real-time, hold, peak three working modes can be switched arbitrarily.

cN、gf、OZ、Kgf、N、lb six units can be set.

Accuracy is full scale 2.5%。

Accurate measuring 10 tension of different materials.

With USB communication function。

With thickness adjustment function.

Easy storage,storable 41Group data.

Specifications

Tension range:50~ 2500(CN)

*Measuring head width:116mm

** Calibration material Textile PA monofilament:φ0.40~0.70mm

Dimensions (mm):270 * 118 * 55

net weight(G):640g

power supply:3.7Vlithium battery

*: Depending on the model, the width of the lead frame and the distance between the outer sides of the two guide wheels also vary.

**: Our calibration materials are suitable for 95% tension measurement.PA =If the diameter, hardness, shape, etc. of the tested material are significantly different from the company's calibration materials, it is recommended that the customer provide5The measured material of meter length is calibrated.
