VTSYIQI Coating Thickness Gauge 0 to 200 um 0 to 8 mil Handheld Digital Magnetic Induction F Probe for Small Workpiece

Description：
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

Features:
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use RS-232 data output to connect with PC.
* Provide data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Specification:
Model:CM-1210-200N
Principle:NF Type Eddy Current
Range:0 ~ 200 µm / 0 ~ 8 mil
Resolution:0.1 µm / 1 µm
Accuracy:±1 ~ 3%n or ±2.5 µm or 0.1 mil
Min.Radius Workpiece:Convex 2 mm / Concave 4 mm
Min.Sample Thickness:0.1 mm
Metric / Imperial:√
Functions:Battery Indicator & Automatic Power Off
Opeating Conditions:
Temperature : 0 ~ 40°C
Humidity : 10 ~ 90% RH

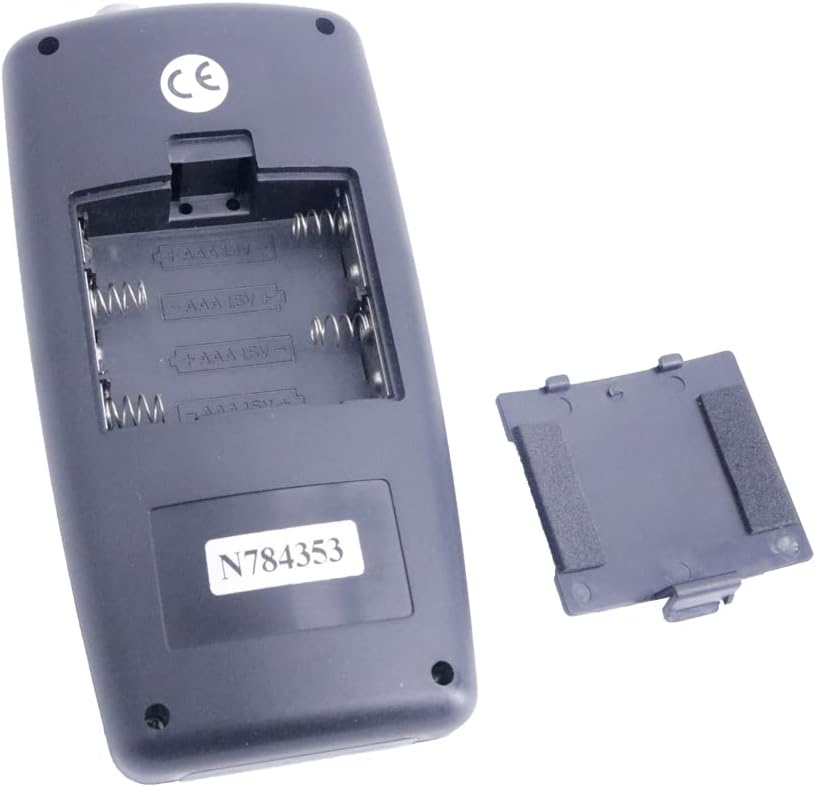

Power Supply:4 x 1.5V AAA (UM-4) Battery Dimensions:140 x 72 x 34 mm
Weight:215 g (Not Including Batteries)
Standard Accessories:
Main Unit
Probe ( NF Type )
Calibration Base ( NF )
Calibreation Foils ( 1 set , 2 pieces )
Carrying Case ( B04 )
Operation Manual

Optional Accessories:
RS-232C Data Cable with Software
Data Adapter with Software
