VTSYIQI Compact Portable Hardness Tester Metal Shell with Standard D Impact Device PC Software for Steel Aluminum Iron Alloy Copper

VTSYIQI Compact Portable Hardness Tester Metal Shell with Standard D Impact Device PC Software for Steel Aluminum Iron Alloy Copper

$329.00 USD
$329.00 USD
Sale Sold out
Shipping calculated at checkout.

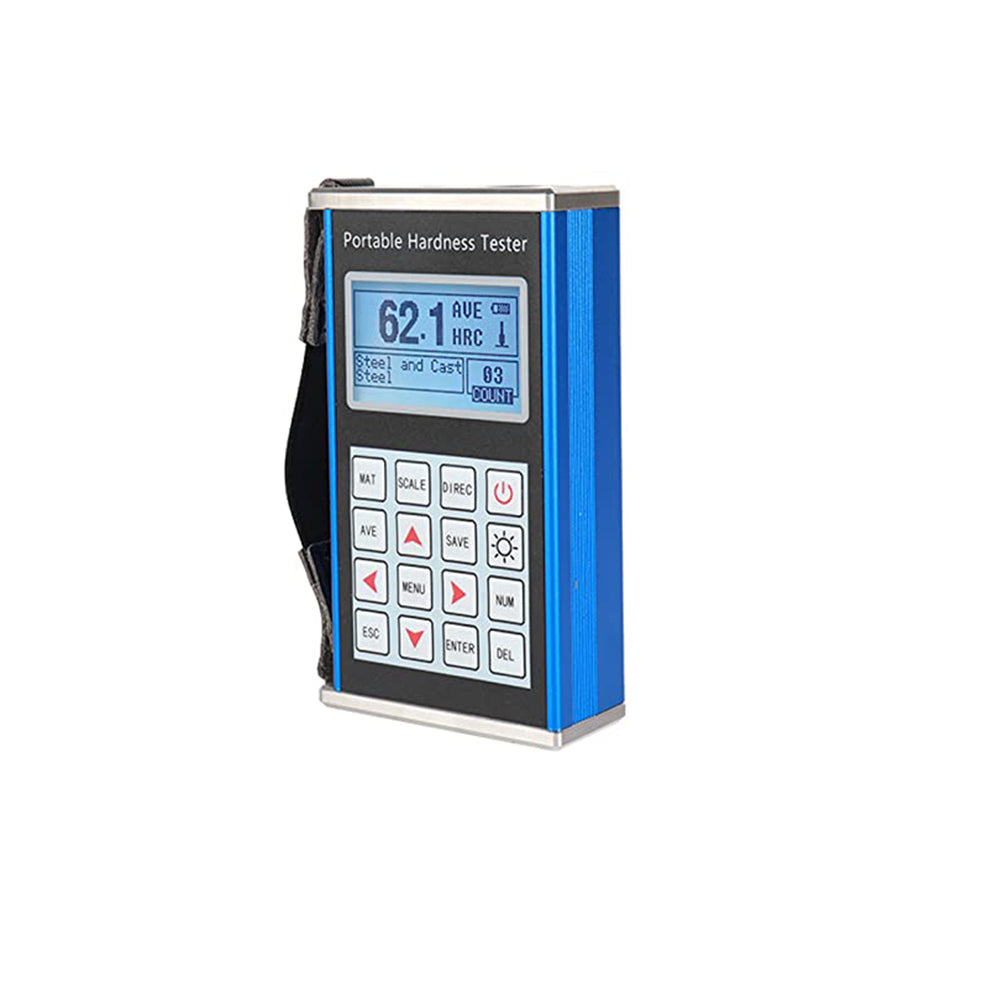

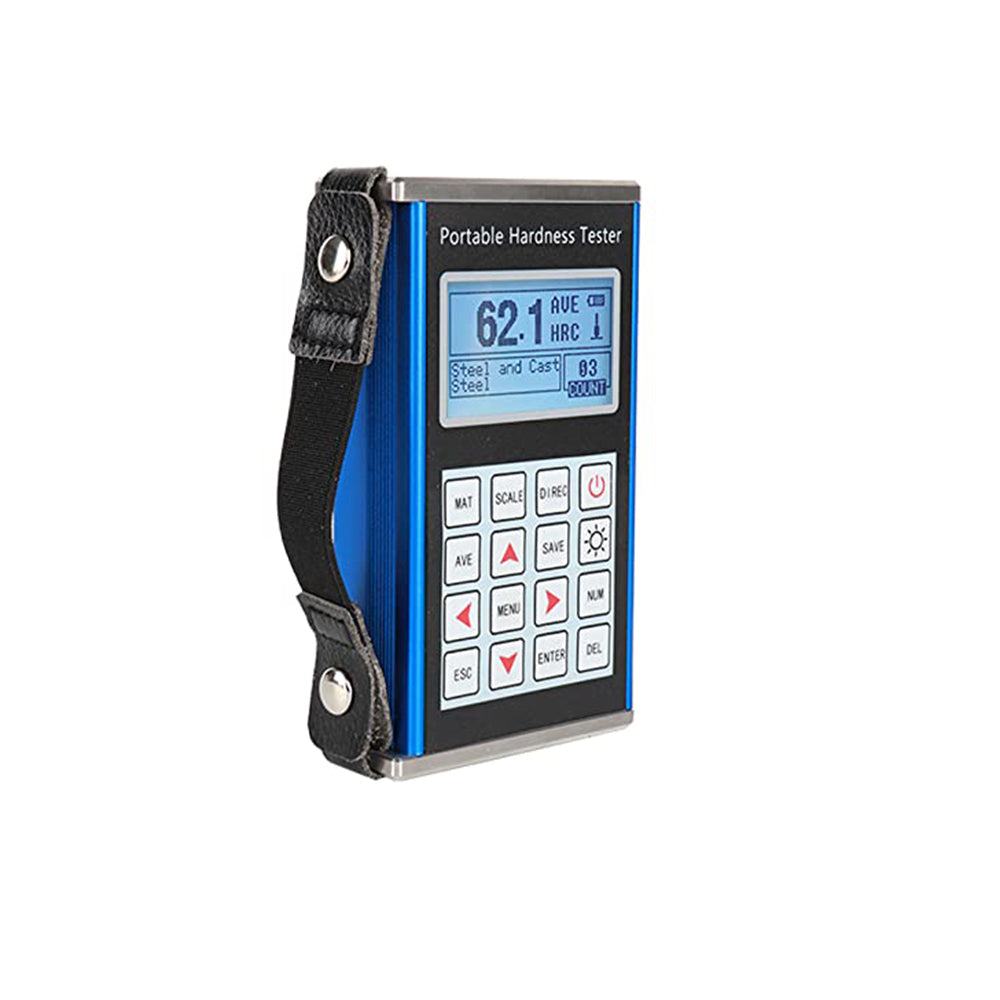

  • Compact Portable Hardness Tester
  • LCD display of 128×64 matrix is used. Using the D high precision impact device Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS). English displaying and menu operating, the operation is easy and convenient
  • Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability. With USB2.0 interface, multiple communication modes are adopted to meet customized requirements of various users. Equipped with a data processing software, through the USB interface, can exchange data with computer printing and parameter setting
  • Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system can identify the type of impact device automatically. Max 600 groups（impact times:32～1）of data can be stored at internal non volatile data storage. Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements
  • Back light display has been used to make convenient for the use in poor light. Test values software calibration function. Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece. Printer be separated from main unit and copies of testing results can be printed as required
  • Power is two of AA battery. Continuous working period: approx. 200 h Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management. Failure analysis of pressure vessel, steam turbo-generator set and other equipment Narrow testing space where work piece installed

Compact Portable Hardness Tester Metal Shell with Standard D Impact Device PC Software for Steel Aluminum Iron Alloy Copper

Compact Portable Hardness Tester

Technical Specifications:

Measuring Range:HLD(170-960) (170-960)HLD，(19-651)HB，(13-100)HRB，(17-68.5)HRC，(59-85)HRA，(80-976)HV、（30~110）HS Impact Directions:Up, down, horizontal, slanting up, slanting down

Tensile Strenght:374 to 2652 N/m 2

Measuring Materials:Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel

Hardness Scales:HL, HB, HRB, HRC, HRA, HV,HS.

Standards:ASTM A956、DIN50156-1、GB/T17394-1998

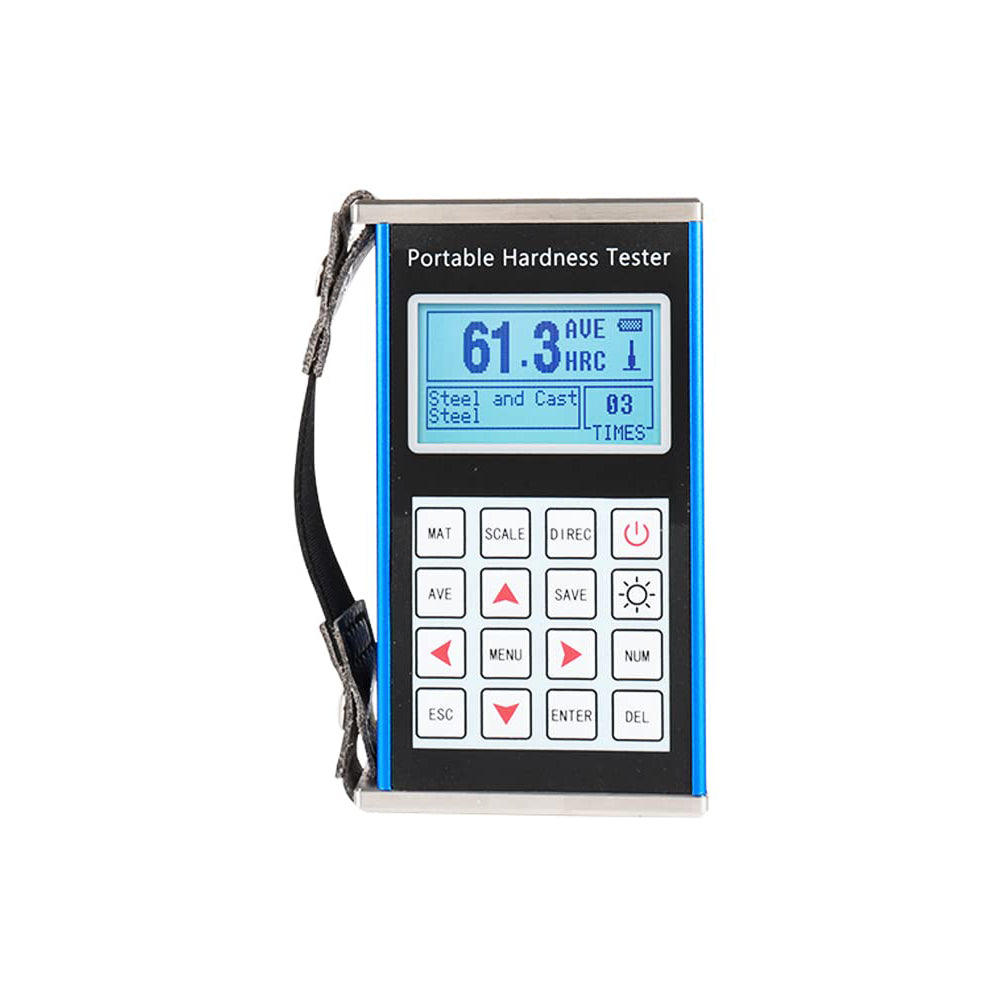

Display:128*64 digital matrix LCD

Memory:600group(32 every group)

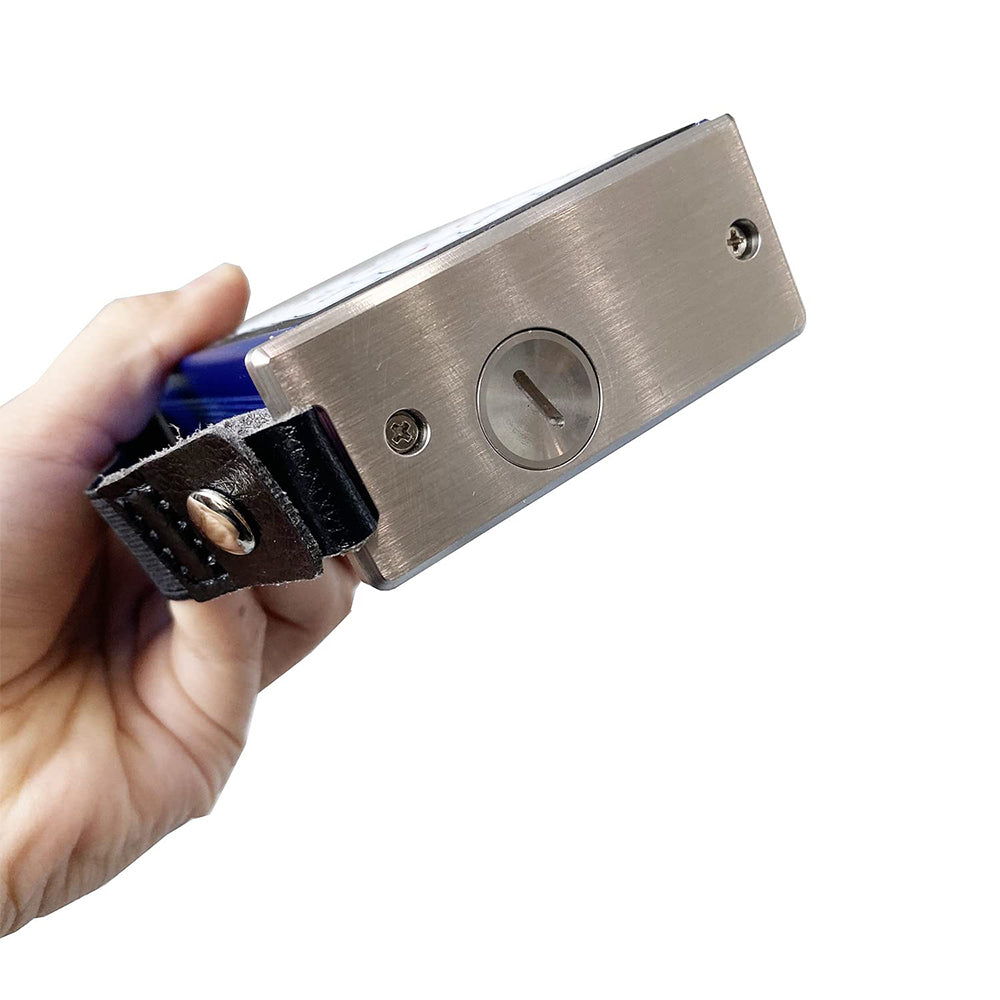

Work Voltage:3V( 2 AA alkaline batteries)

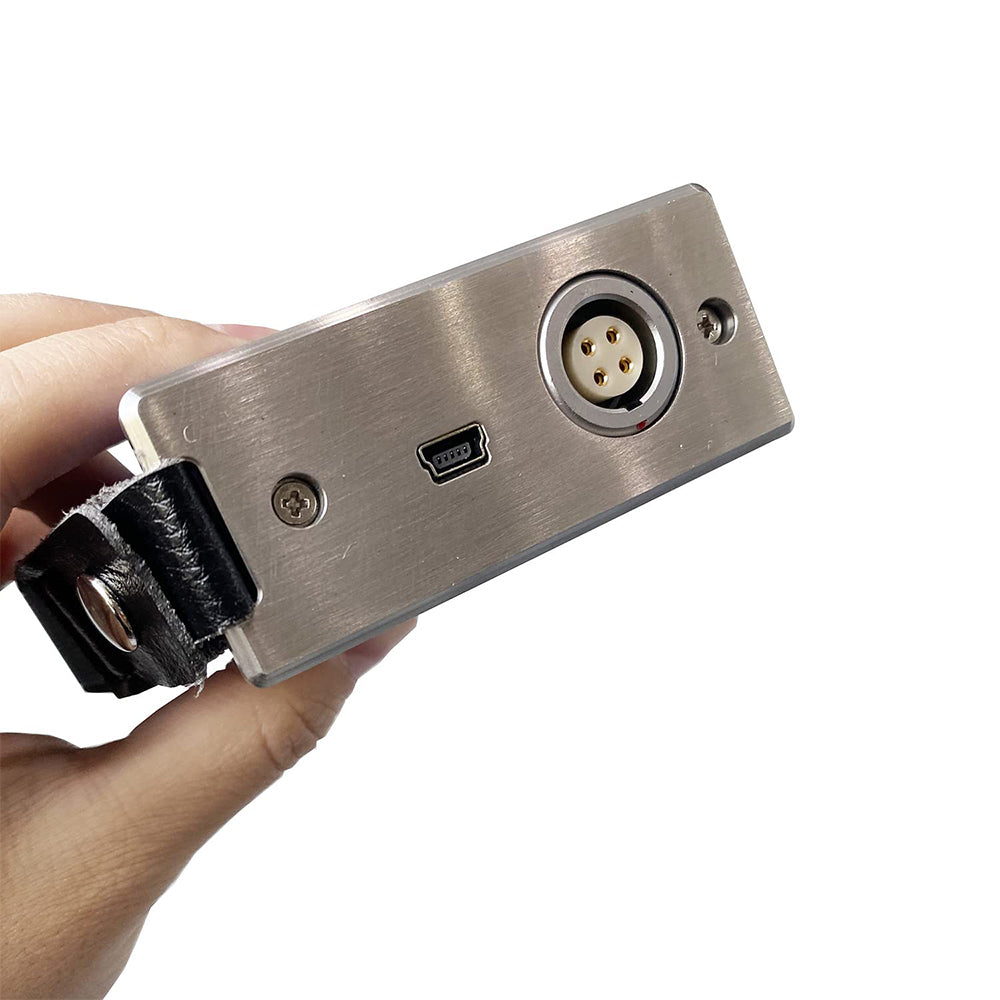

Interface Port:USB2.0

Dimensions:125mm*71mm*27mm

Weight:0.3KG

Continuous Working Period:200 hours (with backlight off)

Main Application：

The assembled machinery and permanently installed parts

Die cavity of molds

Heavy work piece

Bearings and other parts

Cases which require the test result with normalized original recording

Material identification of the metal material warehouse

Quick tests of large range and multipoint measuring positions for heavy Workpiece.

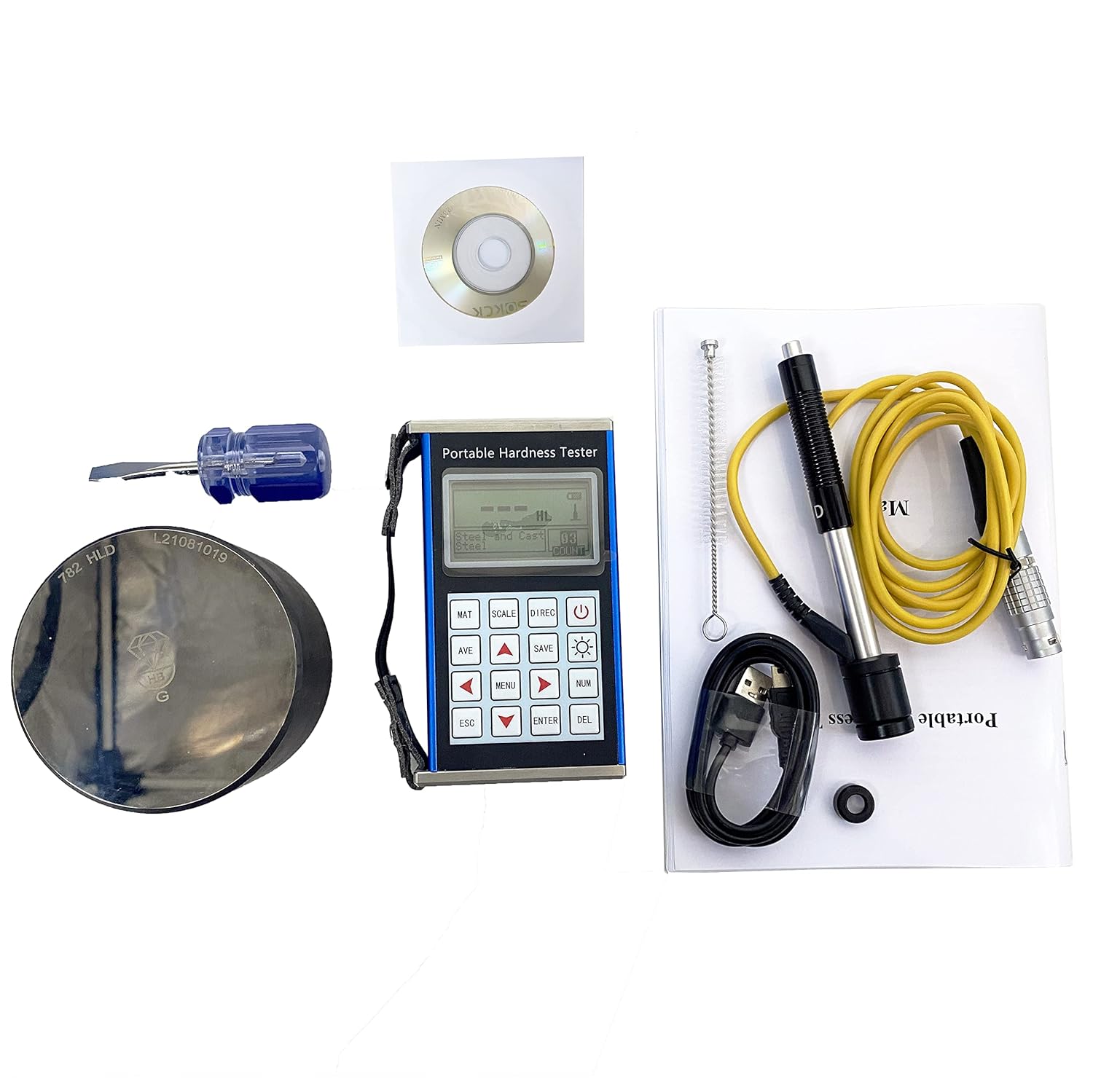

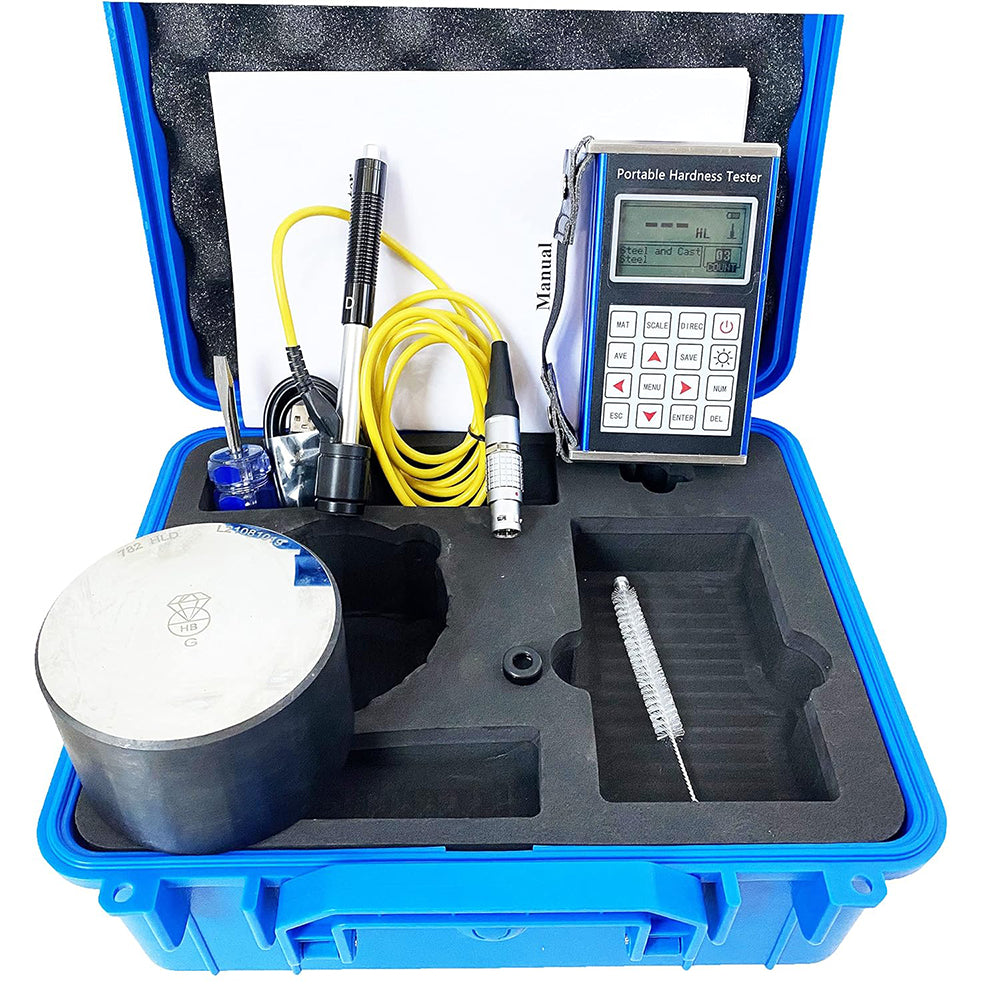

Configuration:

Main body----1

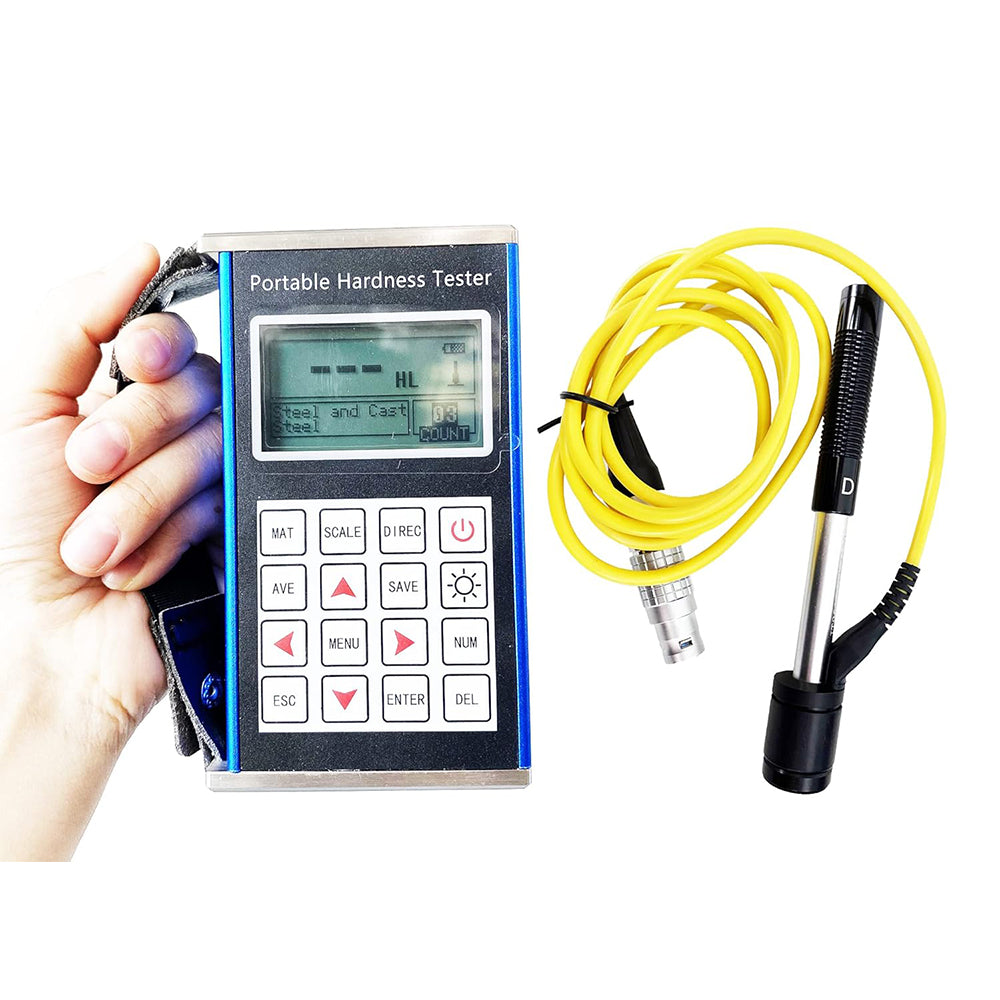

D type impact device----1

Test block with HLD value----1

Cleaning brush (I)-----1

Instruction manual-----1

Small supporting ring-----1

Screwdriver-----1

Certificate of conformity-----1

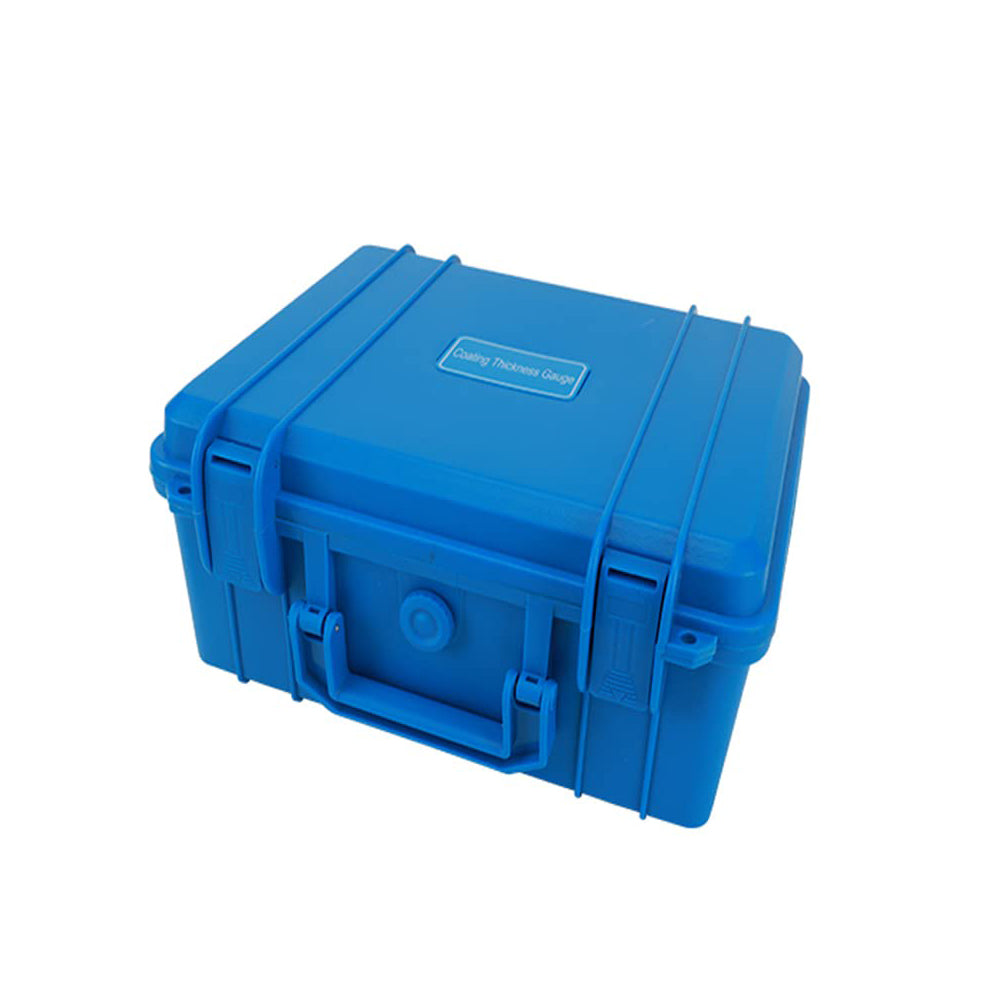

Instrument box-----1

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1％
