VTSYIQI Digital 3D Vibration Meter Double Channel Vibration Meter Digital Vibration Meter/Data Logger with Vibrometer Gauge Vibrating Gauge Acceleration 0.1~400m/s², Black

Note: Battery not Included During The Shipping !!!

Application:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

Features:

2 same parameters  in one display for 2 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.

In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

Individual high quality ccelerometer for accurate and repeatable measurements.

Wide frequency range (10Hz~10kHz) in acceleration mode.

Optional headphones for use as electronic stethoscope.(optional)

Bearing condition monitoring function.

Use USB/RS-232 data output to connect with PC.(optional)

Provide Bluetooth data output choice.(optional)

Specification:

Sensor: 2 Piezoelectric Transducers

Measuring Range:

Acceleration: 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak

Velocity: 0.01~400mm/s 0.004~16.0inch/sTrue RMS

Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak

Frequency Range:

Acceleration:10Hz~10kHz

Velocity: 10Hz~1kHz

Displacement: 10Hz~1kHz

Accuracy: 5% of Reading+2 digits

Operating Conditions: Temperature 0~50ºC, Humidity <90%RH

Power Supply: 4x1.5V AAA(UM-4)Battery (not included in package)

Dimensions: 140x73x35mm

Weight: 415g(Not Including Batteries)

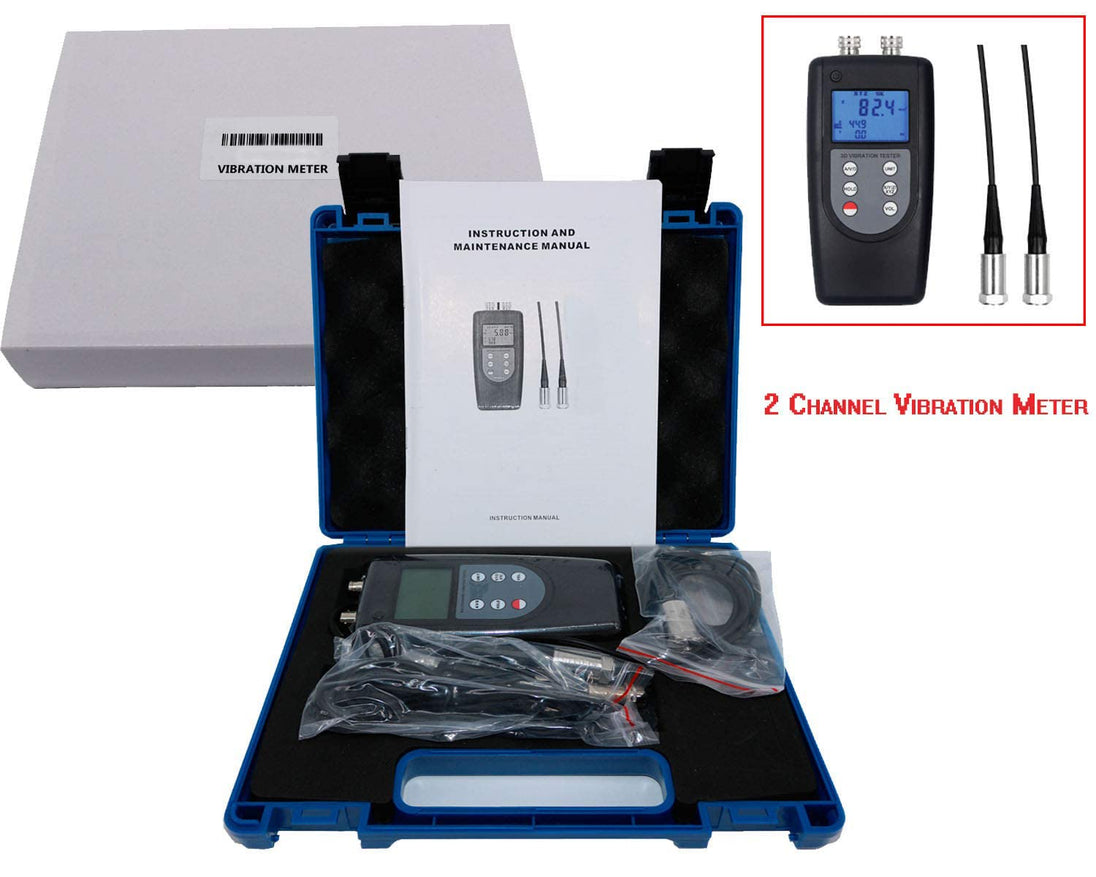

Standard Accessories: Main Unit, Piezoelectric Transducers, Powerful Rare Earth Magnet, Probe(Cone)&Probe(Spherical) , Carrying Case(B04), Manual Book

Optional Accessories: Headset , RS-232C Data Cable with Software, Bluetooth Data Adapter with Software
