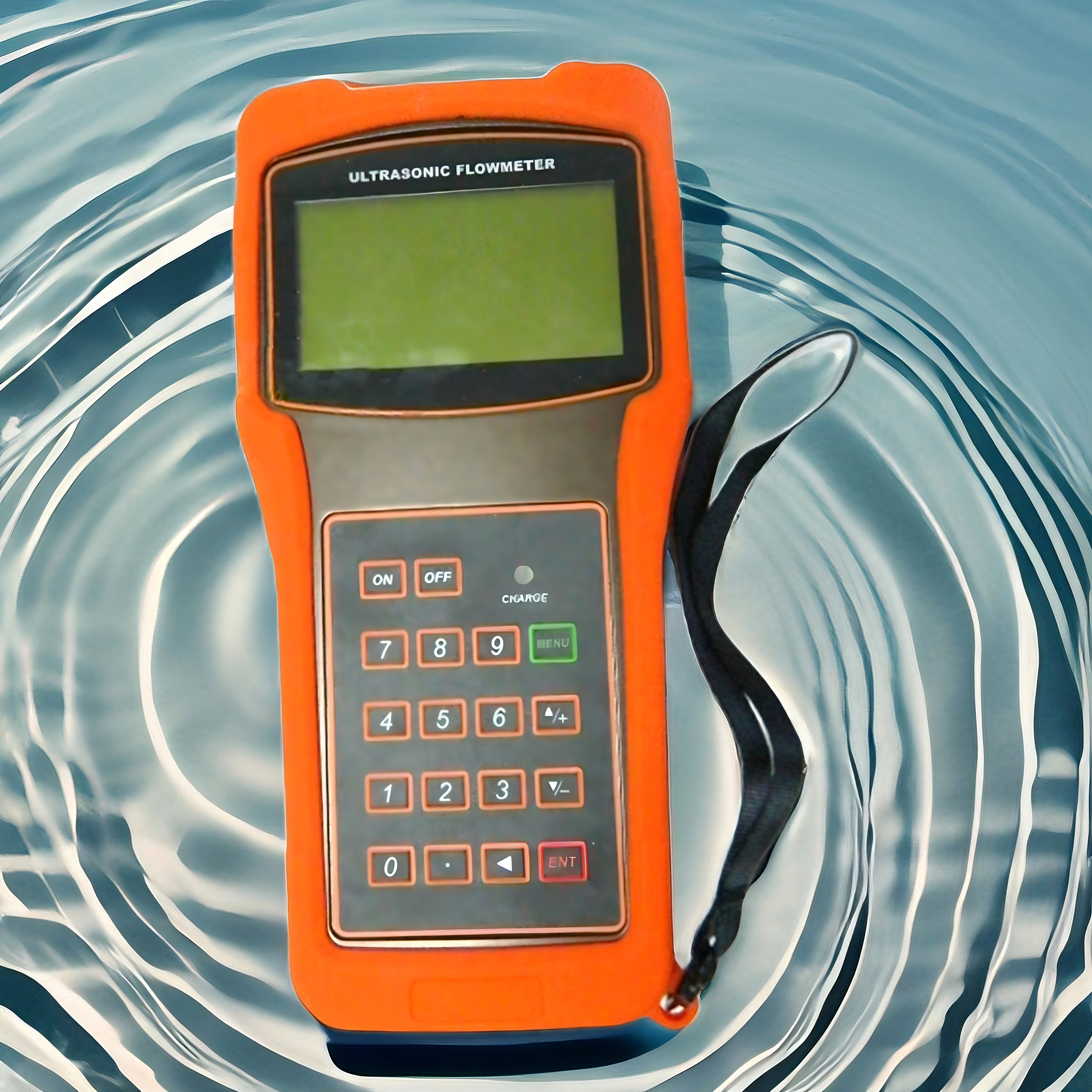

VTSYIQI Digital Handheld Ultrasonic Flow Meter Flowmeter With Three Size Transducer For DN15-6000mm Pipe Size Working Temperature Range -30 to 160 Degree

Product Description

*This listing is for DN15-6000mm pipe size, the water temperature is from -40-160 degree
*It comes with one pair of TS-2-HT TM-1-HT TL-1-HT transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line
*The couping agent can not be sent to you because of air shipping regulation. Because it is like crystal liquid. You must use silica gel to replace. You must use it when you measure the flow rate. If you do not use the silica gel, it will have no signal
*If your pipe size is DN50-1000MM, or DN15-100mm, you can find this kind of clamp on transducer or bracket transducer in our store
*1. TS-2 type: DN15-100mm， -30-160℃2TM-1 type: DN50-1000mm， -30-160℃3. TL-1 type: DN300-6000mm， -30-160℃

Product Description
The manual is an electronic version. You can also download the manual directly in the detailed description.

Notice :
For the meter TUF-2000H , we ship you the TS-2-HT TM-1-HT TL-1-HT Transducer come with the meter .

Main Feature：
Items： Performance and Parameter
Main Unit：
Principle： transit-time ultrasonic flowmeter
Accuracy： Accuracy :over 1%-2%; Repeatability: over 0.2%
Display ：4 line x 16 character LCD with backlight
Dimension： 200*93*33cm: 390g
Operation： Support 16 key light touch keyboard and the Simulation keyboard software
Data interface：
Insulate RS232 serial interface, upgrade the flew meter software by computer,
support the MODBUS, etc.
Signal Output： 1 way OCT output
Special Cable ：
Twisted-pair cable, ;Select the RS232 communication.;
Generally, the standard is 5m*2, optional 10m*2
Pipe Condition ：
Pipe Material ：
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass
steel product, liner is allowed.
Pipe Diameter ：DN15-6000mm
Straight length pipe：
Transducer installation should be satisfied: upstream10D, downstream 5D,
30D from the pump.
Measuring Medium：
Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids
Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
Turbidity： under 10000ppm and less bubble
Flow rate ：0--±10m/s
Flow Direction ：Measuring two (plus-minis) direction of flow rate
Working Environment：
Temperature：
Main Unit: -20--60℃
Flow transducer: -40--160℃;
Temperature transducer: according to the customer’s demands.
Humidity： Main Unit: 85% RH
Power Supply： AC 110V-240V
