VTSYIQI Digital Insulation Resistance Tester Digital Earth Resistance Meter with Rated Voltage 100V 250V 500V 1000V 2500V Resolution 0.1V DC Voltage 0.0V-1000V AC Voltage 0.0V-750V 500 Groups Data Storage for Computer Room Resistance Test

VTSYIQI Digital Insulation Resistance Tester Digital Earth Resistance Meter with Rated Voltage 100V 250V 500V 1000V 2500V Resolution 0.1V DC Voltage 0.0V-1000V AC Voltage 0.0V-750V 500 Groups Data Storage for Computer Room Resistance Test

Regular price $216.00 USD
Regular price Sale price $216.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Digital Insulation Resistance Tester Digital Earth Resistance Meter with Rated Voltage 100V 250V 500V 1000V 2500V Resolution 0.1V DC Voltage 0.0V-1000V AC Voltage 0.0V-750V 500 Groups Data Storage for Computer Room Resistance Test

Feature:

(1) {Function}--------Insulation resistance test, and voltage test

(2) {Rated voltage}--------100V 250V 500V 1000V 2500V

(3) {Insulation resistance range}--------00.01MΩ~200GΩ ; resolution:0.01MΩ

(4) {Alarm function}--------Send an alarm prompt when the measured value exceeds the alarm set point

(5) {Data Storage}--------500 groups, "FULL" symbol indicates that storage is full

Introduction:



This digital insulation resistance meter, also known as megohmmeter, high-voltage insulation resistance tester, is used for insulation resistance testing.

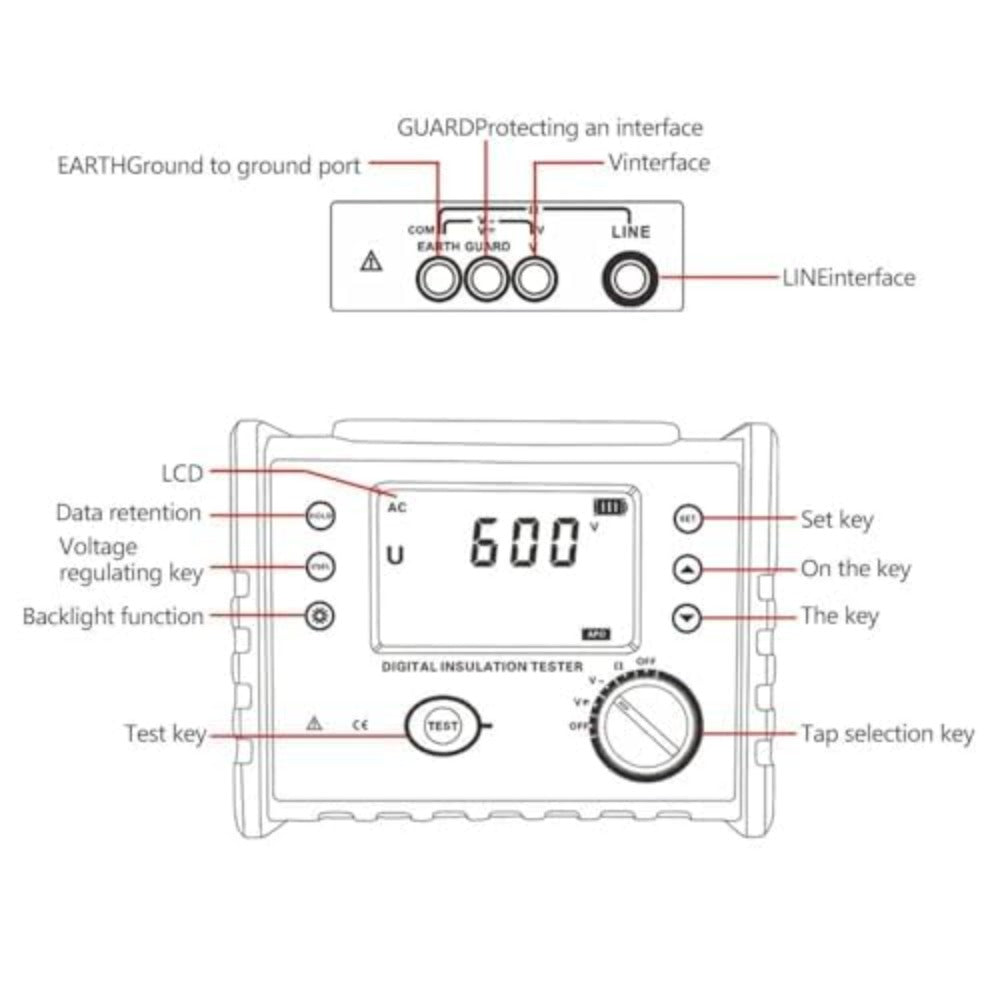

The instrument has a large LCD screen with gray and white backlight display, data storage, data access, alarm, automatic shutdown and other functions.

At the same time, it also has the function of measuring the absorption ratio of DC voltage and AC voltage and polarization index.

The whole machine is beautiful and high-grade, with a wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability.

It also has a shockproof, dustproof and moistureproof structure, and is suitable for harsh working environments.

It is a common and indispensable instrument for electric power, post and telecommunications, electromechanical installation and maintenance, and industrial enterprises that use electric power as industrial power or energy.

It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

This digital insulation resistance meter is composed of medium and large scale integrated circuits.

This watch has large output power and many output voltage levels (there are 5 voltage levels).

The rated insulation test voltage range is 100~2500V, and the insulation resistance measurement range is 0.01MΩ~200GΩ.

The DC voltage measurement range is 0~1000V, and the AC voltage measurement range is 0~750V.



Specification:



Function:Insulation resistance test, voltage test

Baseline conditions:23℃±5℃, below 75%rh

Rated voltage (V):100,250,500,1000,2500 Accuracy±3%rdg±5dgt

Measuring voltage (V):Rated voltage×(1±10%)

Insulation resistance range (GΩ):0.01MΩ~200GΩ

Insulation Resistance Resolution:0.01MΩ

DC voltage range:0~1000V

DC voltage resolution:0.1V

AC voltage range:0~750V

AC Voltage Resolution:0.1V

output short circuit current:≥2mA(2500V)

Absorption Ratio and Polarization Index Measurements:Have

power supply:1.5V (LR14) alkaline batteries 6(Batteries are not included during the shipment.)

Backlight:Controllable gray and white screen backlight, suitable for use in dark places

display mode:4-digit large LCD display, gray and white screen backlight

LCD display size:108mm×65mm

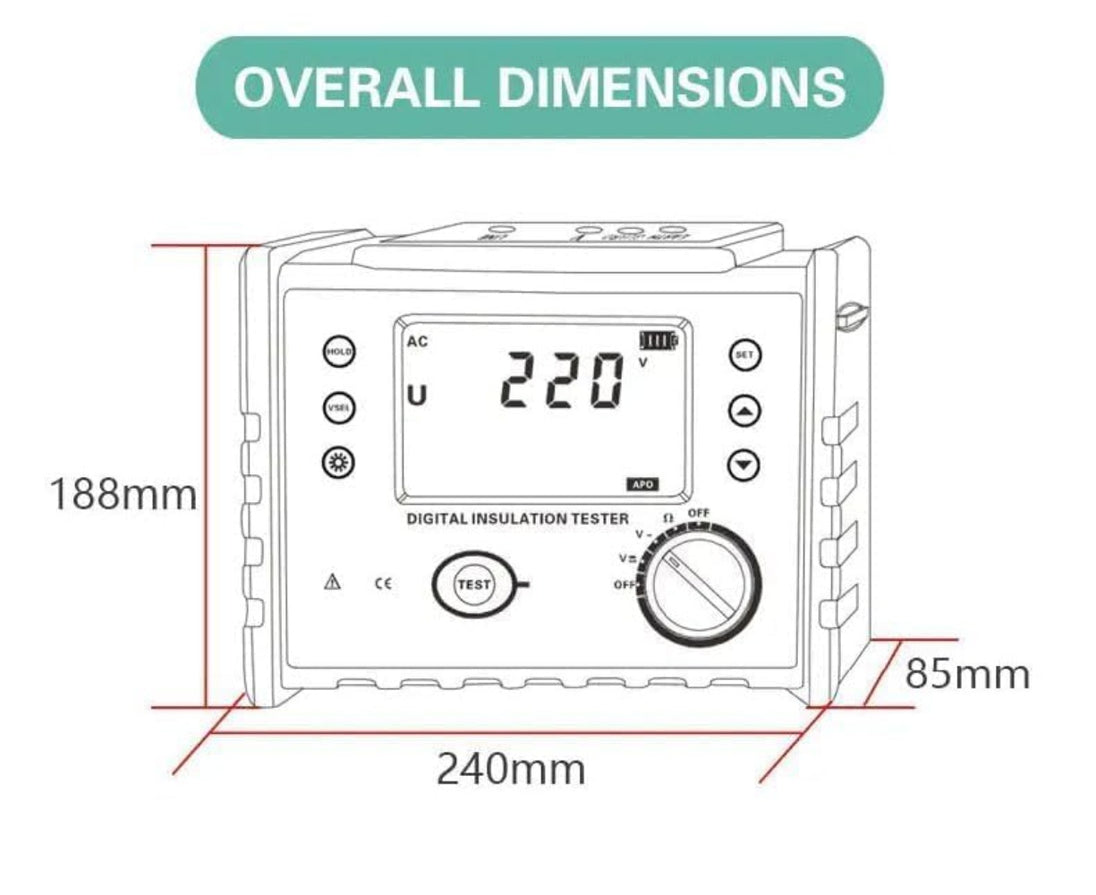

Meter size:240mm (L)×188mm (W)×85mm (H)

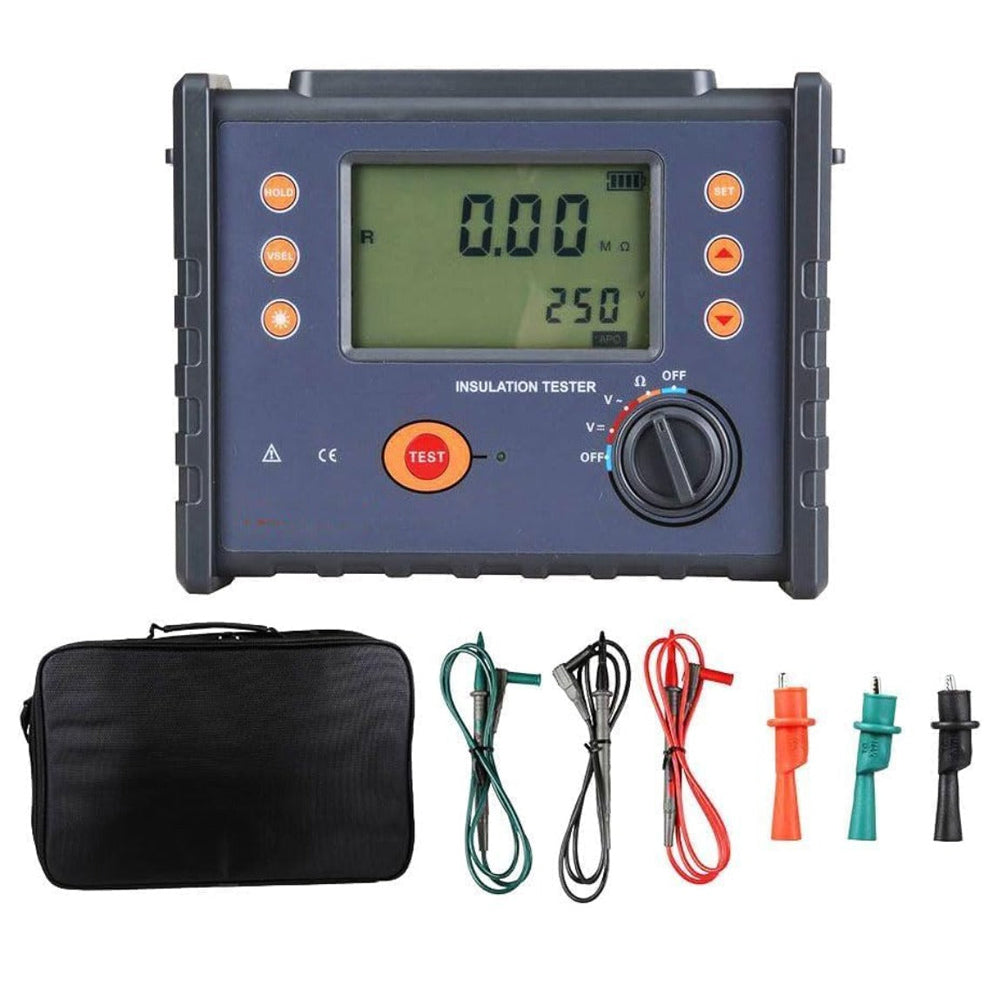

test line:High voltage test line red 1 meter, black 1 meter, green line 1 meter

data storage:500 groups, flashing "FULL" symbol indicates that the storage is full

Data access:Data access function: "MR" symbol display

overflow display:Overrange overflow function: "OL" symbol display

Alarm function:When the measured value exceeds the alarm setting value, an alarm prompt will be issued





Alarm function:When the measured value exceeds the alarm setting value, an alarm prompt will be issued

Power consumption:Standby: 40mA Max (backlight off);Turn on the backlight: 43mA Max;Measurement: 80mA Max (backlight off)

quality:1230g (including battery)

battery voltage:Low battery voltage, showing low battery symbol“ ”

Automatic shut-down:The meter shuts down after about 15 minutes of inactivity

Insulation resistance:≥50MΩ (1000V)

Pressure resistance:AC3kV/50Hz 1min

Operating temperature and humidity:-10℃~+50℃<85%RH

Storage temperature and humidity:-15℃~+55℃<90%RH

Suitable for safety regulations:IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
