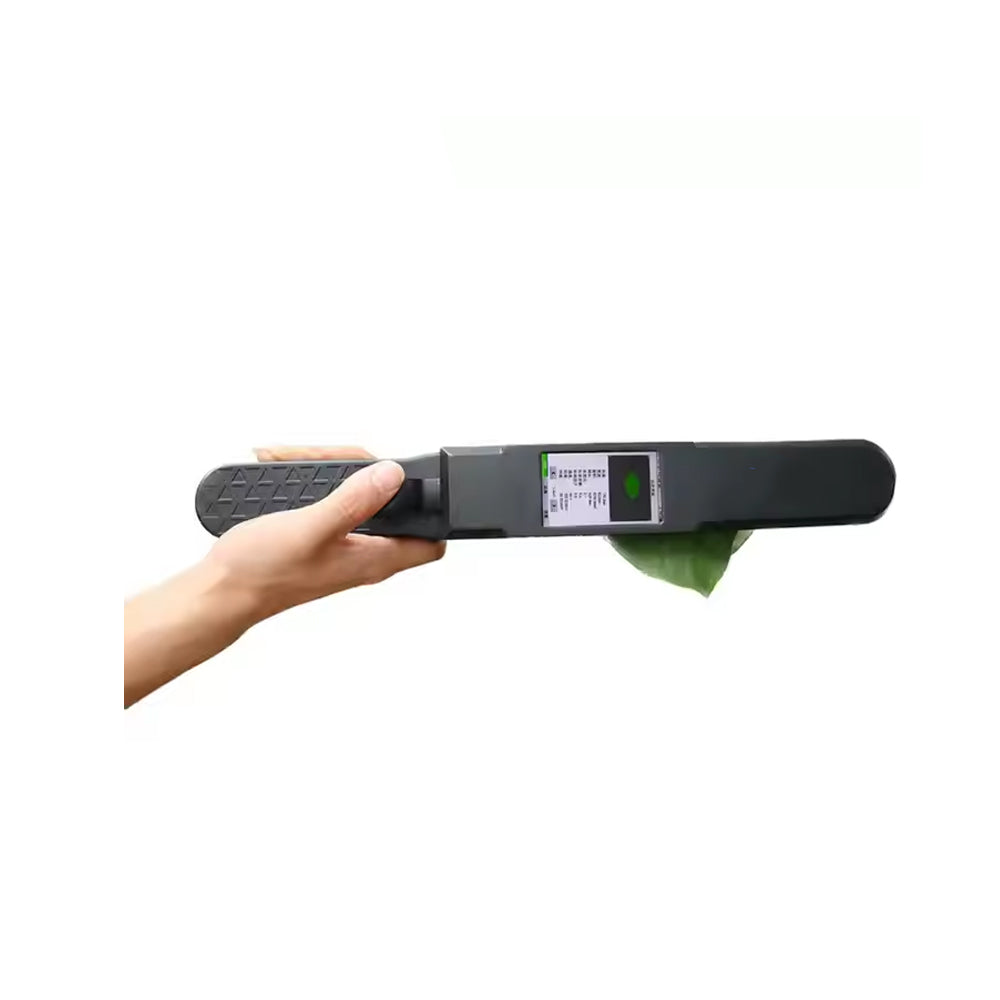

VTSYIQI Digital Leaf Area Meter Leaf Area Detector Living Leaves Area Measurement with Length Resolution 0.1mm Width Resolution 0.1mm Maximum Scanning Width 210mm Maximum Scanning Length 3000mm Data Store Function
VTSYIQI Digital Leaf Area Meter Leaf Area Detector Living Leaves Area Measurement with Length Resolution 0.1mm Width Resolution 0.1mm Maximum Scanning Width 210mm Maximum Scanning Length 3000mm Data Store Function
VTSYIQI Digital Leaf Area Meter Leaf Area Detector Living Leaves Area Measurement with Length Resolution 0.1mm Width Resolution 0.1mm Maximum Scanning Width 210mm Maximum Scanning Length 3000mm Data Store Function
About this item:
Maximum scanning width: 210mm; Maximum measured thickness: ≤ 7.5mm
Performance parameters: maximum scanning length: 3000mm
Maximum measurement area: 3000 * 210mm²; area measurement accuracy: < ± 2% full
The calculation of the entire leaf area is the accumulation of several subdivided small-sized areas; Other measurement items can also be obtained and calculated with similar principles
It is widely used in agriculture, forestry, animal husbandry, grass and other fields
Application range:
Widely used in agriculture, forestry, animal husbandry, grass and other fields
Characteristics
Using contact image sensor (CIS) to scan the width of its sliding blade
The length of its sliding path is subdivided into several equal parts
The calculation of the entire leaf area is the accumulation of several subdivided small-sized areas; Other measurement items can also be obtained and calculated with similar principles
Technical parameters
Performance parameters: maximum scanning length: 3000mm
Maximum scanning width: 210mm
Maximum measured thickness: ≤ 7.5mm
Maximum measurement area: 3000 * 210mm²; area measurement accuracy: <± 2% full
Scanning speed: 150mm / s
Length resolution: 0.1mm
Width resolution: 0.1mm
LCD display: 480 * 854 RGB display Chinese interface display
Battery: 5Ah, rechargeable lithium-ion battery, battery life 16h
Working temperature: 0 ~ 40 ℃
Working humidity: 0% ~ 100% (no frost)
Internal memory: built-in storage area: 1000 groups of measurement data can be stored;
Expanded storage area: 29g, large storage space (≥ 1 million times)
Interface: type-C data / charging interface
Overall dimension: 420 * 50 * 54mm
