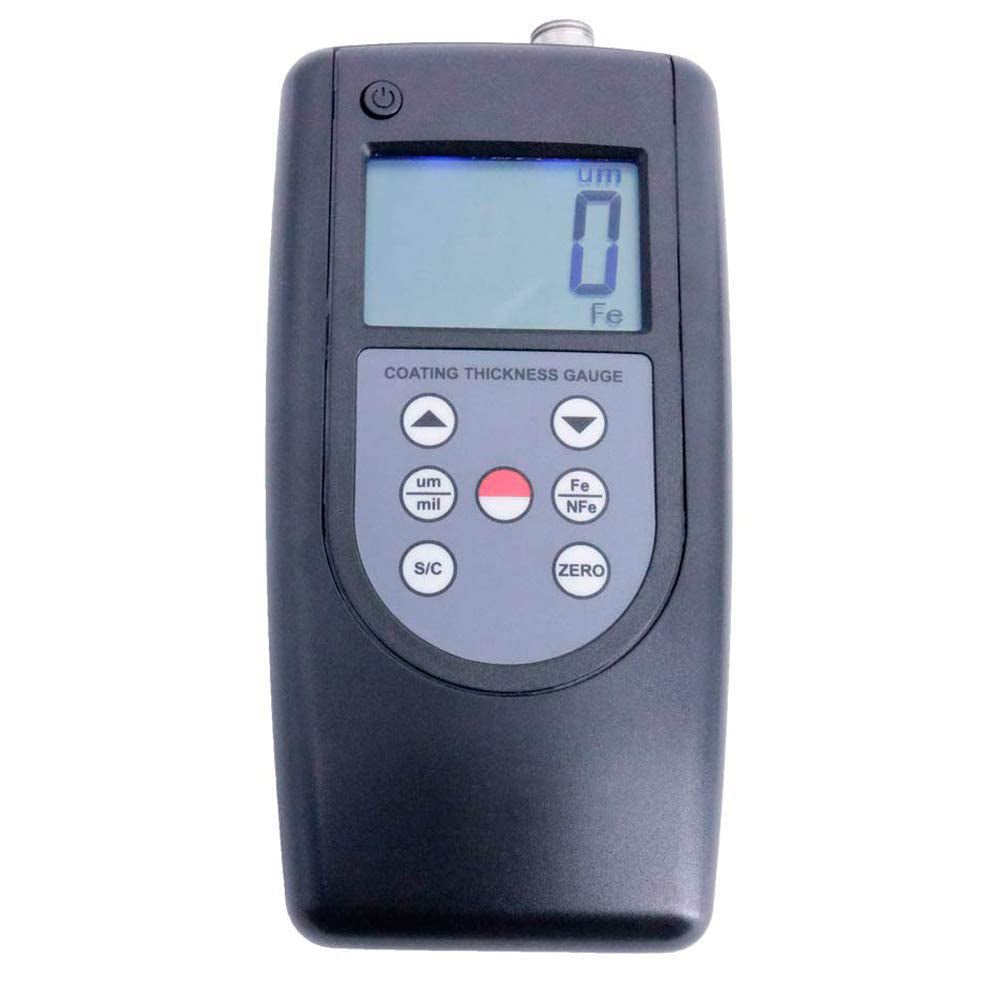

VTSYIQI Digital Paint Coating Thickness Gauge with F/NF Probe Magnetic Induction Eddy Current 0~2000um

Feature
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and ContinuousNoticeContinuous mode is convenient to measure the coating thickness of curved objects and tiny objects.
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility
Specifications
Operating Principle
Magnetic Induction / Eddy Current (F / NF)
Measuring Range
0~2000 um / 0~80 mil
Resolution
0.1 um / 1 um
Min. Radius Work piece
F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area
6 mm
Min. Sample Thickness
0.3 mm
Accuracy
± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial
Convertible
Battery Indicator
Low Battery Indicator
Operating Conditions
Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply
4 x 1.5 V AAA (UM-4) Battery
Dimensions
140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )
Weight
215 g (Not Including Batteries)
Standard Accessories:
1. Main Unit
2. Probe (F Type & NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software.
