VTSYIQI Digital Permanent Magnet Gauss Meter Tesla Meter Gaussmeter with 1% Accuracy Surface Magnetic Field Tester

VTSYIQI Digital Permanent Magnet Gauss Meter Tesla Meter Gaussmeter with 1% Accuracy Surface Magnetic Field Tester

$225.00 USD
$225.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Introduction:
  • Magnetic field measurement: automatic range switching
  • Magnetic field polarity display: directly display the N / S magnetism of the measured magnetic field
  • One-key unit switching: The value can be mT (millites), G (gauss), 1 mT = 10 G
  • Maximum value retention: It is convenient to record the maximum magnetic field value when the magnetic field changes rapidly
  • One-key zeroing function: used to eliminate the influence of zero drift on the measurement before measurement

Introduction

* This Gaussmeter instrument is a portable, multi-functional magnetic field measuring instrument, equipped with a high sensitivity, low drift Hall sensor, and applied advanced digital signal processing technology

* Suitable for measuring the surface magnetic field of permanent magnetic materials, mechanical parts Magnetic, DC constant magnetic field, magnetic separator or iron remover, etc.

* It can be used as a basic magnetic parameter measuring instrument for magnetic material manufacturers and application units, machinery manufacturing enterprises, university scientific research units, etc.

Functional features

* Magnetic field measurement: automatic range switching,

* Magnetic field polarity display: directly display the N / S magnetism of the measured magnetic field.

* One-key unit switching: The value can be mT (millites), G (gauss), 1 mT = 10 G.

* Maximum value retention: It is convenient to record the maximum magnetic field value when the magnetic field changes rapidly.

* One-key zeroing function: used to eliminate the influence of zero drift on the measurement before measurement.

* Small size, light weight, low power consumption, very suitable for carrying to the scene measurement.

* The standard configuration is a radial Hall probe, to adapt to different measurement scenarios.

Technical Specifications

* Range: 200 mT; 2000 mT

* Resolution: 10 μT; 100 μT

* Digits: 5-digit decimal

* Best measurement uncertainty:±1%

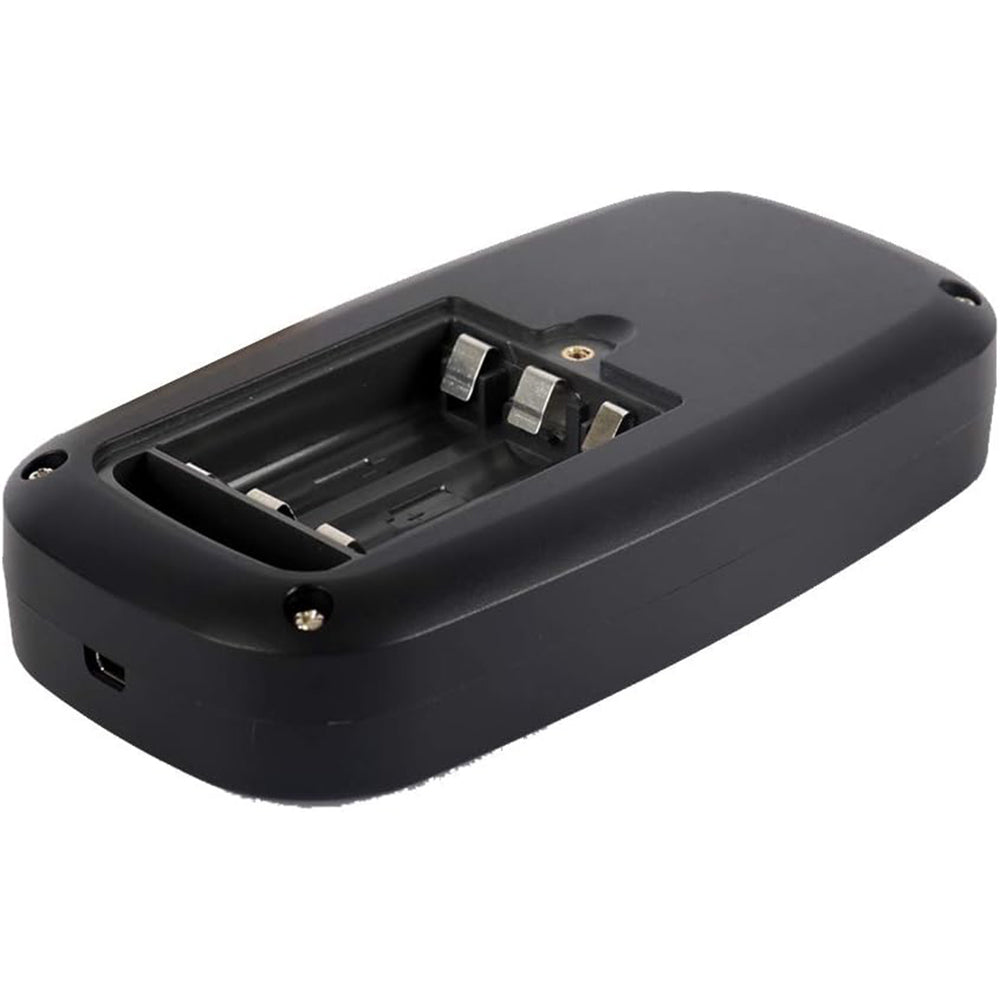

* Power supply: 3 AA dry batteries（Battery Not Included In the Package）

* Working environment: 0℃ ～ 45℃ , 20% ～ 80% R·H, no condensation.

* Storage environment: -20℃ ～ 70℃ , < 85% R·H, no condensation.

* Instrument size: 160 mm × 90 mm × 40 mm (L × W × H).

* Weight : about 350 g.

* Standard Accessories: Gaussmeter,Radial Hall probe, Certificate,Packing box,User manual

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1％
