VTSYIQI Wire Rope Tension Meter Yarn Tension Tester with Tension Range 4 to 200.0cN Six Units cN、gf、OZ、Kgf、N、lb Calibration Material Textile PA Monofilament φ0.12mm 41 Groups Data Storage for Finer Yarns Wire Ropes Etc

VTSYIQI Wire Rope Tension Meter Yarn Tension Tester with Tension Range 4 to 200.0cN Six Units cN、gf、OZ、Kgf、N、lb Calibration Material Textile PA Monofilament φ0.12mm 41 Groups Data Storage for Finer Yarns Wire Ropes Etc

Main purpose and scope of application

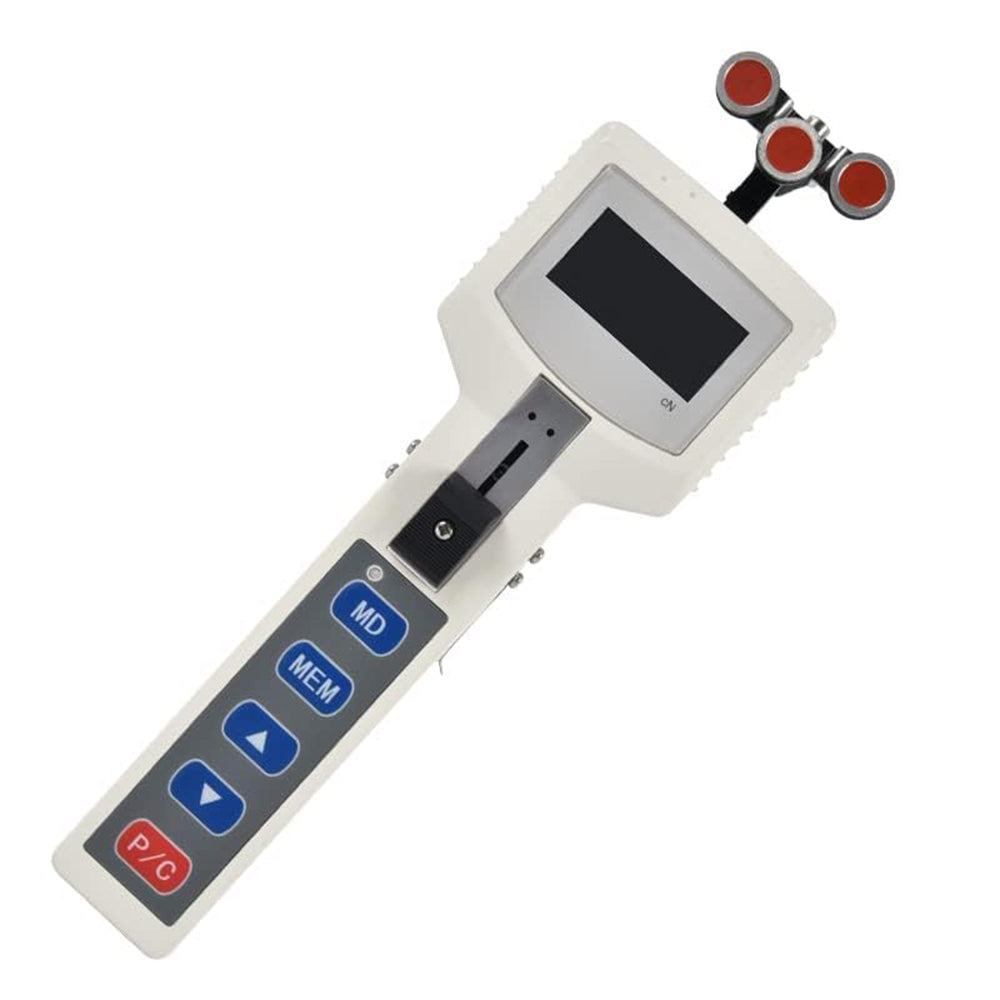

Hand-held digital tension meter is a portable electronic digital measuring instrument that can measure the tension of filamentous and linear materials. It is widely used in wire and cable, textile and chemical fiber, metal wire, carbon fiber and other industries. Can accurately measure tension and process data systematically.

Features

Real-time, hold, peak three working modes can be switched arbitrarily.

cN、gf、OZ、Kgf、N、lb six units can be set.

Accuracy is full scale 2.5%。

Accurate measuring 10 tension of different materials.

With USB communication function。

With thickness adjustment function.

Easy storage,storable 41Group data.

Specifications

Tension range:4~ 200.0(CN)

*Measuring head width:65mm

** Calibration material Textile PA monofilament:φ0.12mm

Dimensions (mm):270 * 118 * 55

net weight(G):640g

power supply:3.7Vlithium battery

*: Depending on the model, the width of the lead frame and the distance between the outer sides of the two guide wheels also vary.

**: Our calibration materials are suitable for 95% tension measurement.PA =If the diameter, hardness, shape, etc. of the tested material are significantly different from the company's calibration materials, it is recommended that the customer provide5The measured material of meter length is calibrated.
