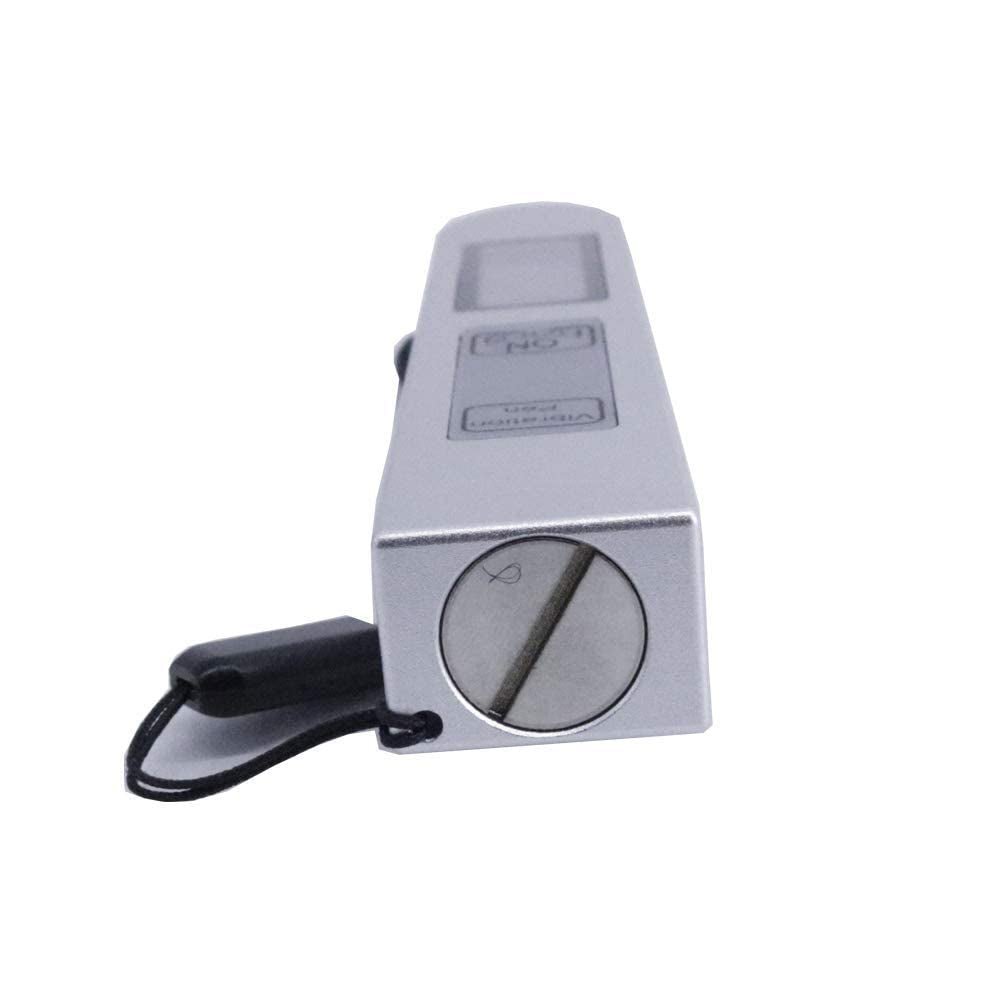

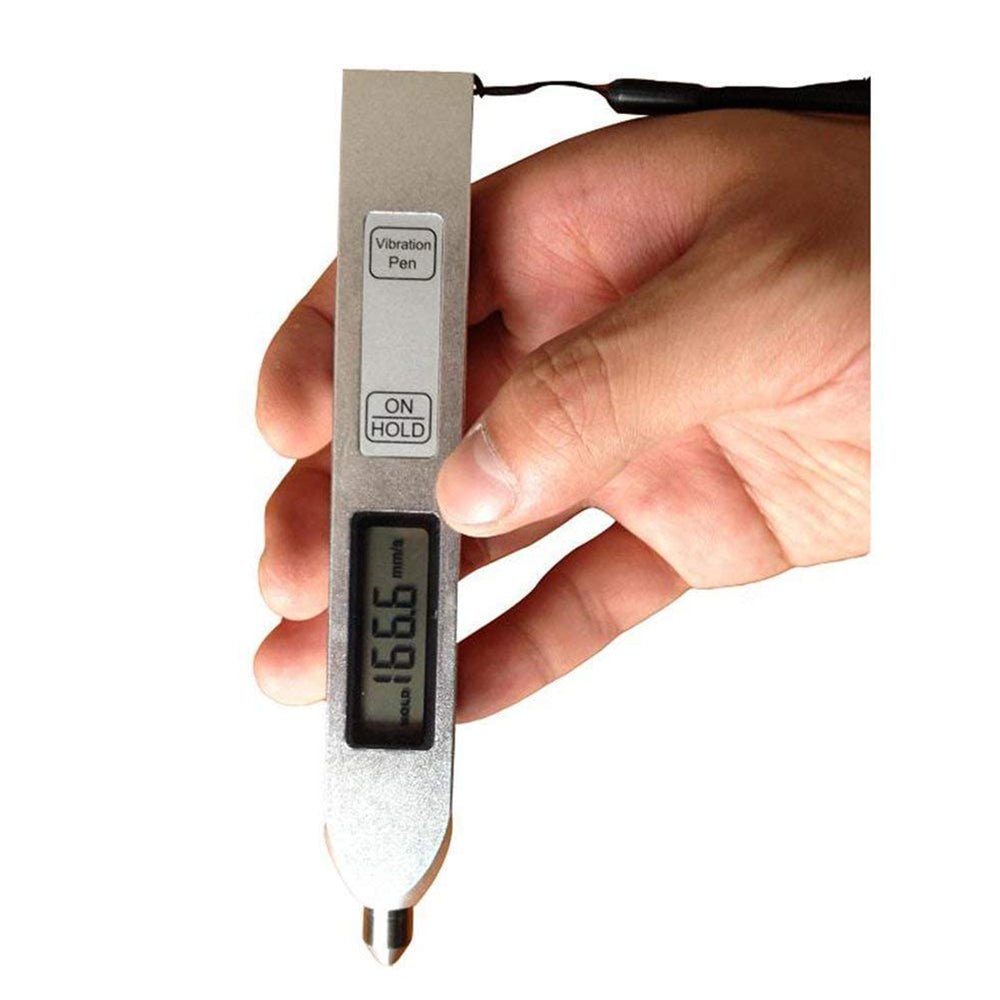

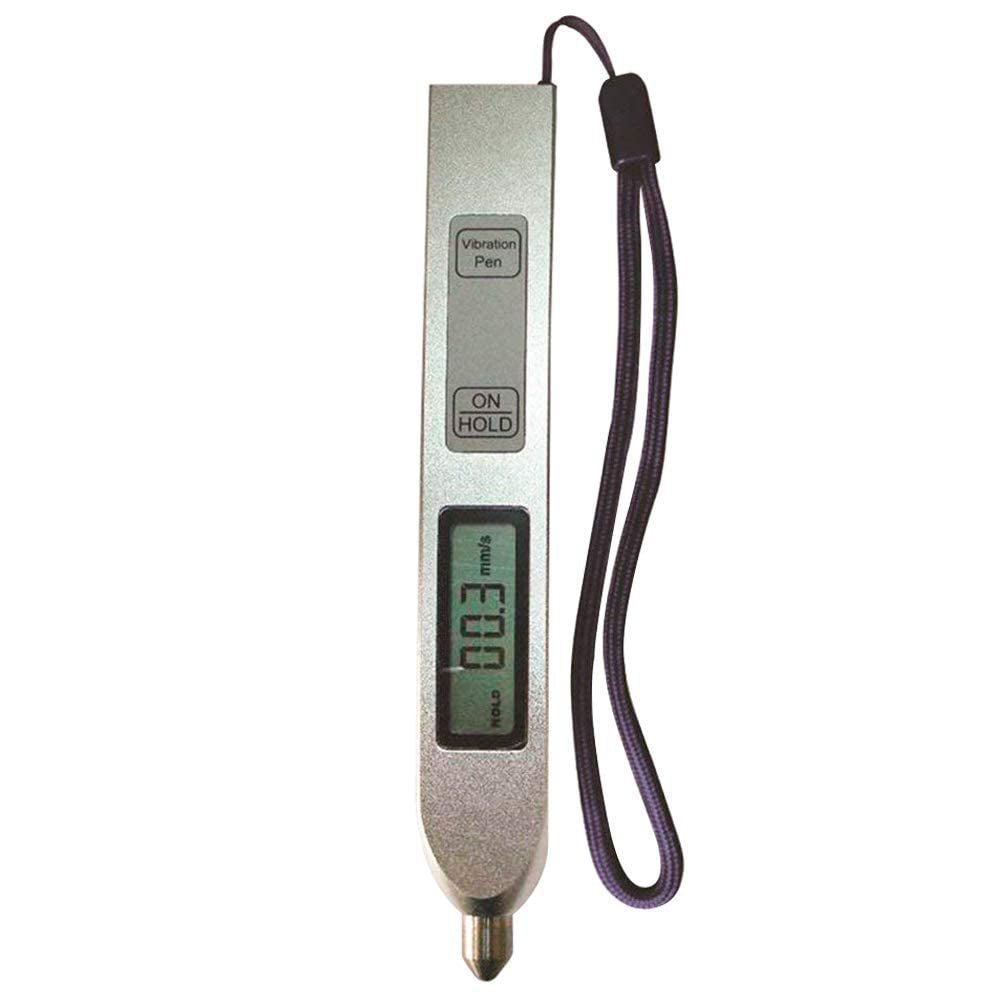

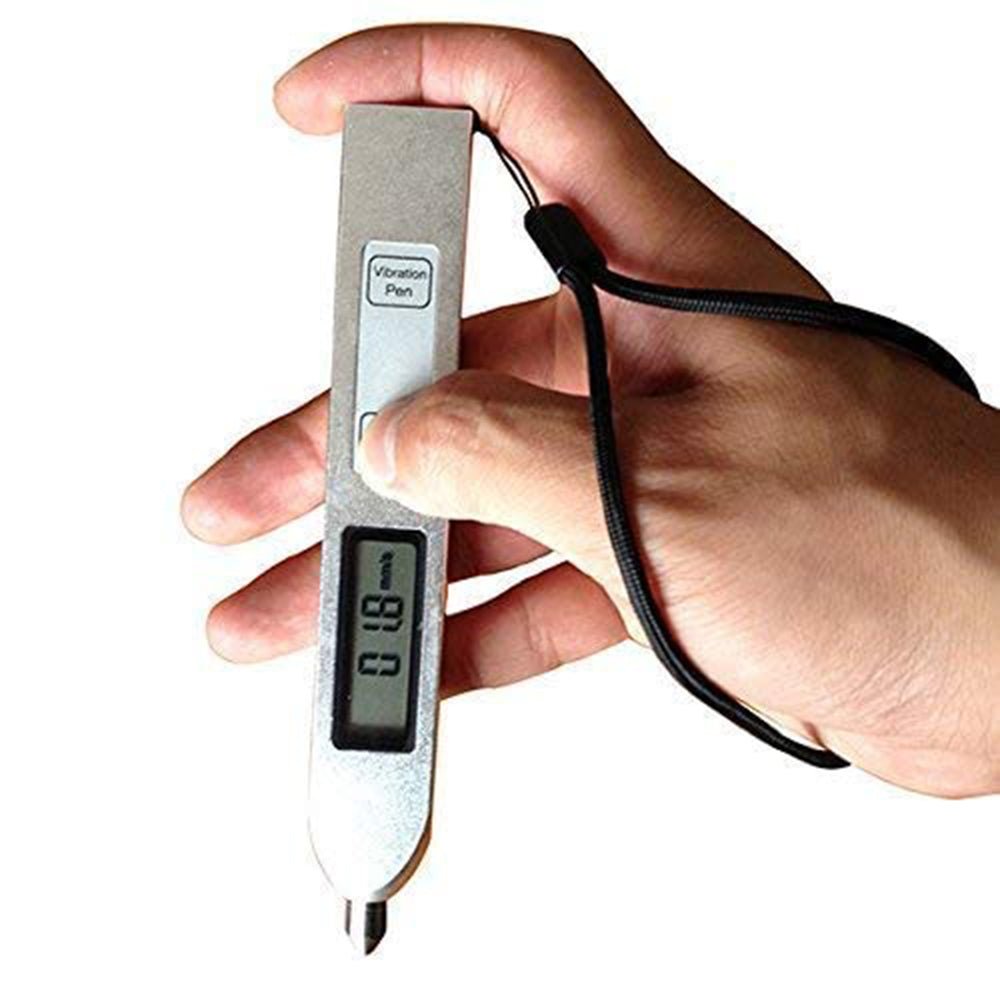

VTSYIQI Digital Vibration Meter Tester Vibrometer Acceleration 0.1 to 199.9m/s2 Velocity

VTSYIQI Digital Vibration Meter Tester Vibrometer Acceleration 0.1 to 199.9m/s2 Velocity

Regular price $221.00 USD
Regular price Sale price $221.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Digital Vibration Meter Tester Vibrometer Acceleration 0.1 to 199.9m/s2 Velocity

Features:
* Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
* Compact size, small weight, easy handling
* Prompt testing of vibration on the workshop machines
* For quick checking of unbalance misalignment, bearings and gears
* Guard against mechanical malfunction
* Holding tested value for 40 seconds
* Automatic switch off after 40 seconds
* YV200 is used specially for velocity testing
Technical Specifications
* Model: YV-200
* Parameter: RMS of vibration velocity (mm/s)
* Testing range: Velocity: 0.1mm/s~ 199.9mm/s
*Frequency range: Velocity:10Hz ~ 1kHz
* Accuracy: ±5% ± 2digits
* Display: 3 1/2 digits LCD
* Power supply: two button batteries(LR44 or SR44)(Battery not included in the package)
* Battery capacity: Approx. 5 hours working continuously
* Operating temperature: 0℃ ~ 40℃, Humidity <85%
* Dimension: 150mm×22mm×16mm
* Standard Accessories: Main unit,Screwdriver,Box,Document

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1%
