VTSYIQI Digital Viscometer Digital Rotational Viscosity Meter Liquid Viscometer Rotary visometer Fluidimeter 1~100000mPa.s Accuracy ±1% NDJ-5S with RS232 Interface 4 Rotor Viscosity Measurement

Feature
Measuring Range: 1～1×10^5mPa.s; Display with blue backlight, high brightness LED display, data showed clearly.
The instrument standard with 4 kinds of rotors (1, 2, 3, 4); Speed of Rotors: 6、12、30、60r/min;
Digital display viscometer as four gear speed (6, 12, 30, 60, revolutions per minute), which composed of 16 kinds of combination, can measure the determination of the viscosity of the liquid within the range of values.
This instrument adopts the advanced mechanical design, manufacturing technology and microcomputer control technology, data acquisition right;
This instrument adopts microcomputer technology can easily set range (rotor rotational speed), to digital processing of sensor detected data, and in Clearly showed on the screen when measuring the set number of rotor, rotational speed, the viscosity of the liquid being measured value and full scale percentage, etc.

Specification
NDJ-5S type digital display viscometer is an upgraded version of our rotary viscosimeter

This instrument has high sensitivity and reliable test results, the use of easy to operate, modelling elegant appearance and other characteristics, is used to measure the absolute viscosity of Newtonian liquid and apparent viscosity of non-newtonian fluid of the ideal instrument, can be widely used in oil, paints, plastics, food, paint, detergent, etc all kinds of fluid viscosity measurement

The instrument standard with 4 kinds of rotors (1, 2, 3, 4). NDJ-5S has four gear speed (6, 12, 30, 60, revolutions per minute), which composed of 16 kinds of combination, can measure the determination of the viscosity of the liquid within the range of values Technical Specifications

Model:NDJ-5S

Measuring Range: 1～1×10^5mPa.s

Rotors: #1,#2,#3 #4

Speed of Rotors: 6、12、30、60r/min

Automatic selection: Automatically selecting proper rotor and speed

Stability reading cursor block: when vertical cursor block is full reading data is in stable display

Measuring precision: ±1%（Newton liquid）

Power supply: AC 220V±10%, 50Hz±10% or 110V(According to your country’s voltage)

Working condition: Temperature from 5°C to 35，relatively temperature less than 80%

Dimensions:370×325×280 (mm)

Net Weight: 6.8kg

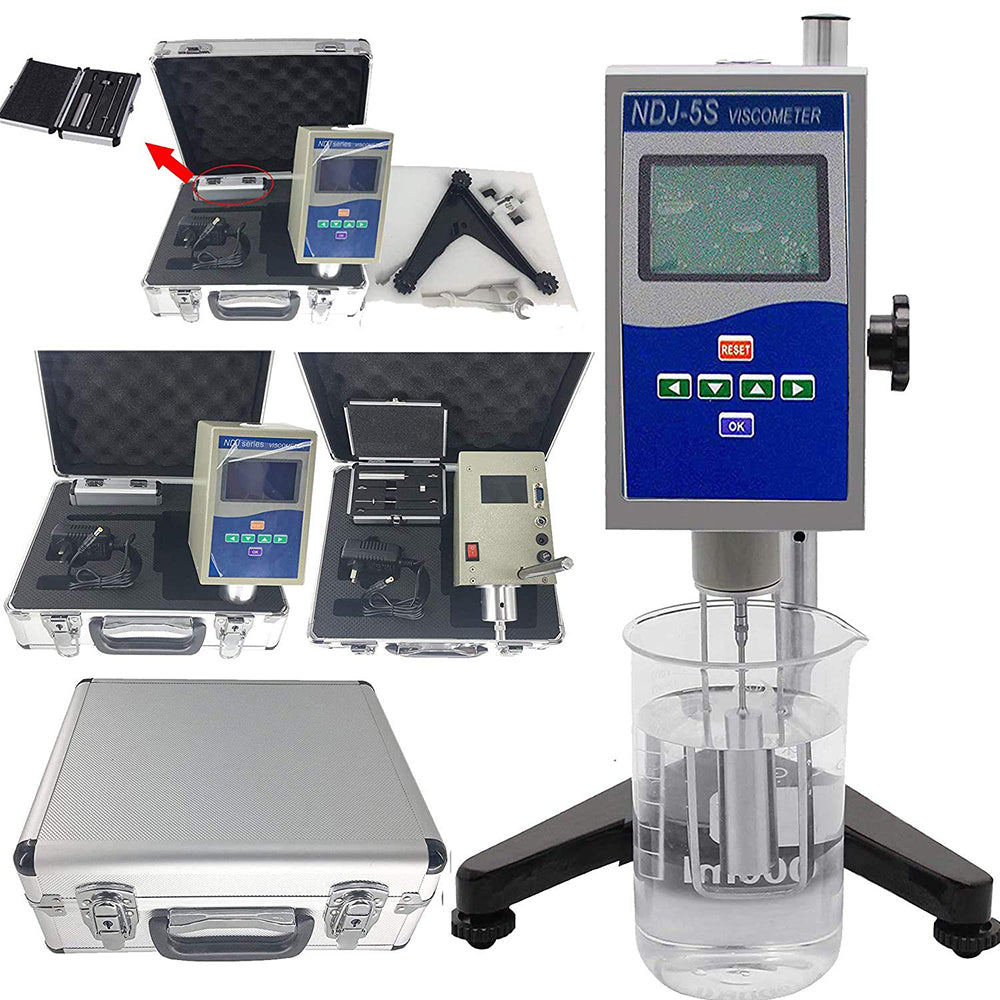

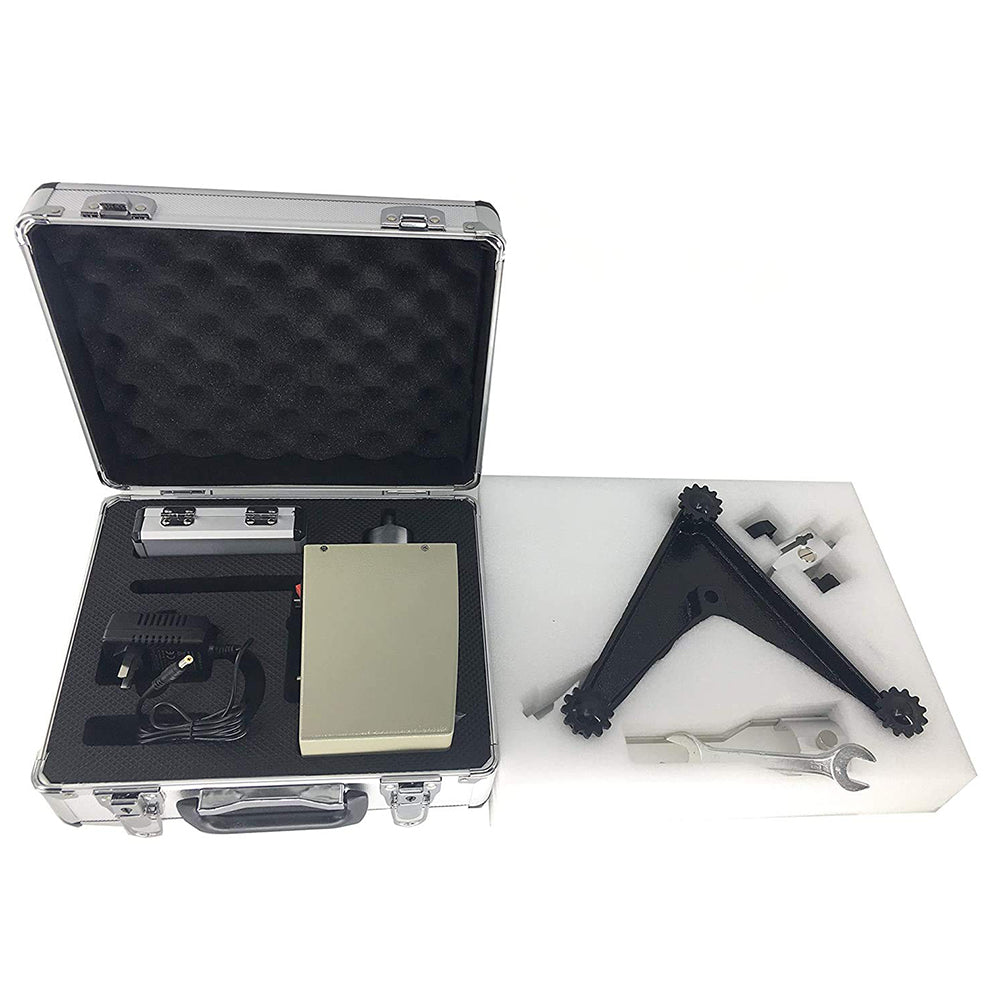

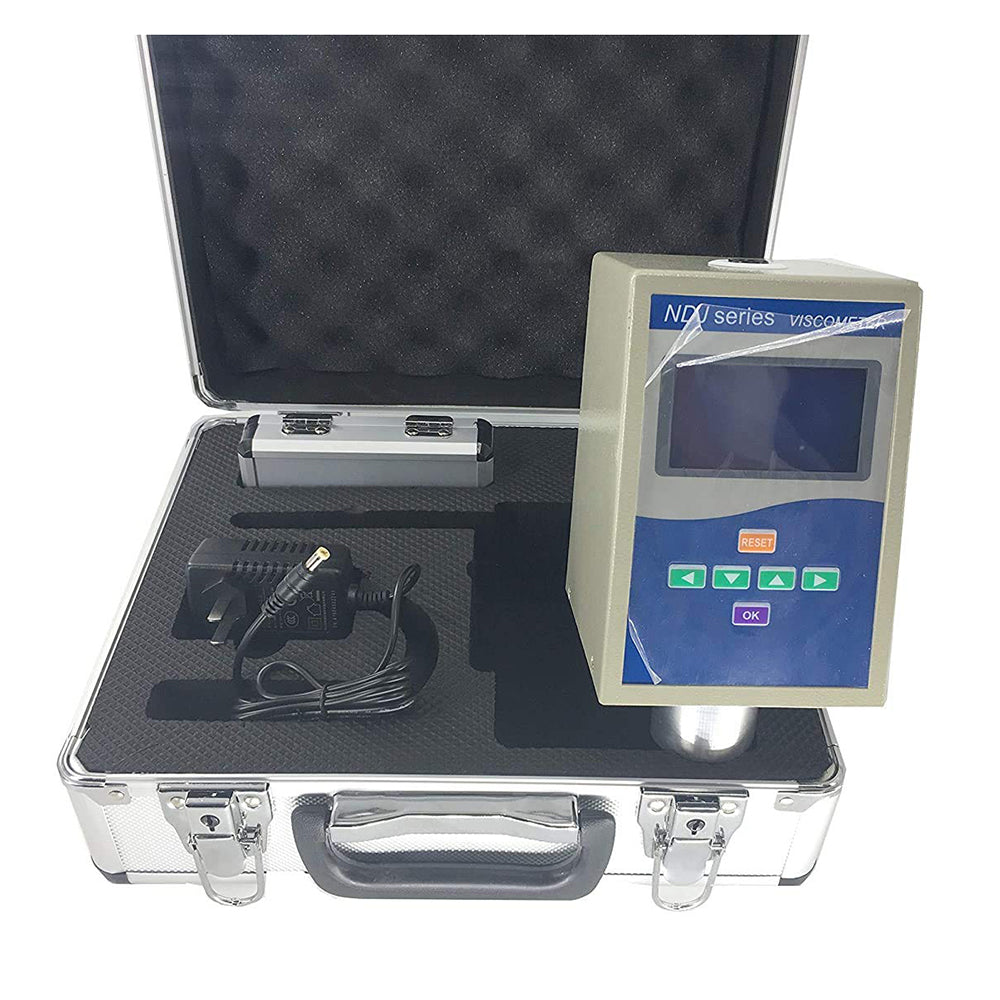

Standard Accessories: Digital display viscometer host; 1~4＃rotor; power adapter; protection frame; the base; rise and fall pillar; Instruction for use; Stay wrench

Optional Accessories: #0 rotor for testing viscosity below 0.1~10mPa.s
