VTSYIQI Double Clamp Phase Voltammeter Dual Clamp Phase Voltammeter with Range Manual Shift Voltage Range AC 0.00V to 600V Current Range AC 0.0mA to 20.0A Phase Range 0.0°to 360.0°

VTSYIQI Double Clamp Phase Voltammeter Dual Clamp Phase Voltammeter with Range Manual Shift Voltage Range AC 0.00V to 600V Current Range AC 0.0mA to 20.0A Phase Range 0.0°to 360.0°

$365.00 USD
$365.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Double Clamp Phase Voltammeter Dual Clamp Phase Voltammeter with  Range Manual Shift  Voltage Range AC 0.00V to 600V Current Range AC 0.0mA to 20.0A Phase Range 0.0°to 360.0°

Feature:

(1) {Function}--------Measure two AC voltages, currents, phase between voltages, phase between currents, phases between voltages and currents, frequencies, determine transformer wiring groups, inductive, capacitive circuits, test secondary loops and busbar protection systems, read out the phase relationship between the CTs of the differential protection groups, check the wiring of the power meter, check the line equipment, etc.

(2) {Voltage range}--------AC 0.00V～600V , Resolution 0.01V

(3) {Current range}--------AC 0.0mA～20.0A , Resolution 0.1mA

(4) {Phase range}--------0.0°～360.0° , Resolution 0.1°

(5) {Frequency range}--------45.00Hz～65.00Hz , Resolution 0.01Hz

(6) {Data Storage}--------500 groups, "FULL" symbol indicates that storage is full

Introduction:

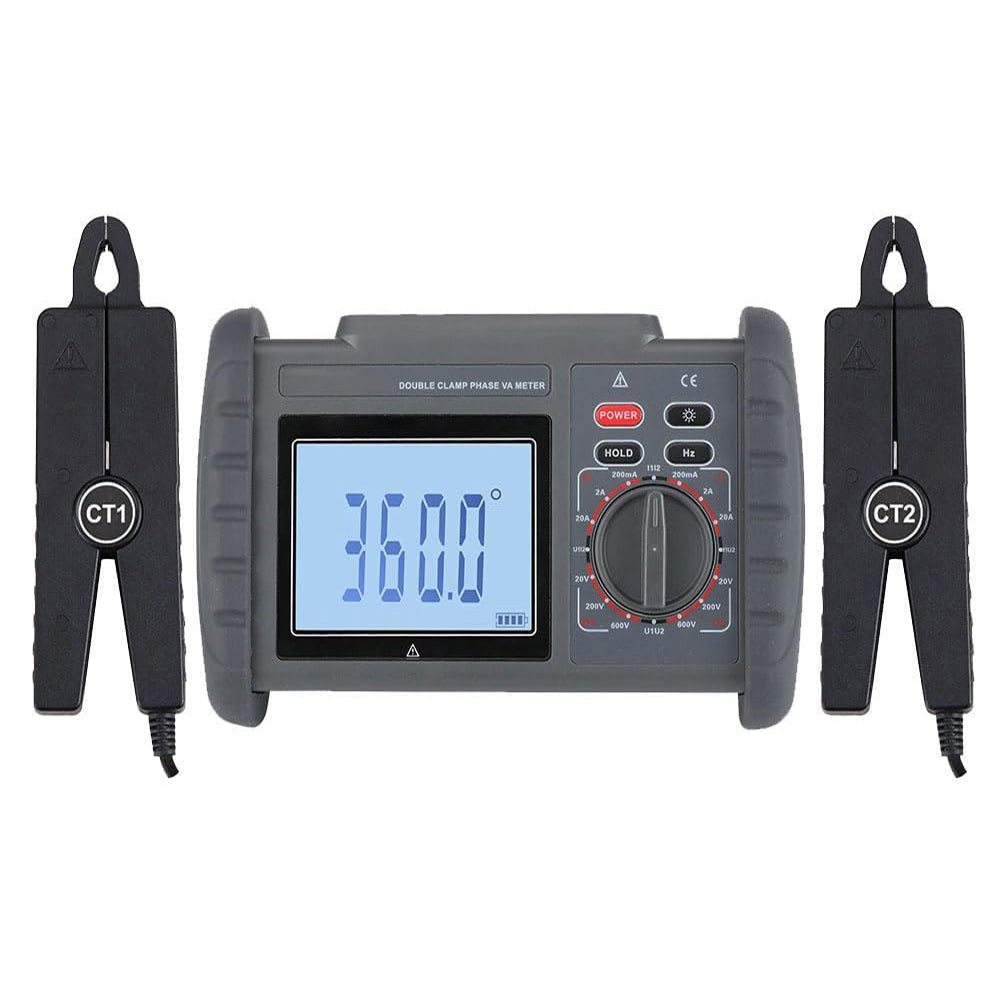

It is a hand-held, dual-channel input all-digital, multi-function, high-precision measurement instrument.

The instrument uses the latest microprocessor technology and digital signal processing technology to achieve power frequency measurement (such as voltage, current RMS, power frequency, phase relationship, etc.),

Determine the transformer wiring group, inductive, capacitive circuit, test the secondary circuit and bus differential protection system, read out the phase relationship between the differential protection CT groups, check the power meter wiring is correct or not,the meter uses the clamp-type current transformer conversion method to input the measured current, so there is no need to disconnect the circuit under test.

Provide a safe, accurate, and convenient new type of power meter for electricity inspection personnel.

Digital double clamp phase voltammeter is suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, and measurement departments.

Especially suitable for energy billing systems and relay protection systems.

Specifications:

Function:Measure two AC voltages, currents, phase between voltages, phase between currents, phases between voltages and currents, frequencies, determine transformer wiring groups, inductive, capacitive circuits, test secondary loops and busbar protection systems, read out the phase relationship between the CTs of the differential protection groups, check the wiring of the power meter, check the line equipment, etc.

Power:Built-in large capacity lithium battery 3.7V

Power consumption:Turn on the backlight and consume up to 50mA. The battery can work continuously for more than 48 hours.

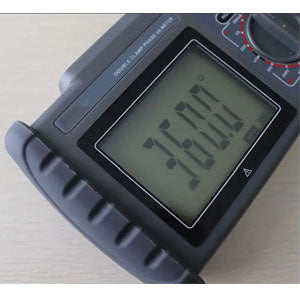

Display mode:LCD display，71*52mm

Instrument size:L/W/T：187*191*51mm

Jaw size：Φ8mm

Voltage range：AC 0.00V～600V,Resolution：AC 0.01V,Intrinsic error：±(1.5%rdg+3dgt)

Current range：AC 0.0mA～20.0A,Resolution：AC 0.1mA,Intrinsic error：±(1.5%rdg+3dgt)

Phase range：0.0°～360.0°,Resolution：0.1°,Intrinsic error：±1°

Frequency range：45.00Hz～65.00Hz,Resolution：0.01Hz,Intrinsic error：±0.5Hz

Detection rate：About 2 seconds/time

Data hold：Press HOLD key to hold data during test, "DH" symbol display

Automatic shut-down：About 15 minutes after power on, the meter will automatically shut down to reduce battery consumption

Backlight function：Suitable for dim places and night use

Voltage detection：Four grids of power are displayed, and the remaining one should be charged in time

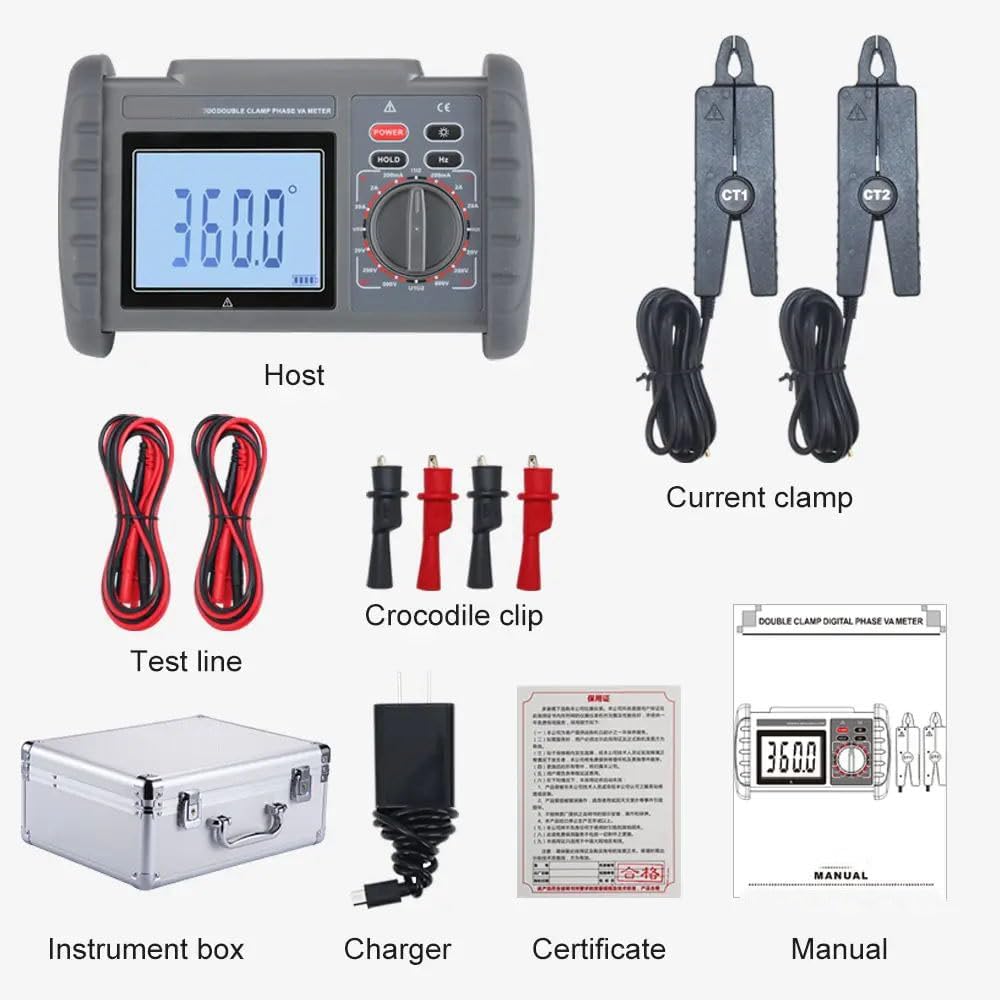

Instrument weight：Hose：473g;Tip-shaped current clamp：180g×2;Test line：190g

Test line length：1.5m

Line length of the current clamp：2m

Working temperature and humidity：-10℃～40℃；below 80%Rh

Storage temperature and humidity：-10℃～60℃；below 70%Rh

input impedance：Test voltage input impedance is：1MΩ

Pressure resistance：The withstand voltage of 1000V/50Hz sine wave AC voltage between the instrument circuit and the housing lasts 1 minute

insulation：Between instrument line and housing≥100MΩ

structure：Double insulation

Suitable for safety regulations：IEC61010-1 CAT Ⅲ 600V，IEC61010-031，IEC61326，Pollution level 2
