VTSYIQI Haze Meter Hazemeter Light Transmission Meter Benchtop Analyzer with Range 0-100% Haze Resolution 0.01 Unit for Plastics Films Glass LCD panels

VTSYIQI Haze Meter Hazemeter Light Transmission Meter Benchtop Analyzer with Range 0-100% Haze Resolution 0.01 Unit for Plastics Films Glass LCD panels

About this item:

1,Haze repeatability : haze value <10%, repeatability ≤0.05%; haze value ≥10%, repeatability ≤0.1% ,Meet the following test standards: GB/T 2410 standard, ASTM D 1003 standard, ISO 13468 standard, ISO 14782 standard

2,Meet the haze and full transmittance measurement under three standard illumination sources: CIE-A, CIE-C and CIE-D65

3,to meet the compensation method test, can provide more accurate test results.

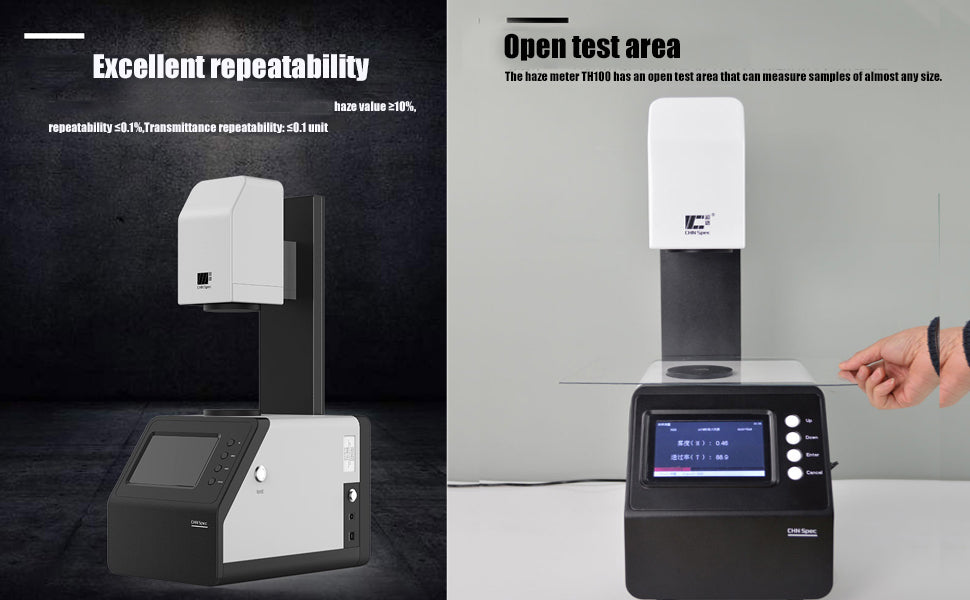

4,with an open measurement area, can meet any size measurement.

5,using a 5.0-inch TFT display, with a good human-computer interface.

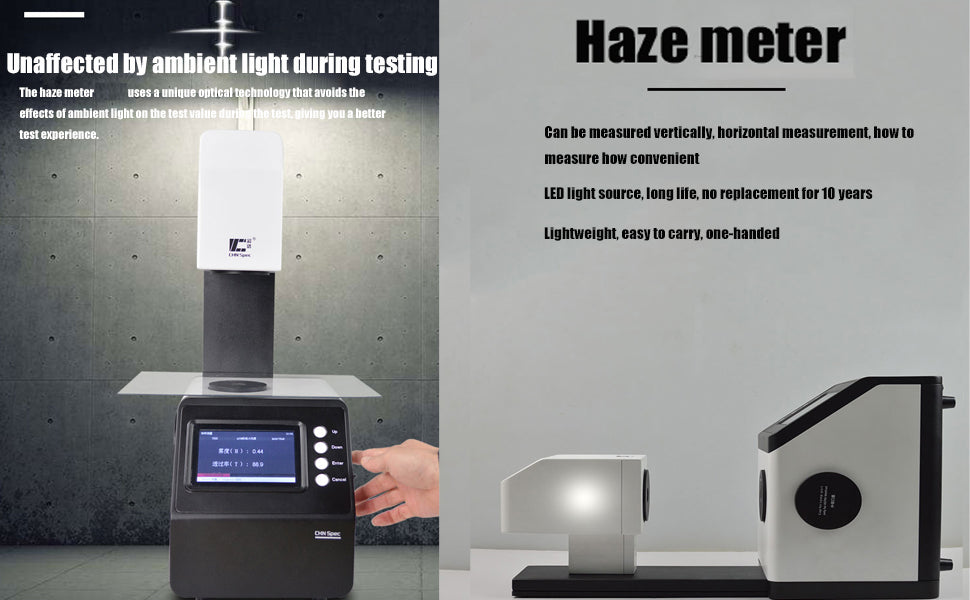

6,with vertical and horizontal placement, convenient for sample placement

7,using LED light source, long life, no need to replace for ten years

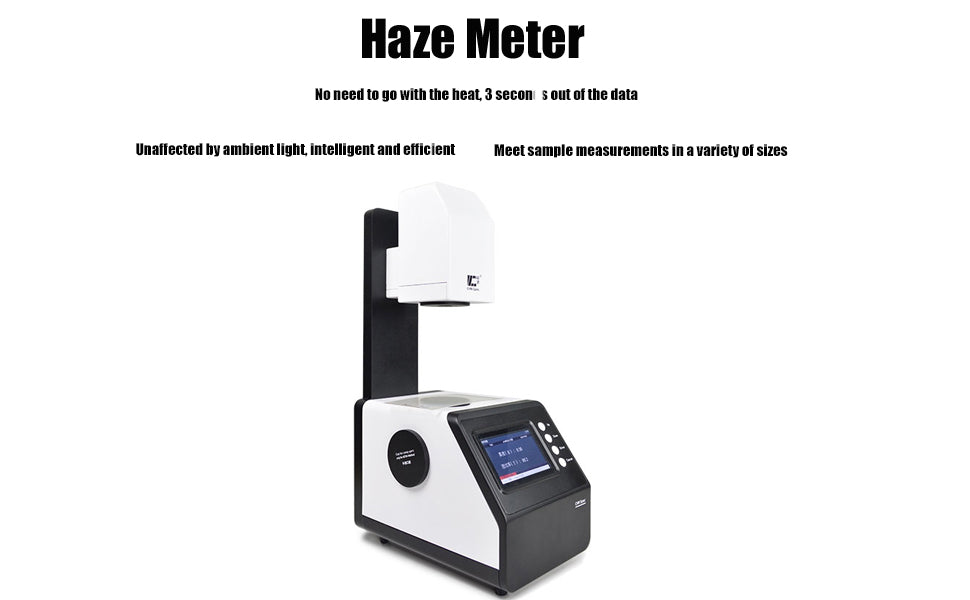

8,no need to preheat, can be tested after boot calibration, test time is short, 3 seconds

9,small size, light weight, easy to carry

Description:

One-stop measurement solution for haze and transmittance of transparent translucent materials such as plastics, films, glass, LCD panels, and touch screens.

Specification:

Light source : CIE-A, CIE-C, CIE-D65

Standards of compliance : ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08

Measurement parameters: haze (HAZE), transmittance (T)

Spectral response : CIE spectral function Y/V(λ)

Optical path structure : 0/d

Lighting and sample aperture size: 21mm

Range: 0-100%

Haze resolution: 0.01 unit

Transmission resolution: 0.01 unit

Haze repeatability:haze value ≥10%, repeatability ≤0.1%

Transmittance repeatability: ≤0.1 unit

Sample size : thickness ≤150mm

Store data: 20000 values

Interface : USB interface

Power : DC24V

Operating temperature : +10 – 40 °C (+50 – 104 °F)

Storage temperature : 0 – 50 °C (+32 – 122 °F)

Volume : Length X Width X Height: 310mmX215mmX540mm

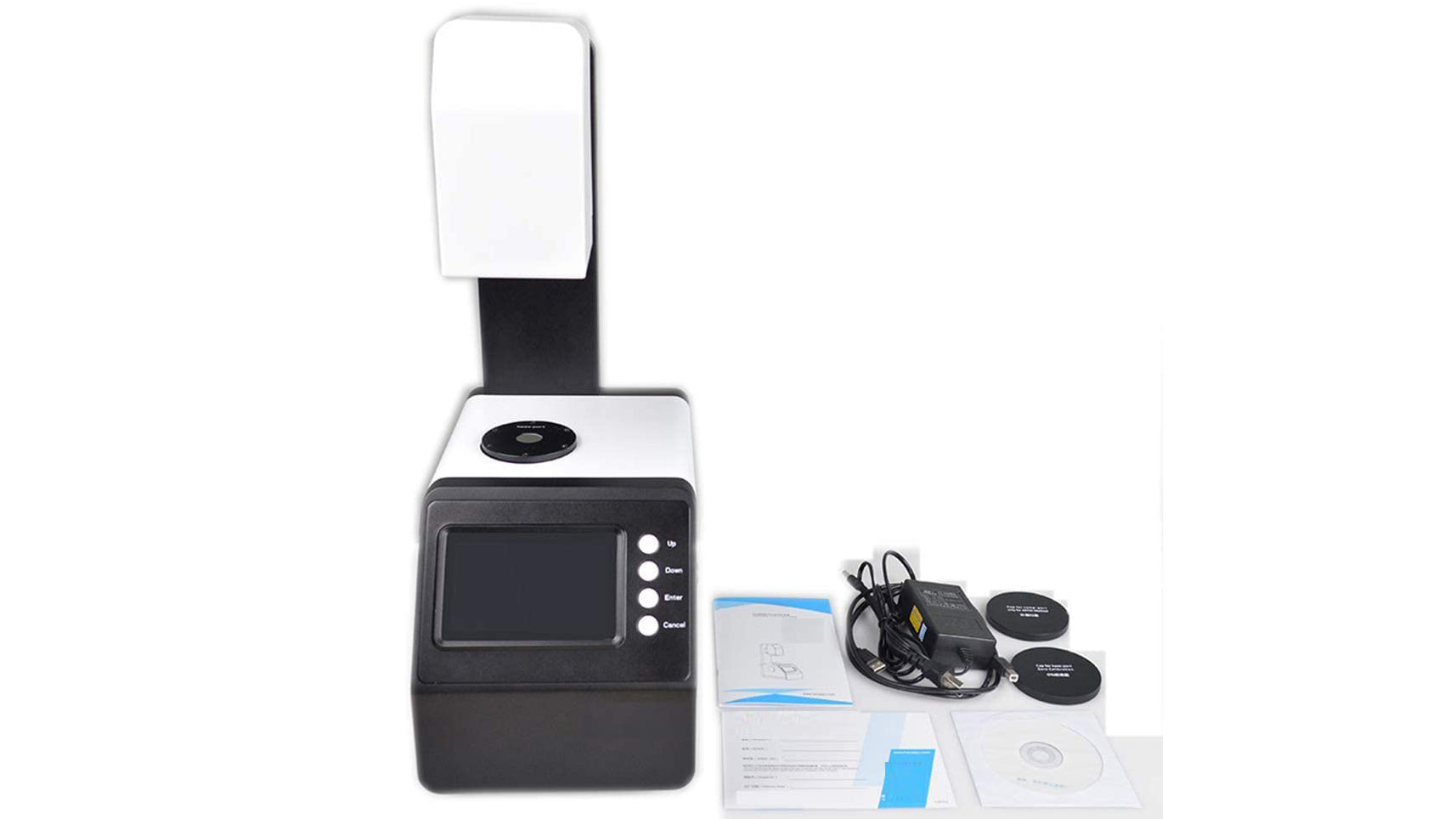

Optional accessories : Haze standard, measuring fixture
