Specification:

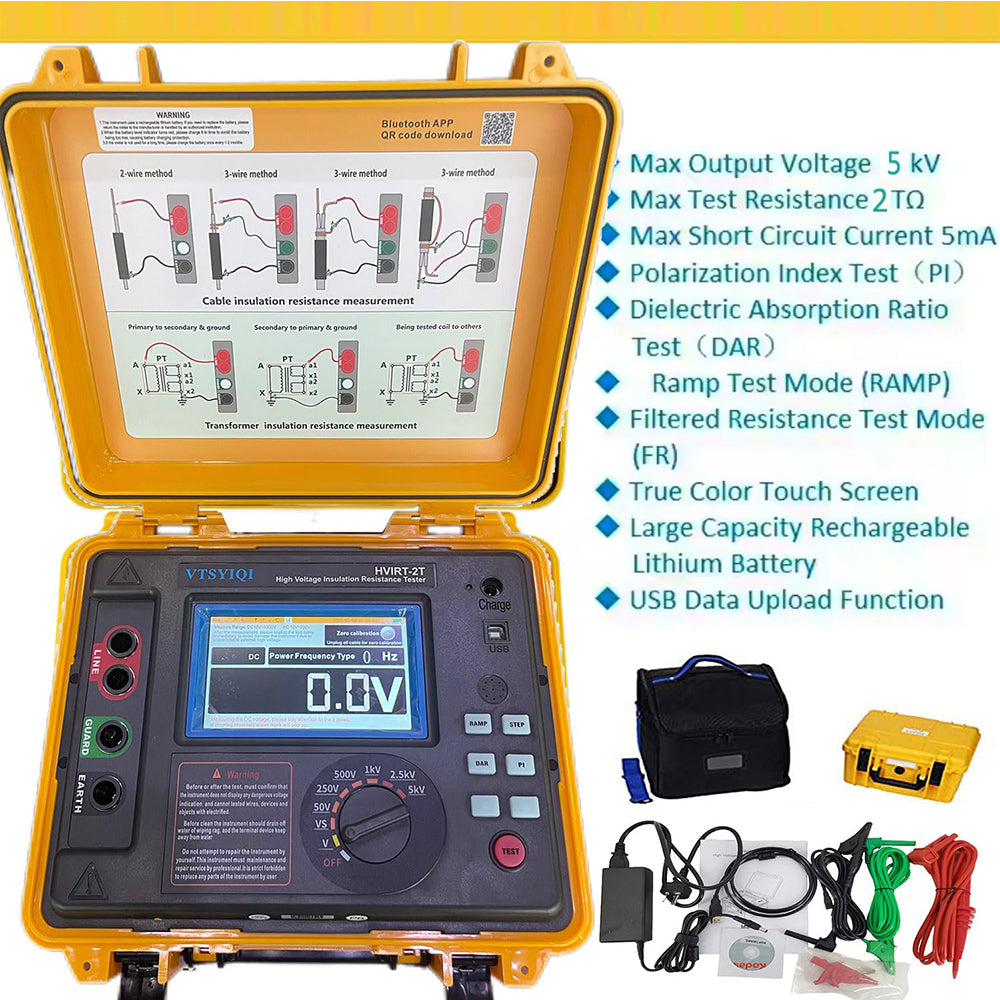

Function: insulation resistance test (IR); polarization index test (PI); absorption ratio test (DAR); filter function (4 kinds of time selection 10S, 20S, 30S, 40S). Voltage test (V); current test (nA).
Electricity Source: Rechargeable lithium battery 5.2Ah

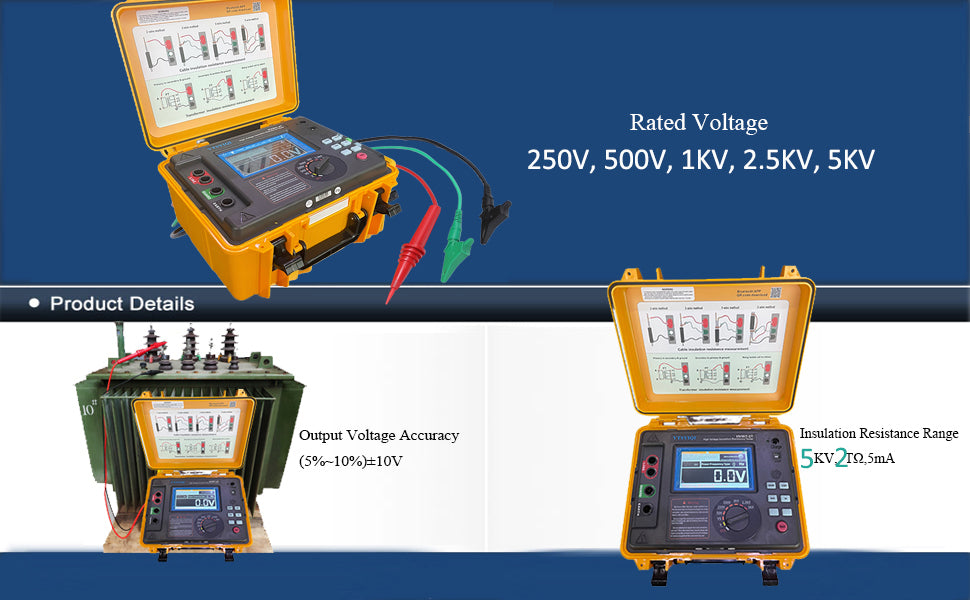

Rated voltage: 250V, 500V, 1KV, 2.5KV, 5KV
Output voltage accuracy: (5%～10%)±10V
Insulation resistance test range: 0.50MΩ～2.00TΩ
Output short-circuit current: >5mA
Polarization index test: yes
Absorption ratio test: yes

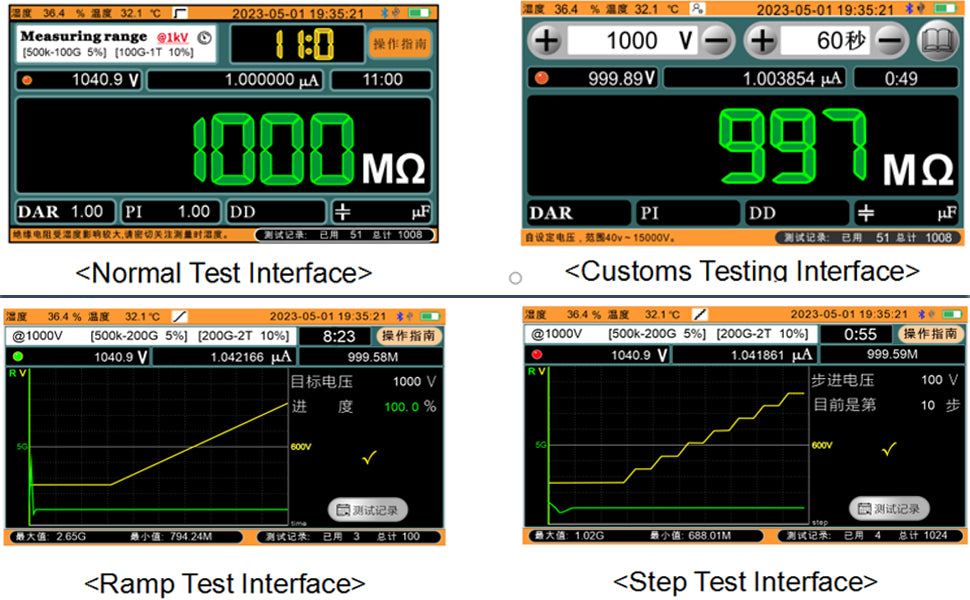

Ramp test mode: Test with 10% of preset voltage in steps until the preset voltage
Filter test mode: 10S, 20S, 30S, 40S four choices
Voltage test: Range: AC/DC:0V～1000V; accuracy ±5%rdg±3V
Current test: Range: 0.01nA～5mA; accuracy ±5%rdg±0.5nA
Voltage monitor: monitor the voltage of the measured object and monitor the discharge status after the test. When the voltage is greater than 36V, the test is prohibited to protect the instrument and the operator
Test timer: Automatically record test time, timing range: 0s～9999s
Storage function: Automatically store test data with date and time, a total of 1000 groups
Upload function: Upload the stored test data to the computer via USB communication line.
Battery level display: There is a battery level display, remind when the battery voltage is low
Auto power off function: Auto power off after 15 minutes of power on

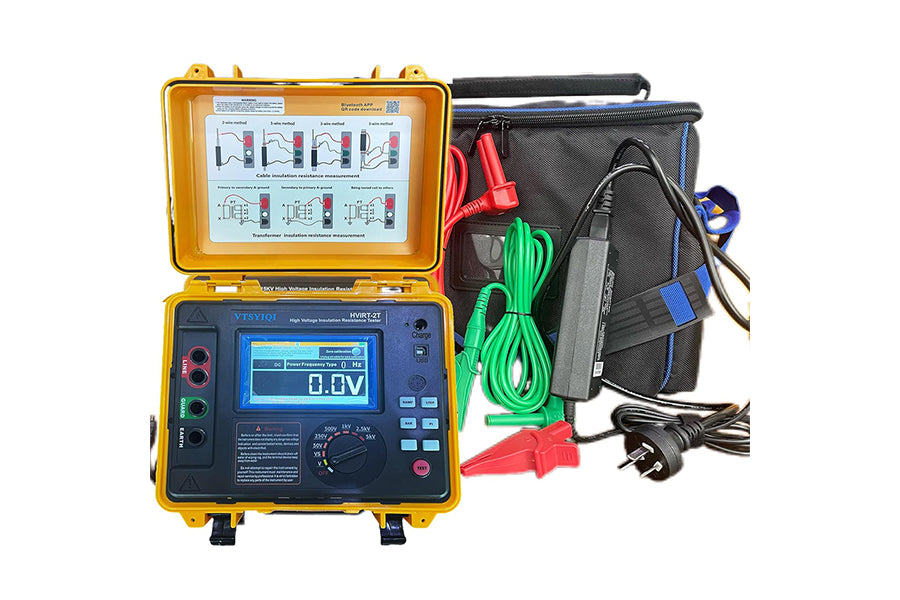

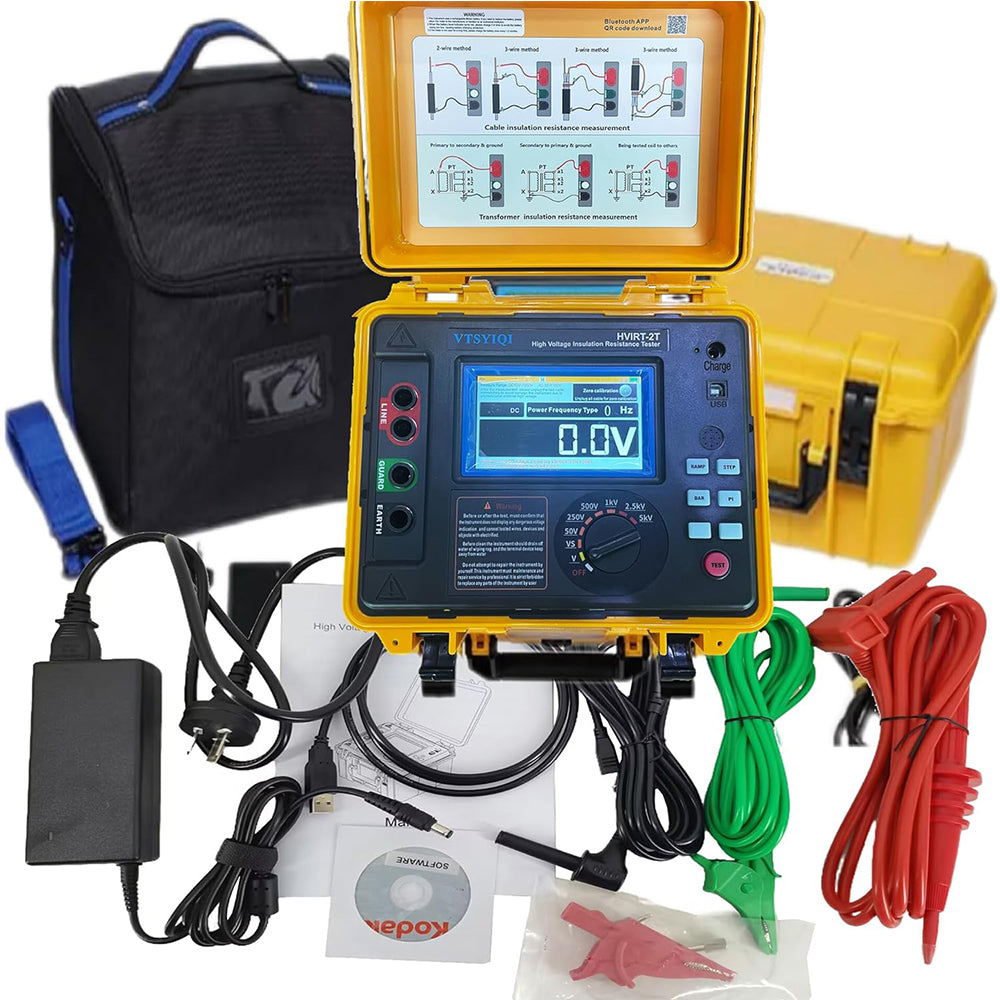

Package
Instrument: 1 set
High voltage rod: 1 red
Alligator clip test line: 2 (one black and one green)
Alligator clip: 1 piece
Hook: 1
USB communication cable: 1
Software CD: 1
Charger: 1
Manual, warranty certificate, certificate of conformity: 1 set
