VTSYIQI Infrared Belt Tensiometer Belt Tension Tester Meter Gauge with Laser Sensor Measurement Range 10Hz~500Hz Measure Belt Tension in Motors and Other Machinery
VTSYIQI Infrared Belt Tensiometer Belt Tension Tester Meter Gauge with Laser Sensor Measurement Range 10Hz~500Hz Measure Belt Tension in Motors and Other Machinery
VTSYIQI Infrared Belt Tensiometer Belt Tension Tester Meter Gauge with Laser Sensor Measurement Range 10Hz~500Hz Measure Belt Tension in Motors and Other Machinery
Measuring Principle:This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.
The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.
Using laser sensor, direct measurement, more convenient than mechanical sensor.
The size of the split sensor is small, which is suitable for measuring in a narrow space.
Metric or imperial units can be used to display readings.
Product Description:
◆The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.
Features
◆Using laser sensor, direct measurement, more convenient than mechanical sensor.
◆The size of the split sensor is small, which is suitable for measuring in a narrow space.
◆Metric or imperial units can be used to display readings.
◆With automatic power off function.
Measuring Principle
◆This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.
Product Parameters
◆Measurement Range:10Hz~500Hz
◆Input Range:
Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
◆Digital Sampling Error:<1%
◆Display Error:±1Hz
◆Total Error:<5%
◆Operating Temperature Range:+10°C~50°C
◆Transportation Temperature Range:-5°C~50°C
◆Unit of Measurement:
Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
◆Optical Path Measurement Distance:3mm~20mm
◆Depth of Split Sensor:About 66mm

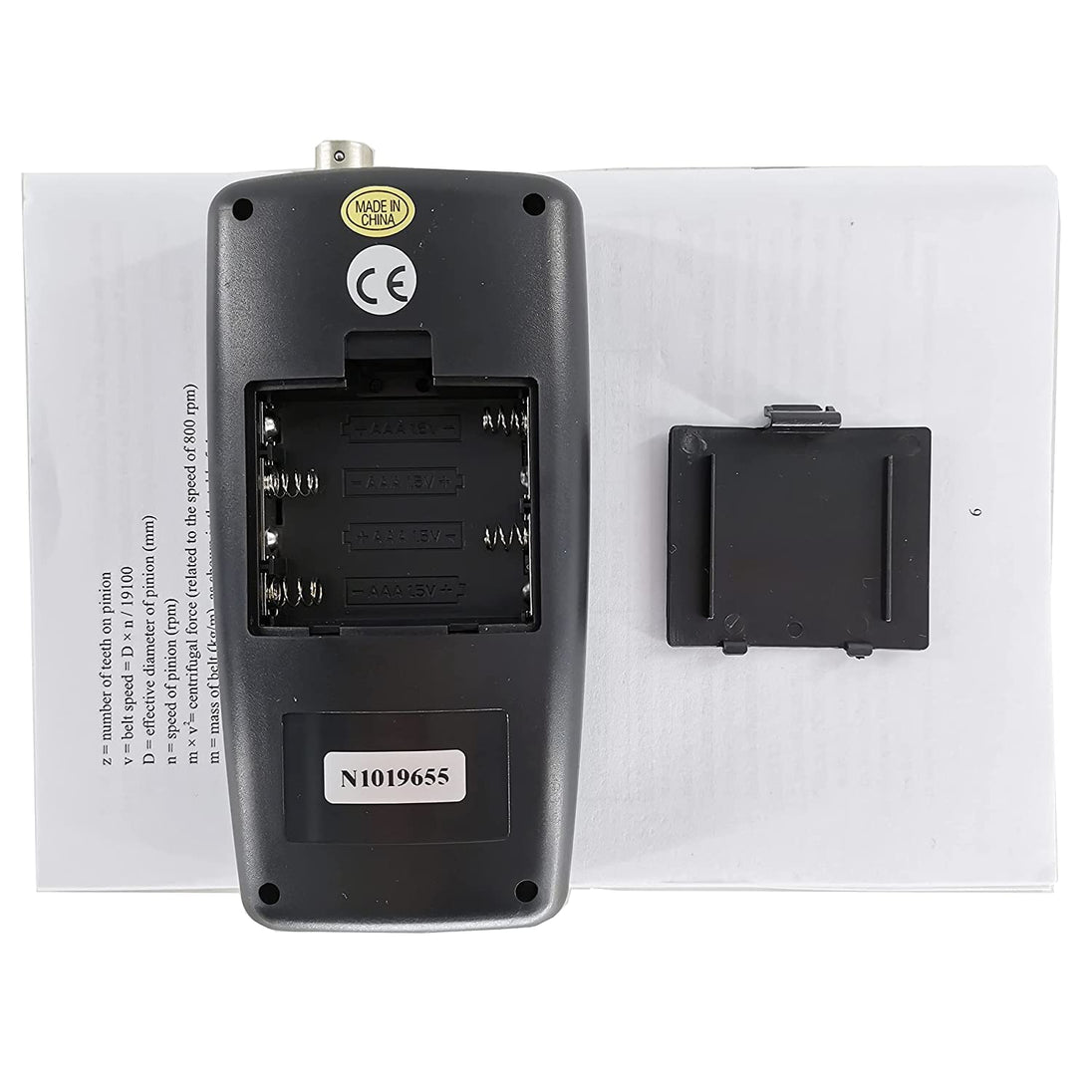

◆Power Supply:4x1.5V AAA (UM-4) Battery(Betteries not included during the shipping)
◆Size:
Main Unit: 178mmx72mmx34mm
Sensor: 124mmx21mmx12mm
◆Weight:180g (Not Including Battery)

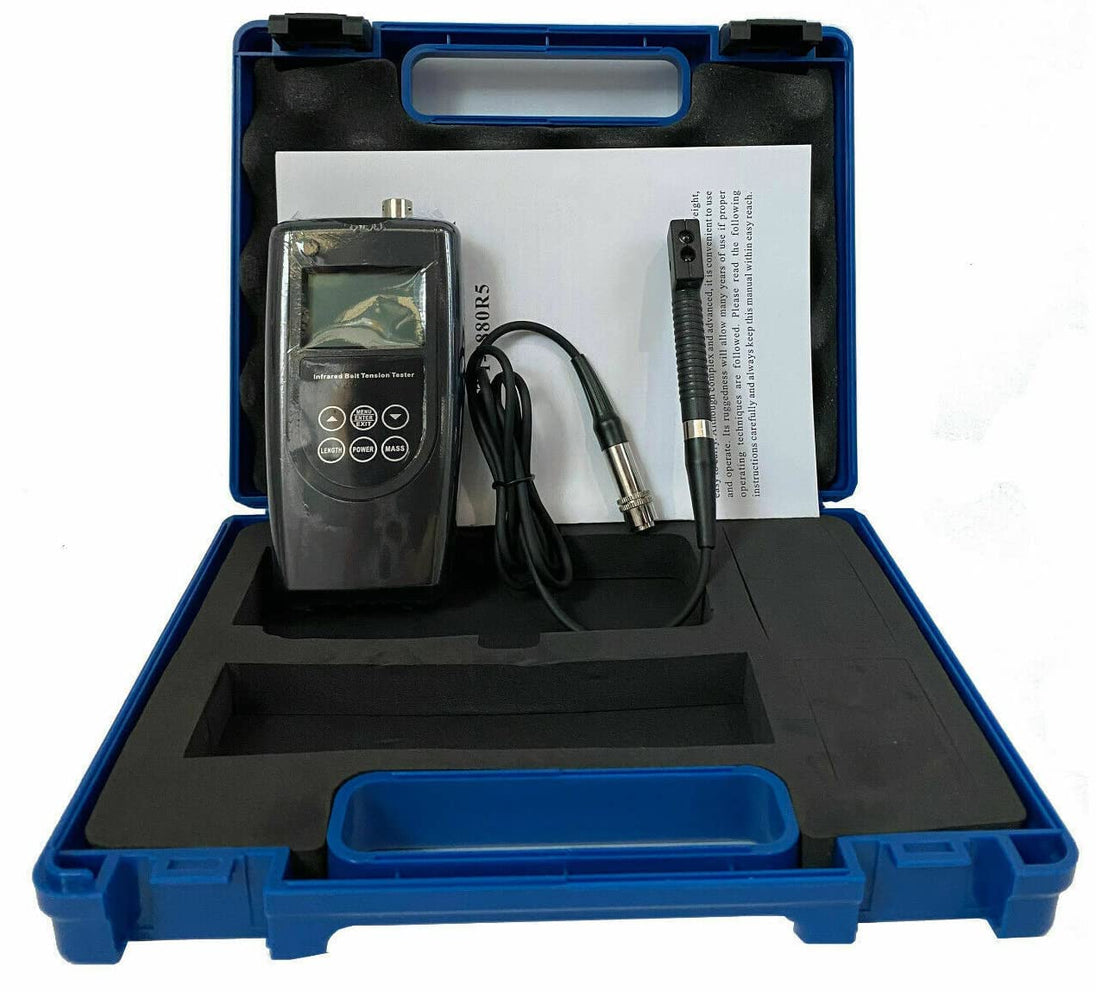

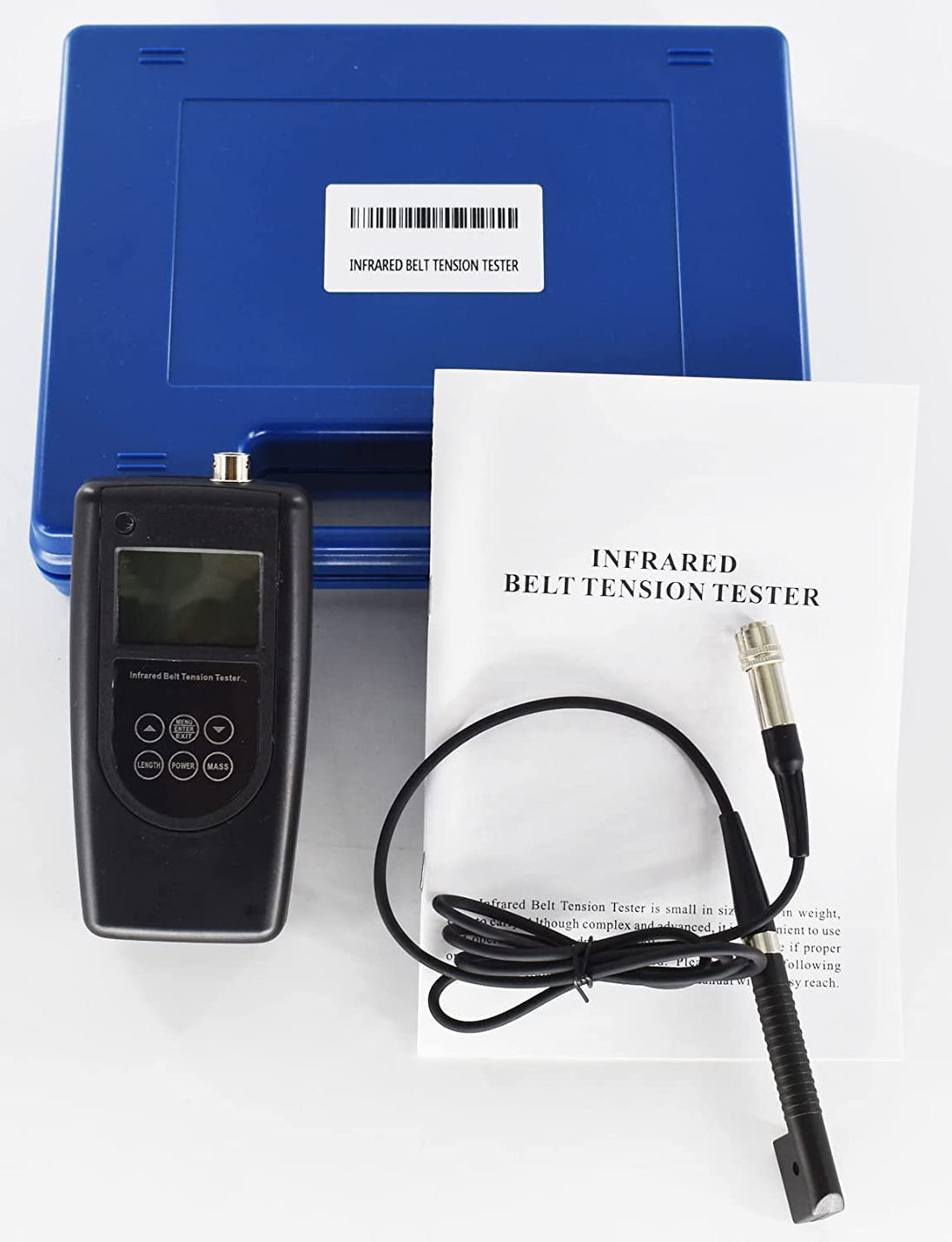

◆Standard Accessories:
Main Unit
Split Sensor
Carrying Case (B04)
Operation Manual
Model: Digital Display Push-pull Force Meter
Maximum load value: 500N; 50kg; 110Lb; 1800Oz
Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz
Sensor structure: Inner sensor
Accuracy: ±1%
