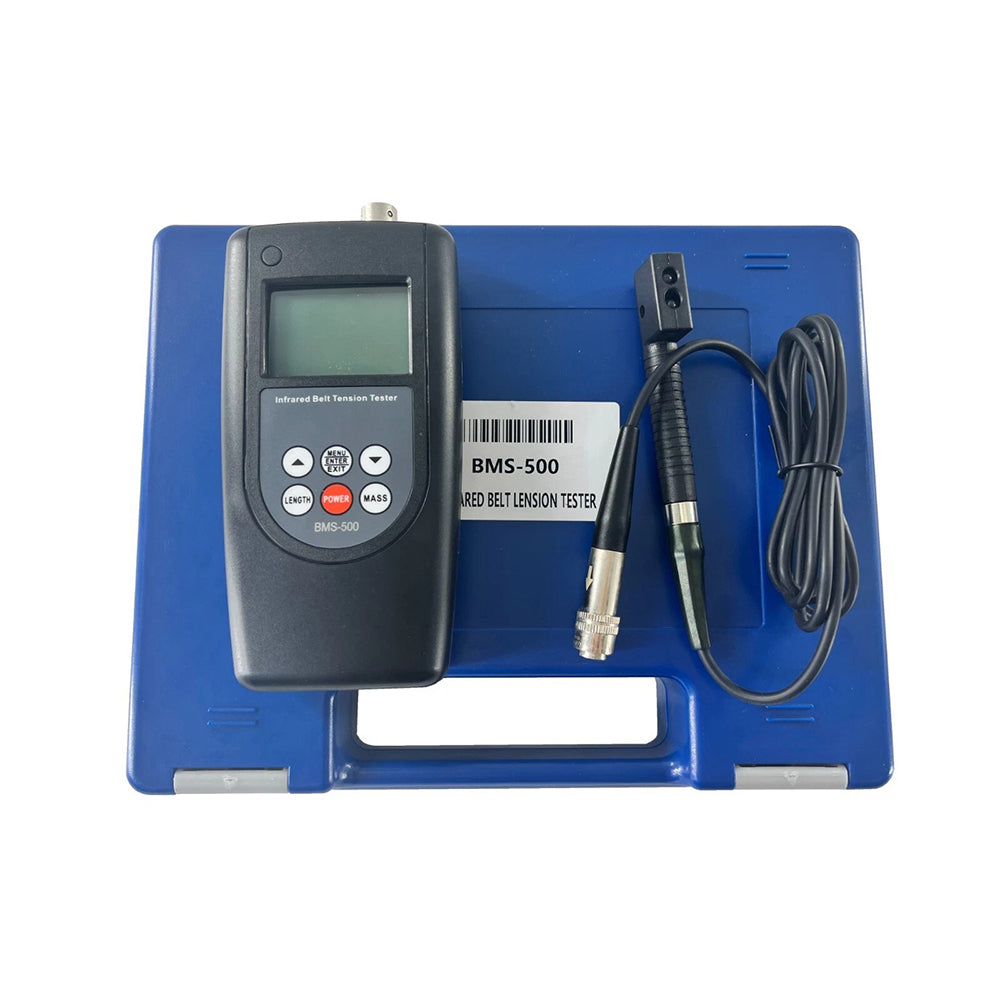

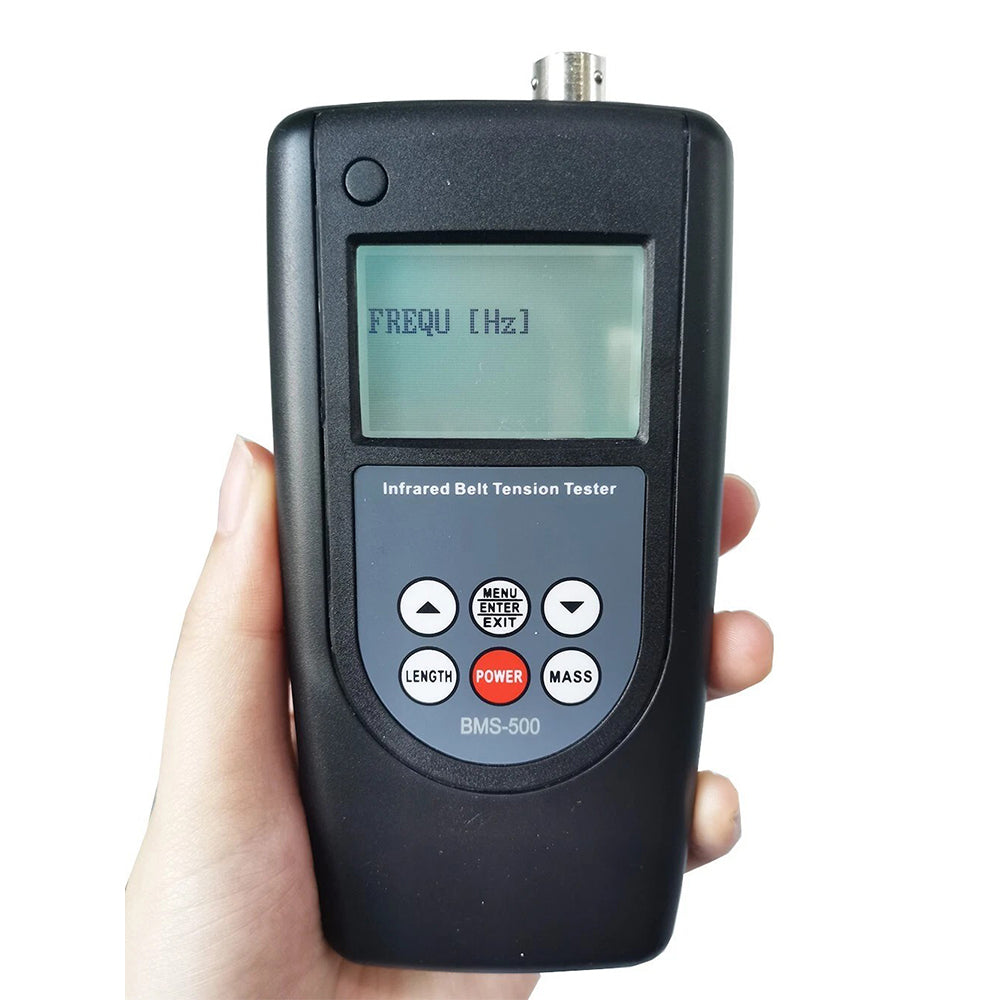

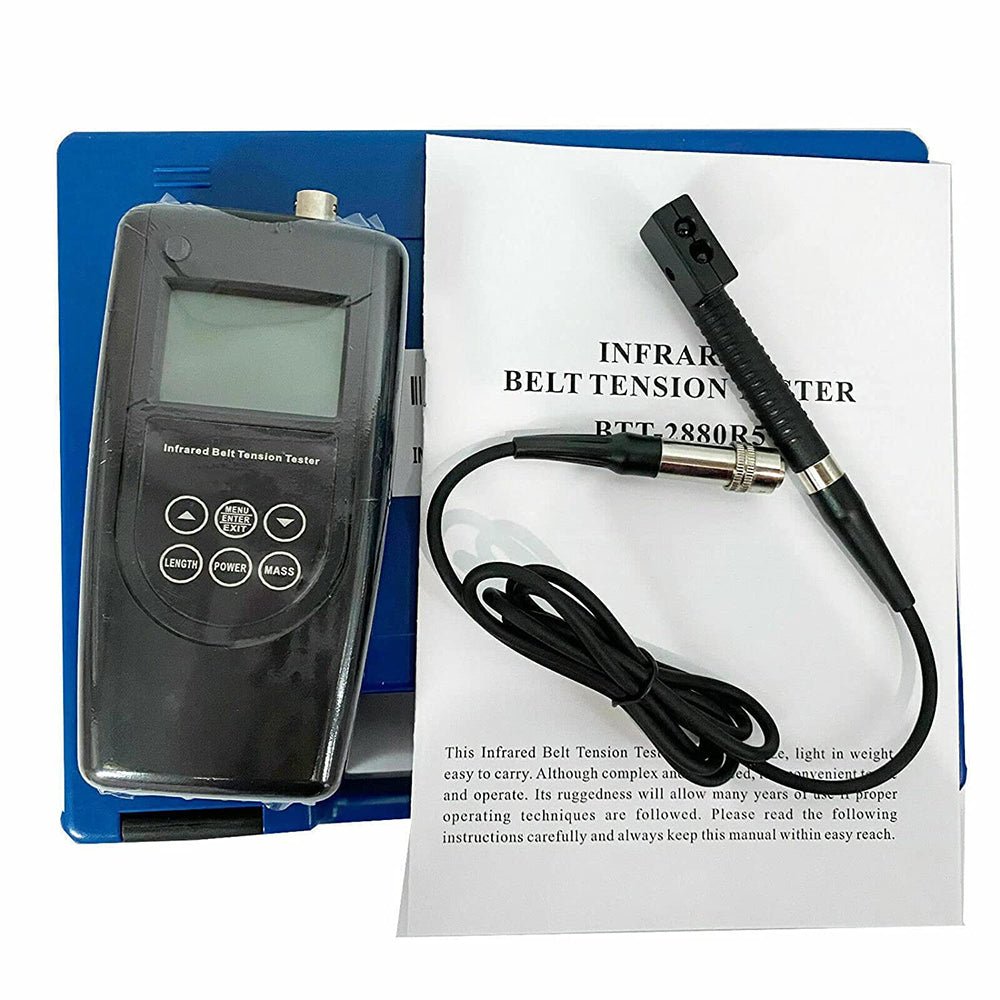

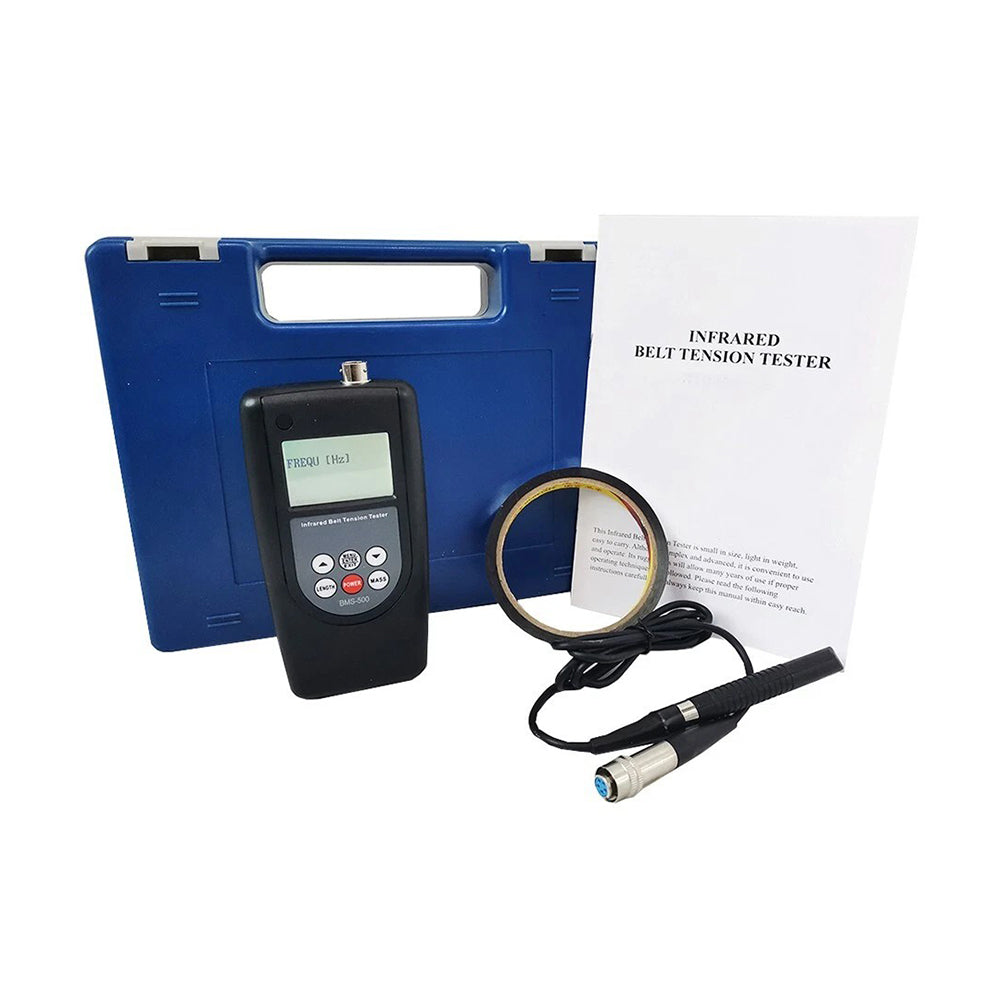

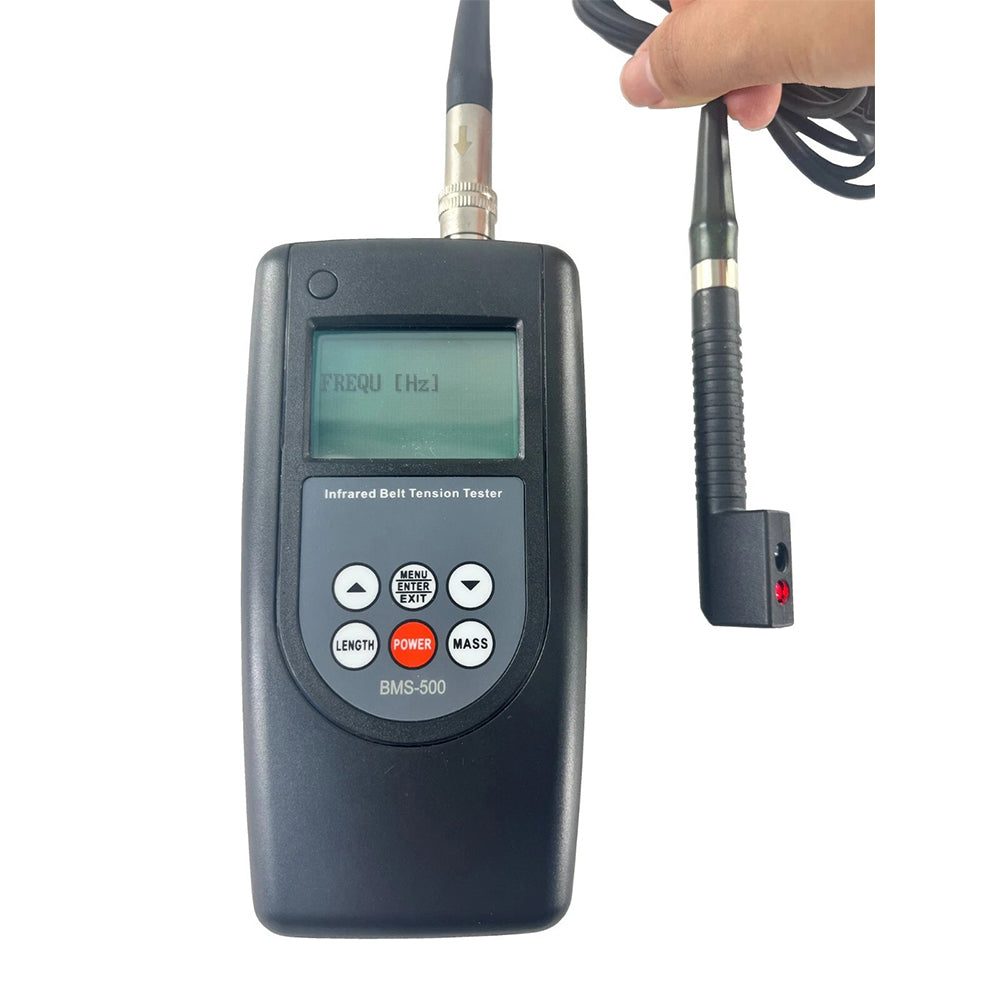

VTSYIQI Infrared Belt Tensiometer Tension Meter Tester Gauge Belt Tensiometer with Range 10Hz~500Hz Laser Sensor Measurement Measure for Digital Motor Tensiometer
VTSYIQI Infrared Belt Tensiometer Tension Meter Tester Gauge Belt Tensiometer with Range 10Hz~500Hz Laser Sensor Measurement Measure for Digital Motor Tensiometer
Regular price
$470.00 USD
Regular price
Sale price
$470.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
About this item

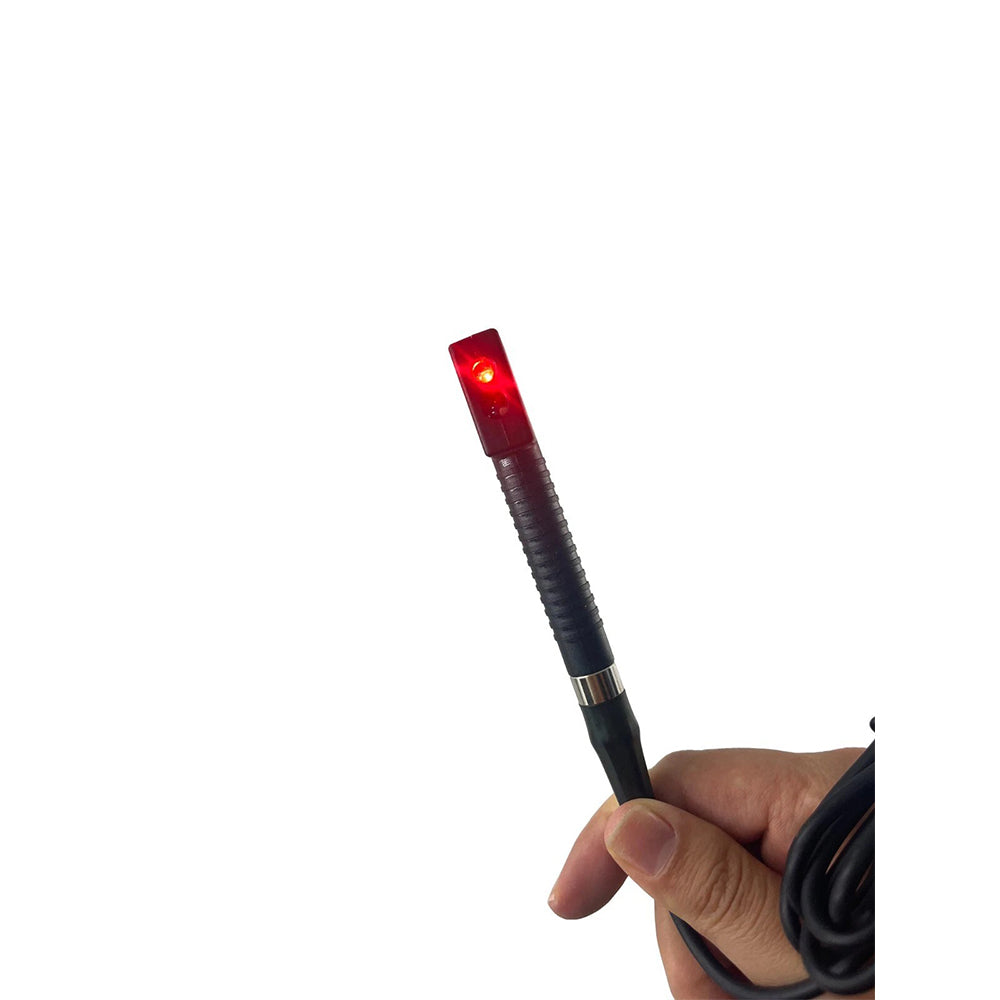

- Using laser sensor, direct measurement, more convenient than mechanical sensor.

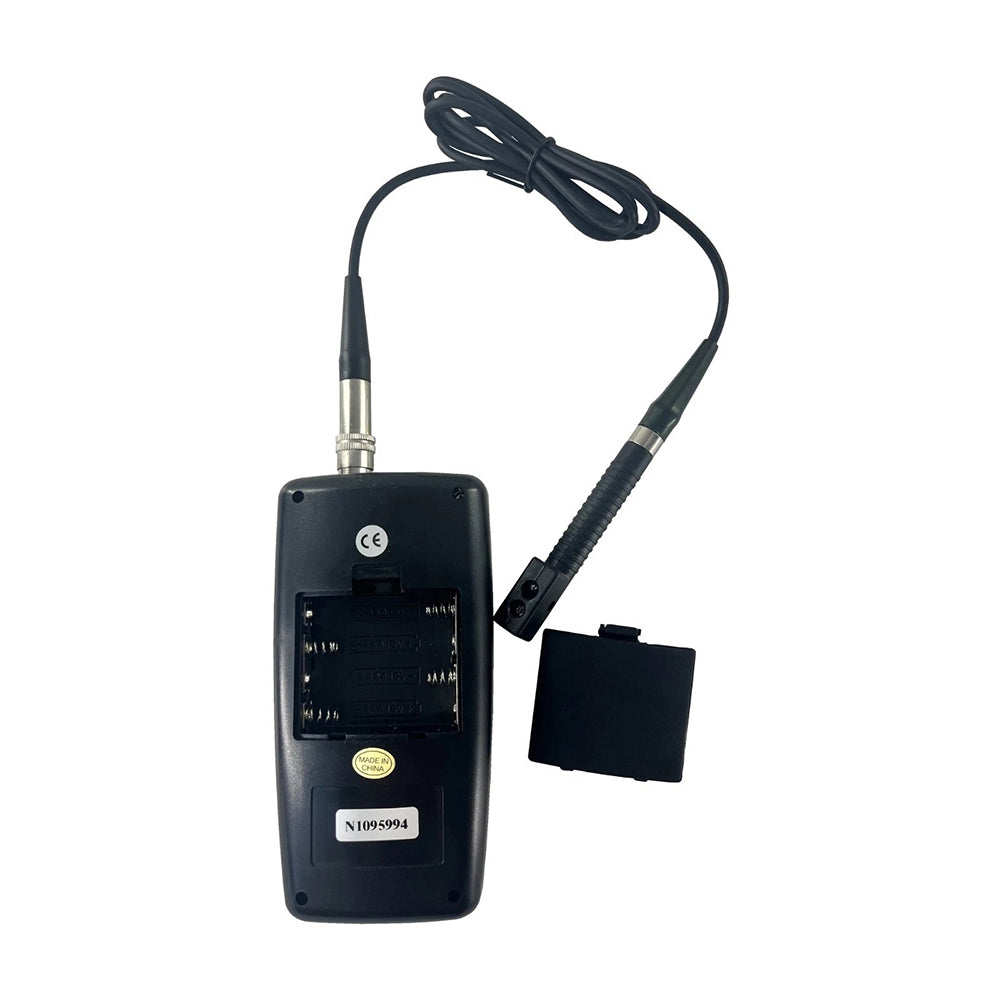

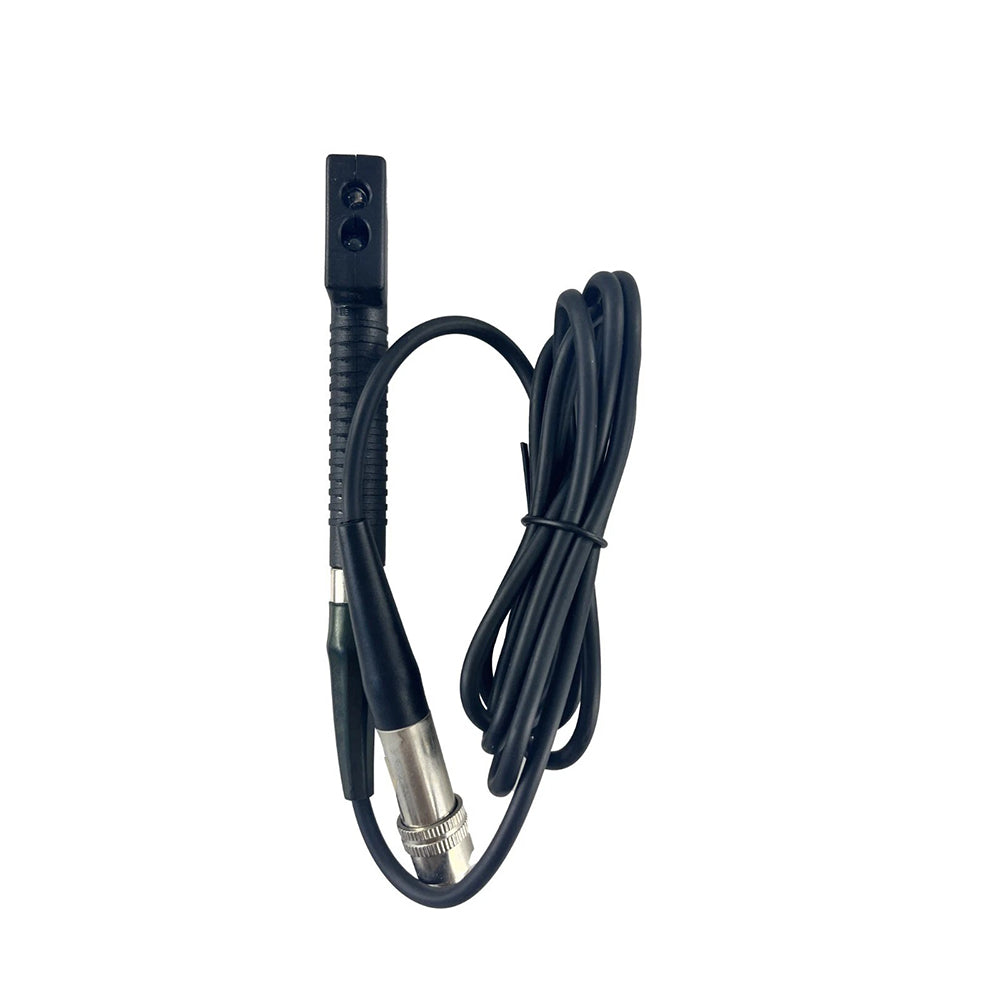

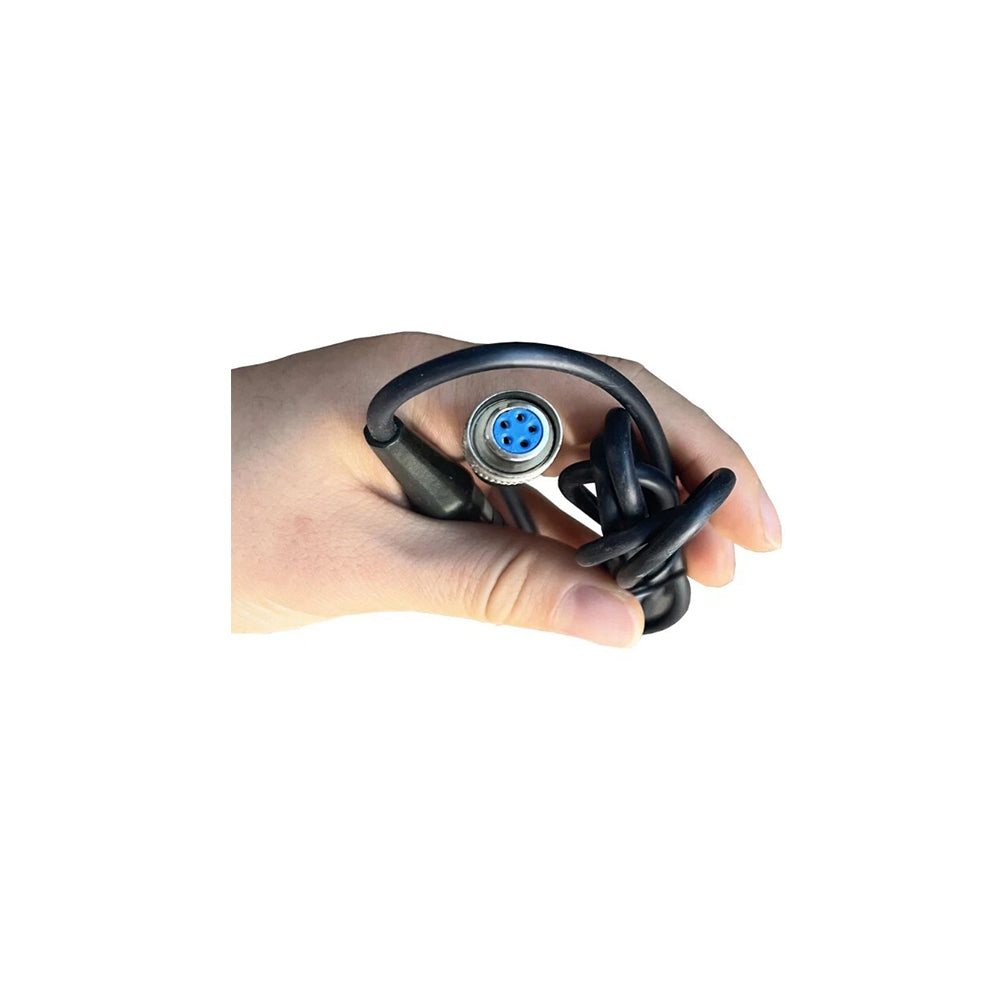

- The size of the split sensor is small, suitable for measurement in small spaces.
- There are two kinds of sensors of integrated type and split type to choose from
- The readings can be displayed in two different units, metric or imperial.
Product Description

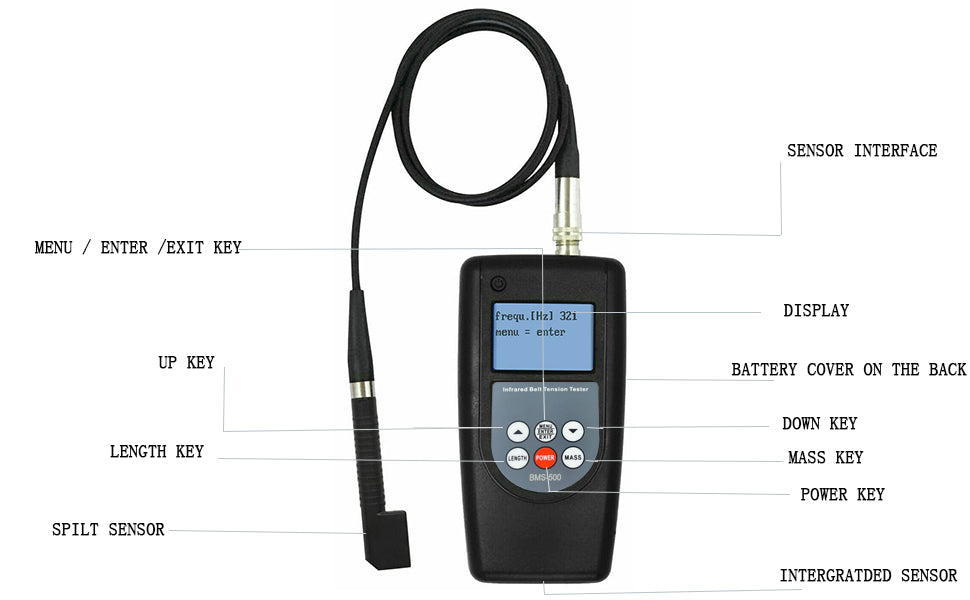

Features
* Direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.
Specifications
Measurement Range:10~500Hz
Input Range:
Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
Digital Sampling Error:<1%
Display Error:±1Hz
Total Error:<5%
Operating Temperature Range:+10~50°C
Transportation Temperature Range:-5~70°C
Unit of Measurement:Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance:3~20mm
Depth of Split Sensor:About 66mm
