VTSYIQI Leakage Current Tester AC Current Tester with Range 0.0mA-200A Resolution 0.1mA Precision ±0.5% FS Jaw Size Φ20mm 9999 Groups Data Storage

VTSYIQI Leakage Current Tester AC Current Tester with  Range 0.0mA-200A Resolution 0.1mA Precision ±0.5% FS Jaw Size Φ20mm 9999 Groups Data Storage

Feature:

(1) {Function}--------AC current、Leakage current measurement，Online monitoring record, insulation fault finding, line maintenance

(2) Range 0.0mA-200A ; Resolution 0.1mA ; Precision ±0.5%FS; Jaw Size Φ20mm

(3) {Data storage}--------9999 groups（Losing power or replacing the battery will not lose data）

(4) {Time settings}--------Set the recording interval within 1 to 60 minutes, 0 minutes means not automatically stored

(5) {Line voltage}--------Line test below AC600V

Introduction:

The high precision clamp ammeter is designed and manufactured for on-line testing, monitoring, and recording of currents.

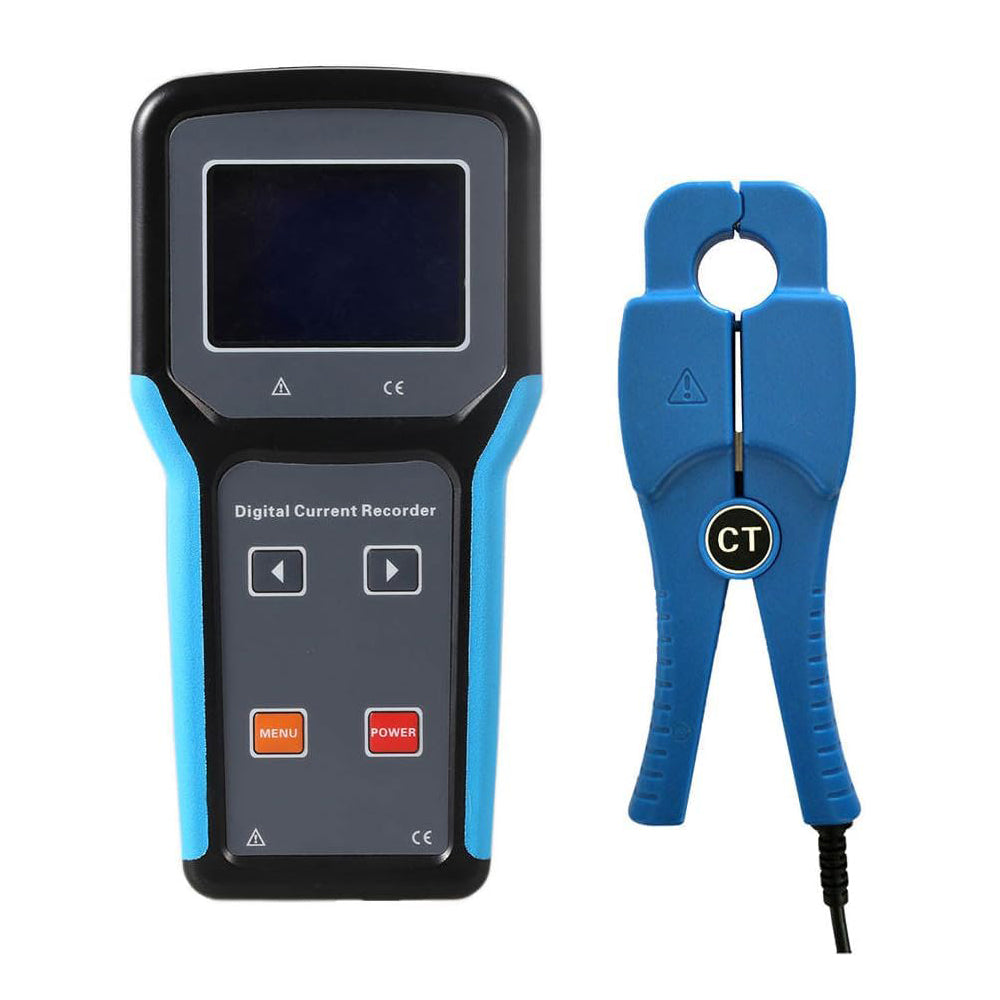

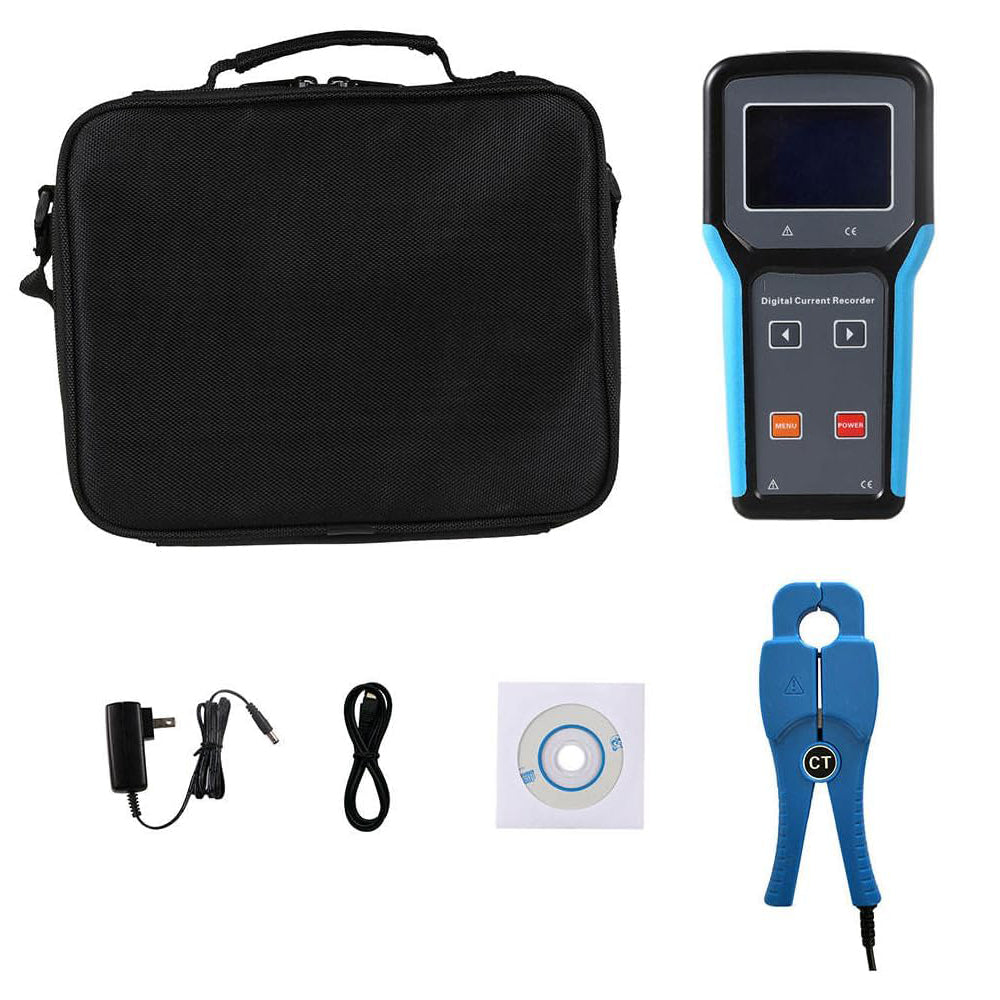

It consists of a host computer, current monitoring software, current clamps, communication lines, and memory cards.

It is widely used in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.

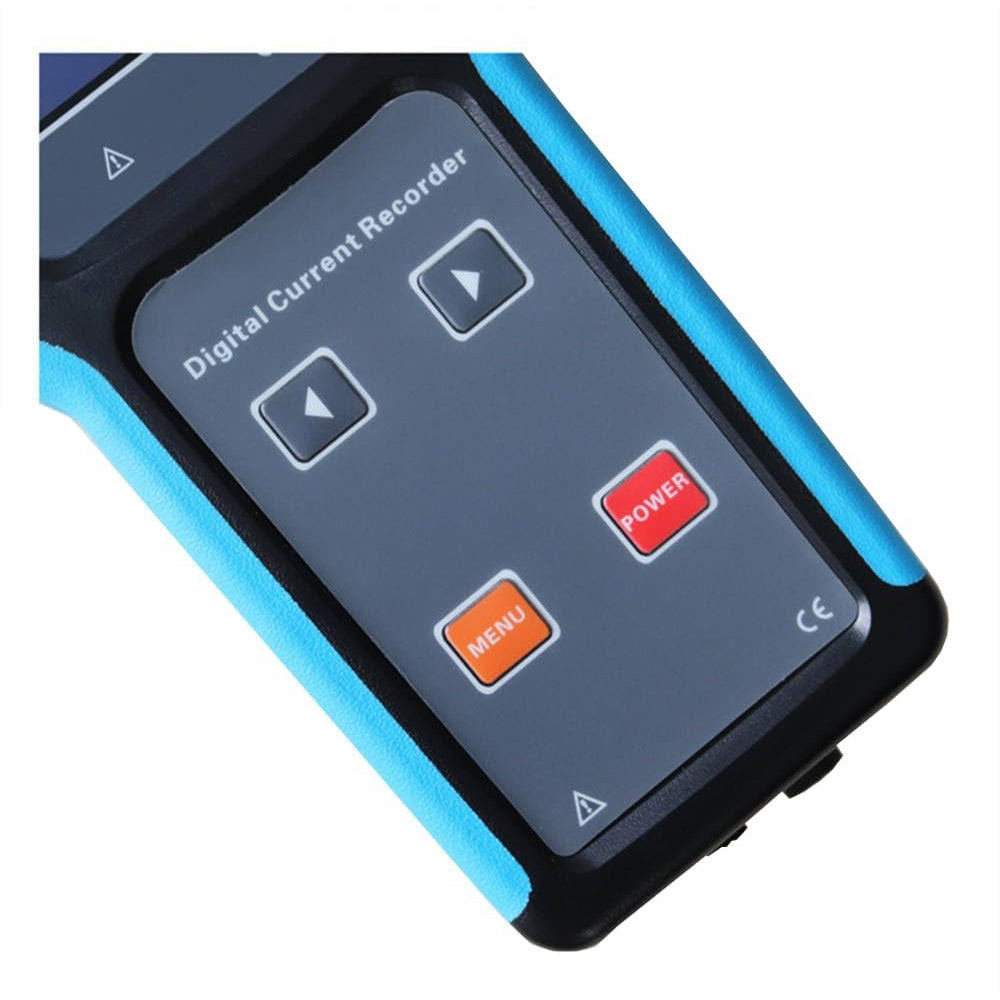

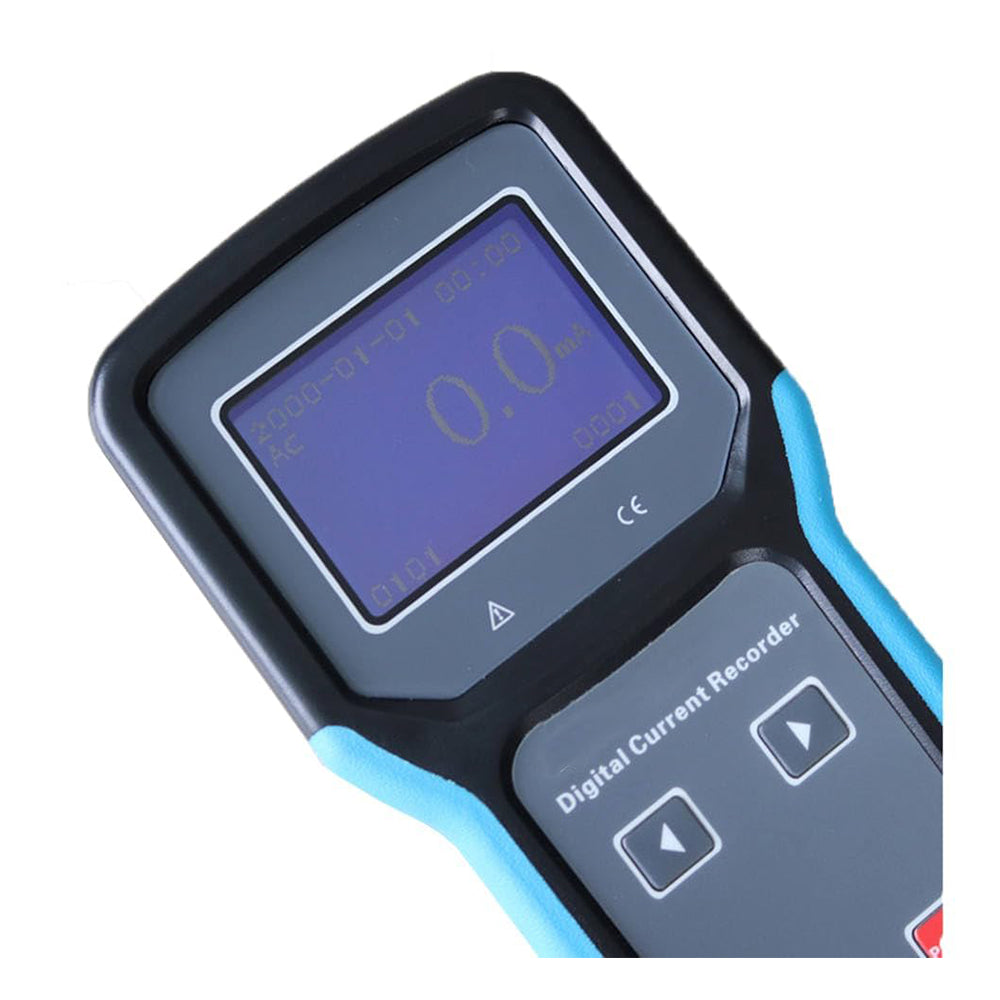

The host uses a luxurious blue screen LCD display at a glance.

At the same time, it has a large storage space of TF card, can store 9999 sets of data, and also has an automatic storage interval setting function, which is set from 1 to 60 minutes.

The high precision clamp ammeter has online real-time monitoring and history query function, and has functions of reading, reviewing and saving historical data.

The current clamp is made of special alloy, and the latest CT technology ensures high precision, high stability and high reliability for continuous monitoring throughout the year.

Technical Specifications:

Range:0.0mA-200A

Resolution:0.1mA

Highest precision:±0.5%FS

Jaw size:Φ20mm

Function:AC current、Leakage current measurement，Online monitoring record, insulation fault finding, line maintenance

Power:DC6V nickel metal hydride rechargeable battery 1.2V*5

Test mode:Clamp CT

Display mode:LCD：128dots×64dots

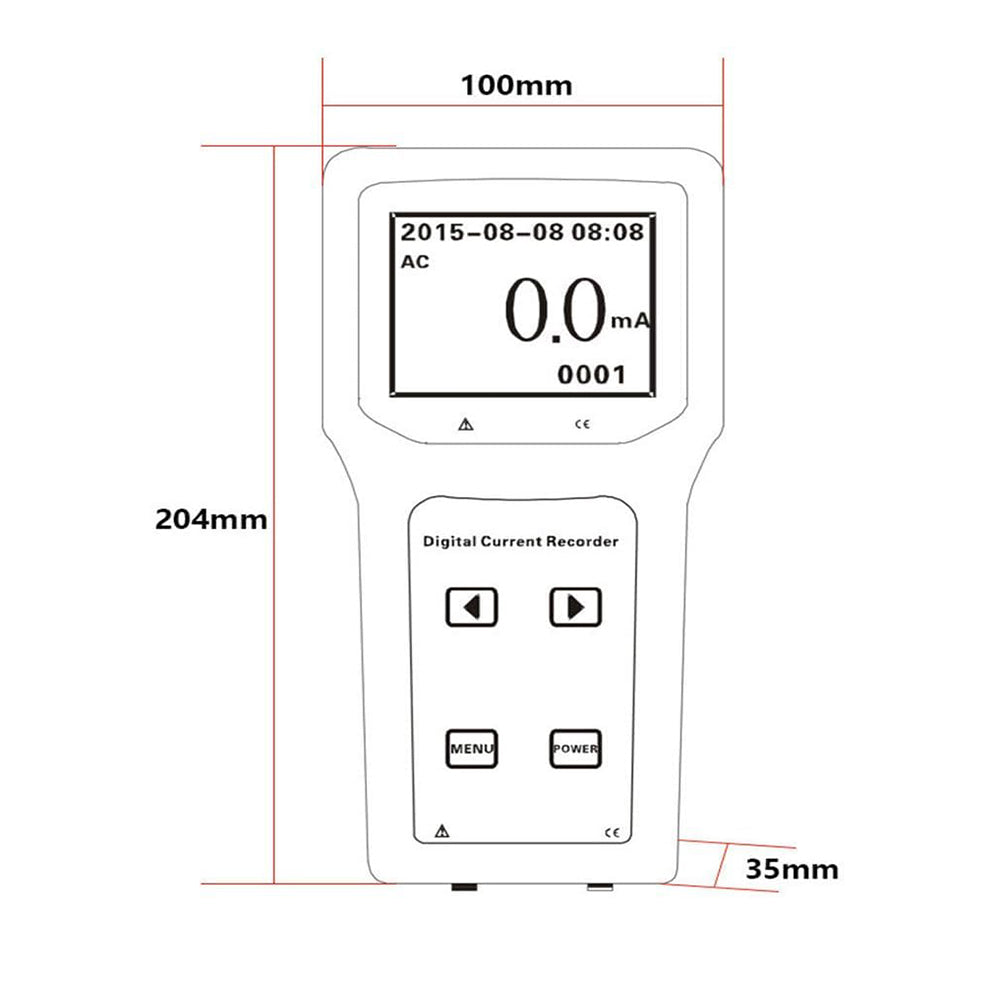

Instrument size:Host：W/H/T100mm×204mm×35mm;current clamp：W/H/T 60mm×160mm×20mm

Weight:Host：430g（including battery）;current：260g

LCD size:Display area：62mm×44mm

Sampling rate:2 times/sec

Data storage:9999 groups（Losing power or replacing the battery will not lose data）

time settings:Set the recording interval within 1 to 60 minutes, 0 minutes means not automatically stored

Recording time:3 days of continuous operation in power saving mode

Line voltage:Line test below AC600V

Overflow display:Over-range overflow function: "OL" symbol display

battery voltage:When the battery voltage drops to 5.2V, the battery voltage is low and the symbol is displayed, reminding you to charge. The measured data is also accurate.

rated power:15mA in power saving mode, up to 25mA

Lead length:Standard 2 meters

Working temperature and humidity:-10℃～40℃；below 80%rh

Storage temperature and humidity:-10℃～60℃；below 70%rh

Insulation resistance:20MΩ or more,1000V

Suitable for Safety Regulations:IEC1010-1、IEC1010-2-032、 pollution grade 2、CAT Ⅲ(600V) IEC61326(EMC standard)
