VTSYIQI Leakage Switch Tester Leakage Protector Tester Detector with LCD Backlight Display DC Voltage Range 0.0V to 1000V AC Voltage Range 0.0V to 750V Manual Automatic Dual Mode

VTSYIQI Leakage Switch Tester Leakage Protector Tester Detector with LCD Backlight Display DC Voltage Range 0.0V to 1000V AC Voltage Range 0.0V to 750V Manual Automatic Dual Mode

Feature:

(1) {Function}--------Leakage protector action time measurement, leakage protector action current measurement, voltage measurement.

(2) {Leakage current gear}--------15,30,50,75,100,150,200,250,300,500mA; measurement accuracy:±10%rdg±3dgt; resolution ratio: 1mA

(3) {leakage current action time}--------Action time:0～999mS ; measurement accuracy:±4%rdg±6dgt ; resolution ratio: 1mS

(4) {AC voltage measurement}--------1.0～750V ; measurement accuracy:±5%rdg±5dgt ; resolution ratio: 0.1V

(5) {DC voltage measurement}--------1.0～1000V ; measurement accuracy:±5%rdg±5dgt ; resolution ratio: 0.1V

(6) {Data Storage}--------500 groups, flashing "FULL" symbol means storage is full

Product Function:

This Leakage switch tester, also known as leakage switch detector, leakage protection device tester, residual current action protection device detector, residual current action protection device tester, is the engineering quality supervision station and construction company necessary detection instrument, can measure the leakage switch action time and action current.
It is mainly used to test the leakage action current, leakage nonaction current and leakage action time of the leakage protector.
Can be widely used in power supply departments, agricultural power departments, leakage protection device manufacturers, construction, mining, machine tools and other industries of labor security departments and the majority of electricians.

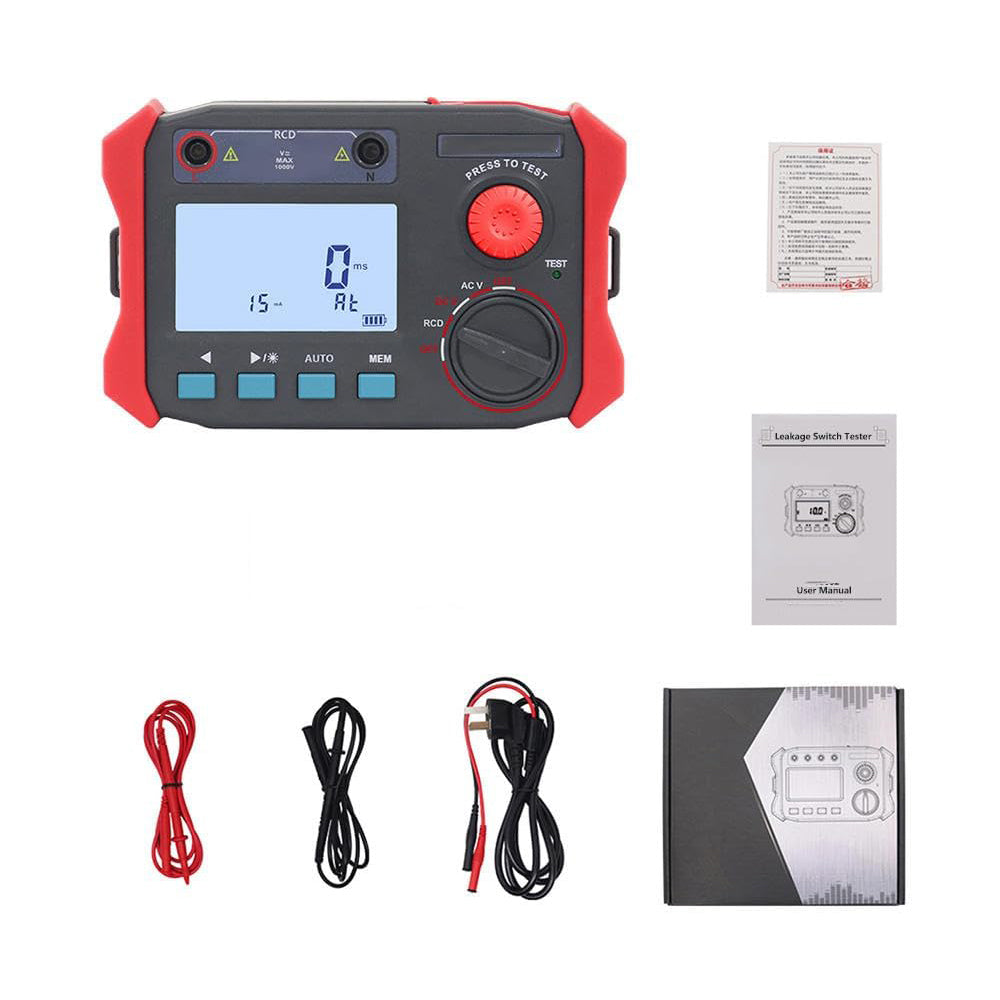

This Leakage switch tester, composed of main engine, test line, etc.
Simple and portable, 4-bit large LCD display, gray and white screen display, clear at a glance, easy operation and easy to use.
Large capacity storage of 500 sets of data, voltage measurement range: 1.0V~1000V, measurement accuracy: ± 5% dgt ± 5 dgt.
Test leakage current ranges from 15 to 50 0 mA to ten gears (15; 30; 50; 75; 100; 150; 200; 250; 300; 500 mA). The operation time range of test leakage current is 0 ~ 999 mS.

Measuring range and accuracy：
Leakage current gear:15,30,50,75,100,150,200,250,300,500mA
measurement accuracy:±10%rdg±3dgt
resolution ratio: 1mA
leakage current action time：0～999mS
measurement accuracy:±4%rdg±6dgt
resolution ratio: 1mS
AC voltage measurement：1.0～750V
measurement accuracy:±5%rdg±5dgt
resolution ratio: 0.1V
DC voltage measurement：1.0～1000V
measurement accuracy:±5%rdg±5dgt
resolution ratio: 0.1V

Technical Specification:
function:Leakage protector action time measurement, leakage protector action current measurement, voltage measurement.
DC voltage range:1.0～1000V
DC voltage resolution:0.1V
AC voltage range:1.0～750V
AC voltage resolution:0.1V
Leakage current gear:15 , 30 , 50, 75, 100, 150, 200, 250, 300, 500 mA
Leakage action time:0～999 mS
Test mode:Manual (nt) or automatic (At)
Power supply:8 1.5V (AA) alkaline batteries(Batteries are not included during the shipment.)
Back light:Controllable gray and white screen backlight, suitable for use in dark places
Auto off:Instrument shut down after 15 minutes without operation
Display mode:4-digit super large LCD display, gray and white screen backlight
LCD display size:73mm×43mm

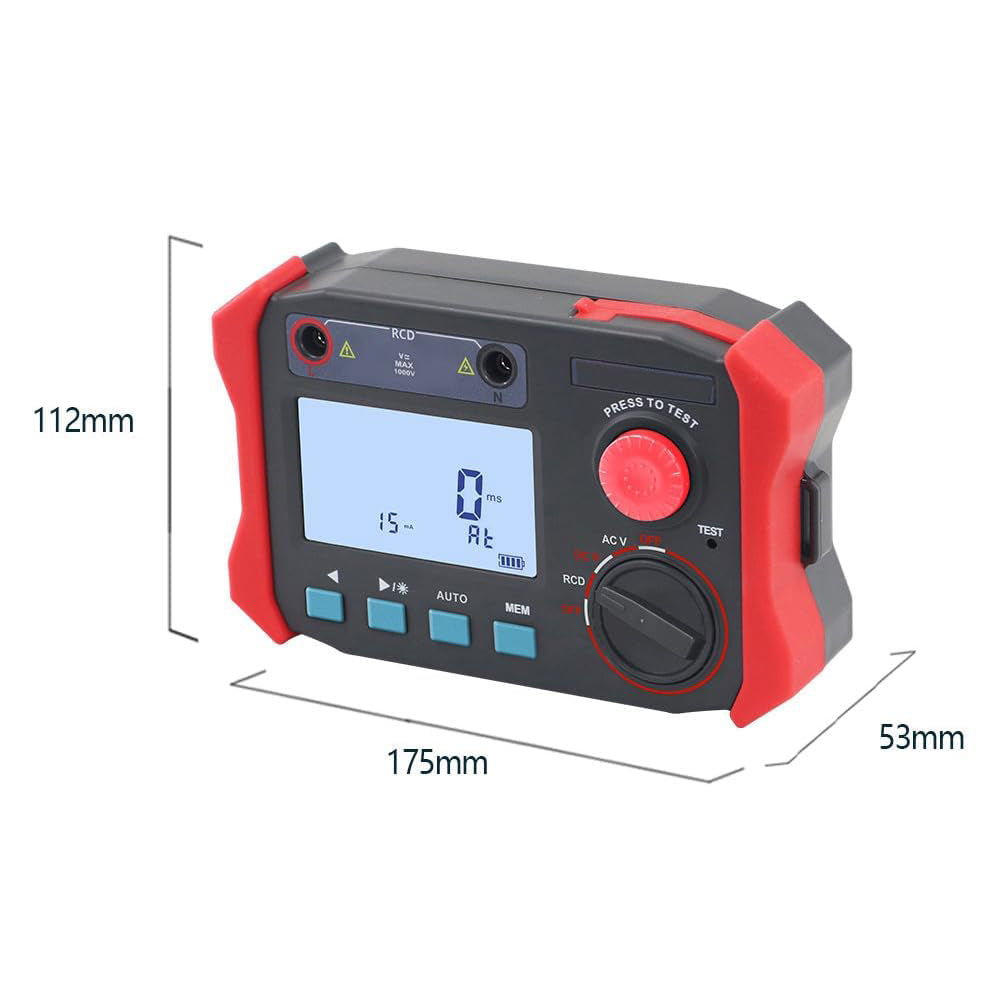

Meter size:175mm (length)×112mm (width)×53mm (high)

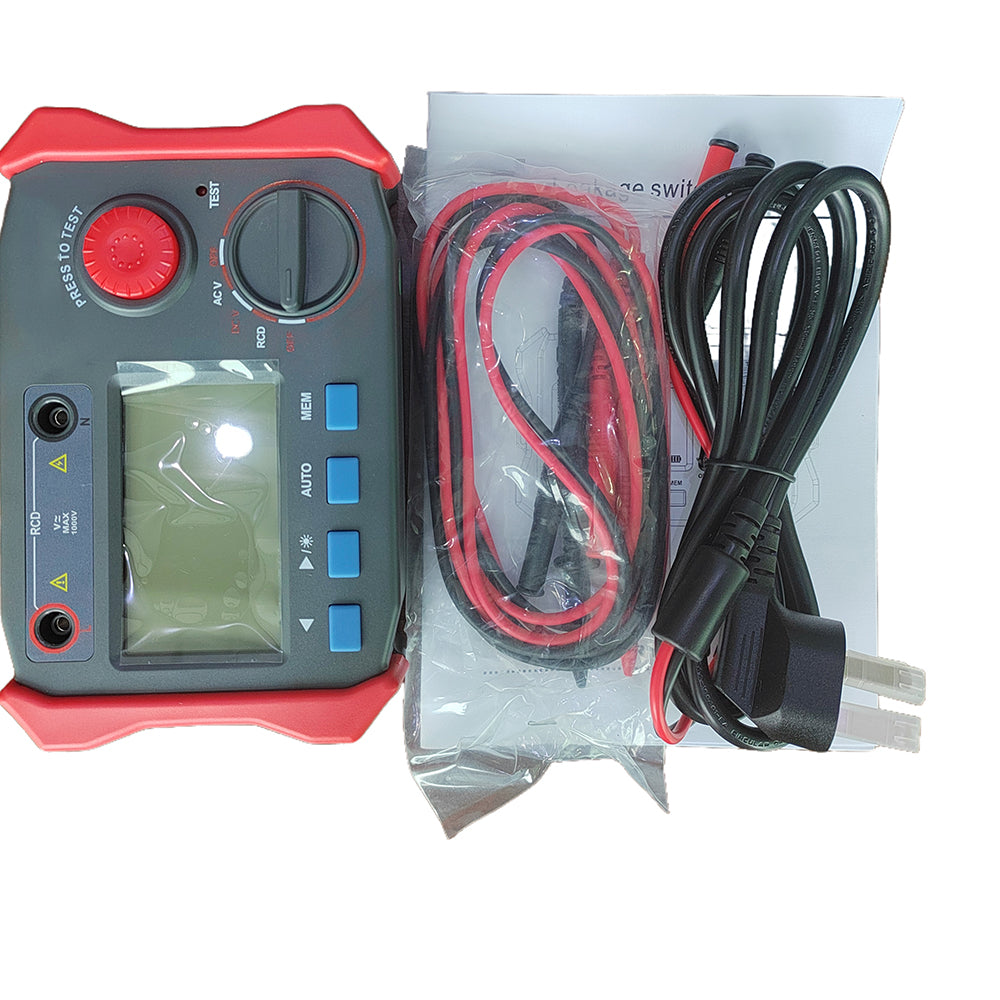

Test line:Test line red 1 meter, black 1 meter
Data storage:500 groups, flashing "FULL" symbol means storage is full
Data review:Data query function: "MEM" symbol display
Power consumption:
Standby: 53mA Max (backlight off)
Power on backlight: 75mA Max
Measurement: 108mA Max (backlight on)
Battery voltage:The battery voltage is low, and the low battery symbol is displayed“ ”
Quality:1230g(battery included)
Operating Temperature and Humidity:－10℃～+50℃＜85%RH
Storage Temperature and Humidity:－15℃～+55℃＜90%RH
Suitable for safety regulations:IEC61010-1 CAT Ⅲ 600V，IEC61010-031，IEC61326，Pollution Degree 2
