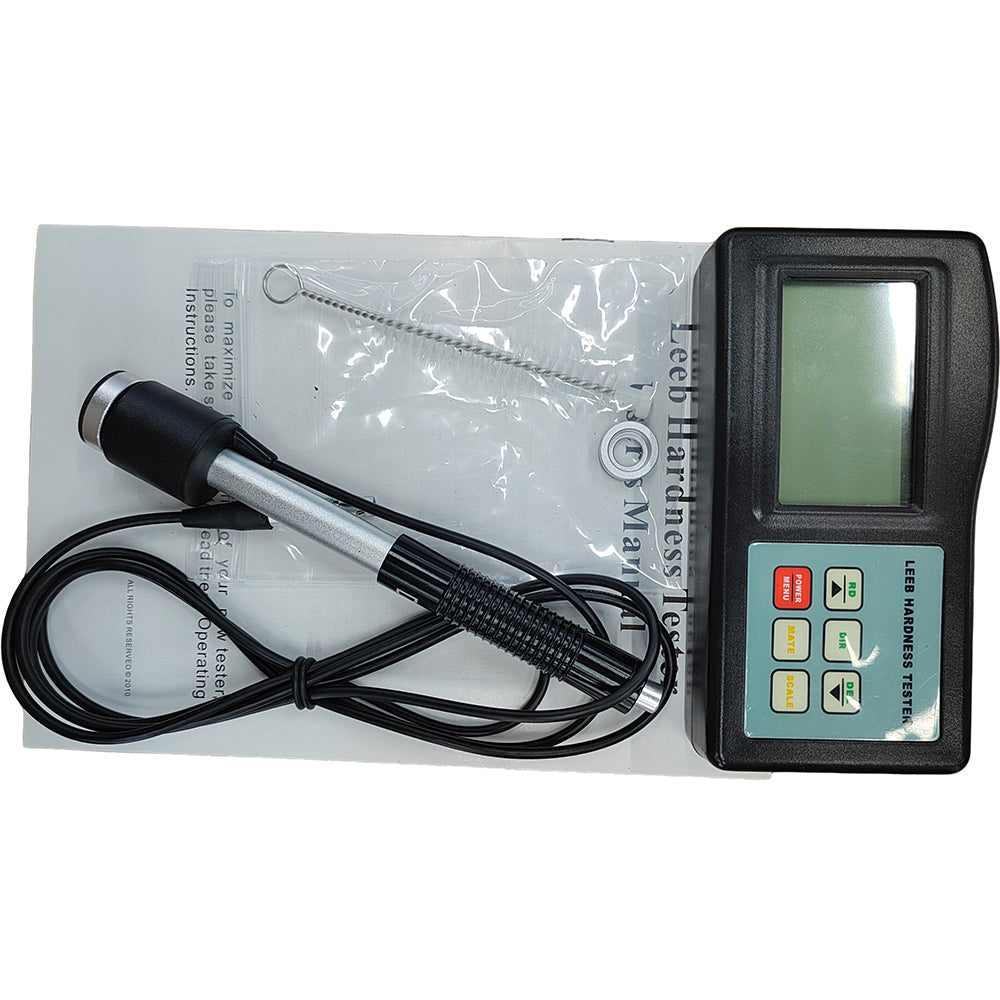

VTSYIQI Digital Leeb Hardness Tester Meter Durometer With Accuracy Display Error 0.8% For Solid Aluminum Alloy Housing

VTSYIQI Digital Leeb Hardness Tester Meter Durometer With Accuracy Display Error 0.8% For Solid Aluminum Alloy Housing

Regular price $315.00 USD
Regular price Sale price $315.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Product Description

  • * Palm size for narrow space.
  • * Test at any angle, even upside down.
  • * Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
  • * Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
  • * Use data output to connect with PC.

Product Description

Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Manual or automatic shut down.
* Low battery indication.
* Use data output to connect with PC.
* Provide.
Material Slection
Material Converting Ranges
HL HRC HRB HB HS HV
30D² 10D²
Steel & Cast St. 300~900 20.0~68.0 38.4~99.5 80~647 32.5~99.5 80~940
C.W.Tool Steel 300~840 20.4~67.1 80~898
ST.Steel 300~800 19.6~62.4 46.5~101.7 85~655 80~802
Gray Cast Iron 360~650 93~334
Nodular Cast Iron 400~660 131~387
Cast Aluminum 174~560 20~159
Brass 200~550 13.5~95.3 40~173
Bronze 300~700 60~290
Copper 200~690 45~315
Specification

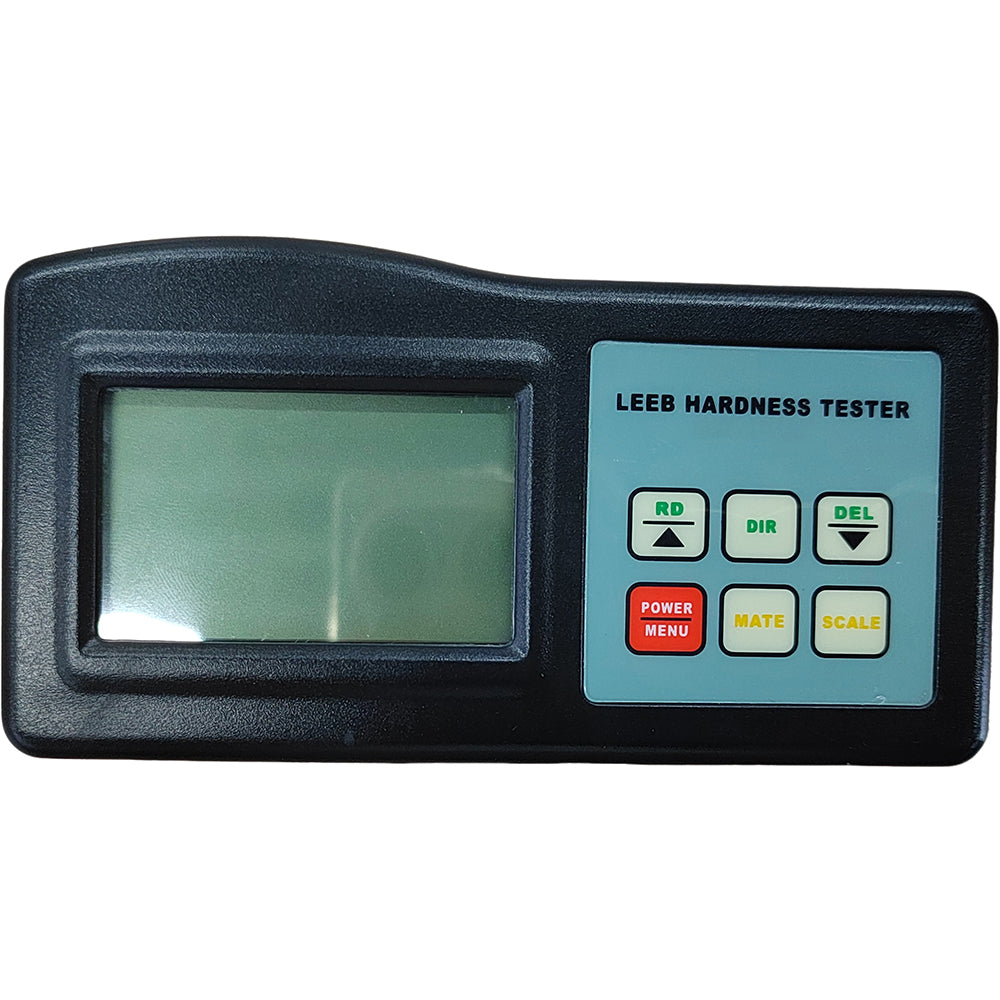

Display LCD
Materials 9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper)
Measuring Range 200~900(HLD)
Accuracy Display Error±0.8%
Repeatability ±0.8%
Conversion HL-HRC-HRB-HB-HV-HSD
Memory 50Data Can Be Stored And Re-readable

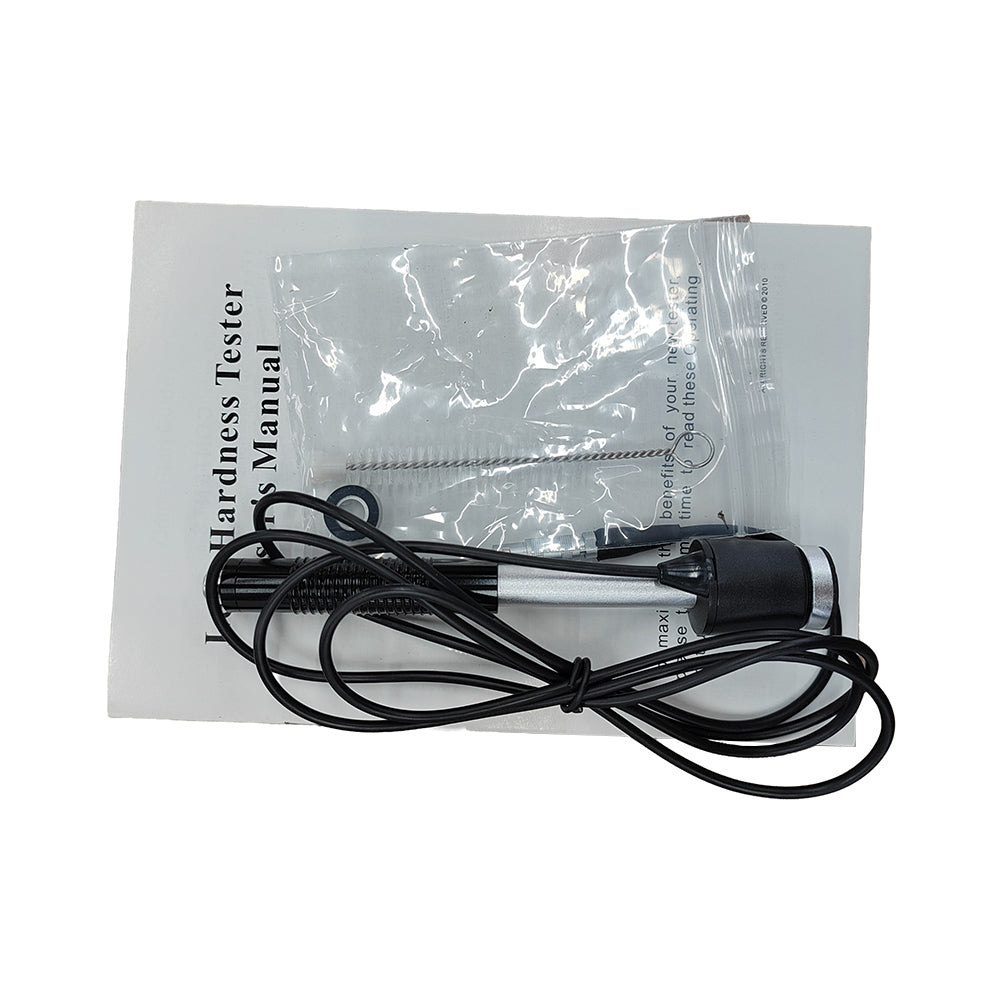

Impact device Probe D,Weight:75g
Storage Temperature -30~60ºC
Operating Conditions Temperature -10~50ºC
Humidity <90%RH
Power Supply 2X1.5V AAA(UM-4)Battery
Dimensions 146x65x36mm
Weight 130g(Not Including Batteries)
