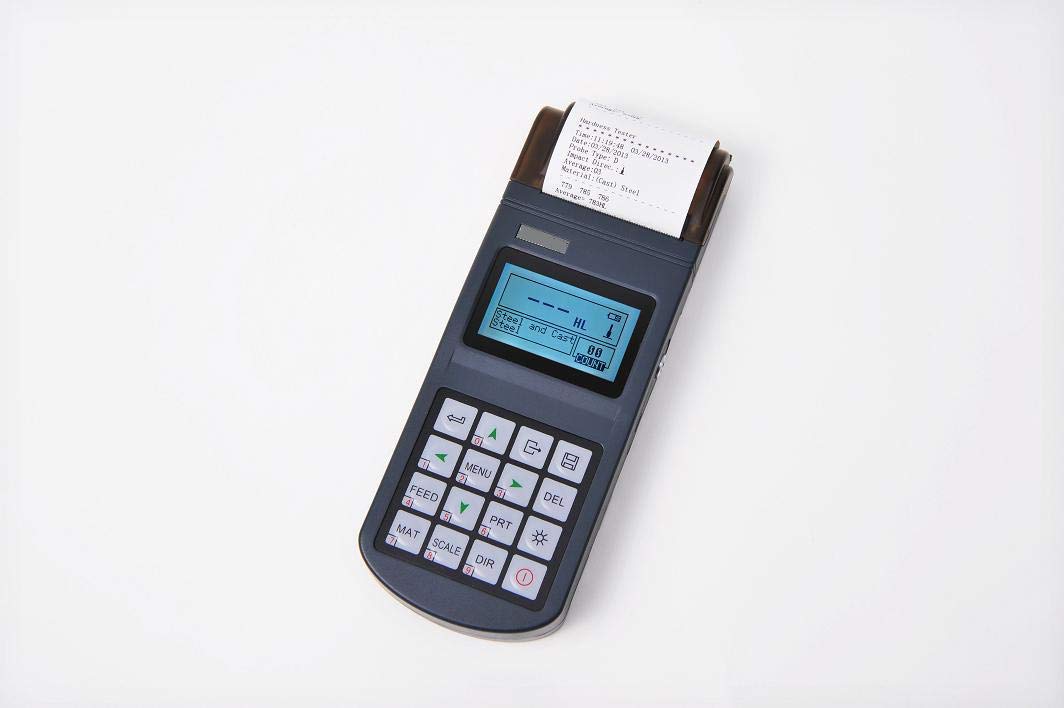

VTSYIQI Leeb Hardness Tester with Printer Function Memory 373 to 2688 Group HL HRC HRB HRA HV HB HS Portable Hardness Testing Instrument 170 to 960HLD Built-in Thermal Printer

VTSYIQI Leeb Hardness Tester with Printer Function Memory 373 to 2688 Group HL HRC HRB HRA HV HB HS Portable Hardness Testing Instrument 170 to 960HLD Built-in Thermal Printer

$420.00 USD
$420.00 USD
Sale Sold out
Shipping calculated at checkout.

  • Product Description

  • ★ Attractive appearance, easy to carry
  • ★ Hardness scale: HL, HRC, HRB, HRA, HV, HB, HS
  • ★ Measuring range: HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)
  • ★ The utility model has the advantages of exquisite structure and convenient carrying
  • ★ Operating temperature: 0 ~ 40ºC , Humidity: ≤ 90%

Product Description

Technical Specifications
*Hardness scale: HL, HRC, HRB, HRA, HV, HB, HS
*Memory: 373 ~ 2688 group (Impact times:32 ~ 1)
*Measuring range: HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)
*Tensile strength U.T.S. range: 374 ~ 2652 MPa
*Accuracy: ±6HLD (760±30HLD) error of displayed value ; 6HLD (760±30HLD) repeatability of displayed value
*Standard Impact Device: D
*Max. Workpiece Hardness: 996HV(For Impact Devices D )
*Min.Radius of Workpiece (convex/concave): Rmin = 50mm (with special support ring Rmin = 10mm )
*Min. Workpiece weight 2 ~ 5kg on stable support, 0.05 ~ 2kg with compact coupling
*Min. Workpiece thickness: 5mm (Impact Devices D)
*Min. thickness of hardened layers: 0.8mm
*Power: Rechargeable Li Battery, 7.4V, Li(1500mAh)
*Continuous Working time: About 300h, (without backlight)
*Charging time: 4 ~ 5 hours
*Operating temperature: 0 ~ 40ºC , Humidity: ≤ 90%
*Overall dimensions: 212 × 80 × 35 mm
*Weight: 320g
*Standard Accessories:Main unit,Impact Device type D, Charger, Instruction manual
