VTSYIQI Polarimeters Manual Polarimeter Disc Polarimeter Instrument with Measuring Range -180°~180° Scale Value 1° Light Source Sodium Lamp Accuracy 0.05° 100mm and 200mm Polarimeter Tube

VTSYIQI Polarimeters Manual Polarimeter Disc Polarimeter Instrument with Measuring Range -180°~180° Scale Value  1° Light Source Sodium Lamp Accuracy 0.05° 100mm and 200mm Polarimeter Tube

About this item

Measuring Range : -180°~180°

Scale Value : 1°

Vernier : 0.05°

Magnifier : 3X

Light Source : Sodium Lamp Wavelength: 589.44nm Test Tube ：50/100/200mm

Features:

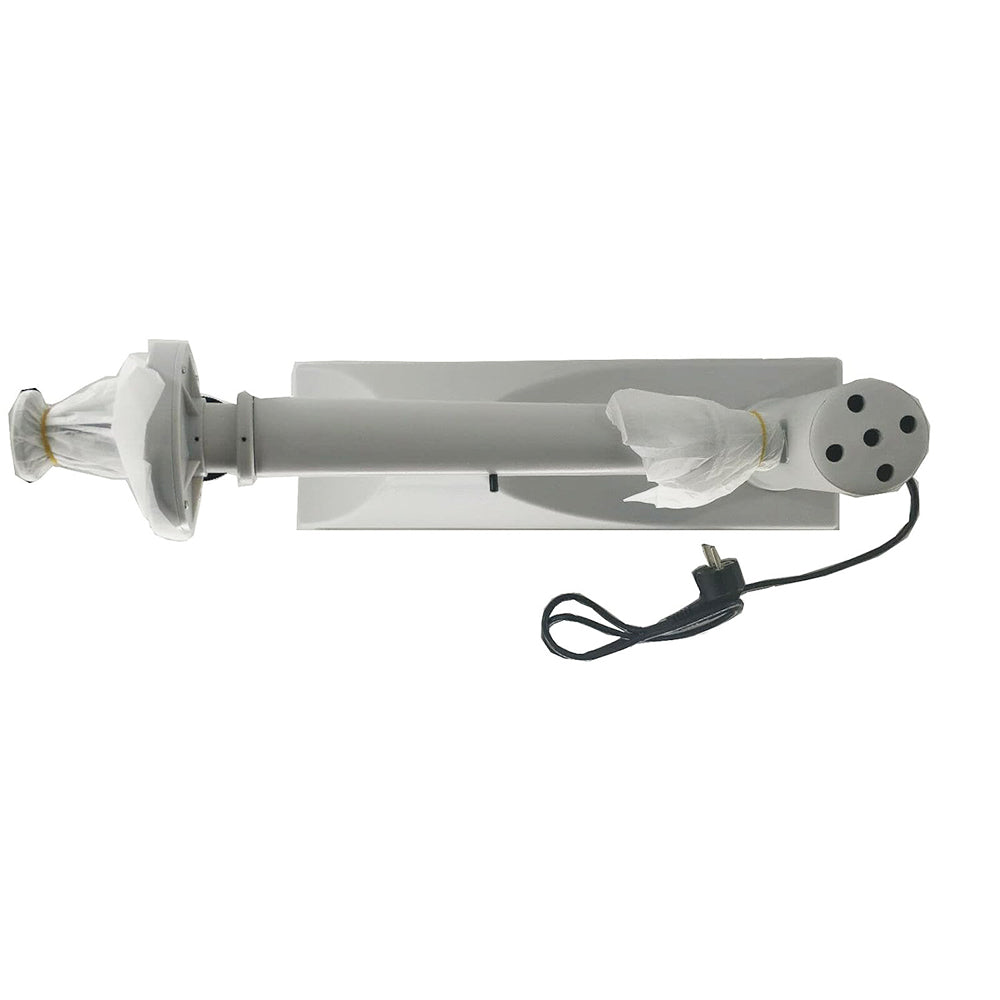

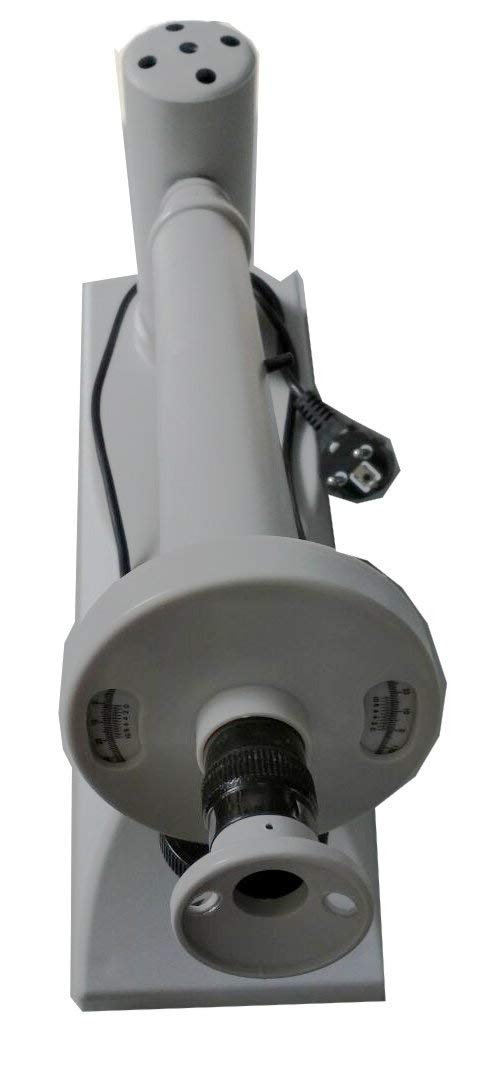

The instrument is equipped with a 589nm sodium lamp. Switch on the power, the polarized

light beam immediately radiate to polarizer filter. You can observed distinct visual fields

through eyepiece. Put the sample tube into the measuring field chamber, rotate the vernier

knob and find an equal brightness. Reading and recording the measured value from scale disc, testing is completed.

Application:

Research and education

Chemical and pharmaceutical industry

Food and sugar industry

Other industrial applications

Specification:

Measuring Range:-180°~180°

Scale Value:1°

Vernier:0.05°

Magnifier:3X

Light Source:Sodium Lamp

Wavelength:589.44nm

Test Tube:100/200mm

Power Requirements:220V/50Hz

Dimensions:500(L)×135(W)×330(H)mm

Weight:5kg
