VTSYIQI Portable Vibrometer Vibration Calibrator Operates at 159.2 Hz 10 mm/s RMS Velocity Output
VTSYIQI Portable Vibrometer Vibration Calibrator Operates at 159.2 Hz 10 mm/s RMS Velocity Output
Couldn't load pickup availability
-
Product Description
- Operating Frequency 159.2 Hz ± 0.5 %
- Acceleration Output 10 m/s² (RMS) ± 3%
- Velocity Output 10 mm/s (RMS) ± 3%
- Displacement Output 10 um (RMS) ± 3%
- Operating Conditions Temperature : -10~40 °C Humidity : < 85 %RH
Product Description
Feature:

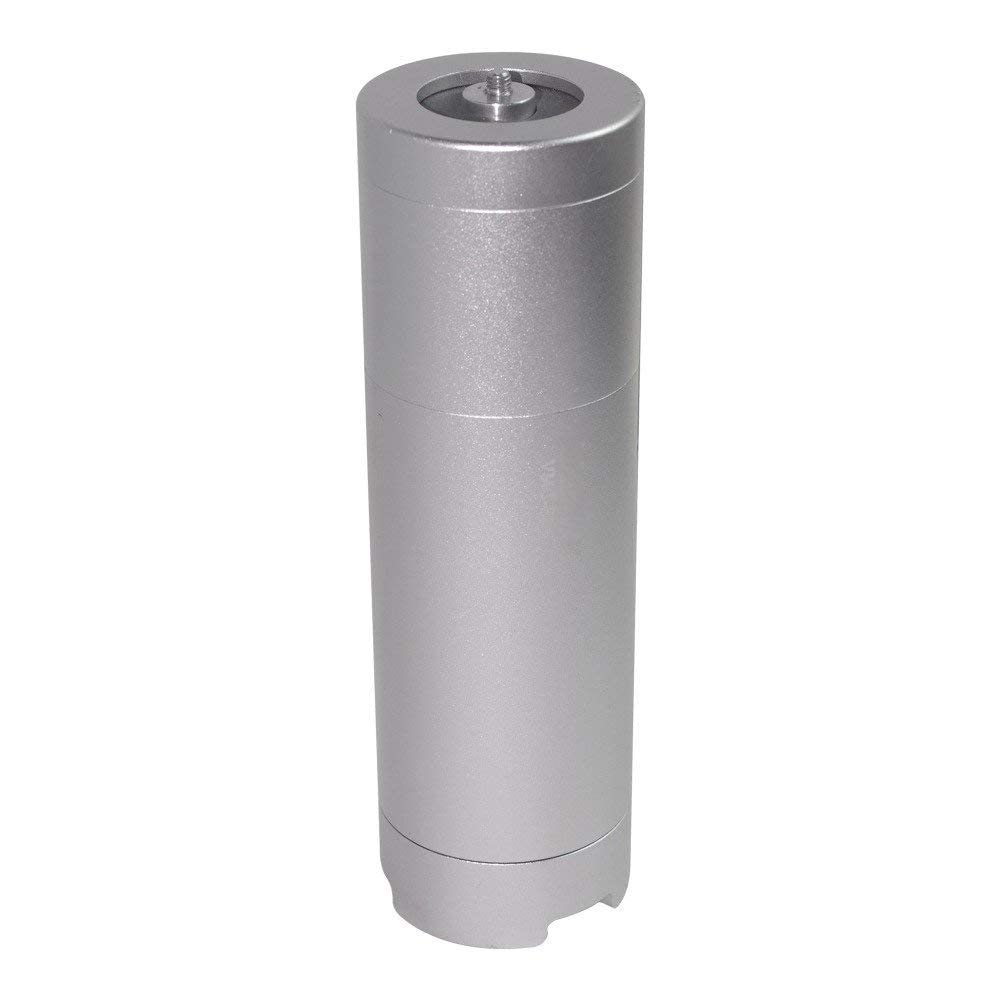

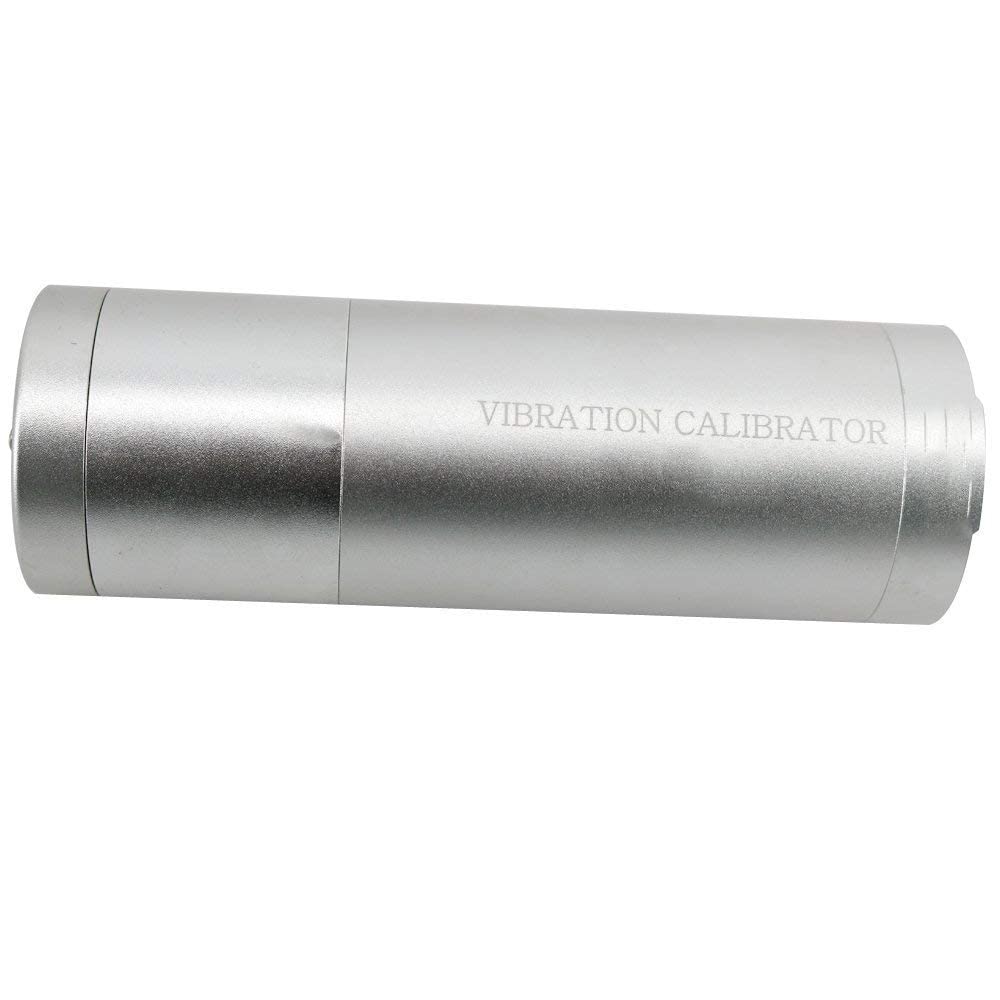

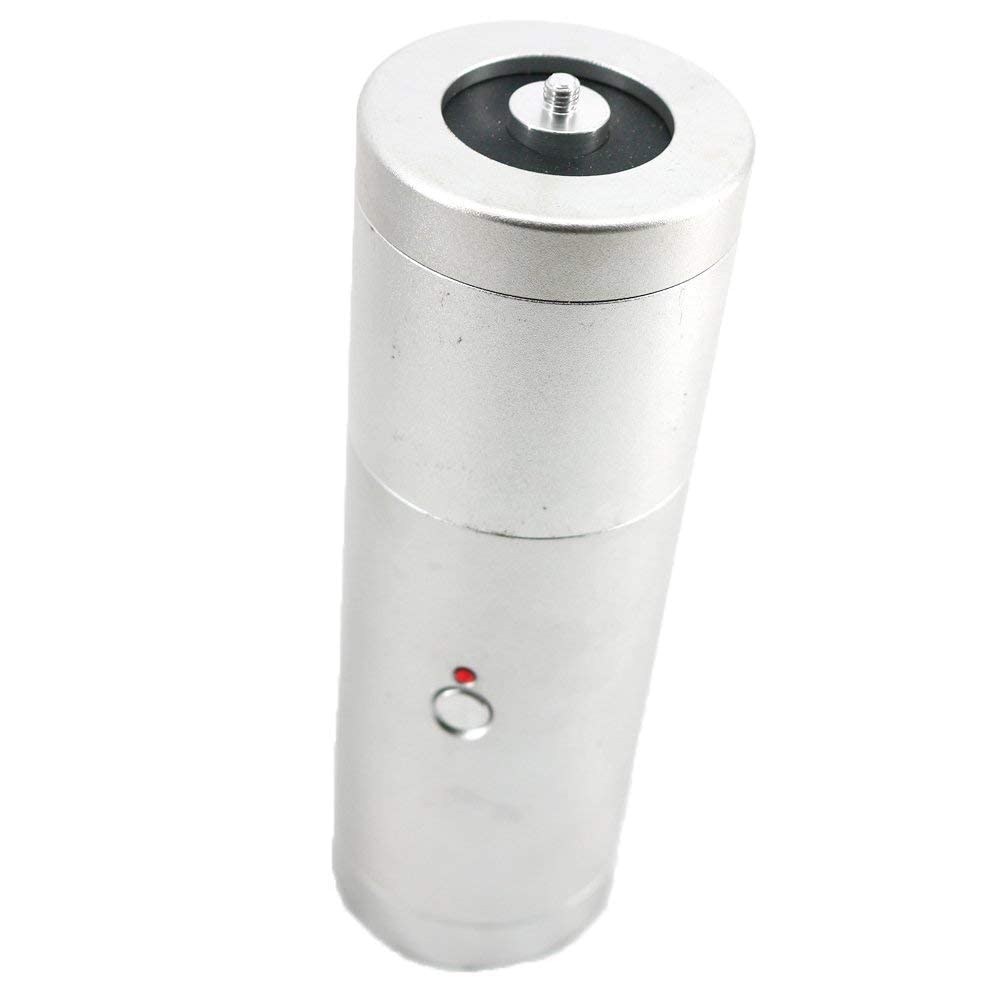

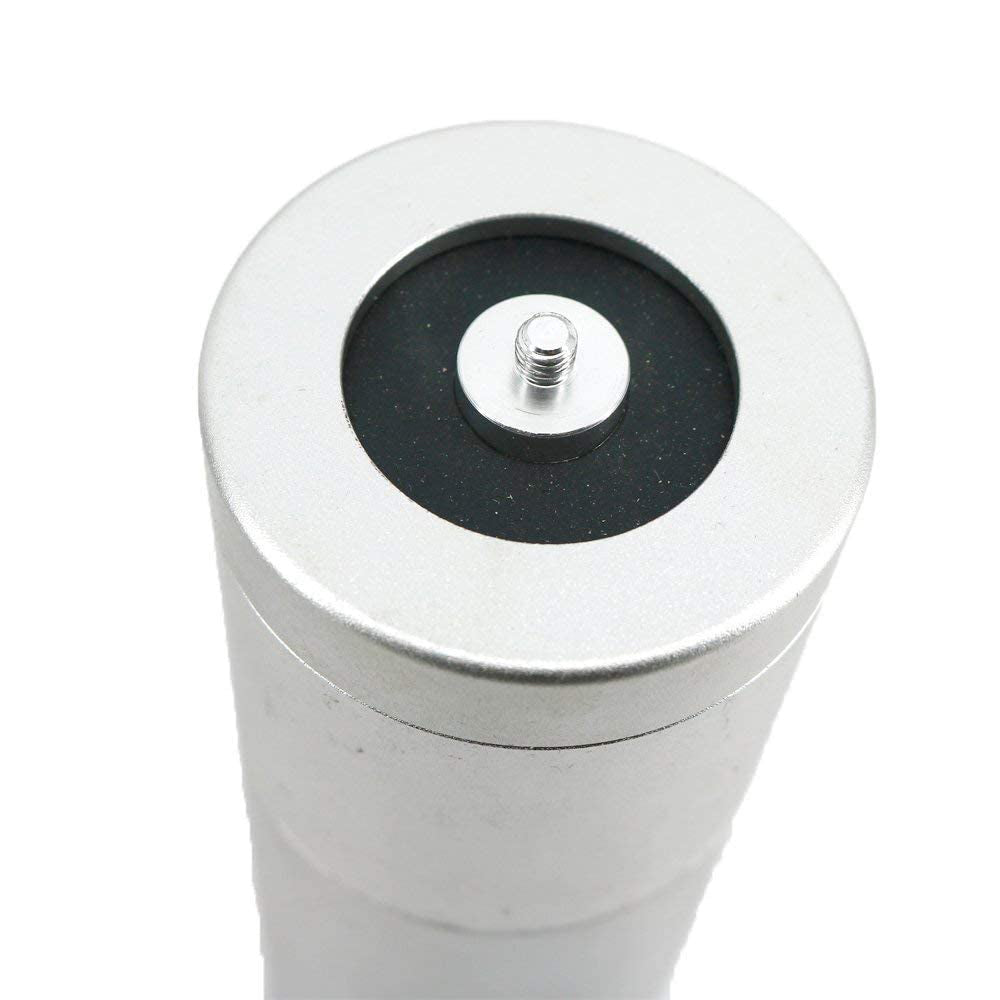

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy check-ing of accelerometers, vibration monitoring systems and recording systems. Providing a known and cont-rolled RMS vibration for verification of acceleromet-ers weighing up to 150g.
*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.
Specification:
Operating Frequency 159.2 Hz ± 0.5 %
Acceleration Output 10 m/s² (RMS) ± 3%
Velocity Output 10 mm/s (RMS) ± 3%
Displacement Output 10 um (RMS) ± 3%
Transverse Output <5%
Distortion <3%
Maximum Load 150 g
Ramp-Up Time <3 Seconds
Operating Conditions Temperature : -10~40 °C Humidity : <85 %RH

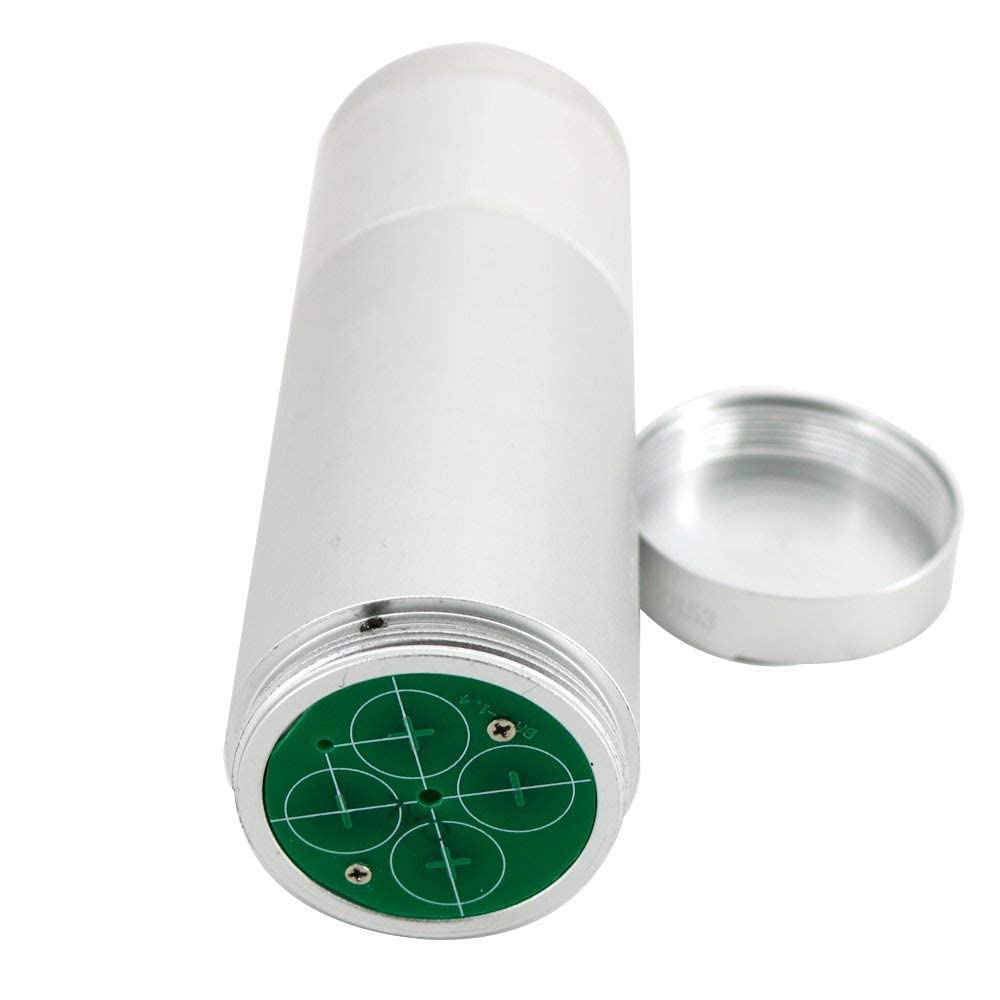

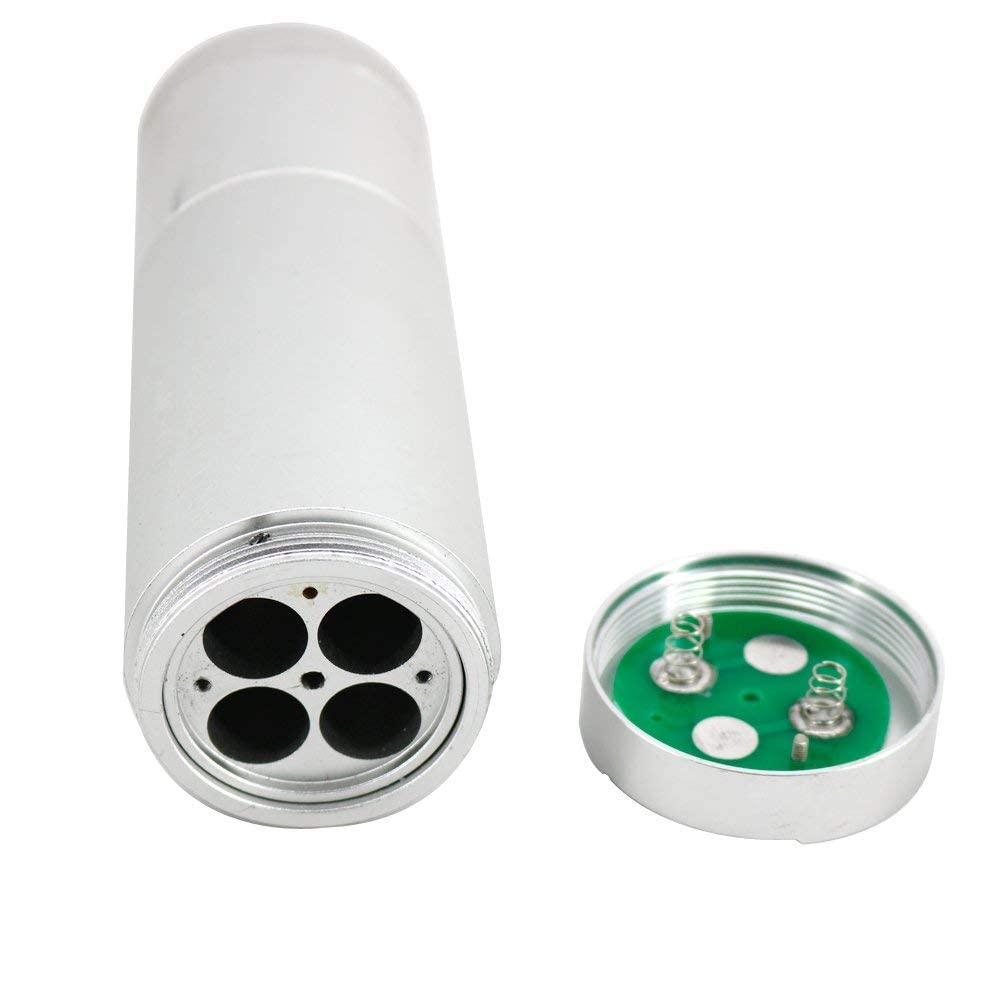

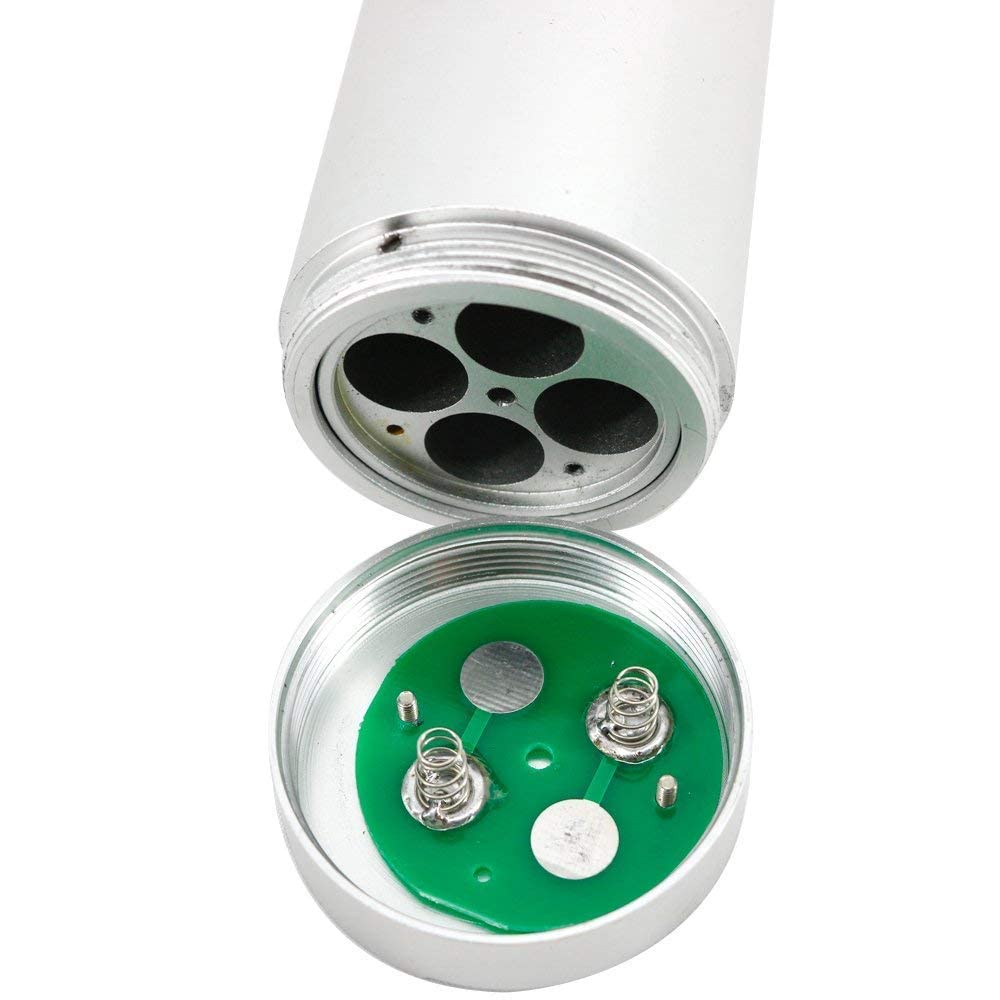

4 section 5 V batteries
Size (Diameter x Height) 56 mm x 200 mm
Weight (with batteries) 900 g

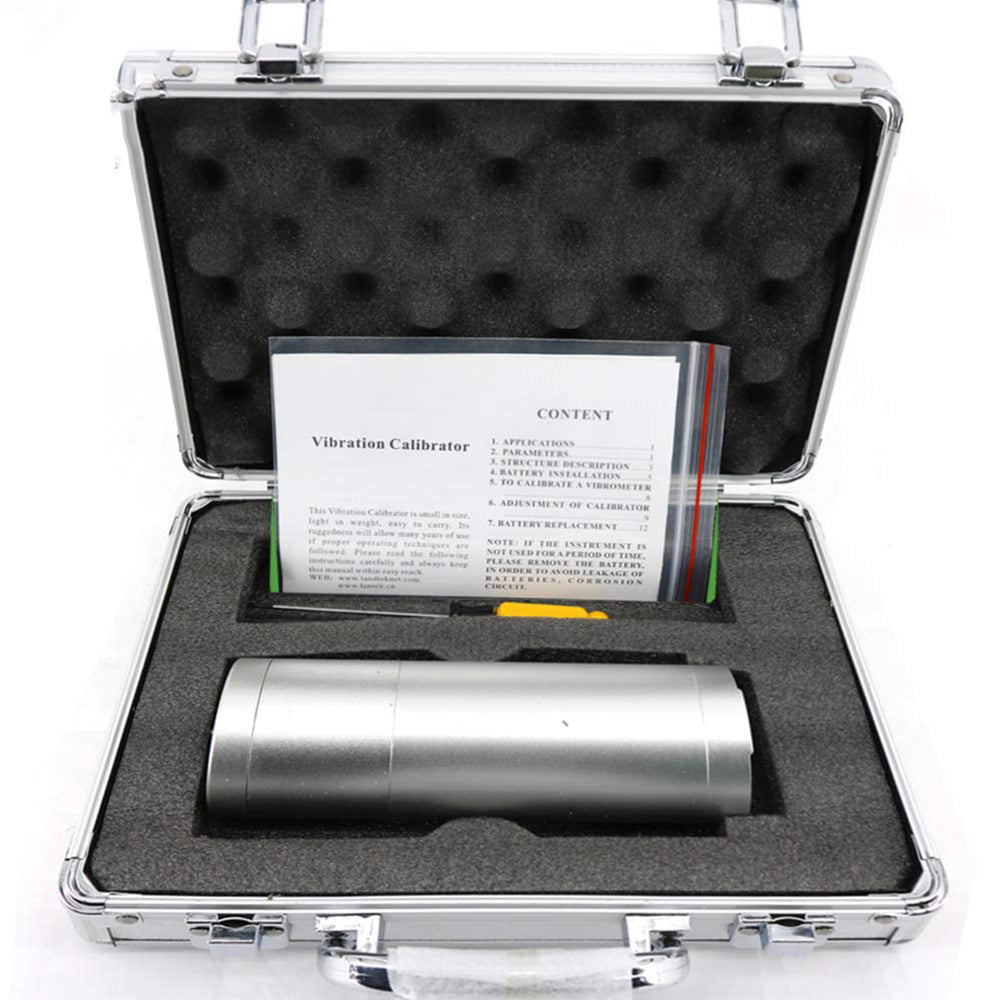

Standard Accessories:
1. Main Unit

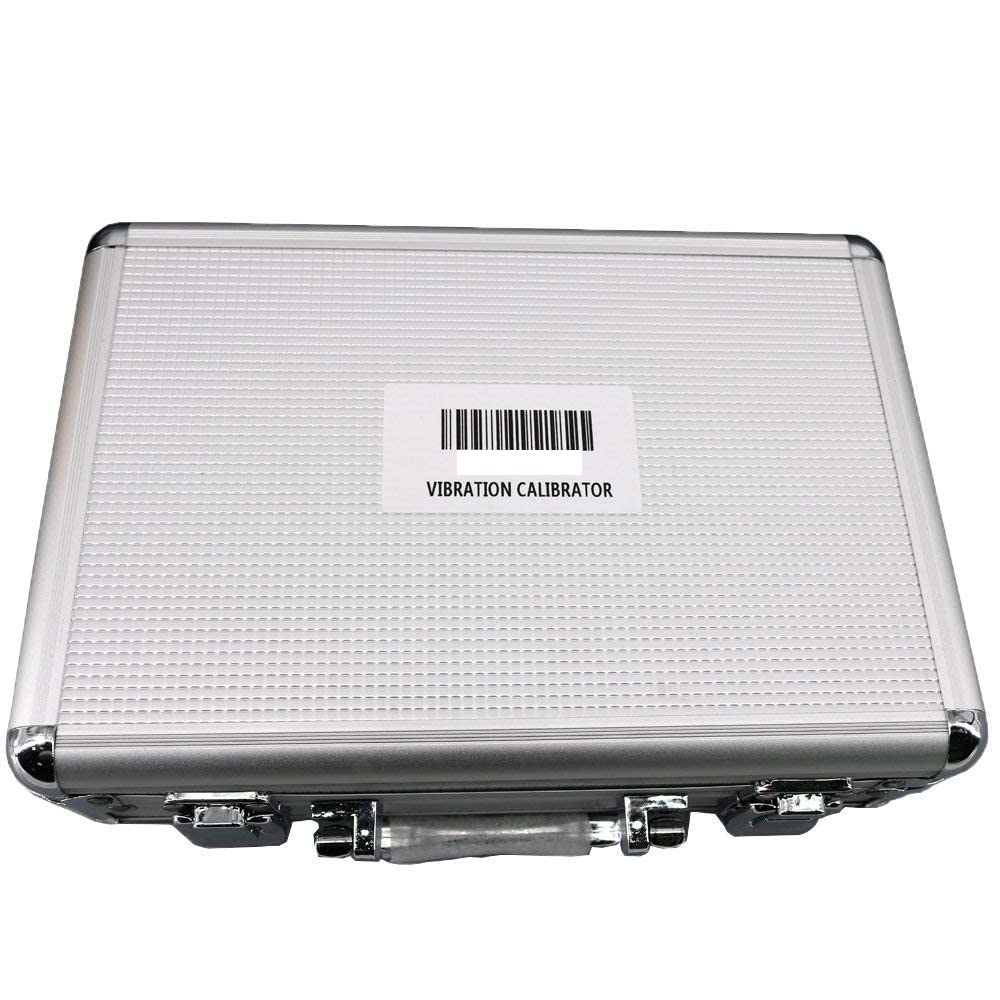

2. Carrying Case
3. Manual Book
