VTSYIQI Soil Tension Meter Soil Tensiometer Soil Tension Measurement with Testing Range 0 to 1 Bar/100 Kpa Length 30cm

VTSYIQI Soil Tension Meter Soil Tensiometer Soil Tension Measurement with Testing Range 0 to 1 Bar/100 Kpa Length 30cm

About this item:

Length:30cm

Testing range: 0-1 Bar (1 Bar = 100 Kpa)

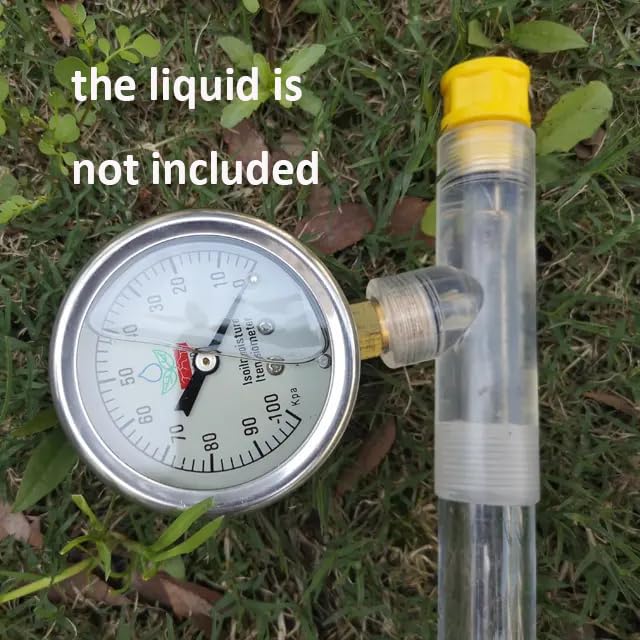

Note: The liquid in the dial of the instrument is lubricating oil for mechanical use, according to the shipping policy, we will remove the oil and send it to you.

Introduction:

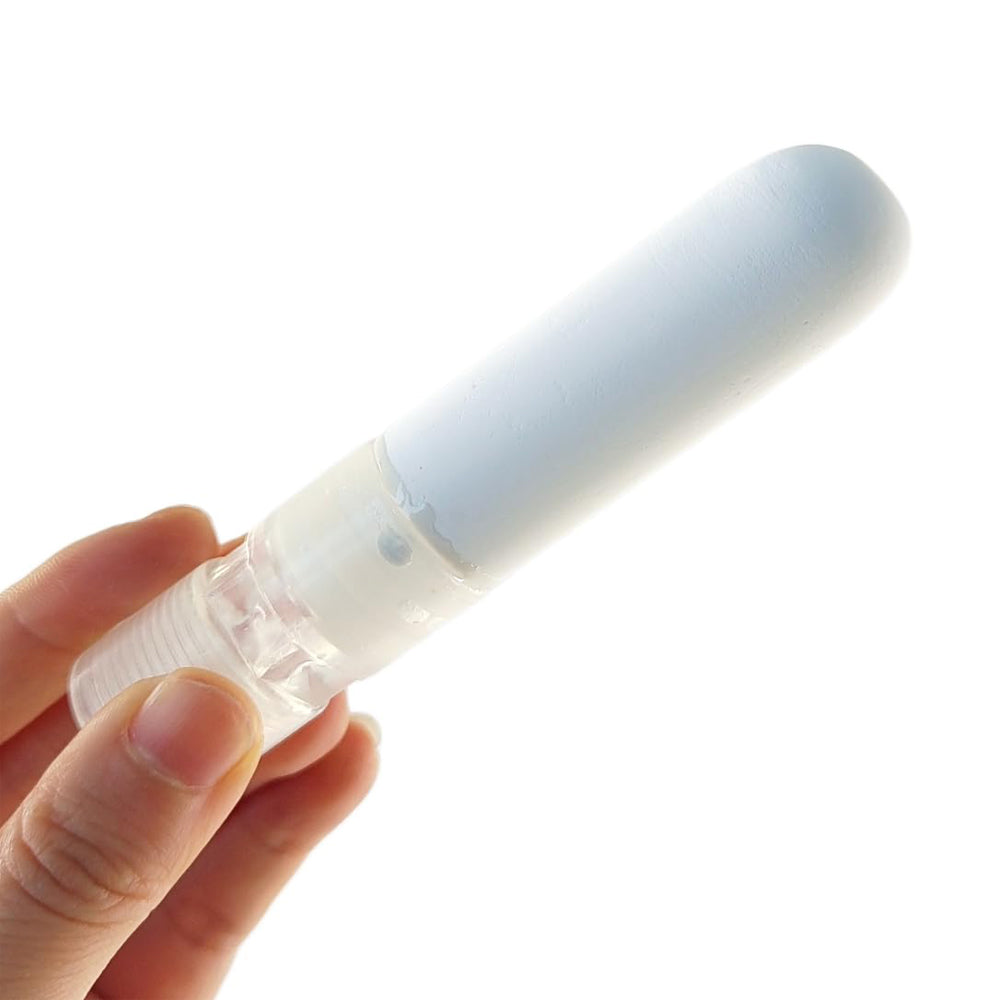

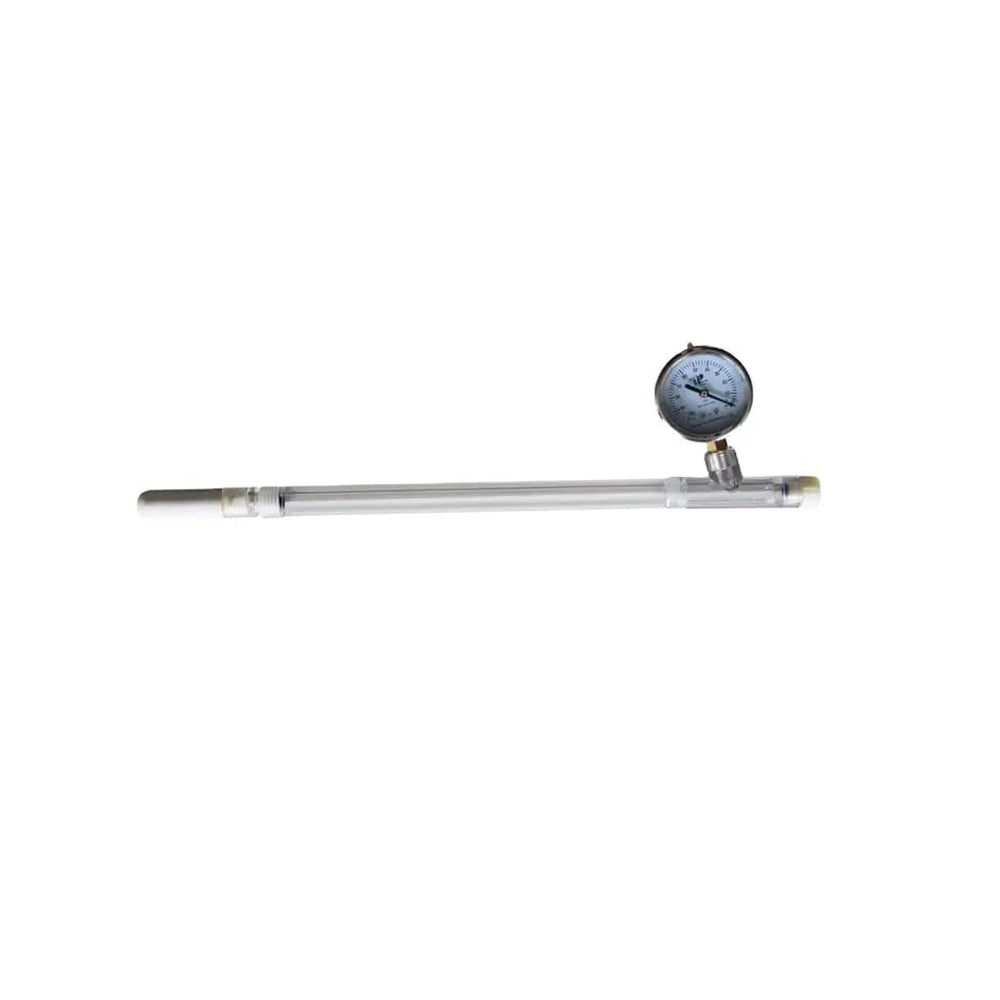

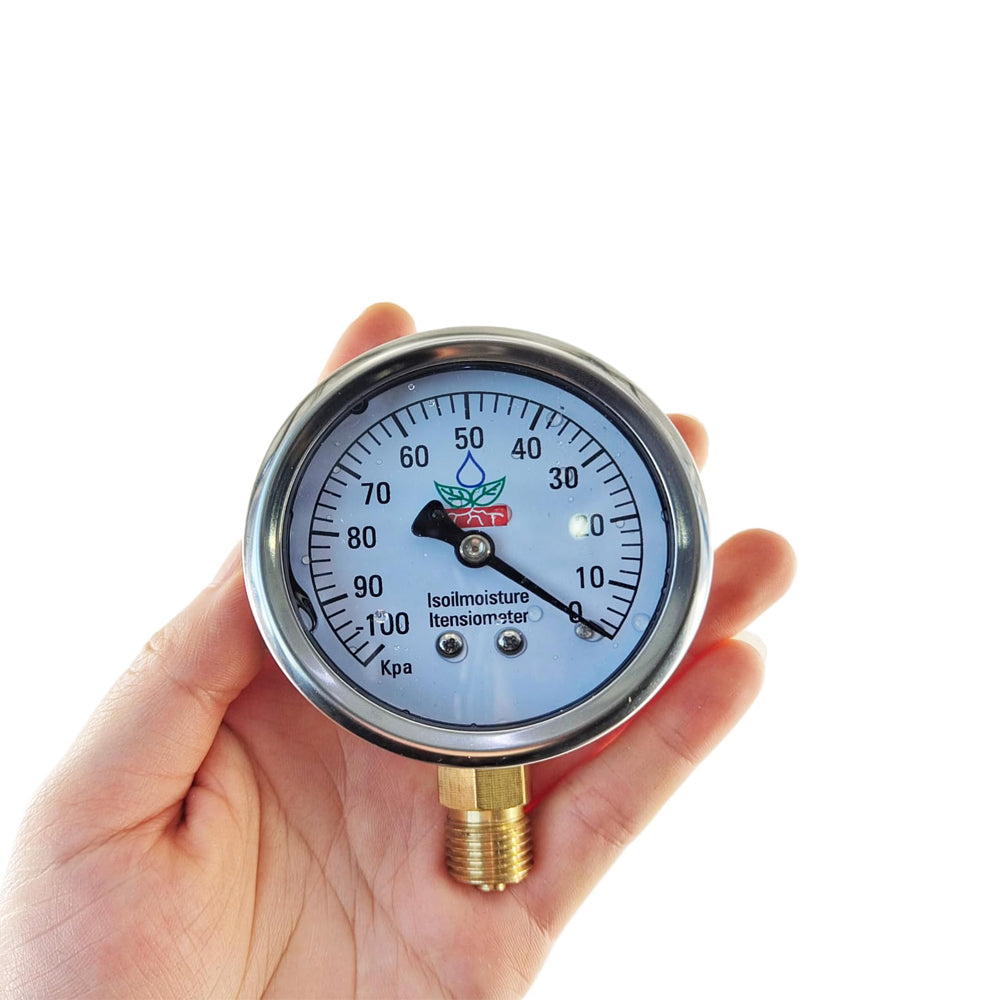

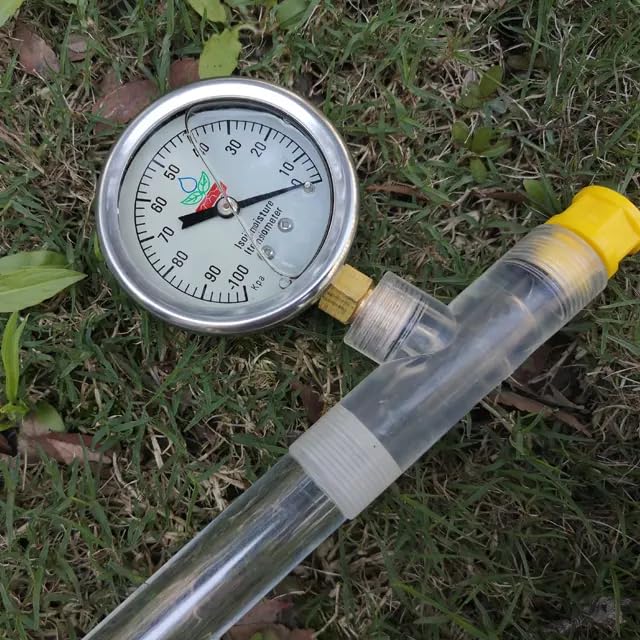

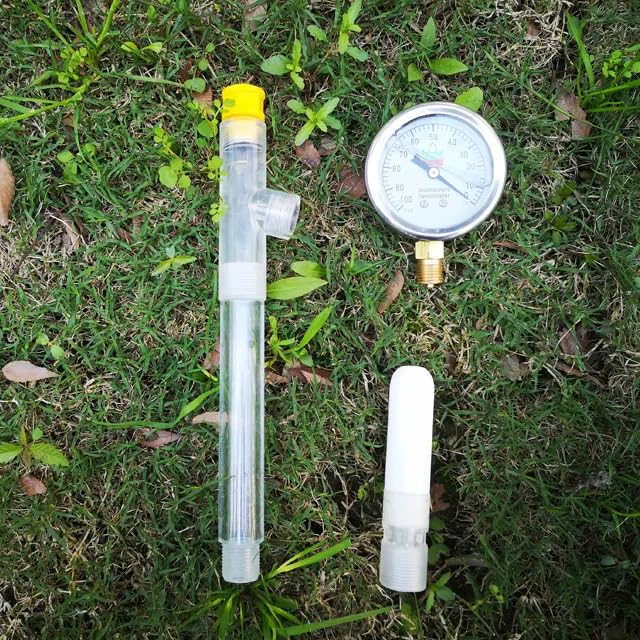

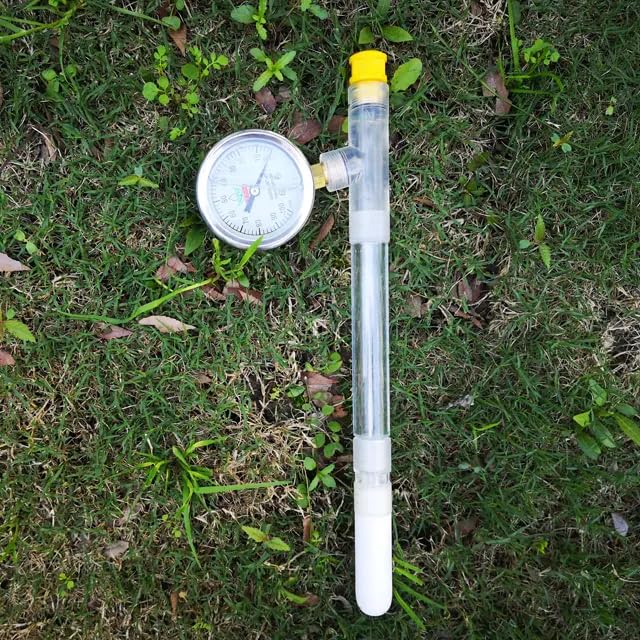

Soil tensiometer is made up of pressure gauge, acrylic tube and ceramic probe, after the acrylic tube filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe. When there is pressure difference between measured soil water potential and tensiometer, the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.

Technical parameters:

Length:30cm

Testing range: 0-1 Bar (1 Bar = 100 Kpa)
