VTSYIQI Soil Tension Tester Soil Tensiometer Soil Tension Analyser Soil Tension Measurement with Testing Range 0 to 1 Bar/100 Kpa Length 60cm

VTSYIQI Soil Tension Tester Soil Tensiometer Soil Tension Analyser Soil Tension Measurement with Testing Range 0 to 1 Bar/100 Kpa Length 60cm

Regular price $220.00 USD
Regular price Sale price $220.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Soil Tension Tester Soil Tensiometer Soil Tension Analyser Soil Tension Measurement with Testing Range 0 to 1 Bar/100 Kpa Length 60cm

About this item:

Length:60cm

Testing range: 0-1 Bar (1 Bar = 100 Kpa)

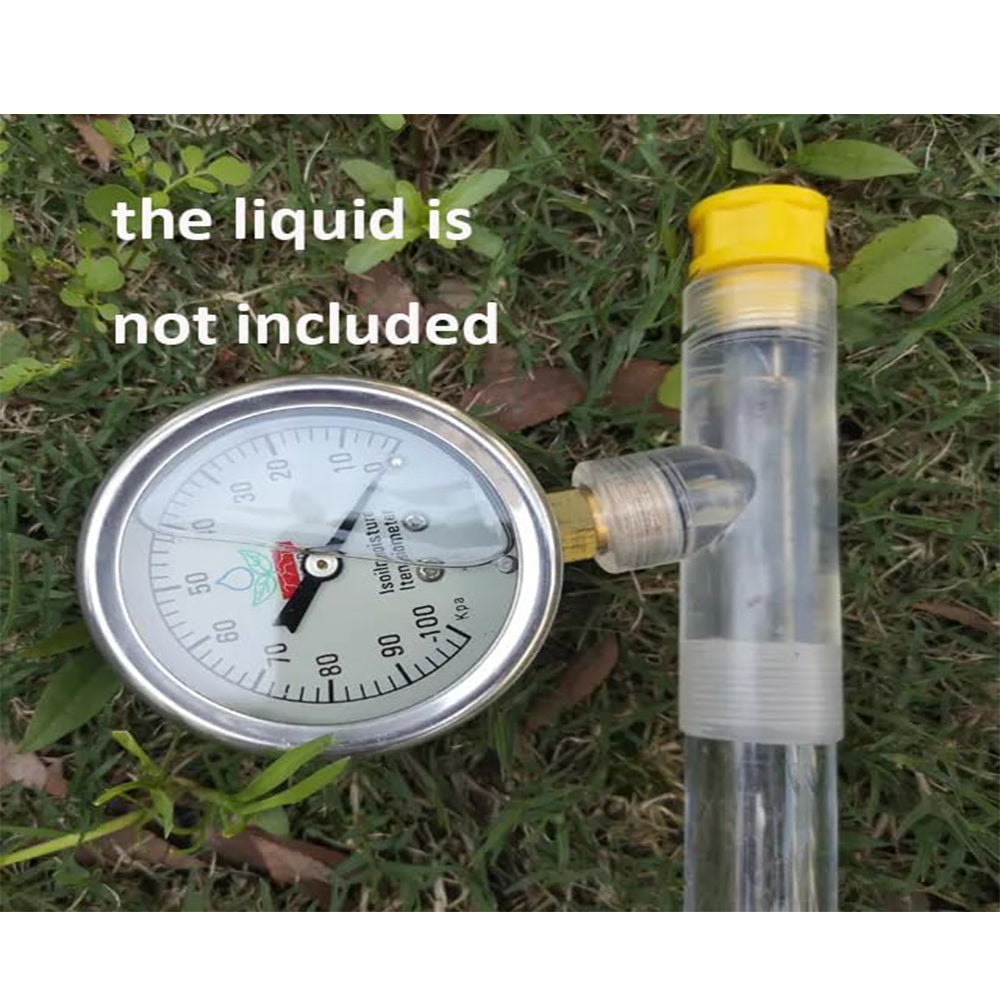

Note: The liquid in the dial of the instrument is lubricating oil for mechanical use, according to the shipping policy, we will remove the oil and send it to you.

Introduction:

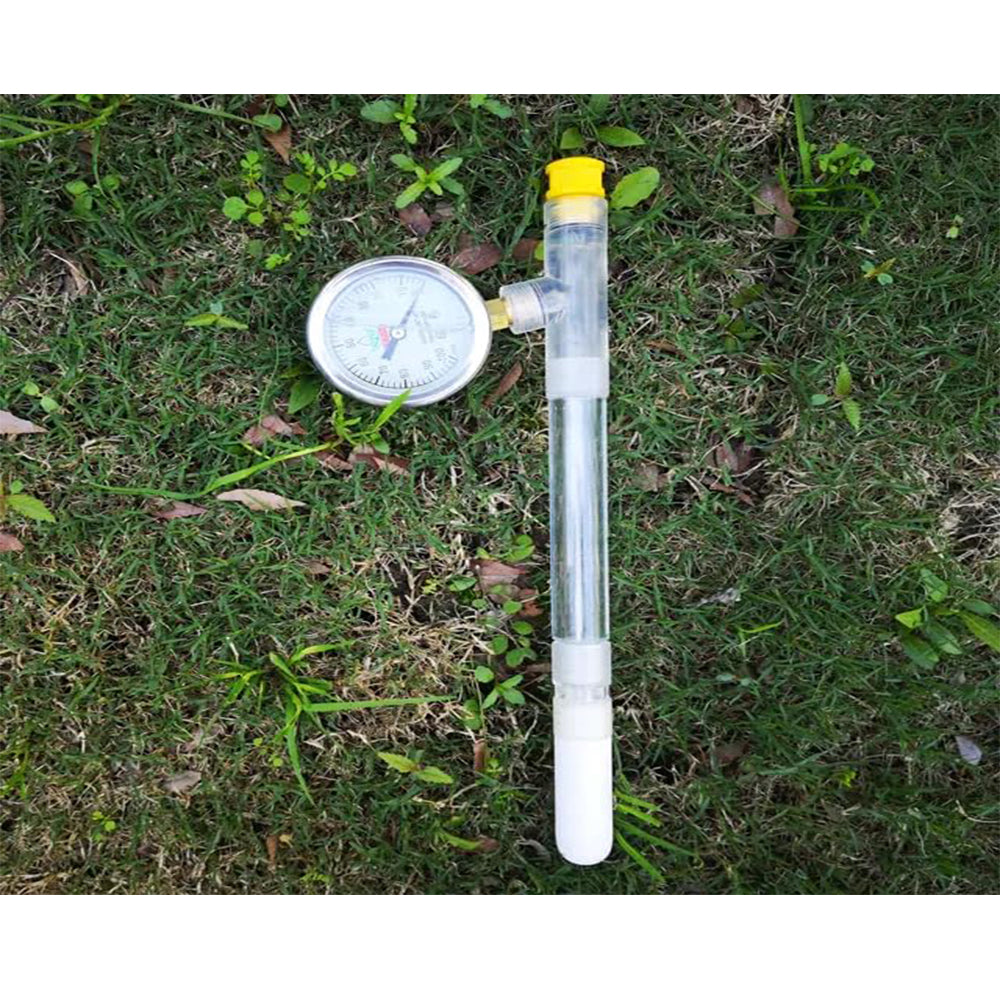

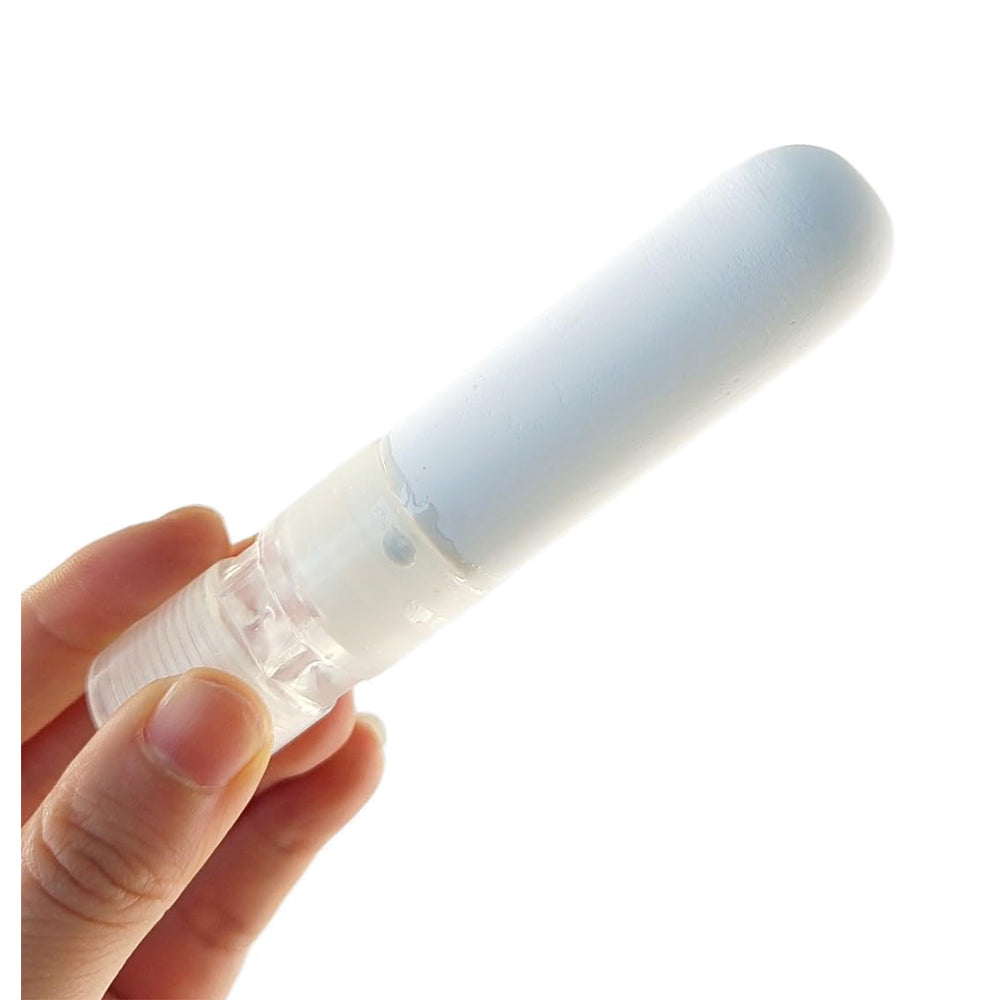

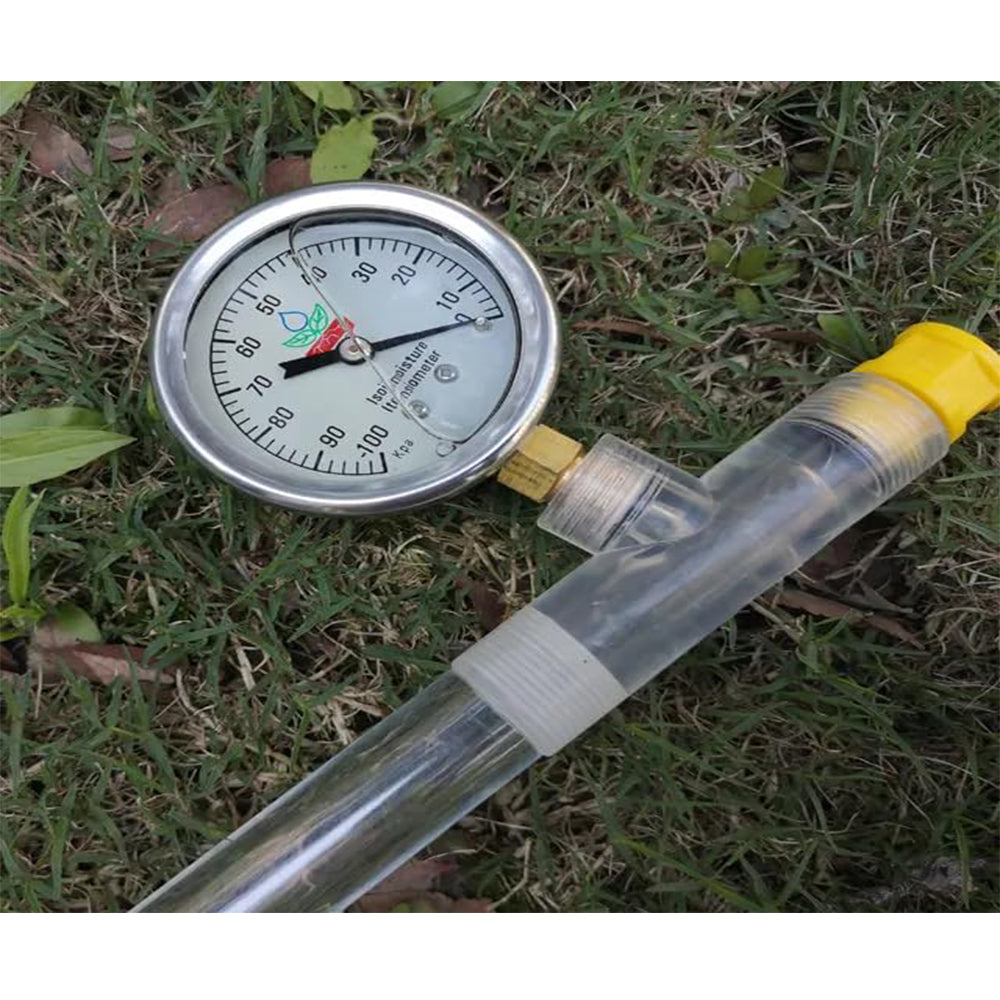

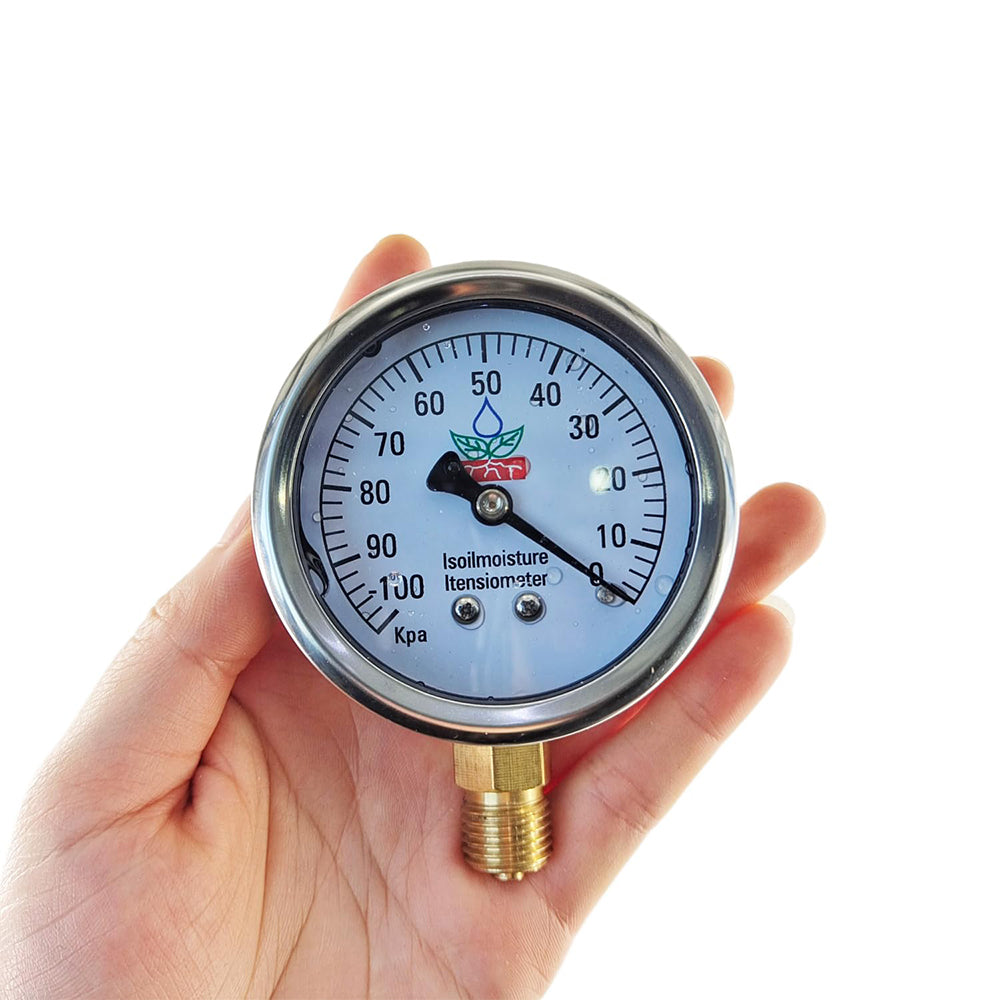

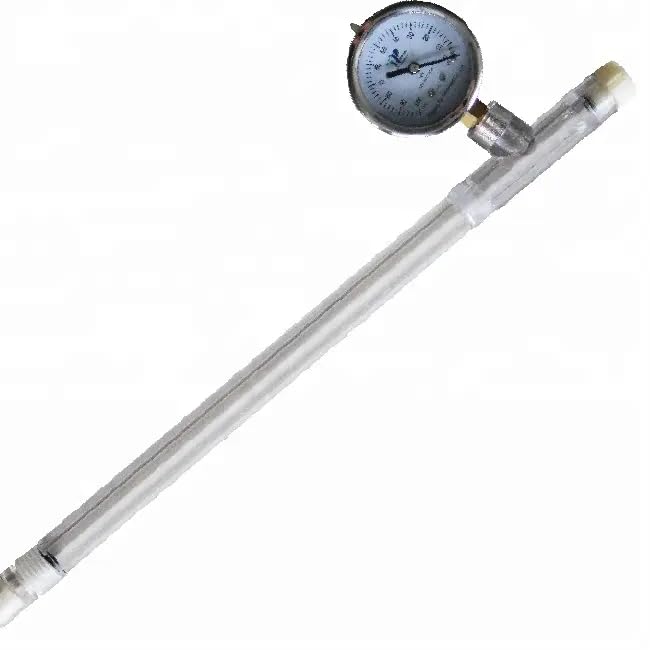

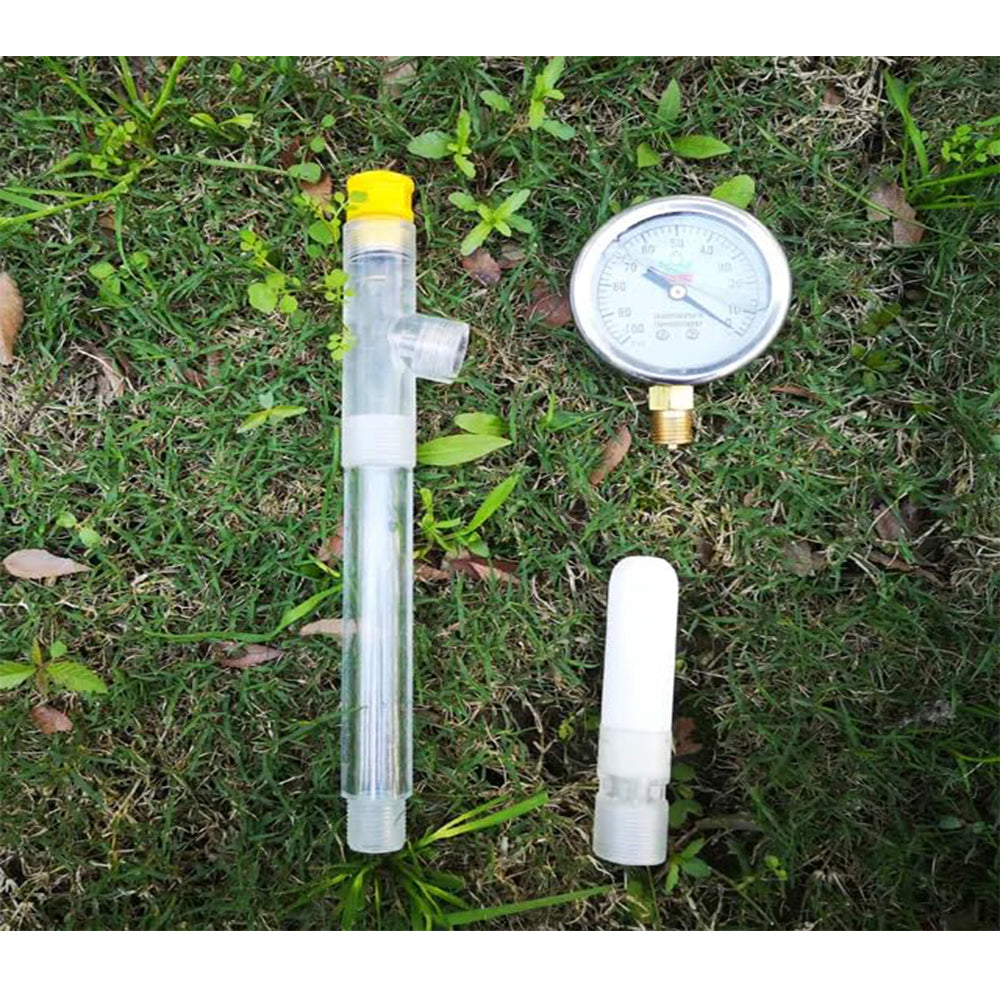

Soil tensiometer consists of a tensiometer tube, a pointer-type negative pressure meter and a ceramic head. The use of negative pressure meter to determine soil moisture is a practical means to study soil moisture movement from the energy point of view, which is widely used in scientific experiments, irrigation management and other fields.

Working principle:

When the acrylic tube is filled with water, the ceramic probe is wet and prevents outside air from entering the ceramic probe. When the water potential of the measured soil and the tensiometer there is a pressure difference, the water in the soil tensiometer penetrates into the measured soil until it reaches equilibrium, at which time the value shown on the pressure gauge is the soil water potential of the measured soil.

Technical parameters:

Length: 60cm

Testing range: 0-1 Bar (1 Bar = 100 Kpa)
