VTSYIQI Sonic Belt Tension Meter Tester Sonic Tension Meter Sonic Belt Tension Meter Acoustic Belt Tensionmeter for V-Belt Fabric Covered Belt Toothed Edge Belt Multi-vinged Belt Power Transmission Belt Etc

VTSYIQI Sonic Belt Meter Tester Sonic Tension Meter Sonic Belt Tension Meter Acoustic Belt Tensionmeter for V-Belt Fabric Covered Belt Toothed Edge Belt Multi-vinged Belt Power Transmission Belt Etc

Feature

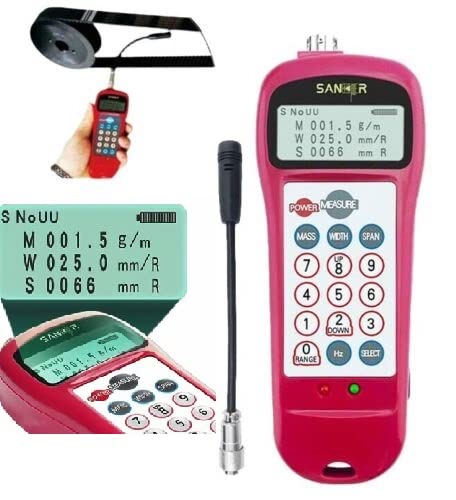

◆Several measuring units: Hertz, Pounds, Kilograms, Newtons.

◆Digital LCD display with backlit.

◆Frequency range is 10Hz-5000Hz.

◆Automatic sensitivity calibration.

◆Storage 40 sets belts data.

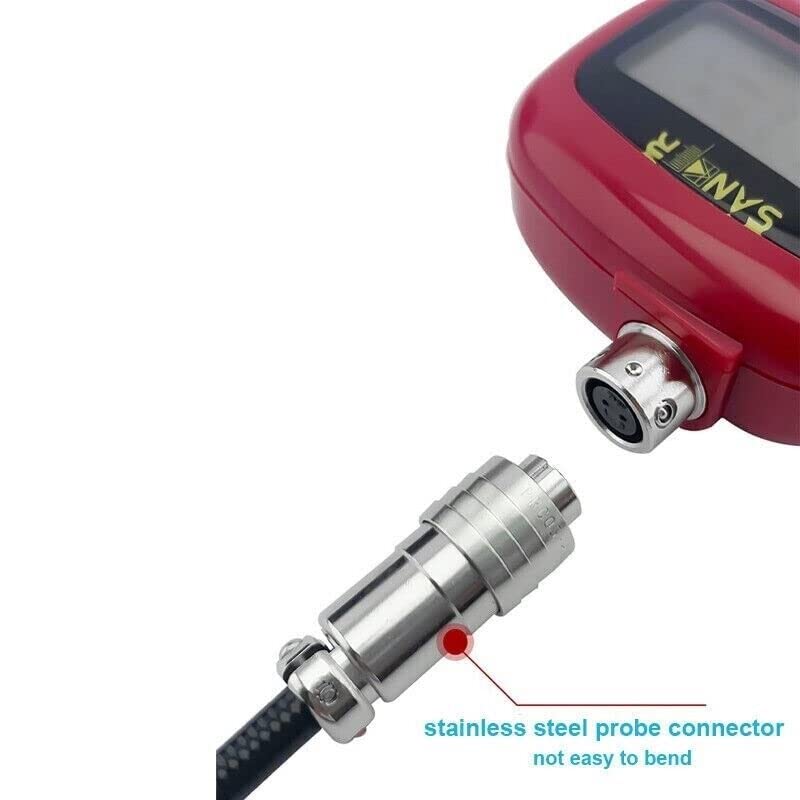

◆Stainless steel probe connector, not easy to bend and damaged.

◆Used for testing tesion for belt, steel wire, steel belt. Different material use different sensor.

Specification

◆Our meter measures belt tensioning by analyzing harmonic properties and by measuring the vibration frequency,you will be able to determine if your belt tension is correct.
◆About the size of a cellular telephone, the Sonic Tension Meter can easily be operated by one person for fast, accurate readings on all types of synchronous belt drive systems and V belt drives.
◆Use the standard cord sensor to reach inside cramped compartments where conventional measurements would be impossible.

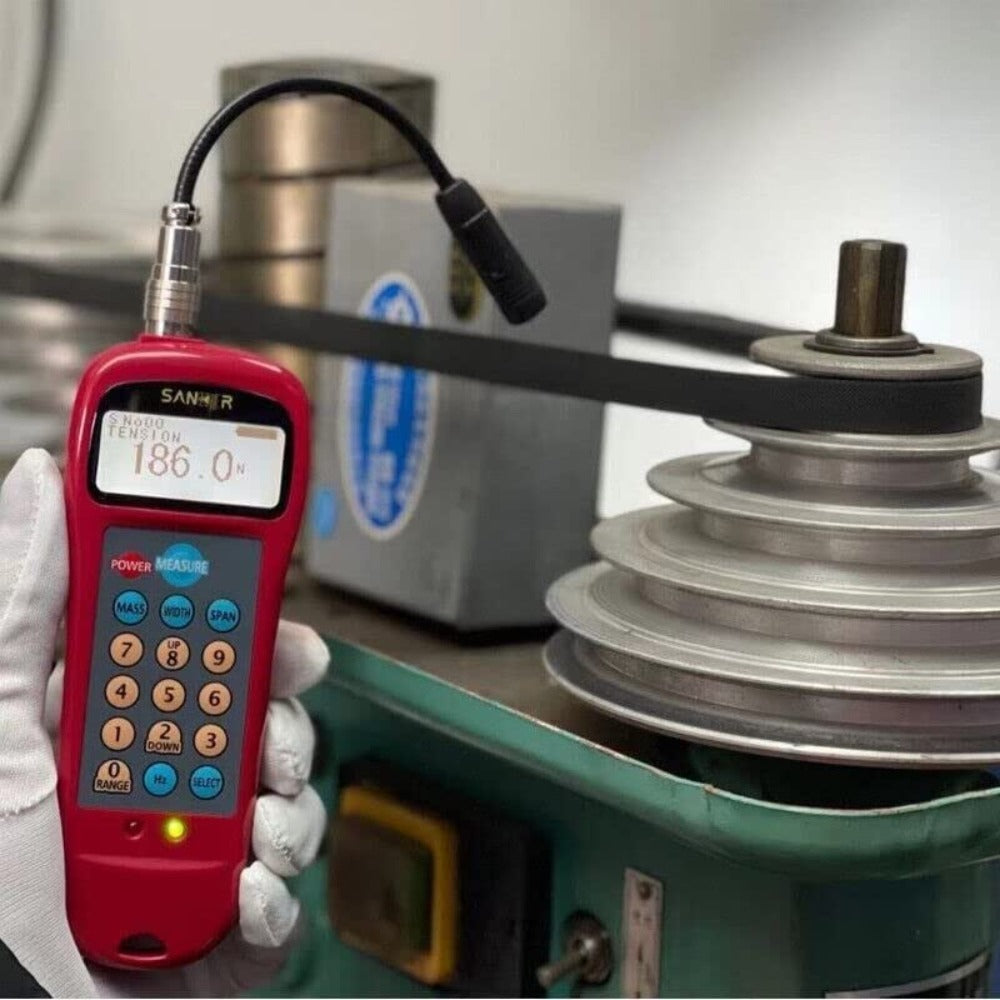

◆With the Sonic Tensioner, you can get consistent, accurate tension test data without the need to press down hard. The Sonic Tensioner measures the tension of a belt by the frequency of the sound waves that vibrate through the belt. All you need to do is gently pluck the belt, like a guitar string, and you can easily read the data.
◆Incorrect belt tension can lead to: bearing damage, belt runout and overheating, shortened belt and component life, and energy consumption.

Application:
◆The Sonic Belt Tensioner can test most types of belts, such as v-belts (V-belt series), fabric covered belts, toothed edge belts, multi-vinged belts, interlocking belts, timing belts and power transmission belts, helping you to measure belt tension quickly, reliably and accurately.

Specification:
◆Tension range: 0.01-99900N
◆Frequency range: 10Hz-5000Hz
◆Power: 2x AAA battery (NOT include)
◆Storage data: 500groups
◆Net weight: 120g
◆Dimension: 160x59x26mm
