VTSYIQI Sonic Belt Tension Meter Tester Gauge Acoustic Belt Tensionmeter with LCD Display Unit Hz/N Measuring Range 10 to 680Hz Display Accuracy 土1Hz for Measuring Transmission Belt Vibration Frequency

VTSYIQI Sonic Belt Tension Meter Tester Gauge Acoustic Belt Tensionmeter with LCD Display Unit Hz/N Measuring Range 10 to 680Hz Display Accuracy 土1Hz for Measuring Transmission Belt Vibration Frequency

Regular price $360.00 USD
Regular price Sale price $360.00 USD
Sale Sold out
Shipping calculated at checkout.

VTSYIQI Sonic Belt Tension Meter Tester Gauge Acoustic Belt Tensionmeter with LCD Display Unit Hz/N Measuring Range 10 to 680Hz Display Accuracy 土1Hz for Measuring Transmission Belt Vibration Frequency


Feature

It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.
Maximum frequency: 680 Hz.
Can store 20 set belt parameters.
Adjustable probe.
Automatic shutdown, etc.


Product Description

It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.

Features


The probe can be adjusted.
Can store 20 set belt parameters.
Maximum frequency: 680 Hz.
Automatic shutdown, etc.

Product Parameters

Measuring range:10Hz-680Hz
Belt free strand length:Up to 9999 mm
Belt width:Up to 999.9 mm/R
Belt mass:Up to 999.9 g/m
Precision:±1HZ<100HZ AND ±1%>100HZ
Digital sampling accuracy:<1%
Display accuracy:土1Hz
Overall accuracy:<5%
Operating temperature:+10°C to +50° C
Transport temperature:-5° C to +70° C
Display:LCD
Measurement unit:Hz/N
Power Supply:4x1.5V AAA(Betteries not included during the shipping)
Housing:Plastic(ABS)
Dimensions:140x72x34mm
Package size:248mmx206mmx52mm

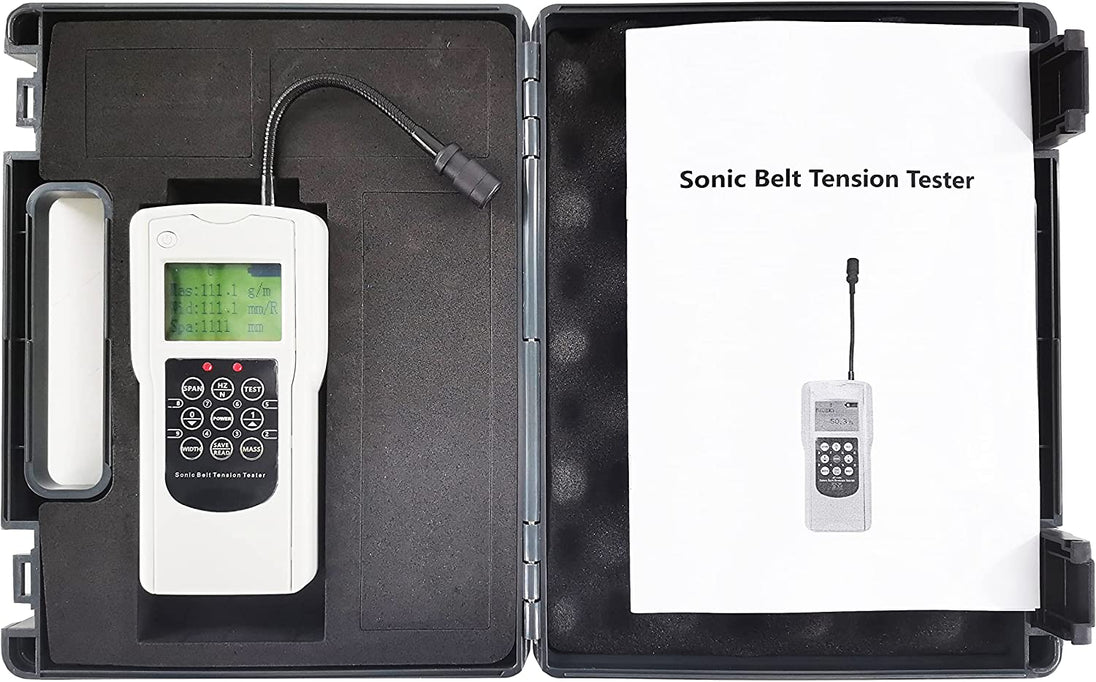

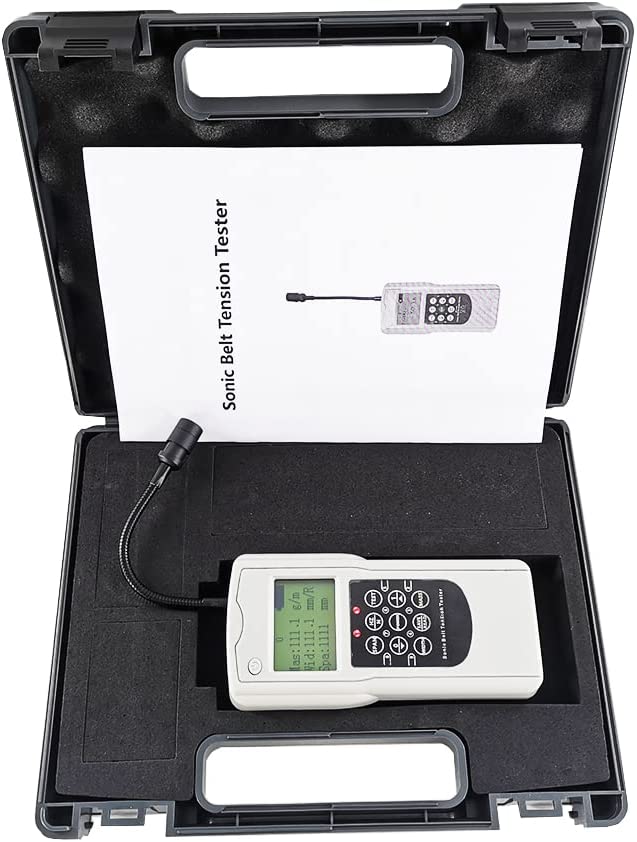

Standard Accessories


Main Unit
Portable suitcase
Operation Manual
