VTSYIQI Surface Roughness Tester Meter Surface Detection on Metal Non-Metal Ra 0.05 to 15.0um Rz 0.1 to 50um USB Data Output
VTSYIQI Surface Roughness Tester Meter Surface Detection on Metal Non-Metal Ra 0.05 to 15.0um Rz 0.1 to 50um USB Data Output
VTSYIQI Surface Roughness Tester Meter Surface Detection on Metal Non-Metal Ra 0.05 to 15.0um Rz 0.1 to 50um USB Data Output
Feature
Measuring range(µm ): Ra: 0.05 ~ 15.0 Rz: 0.1 ~ 50
Error:±15%;Variability: <12%
Real-time monitoring of lithium battery power and display, and to remind users to charge with charging progress indication
Charging and communication using the common USB interface.
Dot matrix liquid crystal display, interface prompt information rich.
Features:
1.Shape used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly, in line with the design .
2.Using high-speed DSP processor for data processing and calculation, measurement and computation speed is greatly improved.
3.Liquid crystal display wide temperature using OLED color display, popular high brightness, no visual angle,, is suitable for various occasions.
4.The lithium ion rechargeable battery, can work for a long time, no memory effect, can while charging, charging time is short, long battery life.
5.Using a dedicated charger or computer USB port for charging, convenient and quick.
6.Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.
Specifications:
1.Testing parameters(µm ):Ra、Rz
2.Stroke length(mm):6
3.Sample length(mm):0.25 ,0.80 ,2.50
4.Evaluation length(mm):1.25 ,4.0
5.Measuring range(µm ): Ra: 0.05 ~ 15.0 Rz: 0.1 ~ 50
6.Error:±15%
7.Variability: <12%
8.Transducer contacting pin round diameter and angle:
9.Contacting pin round diameter:10 µm±1 µm
10.Battery:3.7V Li
11.Size:106 mm×70 mm×24 mm
12.Weight:200g
13.Sensor needle static force and its rate of change:
14.Stylus static force: ≤ 0.016N
15.Force measuring rate of change: ≤ 800N/m
16.Working conditions:
17.Temperature: -20℃~40℃
18.Relative humidity: <90%
19.No shake and coercivity around

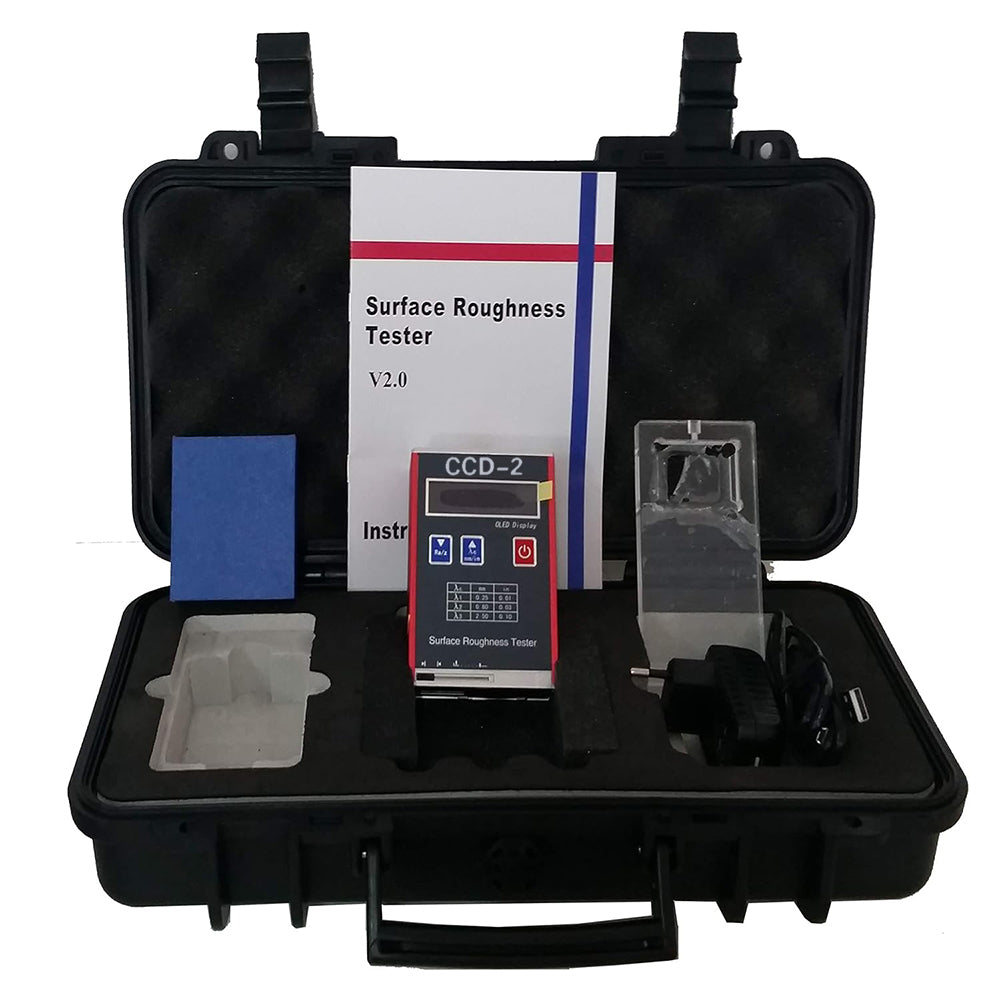

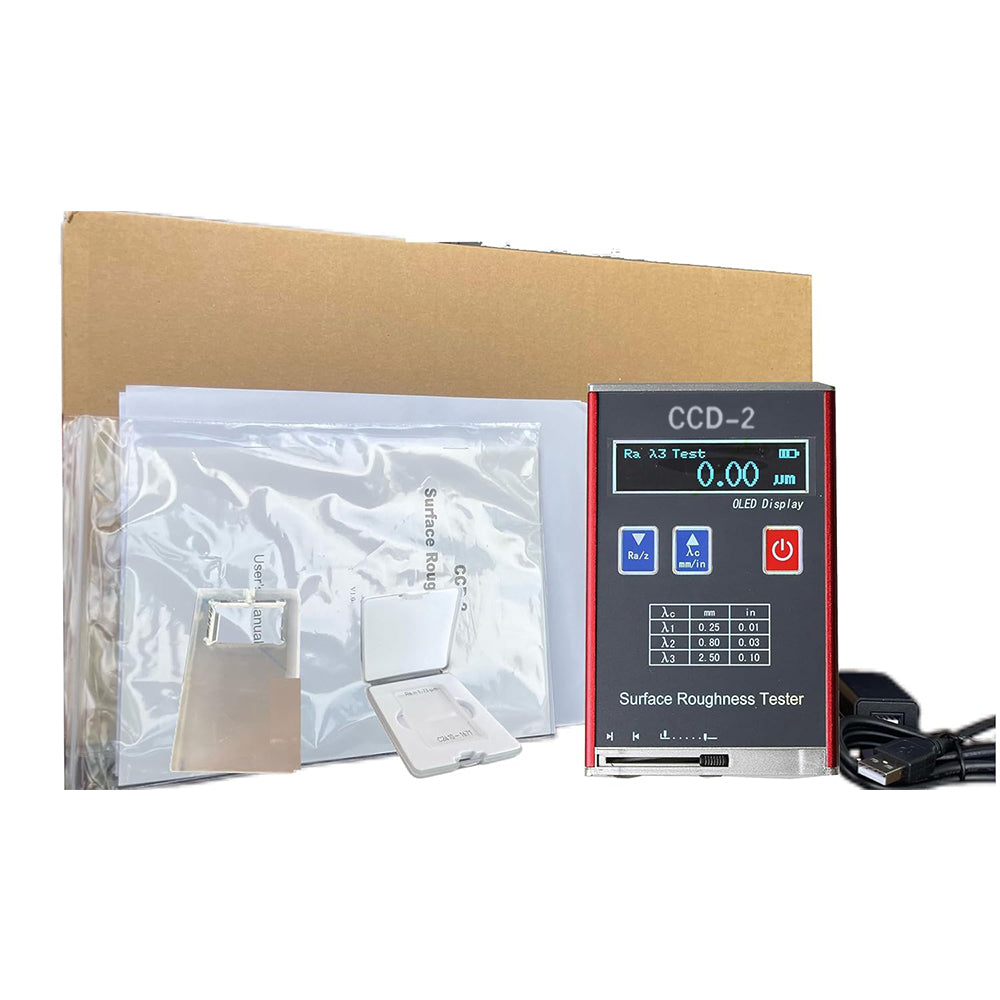

Package included:
Main Unit--- 1

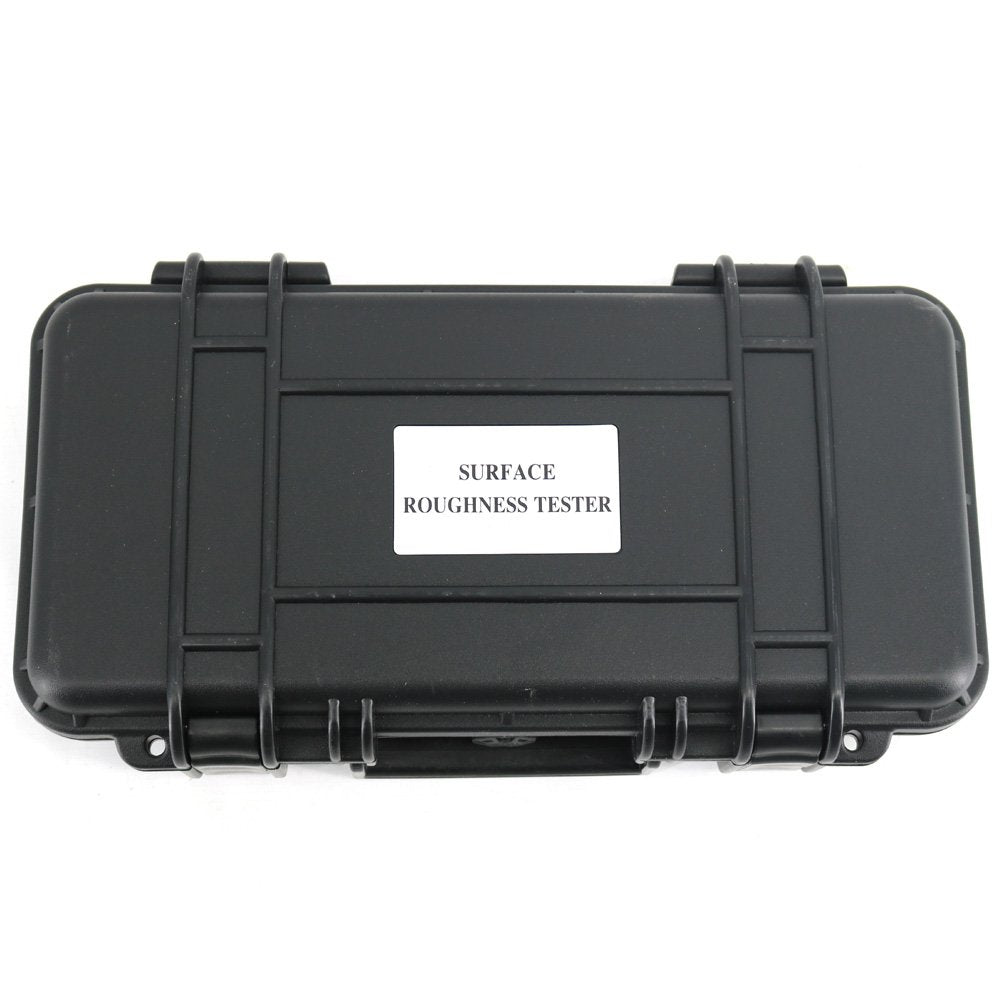

Carrying Case--- 1
Standard Sample Plate --- 1
Power Adapter--- 1
Operation Manual--- 1
Model: Digital Display Push-pull Force Meter
Maximum load value: 500N; 50kg; 110Lb; 1800Oz
Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz
Sensor structure: Inner sensor
Accuracy: ±1%
