VTSYIQI Yarn Tension Meters Wire Tension Meter with 4 to 200.0cN Tension Range cN gf OZ Kgf N lb

Introduction
1.1 Main use and scope of application
AZSH handheld digital tension meter is a portable electronic digital measuring instrument. It can measure the tension force of filamentou, linear material,widely used in wire and cable,tensile chemical fiber ,metal wire,carbon fiber and other industries. It can measure the tension force and process data accurately.
1.2 Product features
1.2.1 The three working mode: real-time, hold and peak. The three mode can be switch into each other .
1.2.2 cN, gf, OZ, Kgf, N, lb can be set.
1.2.3 Accuracy is 0.5% of full scale.
1.2.4 It can measure the tension of 10 different materials accurately.

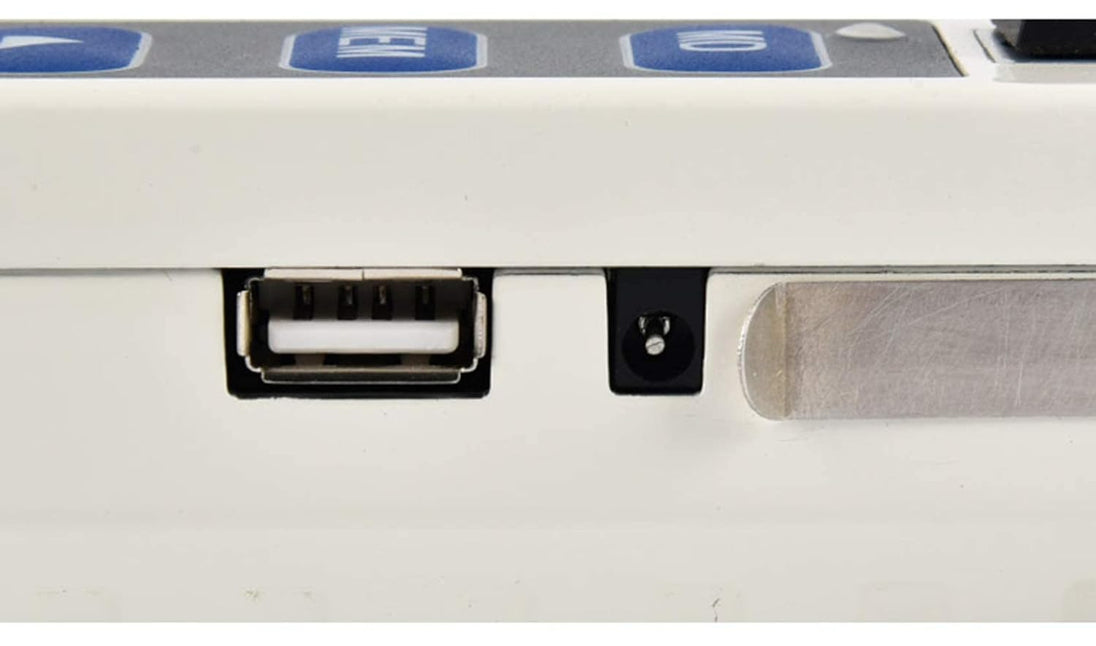

1.2.5 With USB communication function.
1.2.6 has thickness adjustment function.
1.2.7 Easy to store, can store 41 group data.

Product model specifications
Model:AZSH-200cN
Tension range:4~200.0（cN）
Measuring head width (mm):65
Calibration material textile PA monofilament:φ0.12mm
Size (mm):270*118*55
Net weight (g) :About 640g
Power supply :3.7V lithium battery*2
