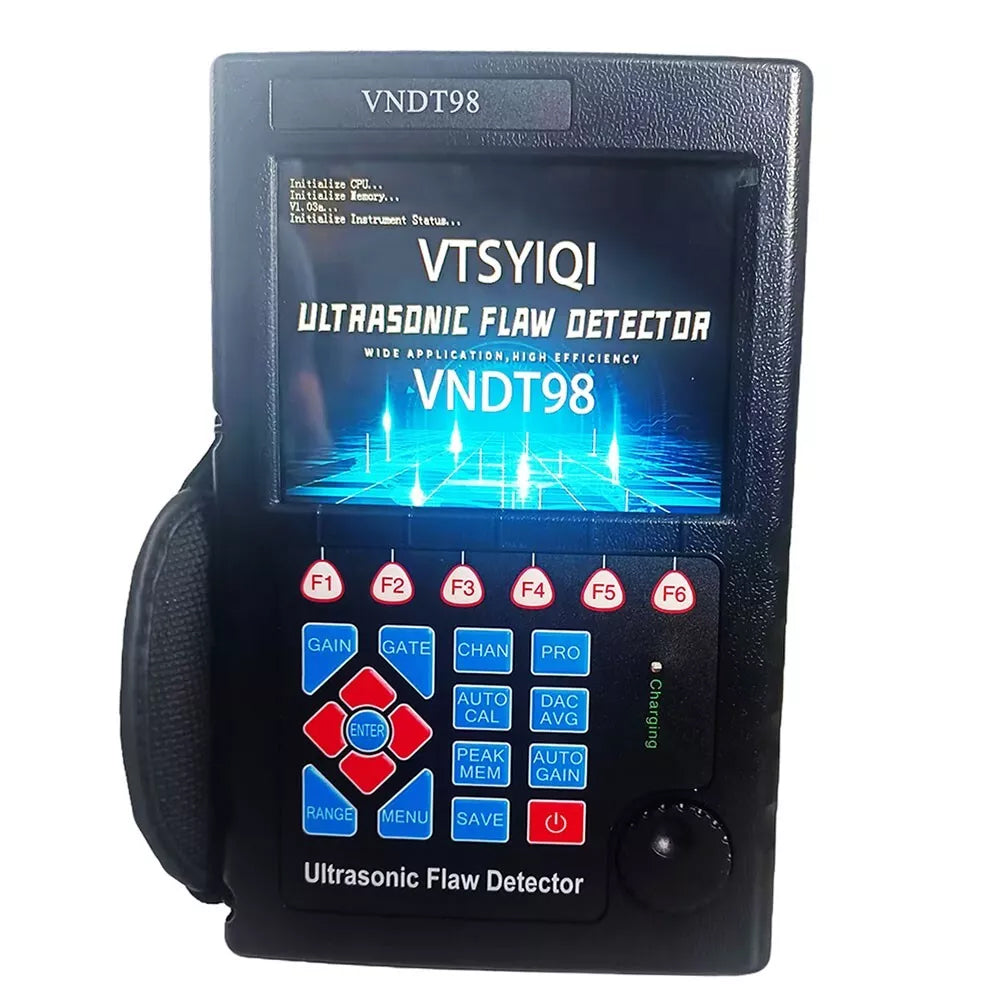

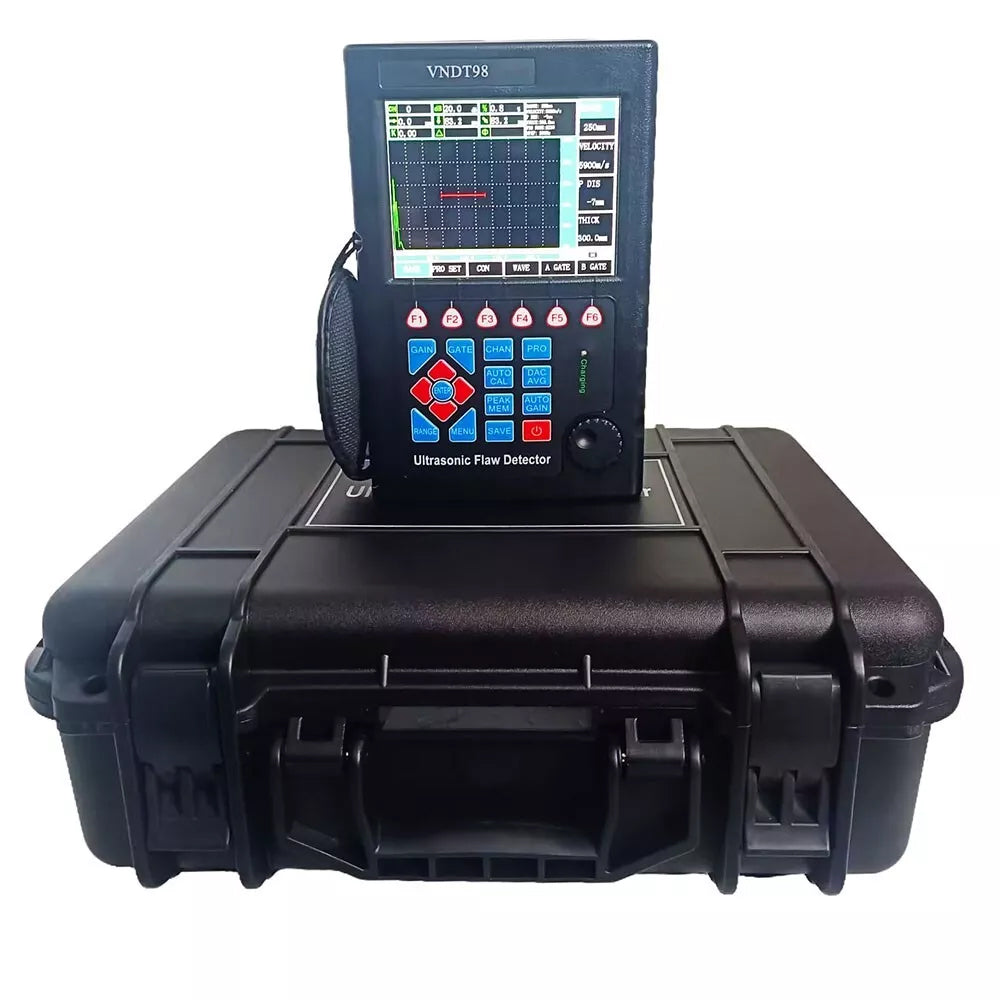

VTSYIQI Ultrasonic Flaw Meter Detector Portable UT Flaw Detector with IP65 Standard 6dB DAC Functions Big Memory 500 A Graph Test Range 0 to 10000mm Automated Gain and Gain Scan for Weld Inspection

Name: VTSYIQI Ultrasonic Flaw Meter Detector Portable UT Flaw Detector with IP65 Standard 6dB DAC Functions Big Memory 500 A Graph Test Range 0 to 10000mm Automated Gain and Gain Scan for Weld Inspection
Brand: VTSYIQI
SKU: JITAI910-JITAI-LUCKY-4
Price: 1660.0 USD
Availability: InStock

VTSYIQI Ultrasonic Flaw Meter Detector Portable UT Flaw Detector with IP65 Standard 6dB DAC Functions Big Memory 500 A Graph Test Range 0 to 10000mm Automated Gain and Gain Scan for Weld Inspection

$1,660.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

VTSYIQI Ultrasonic Flaw Meter Detector Portable UT Flaw Detector with IP65 Standard 6dB DAC Functions Big Memory 500 A Graph Test Range 0 to 10000mm Automated Gain and Gain Scan for Weld Inspection

Introduction:

Digital ultrasonic flaw detector is advanced type,, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the work-piece such as cracks, welds, pores, sand holes, inclusions, folding, etc.

It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive.

Measurement display mode: positive wave,negative wave, full wave and wave ; It has a linear suppression function, the maximum inhibition is 80% of the screen height; It can switch between single crystal probe, double crystal probe and two inspection modes; It has a gate setting and alarm function. The position and width of the gate can be arbitrarily set on the screen, and an incoming wave alarm can be set.

500 independent detection channels, each channel set a separate set of testing parameters, DAC curve; Two display modes with angle and K value; The DAC curve is generated automatically, and up to 10 points can be recorded, with four additional adjustable offset curves; AVG curve is generated automatically, and two types of defects can be customized; Automatic probe calibration function.

With storage function, it can store 100 A sweep patterns, parameters and DAC curve; Has a storage graphics playback function, the stored A-scan graphics from the storage area and displayed on the screen; Has a delete function to delete the specified content (represented by the storage group number) from the storage area; Peak memory function.

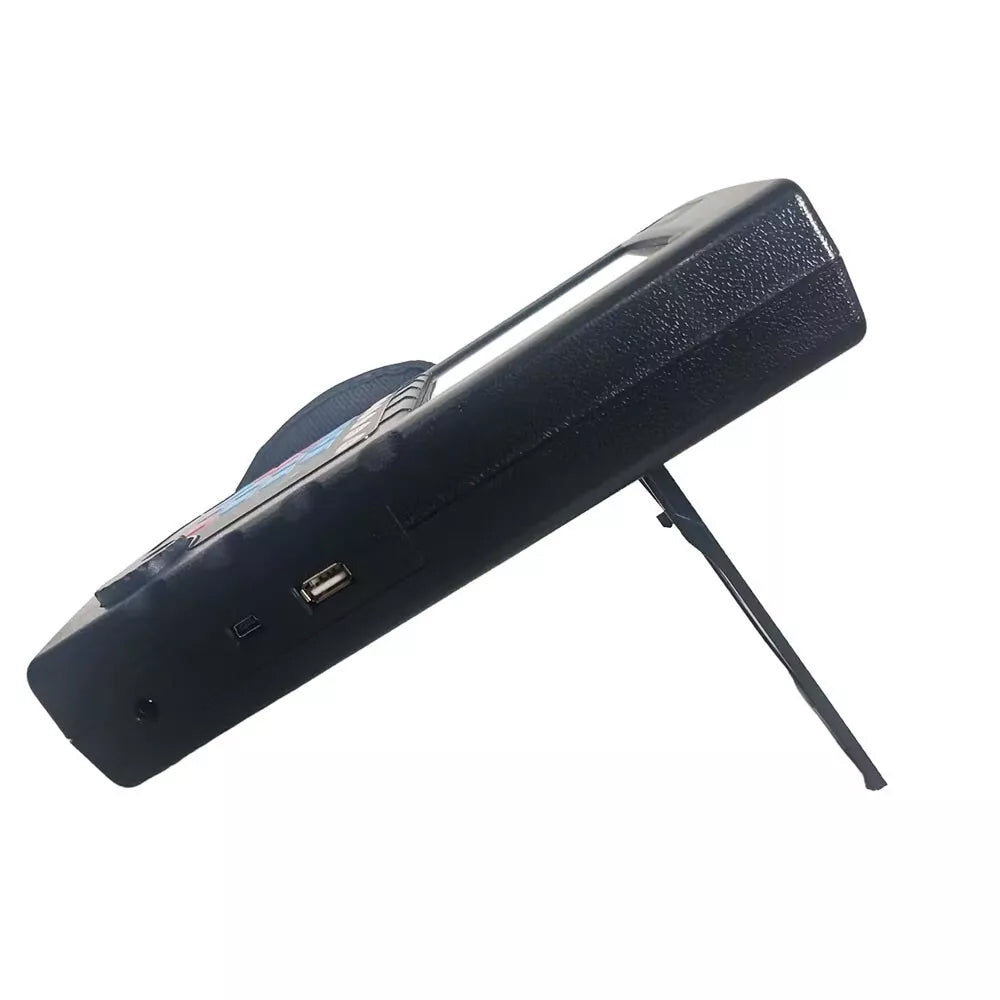

Freeze and thaw functions with waveform and inspection parameters; With sound path measurement and echo frequency analysis function; Real-time power status indication function; Support USB communication interface; Li-battery, low power consumption, can continuous working more than ten hours Can set up buzzer alarm during operation Light, convenient, easy to operate

Specification:

Measuring Range (mm): 0 ~10000mm

Channels: 500

Frequency Range (MHz)：0.2 ~20MHz

Material Velocity (m/s): 1000 ~15000m/s

Vertical Linearity Error: ≤3%

Horizontal Linearity Error: ≤0.1%

Dynamic range: ≥32dB

Features:

Automated calibration、Automated gain

DAC、AVG、TCG、B scan、AWS

High-speed capture and very low noise

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

Functions:

Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф);

Automated switch three staff gauge ((Depth d、level p、distance s);

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;

Convenient to make and use DAC、TCG and AVG to evaluate the echo, the curve can be modified and compensated

6dB DAC functions;

500 independence setup, any criterion can be input freely, we can work in the scene without test block;

Big memory of 500 A graph;

Automated gain and gain scan;

Peak Hold and Peak Memory;

B scan;

AWS D1.1

Automated make video of test process and play; use upan,the length of video is unlimited.

Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 12 hours;

Other Assistant Function:

Display freeze;

Automated echo degree;

Angles and K-value;

Lock and unlock function of system parameters;

Electronic clock calendar ;

Two gates setting and alarm indication;

Gate and DAC alarm;

Specifications:

Measuring Range (mm):0 ~10000mm

Channels: 500

Frequency Range (MHz)：0.2~20MHz

Material Velocity (m/s): 1000 ~15000m/s

Vertical Linearity Error: ≤3%

Horizontal Linearity Error: ≤0.1%

Sensitivity Leavings: ≥62dB

Dynamic range: ≥32dB

Resolving Power: ≥36dB

Gain (dB): 0 ~120dB

Measurement Mode: Single、Dual、Thru

Reject: 0~80%

Pulse Displacement (μs): -20 ~+3400

Zero (μs): 0.0 ~99.99

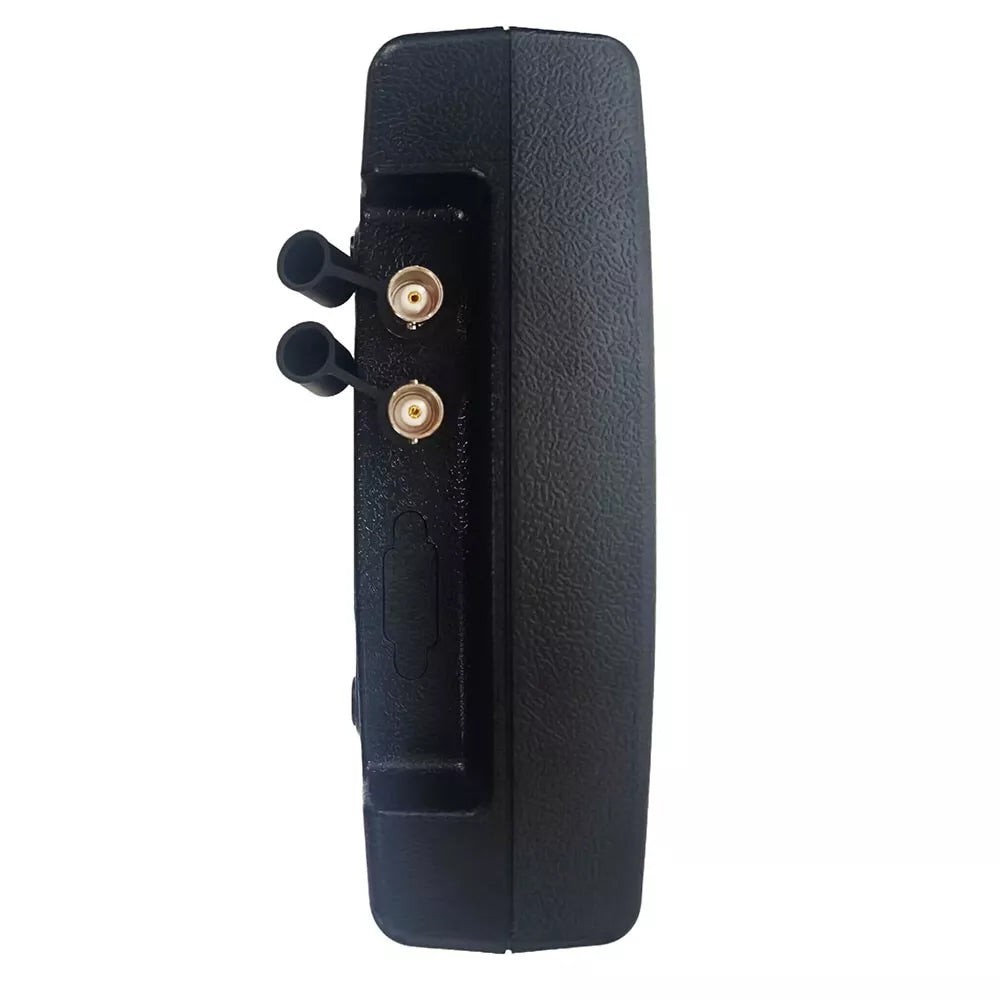

Port Type: BNC(Q9) or Lemo 01(C9)

Operating Temperature (℃): -20~70

H*W*D(mm): 240*156*48

Technical Specification:

Scan range (mm):0~10000

Grades: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,9000, 10000.

Adjusting step distance: 1mm

Pulse shift ( ms ): -7to +9984

Grades: -20, -10, 0.0, 10, 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600,700,800,900,100,015,000,000,000,000,000,000.00

Adjustment step:1（-7ms~9984ms）

Probe zero point：0.0~99.99

Adjust the step：0.01

Material sound speed(m/s):

Material sound speed:1000~15000

7 fixed sound speeds:2260,2730,3080,3230,4700,5900,6300

Flaw detection sensitivity margin:³62dB

Dynamic Range:³32dB

Alarm:Incoming wave alarm
