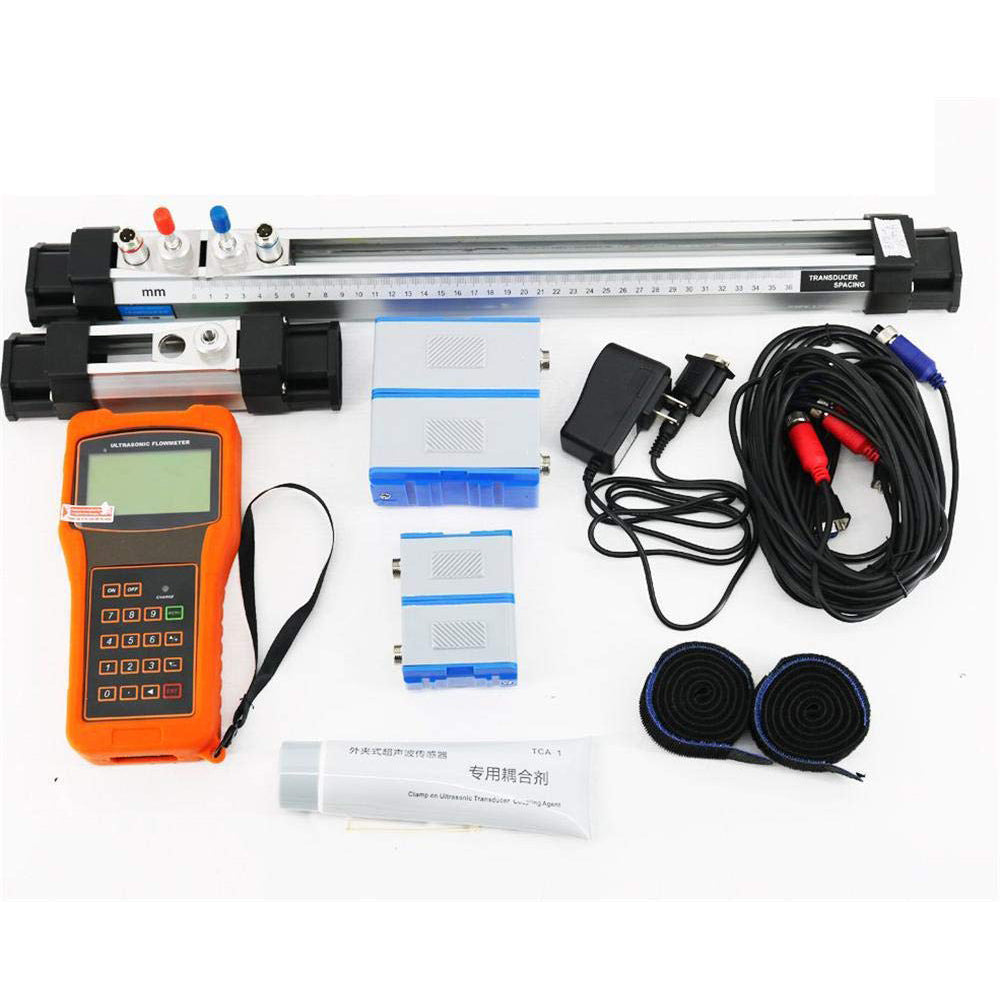

VTSYIQI Ultrasonic Flow Meter Flowmeters With Transducer HM Bracket Sensor EB-1 Extend Stents For Ultrasonic Flow Testing

Product Description
•High Accuracy measuring,Wide measuring range,Small size, Light weight
•Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
•Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
•Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
•Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.

Main Feature：
Items： Performance and Parameter
Main Unit：
Principle： transit-time ultrasonic flowmeter
Accuracy： Accuracy :over 1%-2%; Repeatability: over 0.2%
Display ：4 line x 16 character LCD with backlight
Dimension： 200*93*33cm: 390g
Operation： Support 16 key light touch keyboard and the Simulation keyboard software
Data interface：
Insulate RS232 serial interface, upgrade the flew meter software by computer,
support the MODBUS, etc.
Signal Output： 1 way OCT output
Special Cable ：
Twisted-pair cable, ;Select the RS232 communication.;
Generally, the standard is 5m*2, optional 10m*2
Pipe Condition ：
Pipe Material ：
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass
steel product, liner is allowed.
Pipe Diameter ：DN 50---6000mm
Straight length pipe：
Transducer installation should be satisfied: upstream10D, downstream 5D,
30D from the pump.
Measuring Medium：
Type of Liquid ：Water ; Ultra-pure liquids; Solvents and other liquids
Temperature： Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
Turbidity： under 10000ppm and less bubble
Flow rate ：0--±10m/s
Flow Direction ：Measuring two (plus-minis) direction of flow rate
Working Environment：
Temperature：
Main Unit: -20--60℃
Flow transducer: -40--160℃;
Temperature transducer: according to the customer’s demands.
Humidity： Main Unit: 85% RH
Power Supply： AC 110V-240V
