VTSYIQI Ultrasonic Flow Meters Flowmeter With Transducer For Measuring Range DN300-6000mm 11.8-236.22in

Description:

*This listing is for DN300-6000mm pipe size, the water temperature is from -40-90 degree

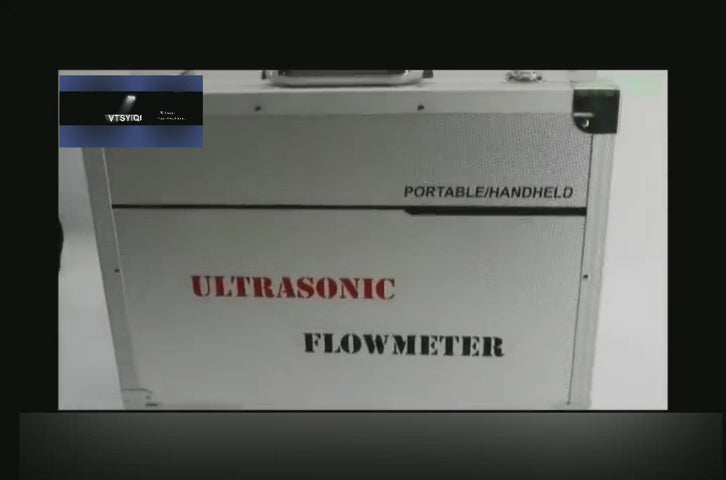

*It comes with one pair of TL-1 transducer; 5m*2 signal cable;metal clamp fixture; one aluminium case; tape ruler;adaptor; data line
*The couping agent can not be sent to you because of air shipping regulation. Because it is like crystal liquid. You must use silica gel to replace. You must use it when you measure the flow rate. If you do not use the silica gel, it will have no signal
*If your pipe size is DN15-100MM, or DN50-700mm, you can find this kind of clamp on transducer or bracket transducer in our store
*1. TS-2 type: DN15-100mm， -30-90℃2TM-1 type: DN50-700mm， -30-90℃3. TL-1 type: DN300-6000mm， -30-90℃

Description:

VTSYIQI TUF-2000H+TL-1 Digital Portable Liquid Ultrasonic Flow Meters Flowmeter with TL-1 Transducer Measuring Range DN300-6000mm 11.8-236.22in

TUF - 2000H hand-held ultrasonic flowmeter using external clamp type sensor measuring liquid flow. Installation process is very simple, all Chinese man-machine interface, more easy to operate. Especially suitable for flow balance test and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial waste water, oil, diesel oil, fuel oil, chemical liquid, etc. Second, the handheld ultrasonic flowmeter features

Measurement Data

Linearity: 0.5%

Repeatability: 0.2%

Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s

Response Time: 0 ~ 999 seconds, the user option

Velocity Range: ± 32 m/s

Section Size: 15 mm(0.59in) to 6000 mm(236.2in)

Accumulator: seven are. Negative. Net cumulative apparatus

Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid

Ann all sex: setting value of the lock, change the data need to unlock

Display: 4 x 8 Chinese or 4 x 16 English

Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements

compatible with other products

Sensor: mark worthy to type TM1, while the other four choices

Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2

Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter

Data record: built-in data recorder can record 2000 line data

Manual accumulator: seven, key can start for calibration

Shell material: ABS

Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)

500 g(1.2 LBS) including battery

Standard Configurations:

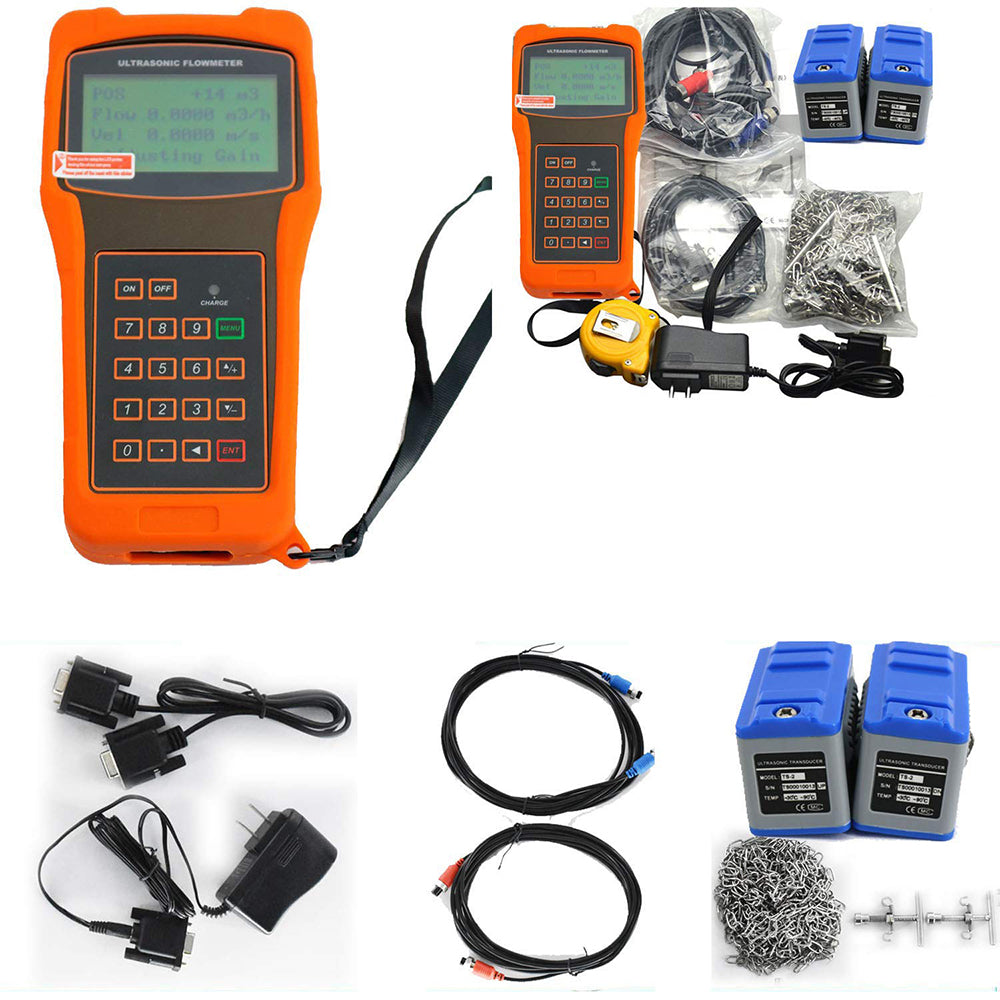

1. Ultrasonic Flowmeter 2. TL-1 Transducer 3. Signal cable 4. Data cable 5. Fixed steel chain 6. Charger 7. Ruler 9. Packing List 10. Empty Bottle 11. Carring box
