VTSYIQI Ultrasonic Flowmeter Flow Meter Tester Detector With Transducer Measuring Range DN15-700mm 0.59-27.56in For Liquid Flow Testing
VTSYIQI Ultrasonic Flowmeter Flow Meter Tester Detector With Transducer Measuring Range DN15-700mm 0.59-27.56in For Liquid Flow Testing
Regular price
$1,093.00 USD
Regular price
Sale price
$1,093.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Feature：
TUF-2000H ultrasonic flow meter with high accuracy measuring,Wide measuring range,Small size, Light weight
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Several types transducer for selection, TS-2 measuring pipe size from DN15mm to DN100mm,TM-1 measuring pipe size from DN50mm to DN700mm
Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Description:
Measurement Data
Linearity: 0.5%
Repeatability: 0.2%
Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s
Response Time: 0 ~ 999 seconds, the user option
Velocity Range: ± 32 m/s
Section Size: 15 mm(0.59in) to 6000 mm(236.2in)
Accumulator: seven are. Negative. Net cumulative apparatus
Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid
Ann all sex: setting value of the lock, change the data need to unlock
Display: 4 x 8 Chinese or 4 x 16 English
Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements compatible with other products
Sensor: mark worthy to type TM1, while the other four choices
Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2
Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter
Data record: built-in data recorder can record 2000 line data
Manual accumulator: seven, key can start for calibration
Shell material: ABS
Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)
500 g(1.2 LBS) including battery
Standard Configurations:
1. Ultrasonic Flowmeter

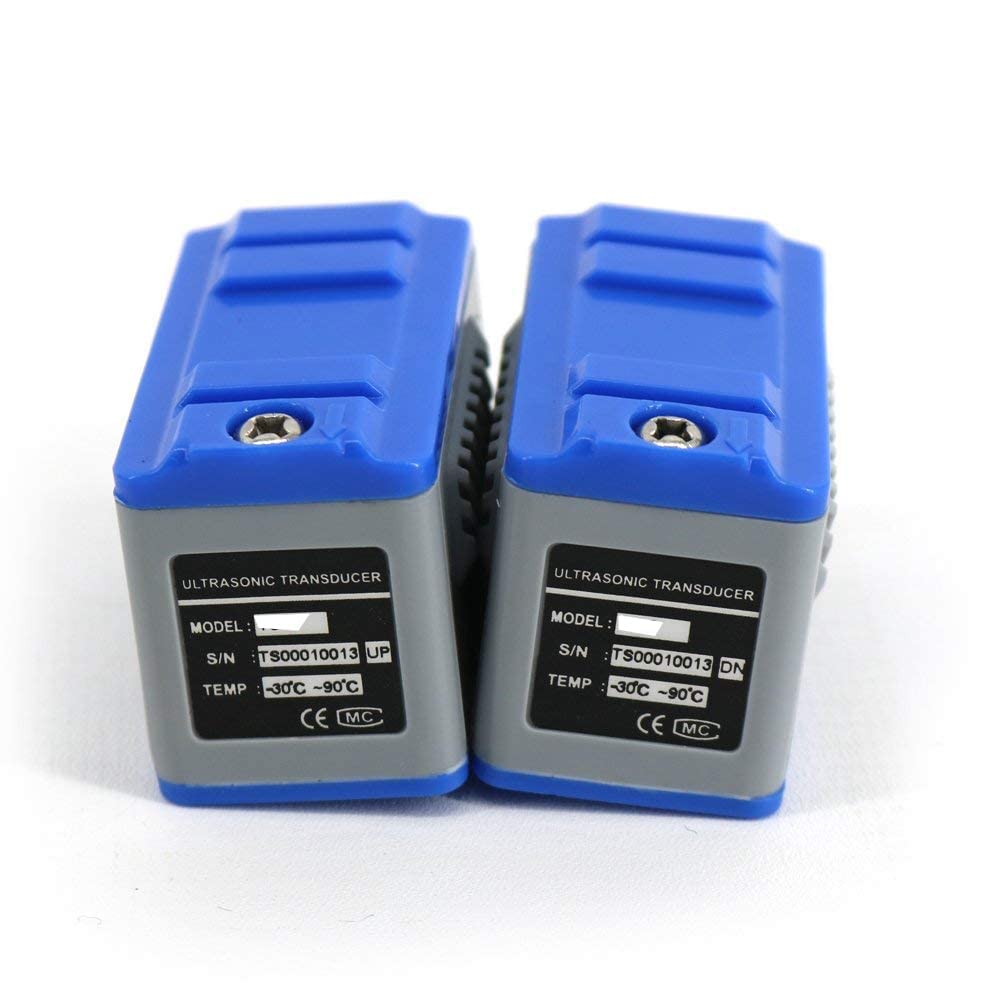

2. TS-2 Transducer
3. TM-1 Transducer
4. Signal cable
5. Data cable
6. Fixed steel chain
7. Charger
8. Ruler
9. Certificate of Warranty
10. Packing List
11. Empty Bottle

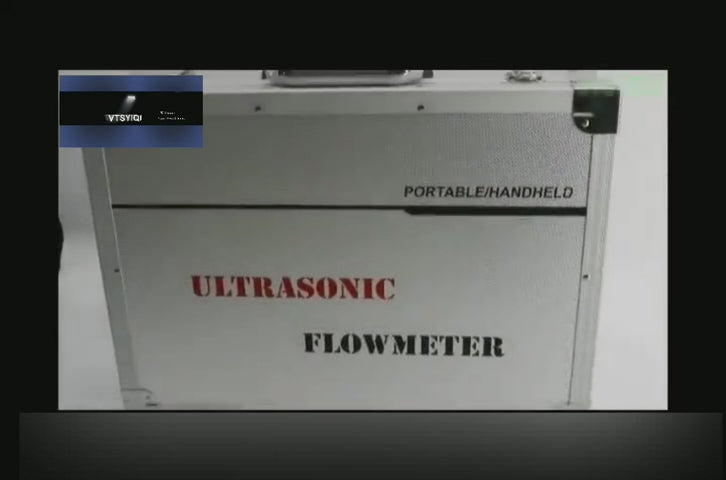

12. Carring box
