VTSYIQI Ultrasonic Hardness Tester Ultrasonic Hardness Meter Durometer Sclerometer with Force 50N 5kgf Probe Maximum Roughness Test Surface Ra<10um for Hardened Quenching Layer or Carburized Layer Analysis

VTSYIQI Ultrasonic Hardness Tester Ultrasonic Hardness Meter Durometer Sclerometer with Force 50N 5kgf Probe Maximum Roughness Test Surface Ra<10um for Hardened Quenching Layer or Carburized Layer Analysis

About this item

The ultrasonic hardness tester is using ultrasonic contact impedance method to compare and test patterns, this is an innovative design, of auto-calibration of probe, presents advantages of high precision, fast speed, easy operation, etc. The hardness measurement covers most ferrous metals, non-ferrous metals and for their alloys in industrial production.

It is applicable in hardness test of flange edges, root of gear groove, stamping parts, thin plates, for surface-hardened gear grooves and it's taper parts, as well as shafts, thin-walled pipes, turbines.etc.

Accord to the Standard GB/T 34205-2017, DIN50159-1 and ASTM -A1038

For materials with different elastic modulus. multi-point calibration function

Support hot-swap and self calibration: automatically + by manual identifies the probe

The material function include 3 new material settings to facilitate hardness testing of special materials

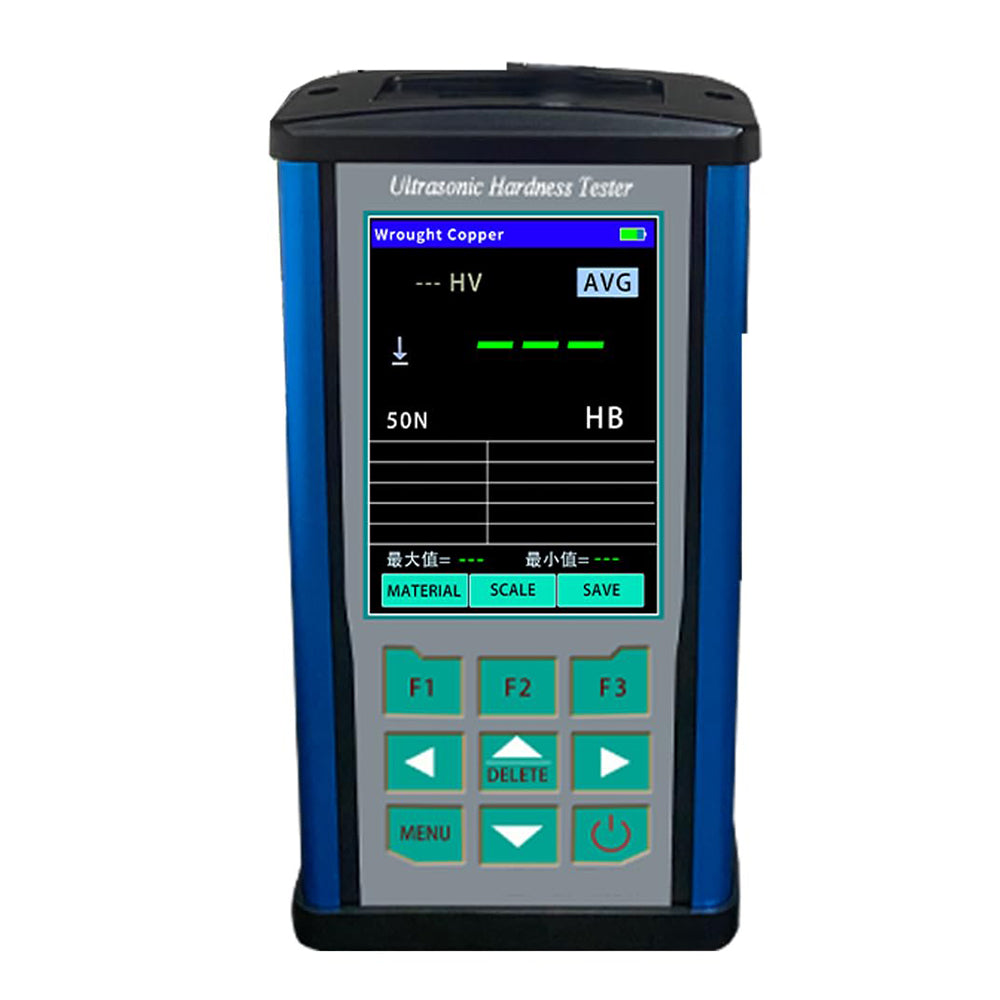

3.5-inch IPS (In-Plane Switching) full digital LCD display with wide viewing angle, and the back light can be adjusted arbitrarily. Display resolution 480×320.
