VTSYIQI Ultrasonic Thickness Gauge Meter Tester with 0.75 to 300mm 0.03inch to 11.8inch Resolution 0.1mm
VTSYIQI Ultrasonic Thickness Gauge Meter Tester with 0.75 to 300mm 0.03inch to 11.8inch Resolution 0.1mm
Couldn't load pickup availability
- ★ With EL backlight function, easy to use in dim light environment
- ★ The remaining battery indicating function can display the remaining battery power in real time
- ★ It has the function of probe zero calibration and two point calibration, and can automatically repair system errors
- ★ With automatic sleep, automatic shutdown and power-saving functions
- ★ Compact, portable, high reliability, suitable for harsh operating environment, anti vibration, impact and electromagnetic interference
Product Description

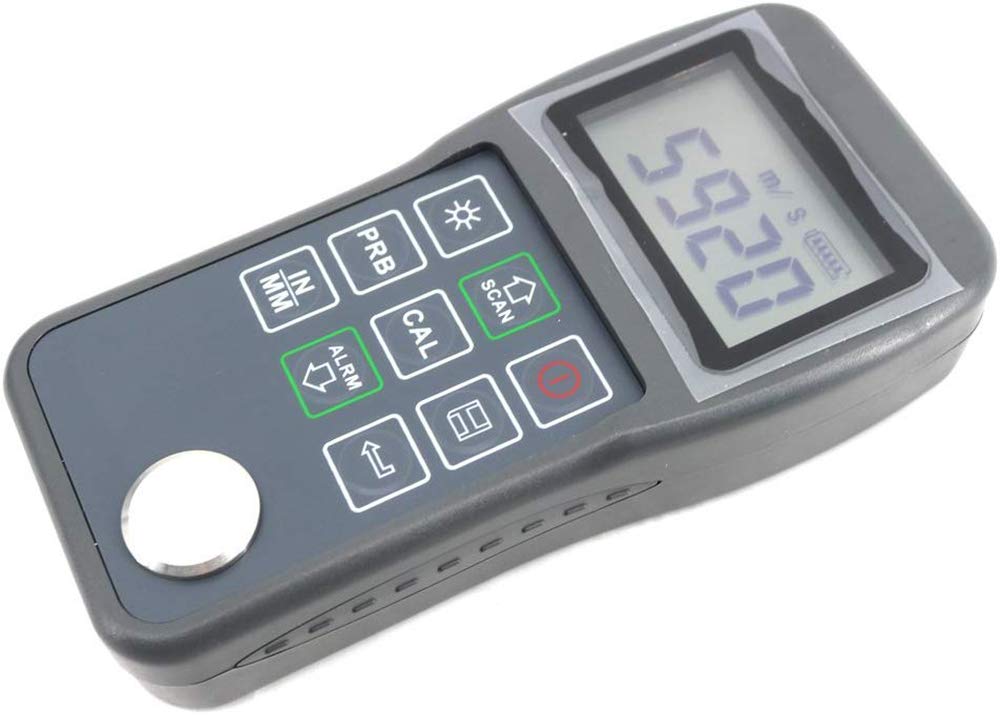

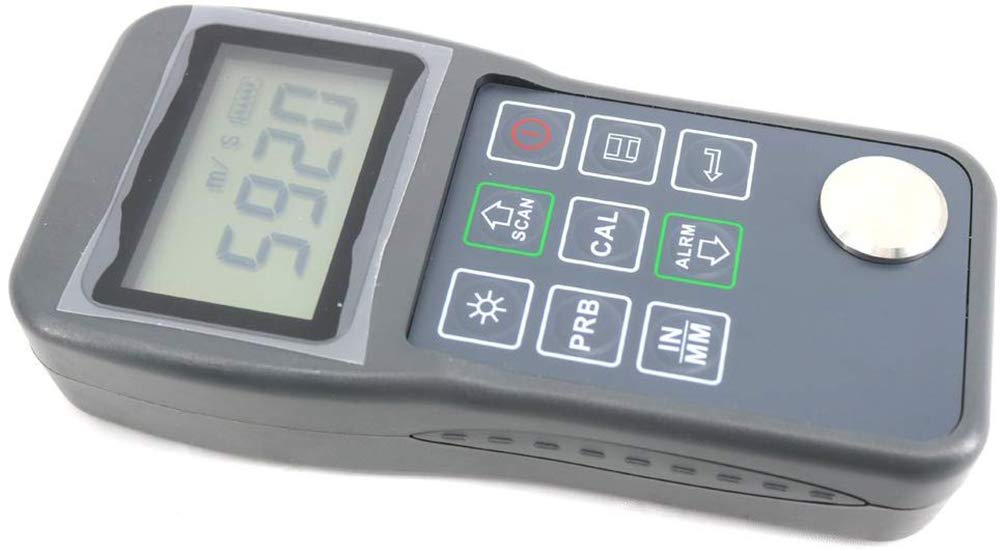

The model MT150 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.
Function & application
Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.
Technical Specifications
*Measuring range：0.75-300mm (Depends on probes)
*Resolution Accuracy：0.1mm
*Accuracy: ±（0.5%Thickness+0.04）mm,depends on probes
*Working time：100h (EL backlight off).
*Main unit weight：245g
*Dimensions：150×74×32 mm.

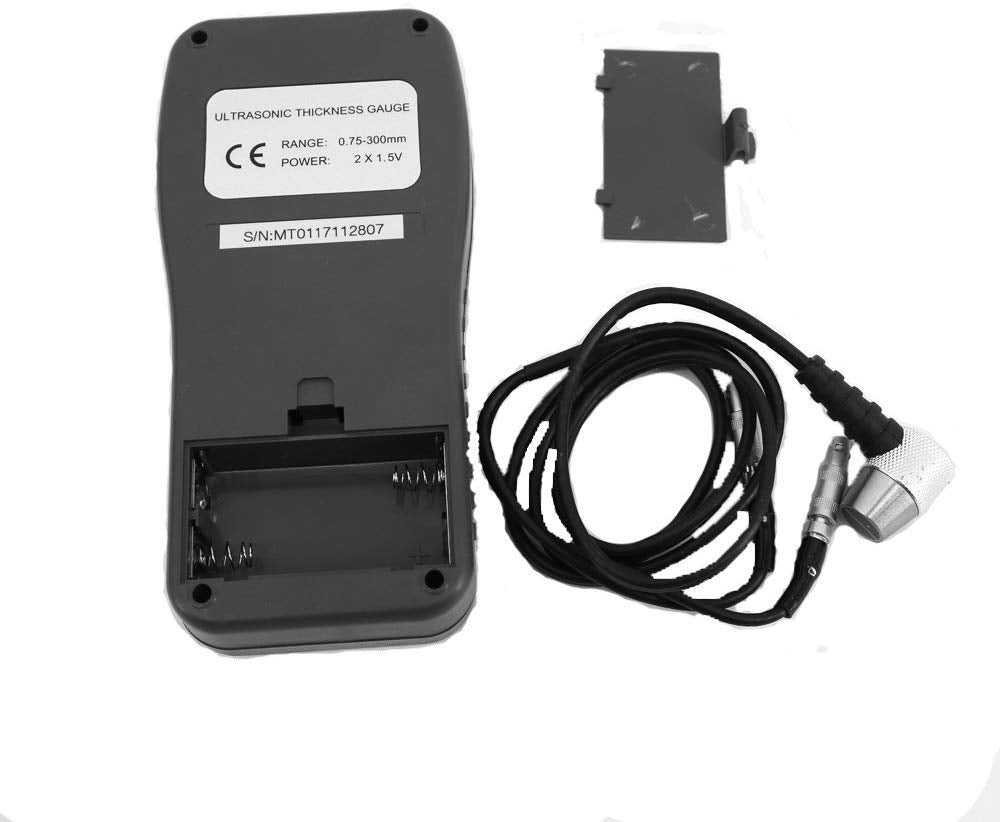

*Power supply: two AA size alkaline batteries（Battery not included in the package）
Working Conditions
*Operating Temperature: －20℃～＋50℃
*Storage Temperature：-30℃～＋70℃
*Relative Humidity ≤90％
*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

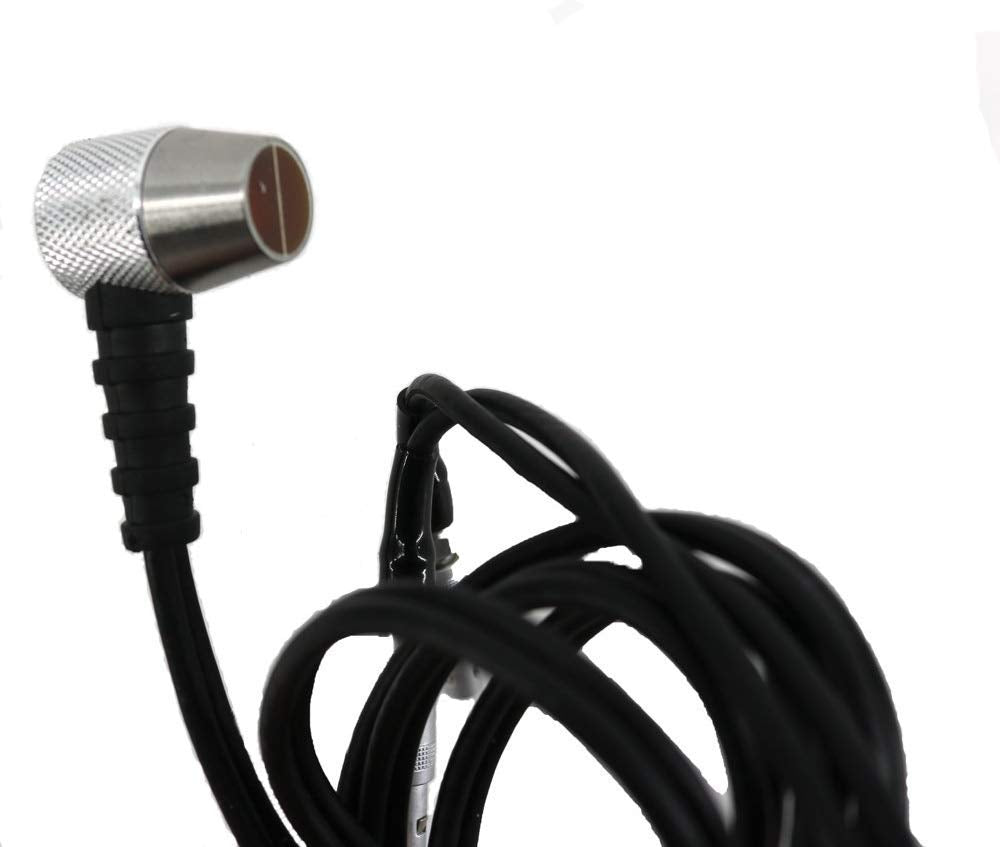

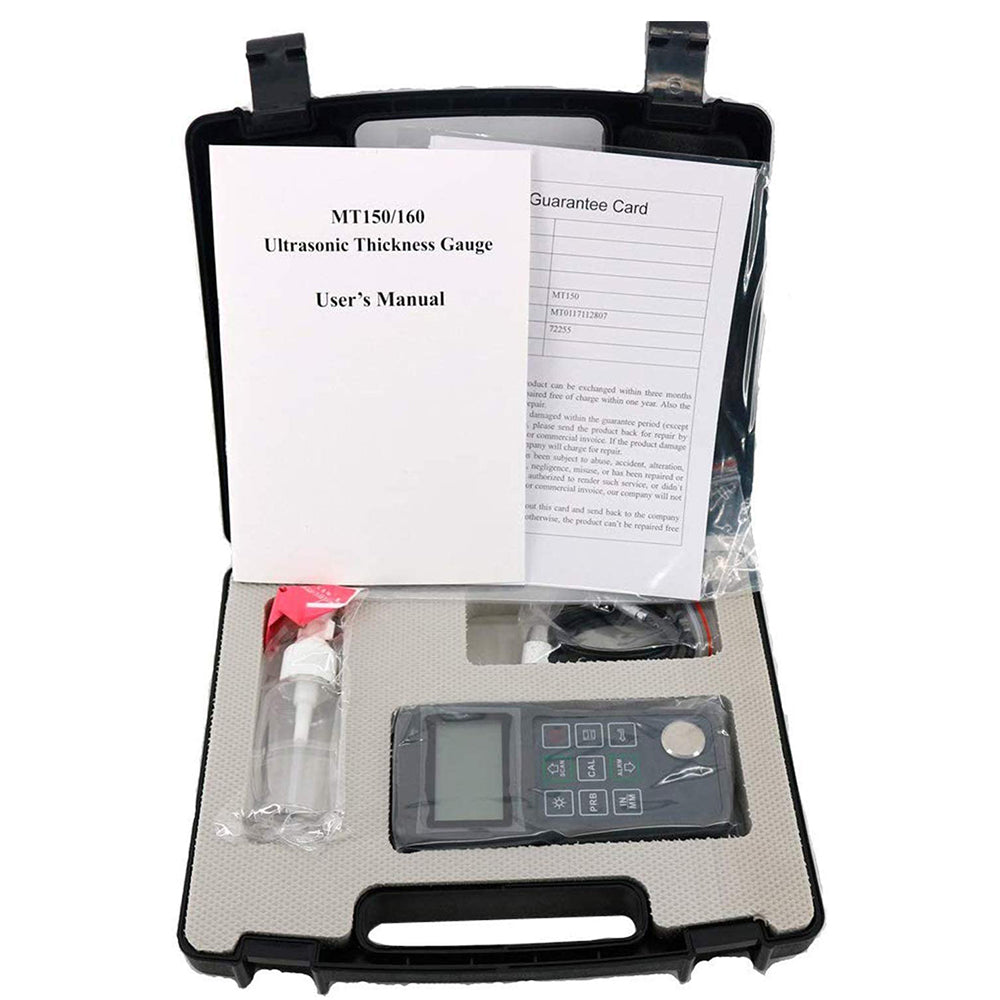

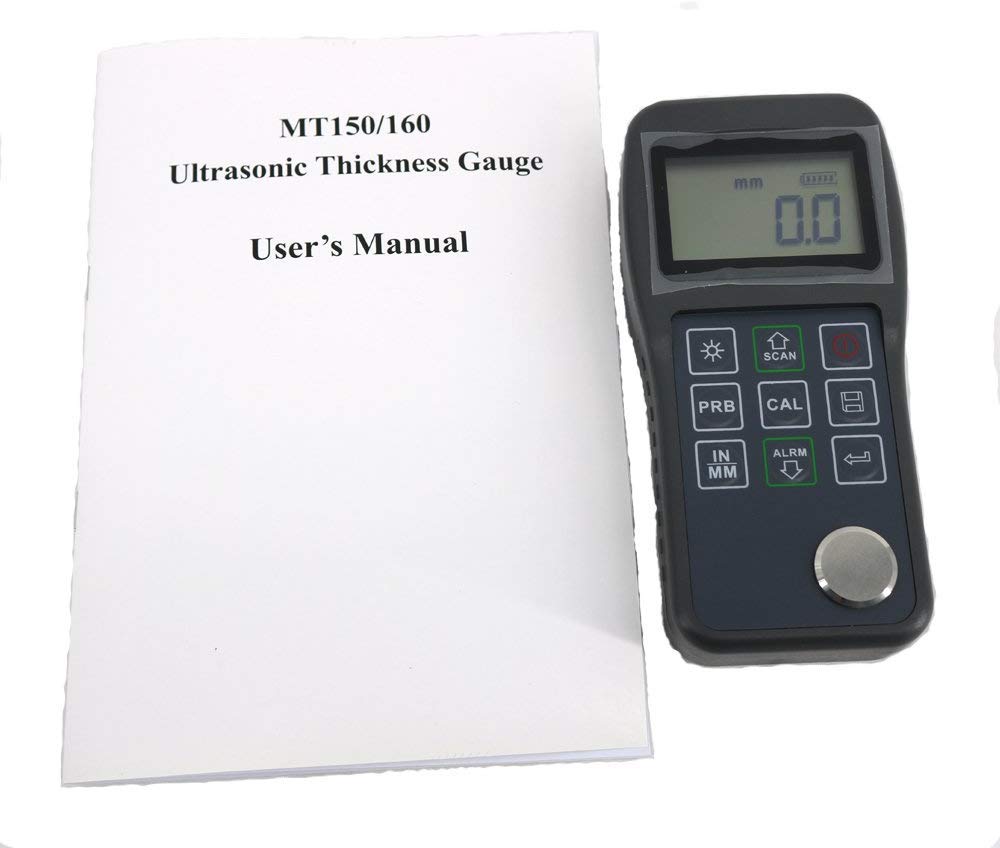

*Standard Accessories : Host, Standard ultrasonic thickness probe N05, ABS instrument case, Attached files
