VTSYIQI Ultrasonic Thickness Gauge Meter Through Paint Coatings Thickness Gauges with 0.65 to 600mm 0.025 to 23.62inch 3-30mm 0.118 to 1.181inch P-E and E-E Echo-Echo Mode for Steel Aluminum Copper

Feature

It has the function of probe zero calibration and two point calibration, and can correct the system error automatically
The remaining battery indicating function can display the remaining battery power in real time
With automatic sleep, automatic shutdown and power-saving functions
Two thickness testing modes, Pluse- Echo mode and Echo-Echo mode.
Compact, portable, high reliability, suitable for harsh operating environment, anti vibration, impact and electromagnetic interference

The model is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between puluse-echo mode (flow and pit detection), and echo-echo mode ( eliminate paint or coating thickness )

Function & application

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.

Technical Specifications

Measuring Range : 0.65-600mm( P-E), 3-30mm (E-E)

Working Frequency : (2.5-7）MHZ

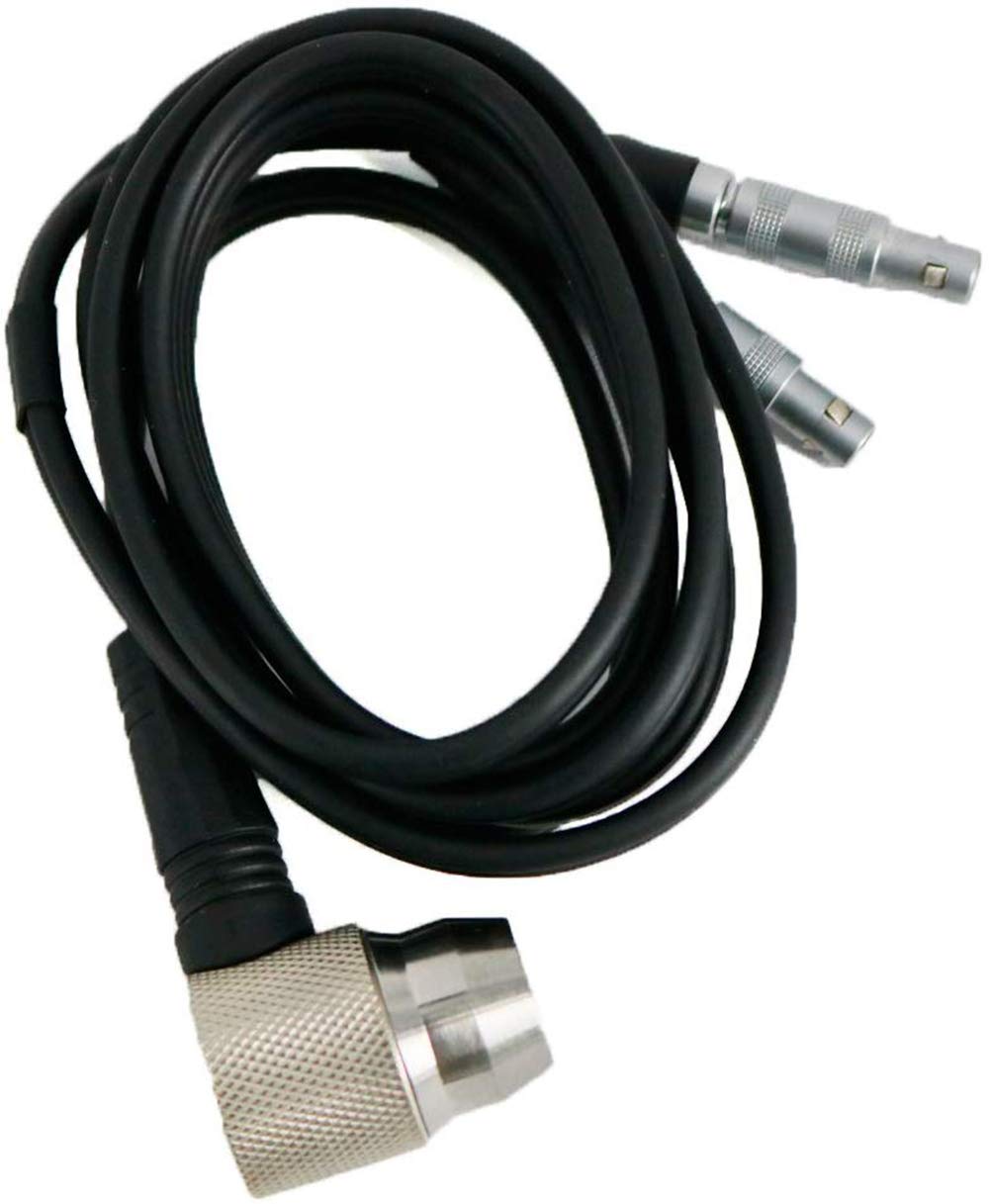

Probe Diameter : Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM

Min. Pipe Diameter : Φ15mm×2.0mm

Resolution : 0.1/0.01mm

Accuracy : ±（0.5%Thickness+0.01）mm

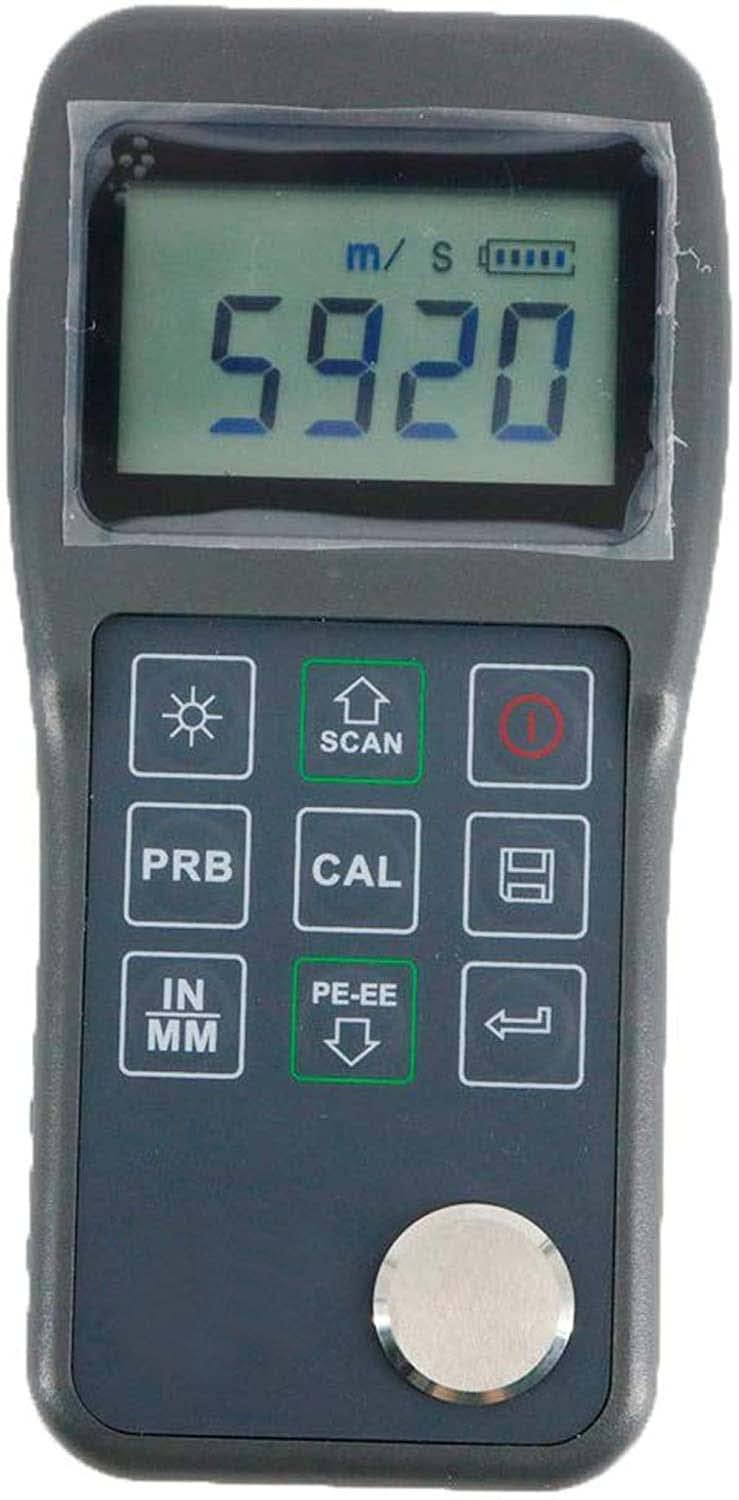

Display : 4.5 digits LCD with EL backlight

Single /Scan Mode : Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode

Probe Calibration : Zero Calibration, Two-Point Calibration

Velocity Range : 1000-9999m/s

Unit : Metric/Imperial unit selectable

Language : English

Memory : up to 20 files (up to 99 values for each file) of stored values

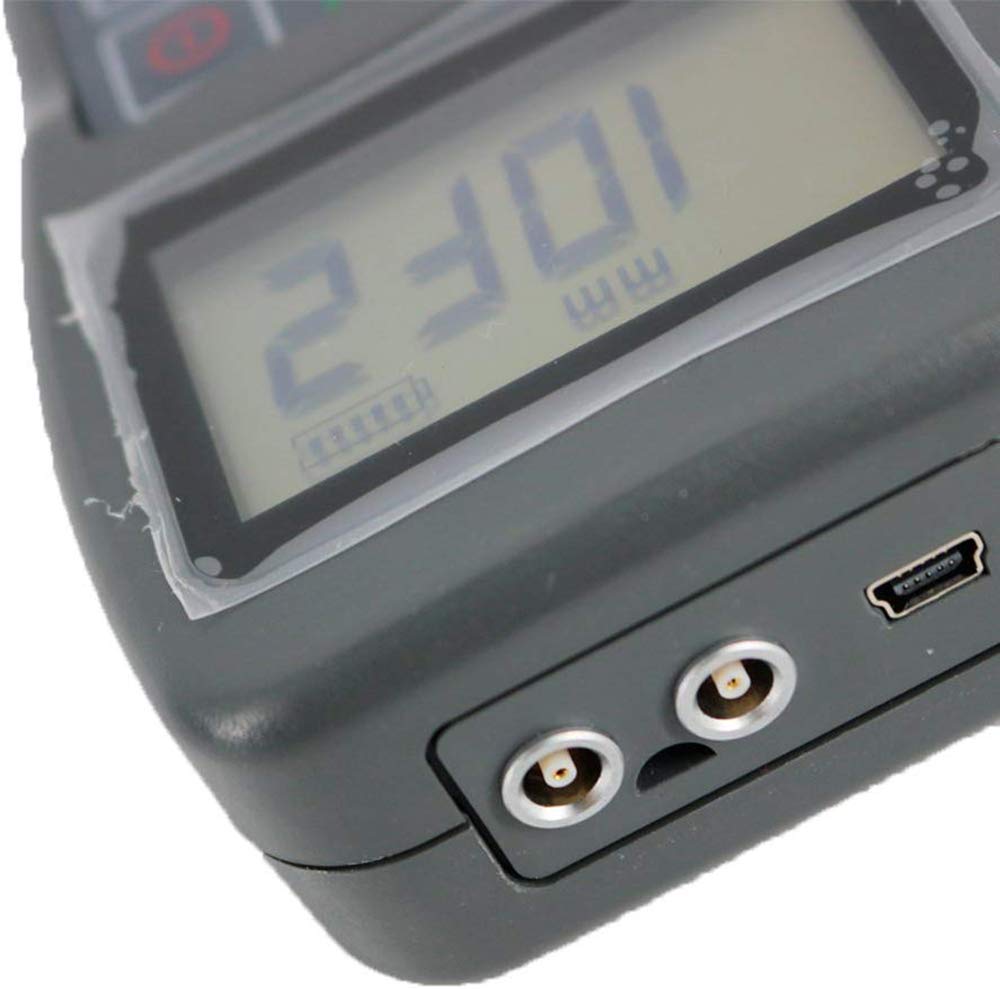

Communication Port : USB

Data Printing : Yes

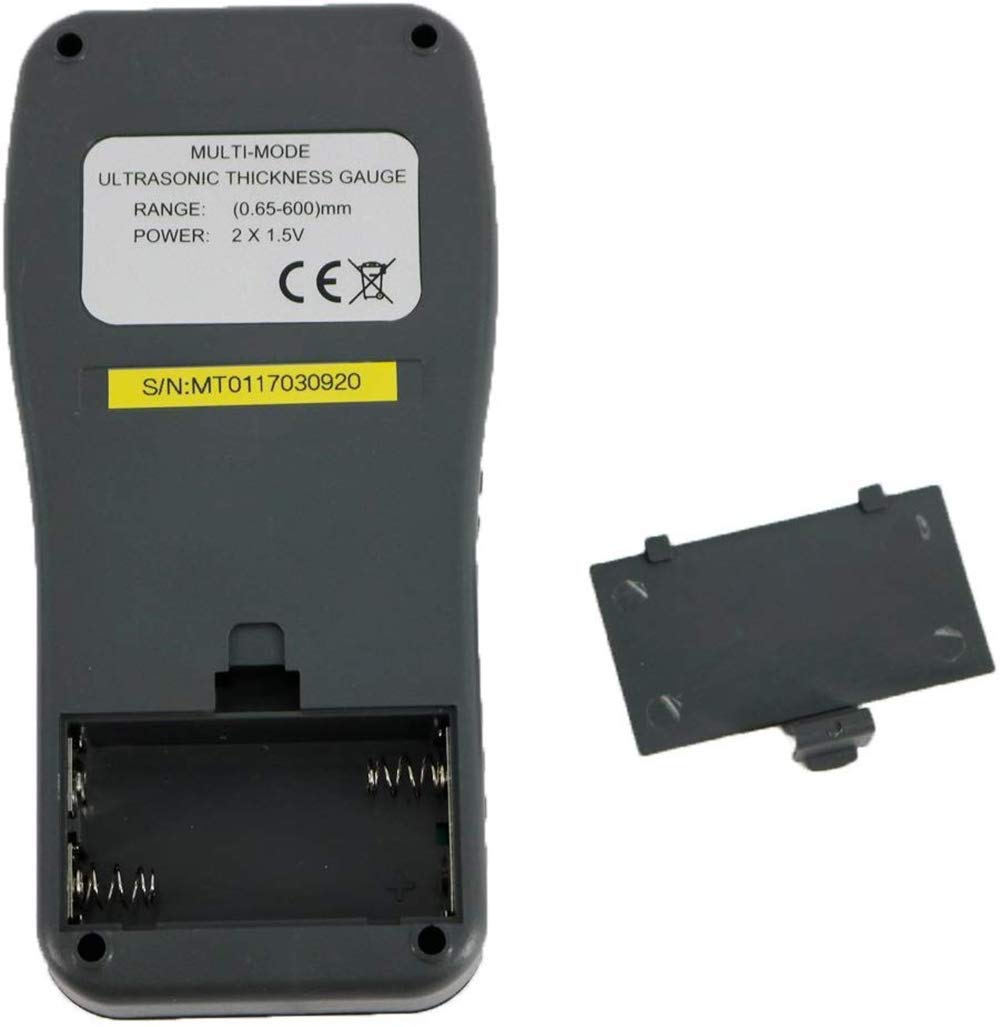

Power supply : Two “AA” size, 1.5 Volt alkaline batteries(NOT INCLUDED)

Lower Power Comsumption : Yes

Working Hours : 100h (EL backlight off).

Operating Temperature : -20℃-+60℃

Relative Huminity : ≤90％

Appearance : ABS Plastic

Outline : 150mm×74mm×32 mm

Gross Weight : 1.5 KG

PC Datapro Software : Yes

Speech Function : No

Working Conditions

*Operating Temperature: －20℃～＋50℃

*Storage Temperature：-30℃～＋70℃

*Relative Humidity ≤90％

*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

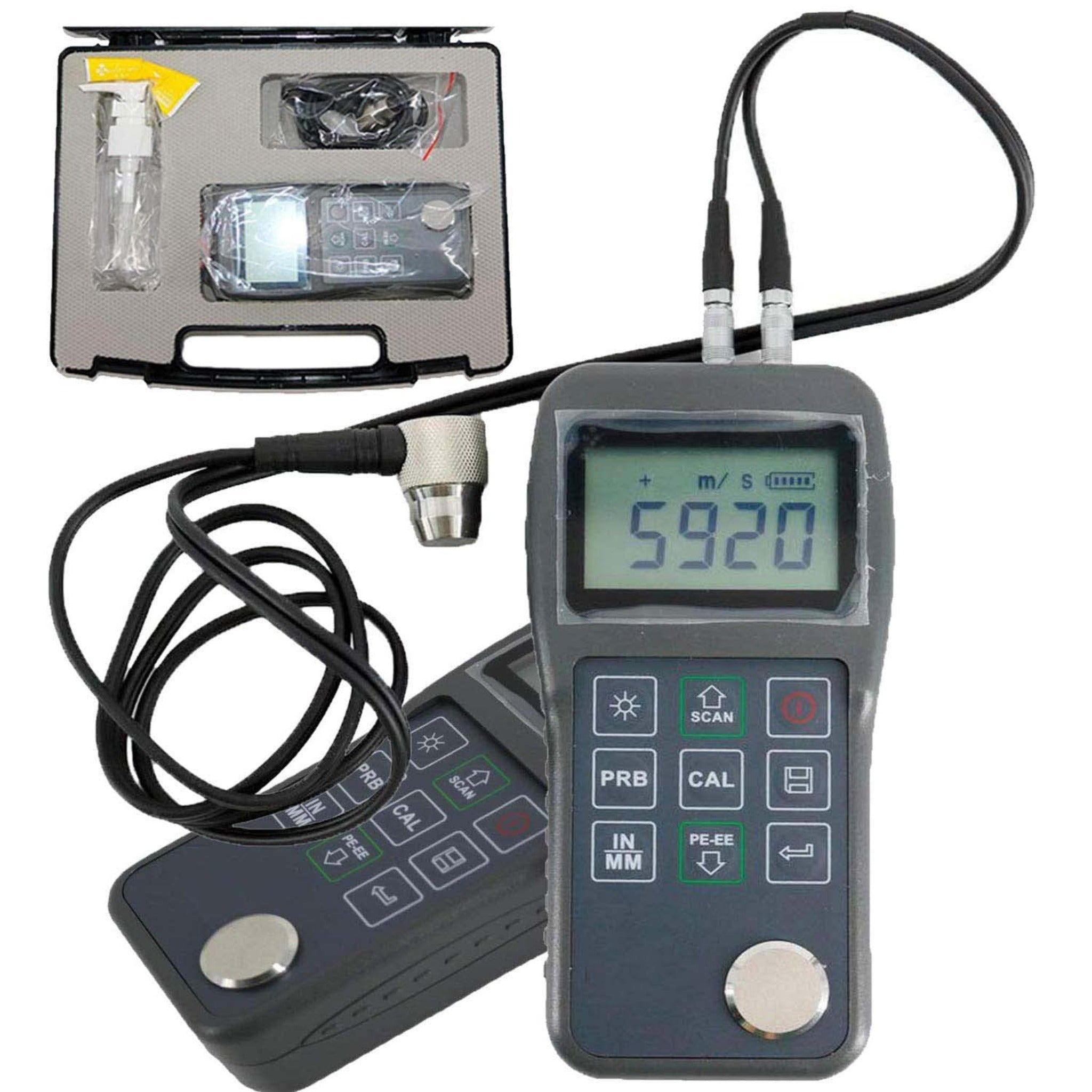

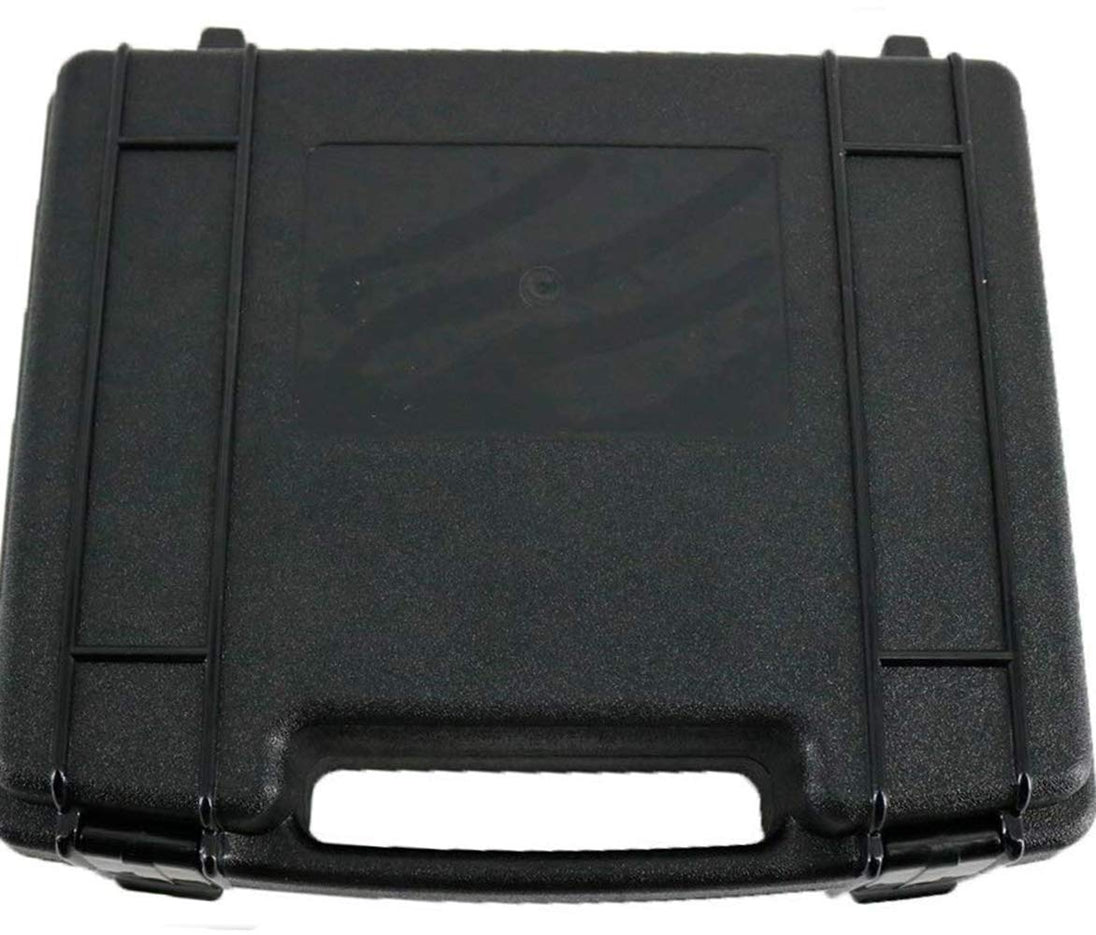

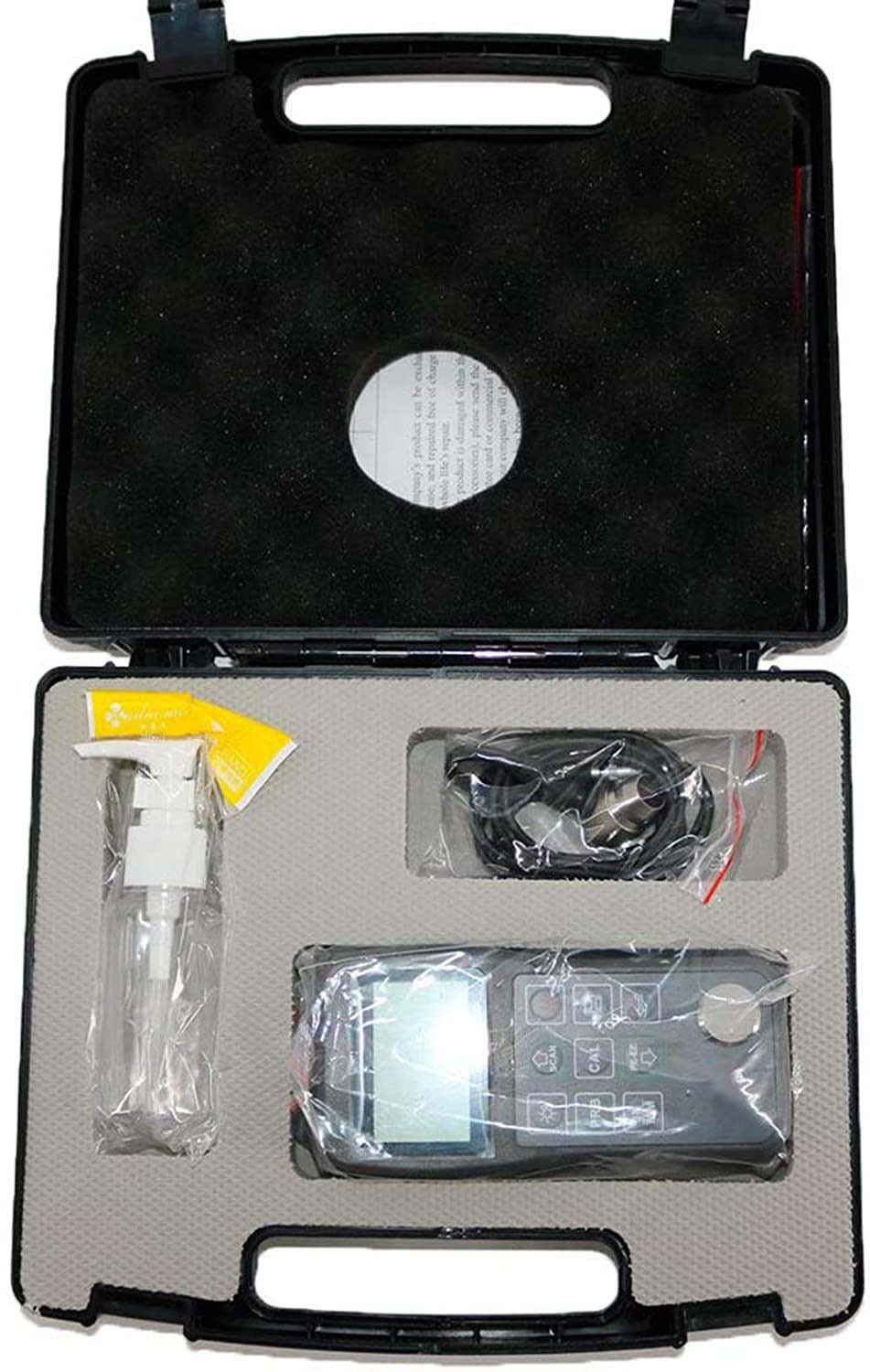

*Standard Accessories : Host, Narrow-pulse thickness probe P5EE, ABS instrument case, Attached files
